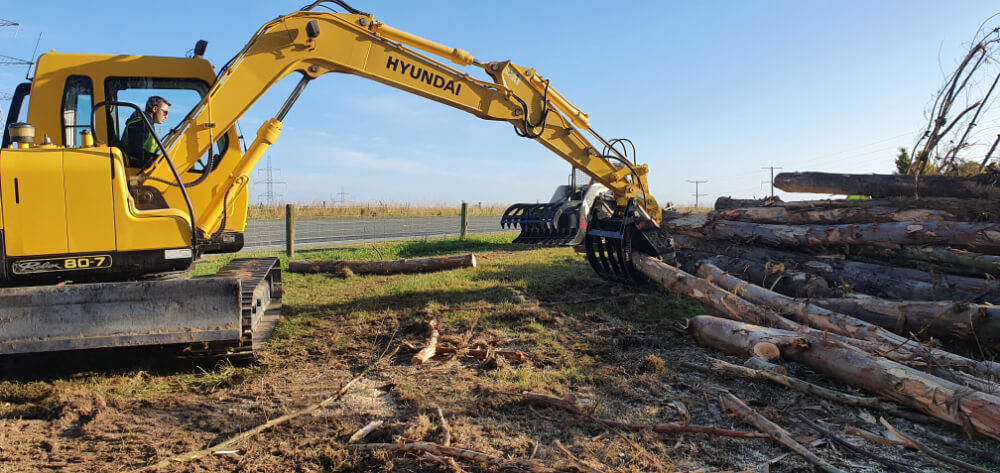

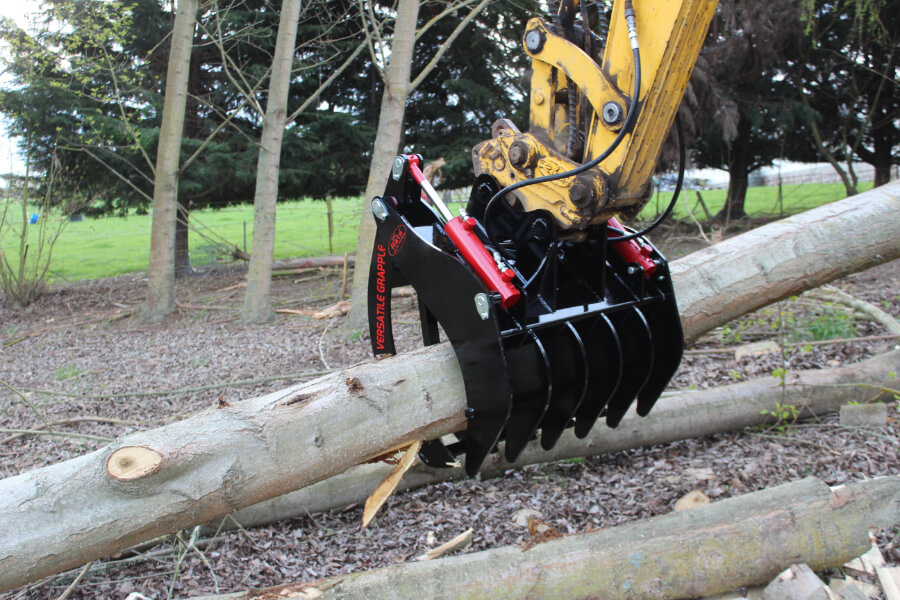

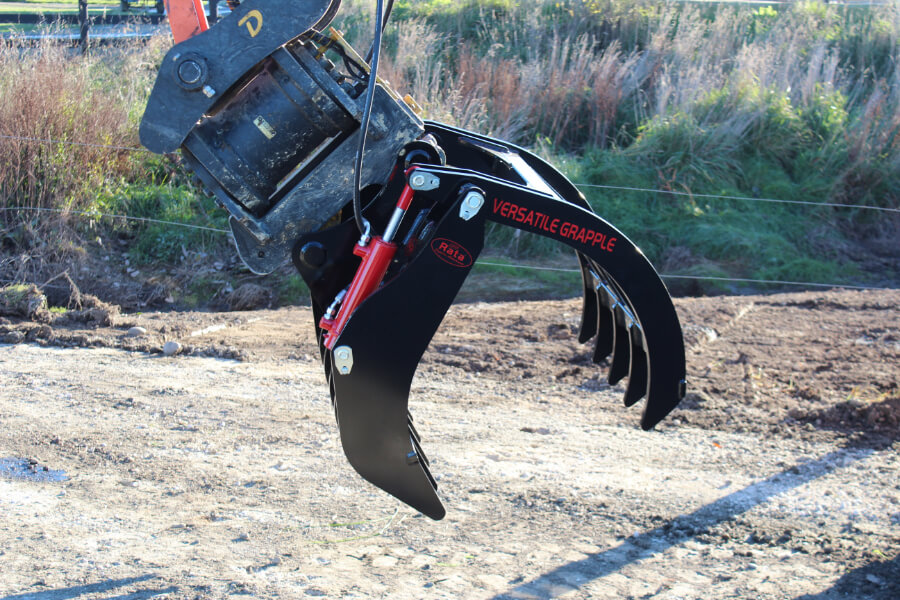

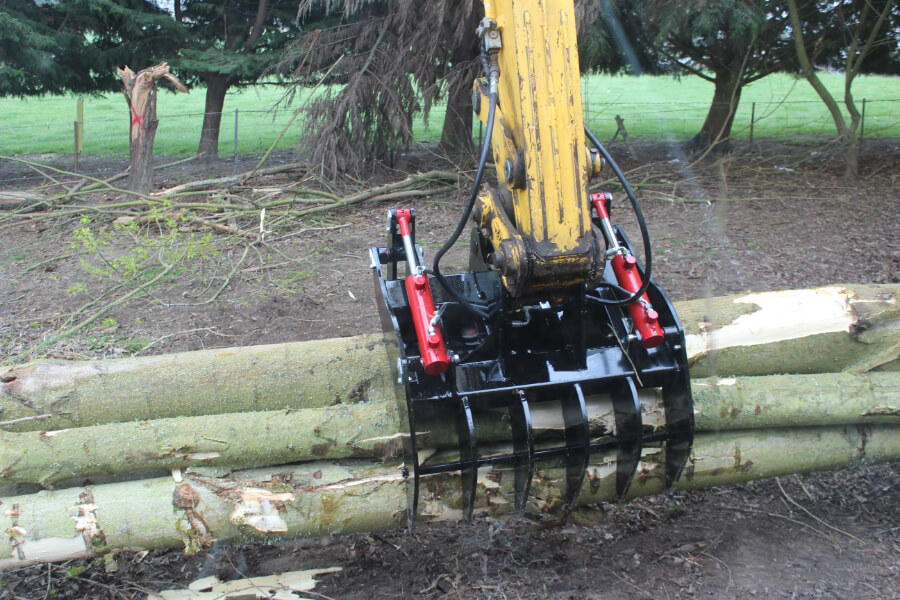

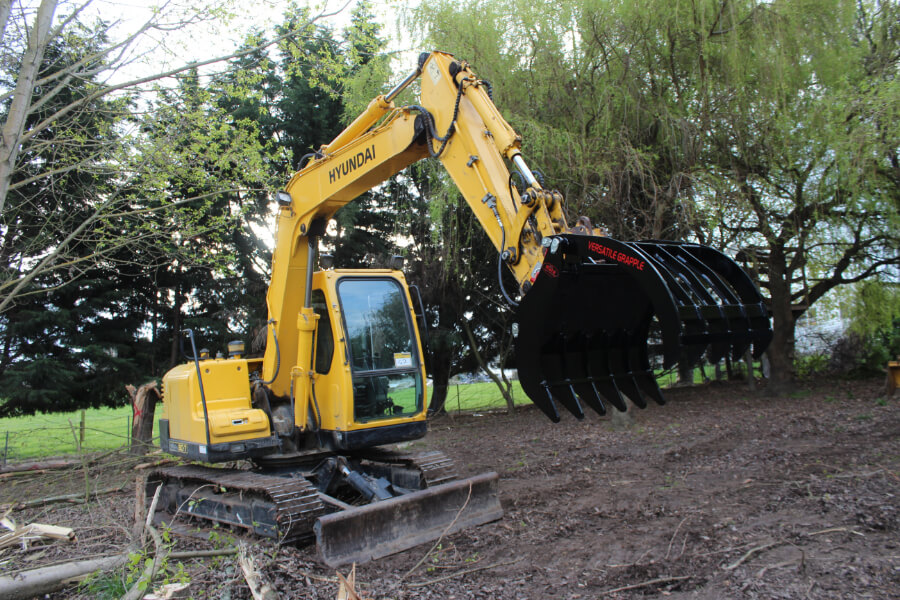

Excavator Grapple

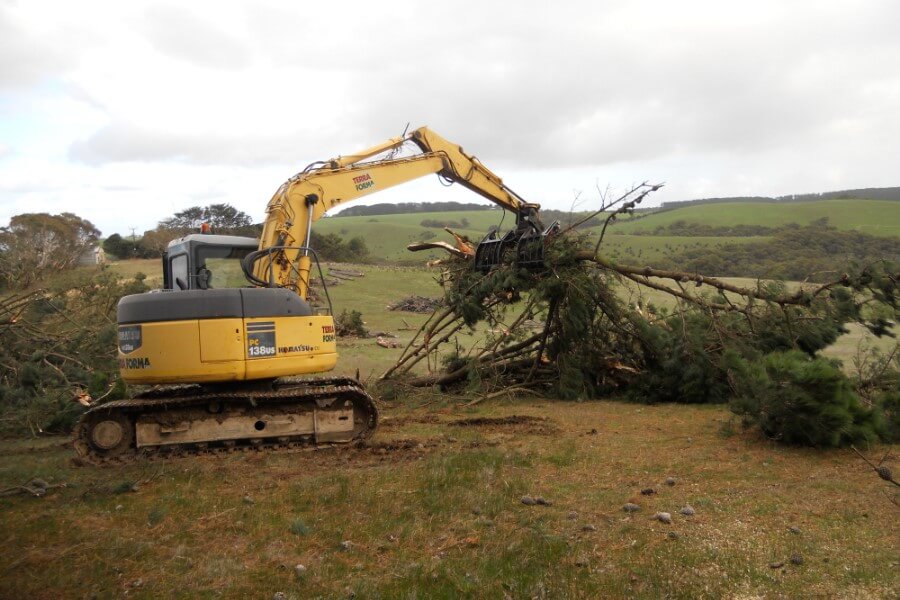

This attachment can be fitted to almost any excavator up to 13 ton. It must be the most useful tool you can think of because of due to the number of applications & tasks it can be used for, these include: rocks, logs, tree removal, hay bales, root rake, prunings, rubbish and much more.

The exceptional clamping force and 20mm super high strength tines make this grapple a true multi tasker. Interlocking tines ensure excellent grip & clamping force.

Product Gallery

Download our brochure

Get A Quote

Specifications

Model (Code)	Description	Width (m)	Maximum Excavator Weight (ton)	Grapple Weight (kg)
VG180H	1.8m Heavy Duty Versatile Grapple - Excavator	1.8	13	600
VG090H	0.9m Heavy Duty Versatile Grapple - Excavator	0.9	13	400

Features & Benefits

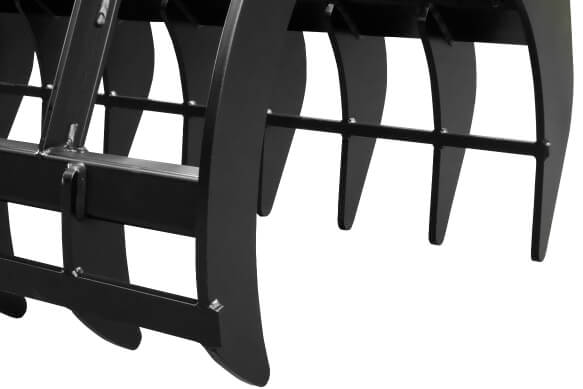

DSCF8273

1 High Tensile & Braced Tines

Versatile Grapple tines are made from 16mm 400 grade high tensile steel for maximum strength and durability, the tines are also braced to ensure maximum rigidity and prevent any possible splaying. Tines are 20mm thick on Excavator models.

Interlocking Tines

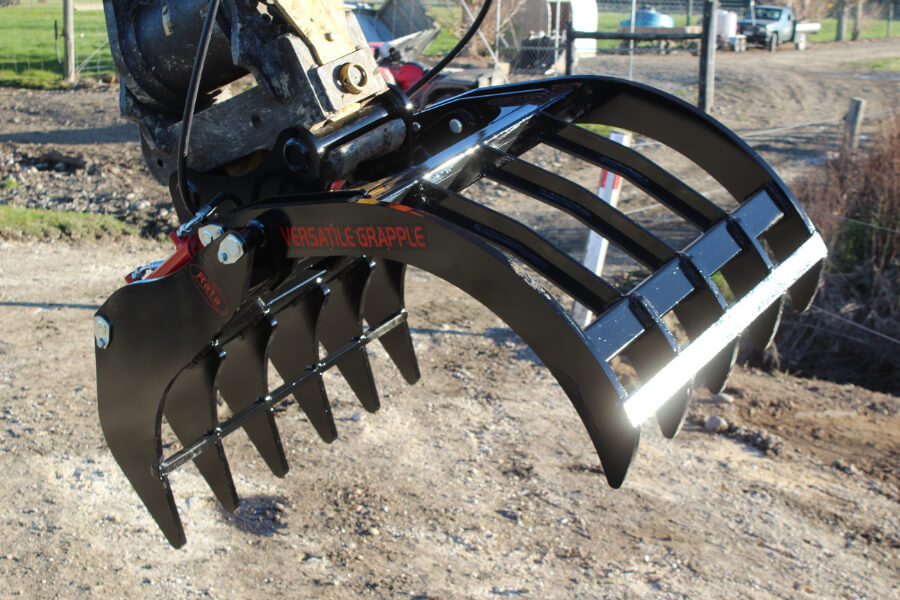

2 Interlocking Tines

Interlocking tines of the Versatile Grapple ensure excellent grip on any product or item that's being handled, this makes handling the likes of hedge trimmings and branches much easier as the product is fully secured.

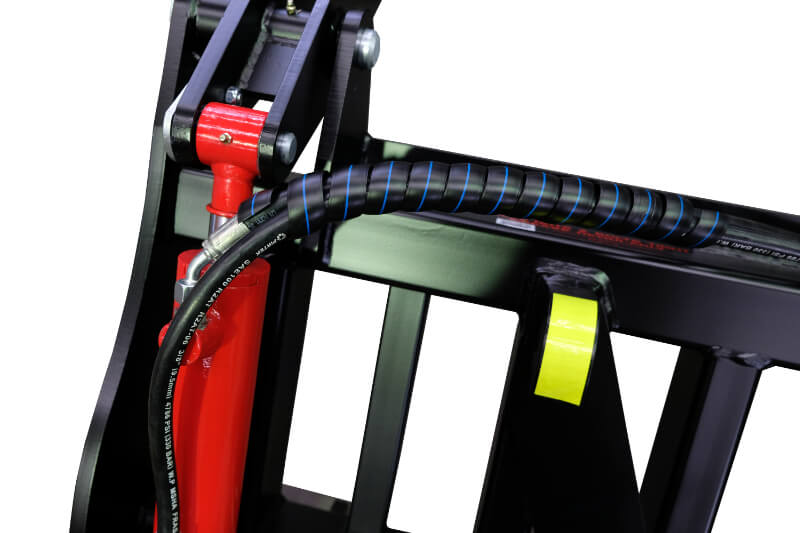

DSCF8287 v2

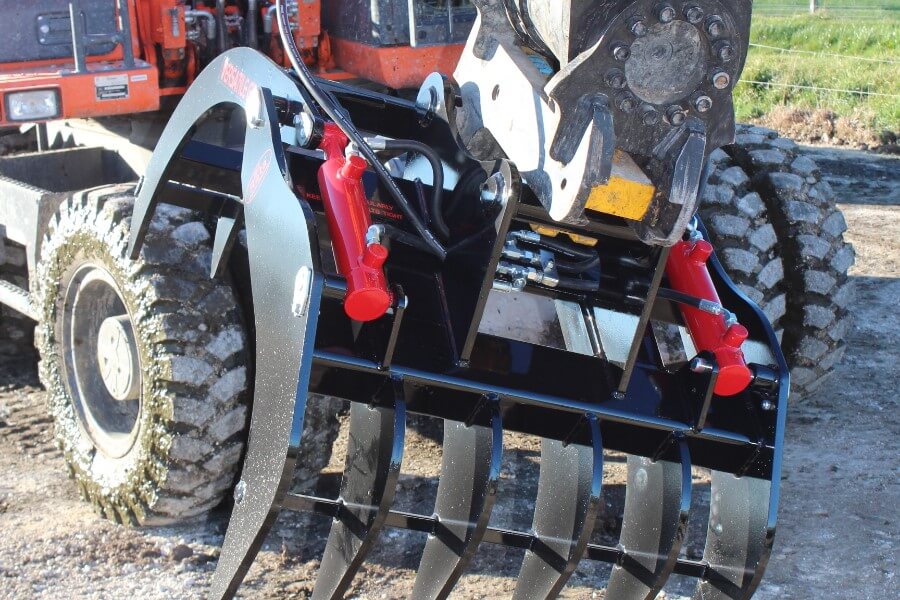

3 Hydraulic Protection

Rata Versatile Grapples feature powerful hydraulic rams and high quality hosing, the rams are located to the rear of the grapple away from the working area and the hoses are located out of harms way to ensure full protection.

Heavy Pins & Bushes

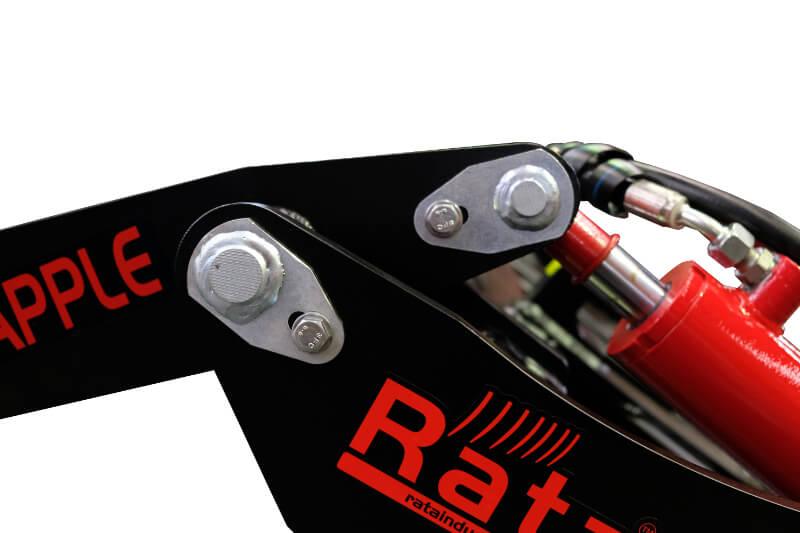

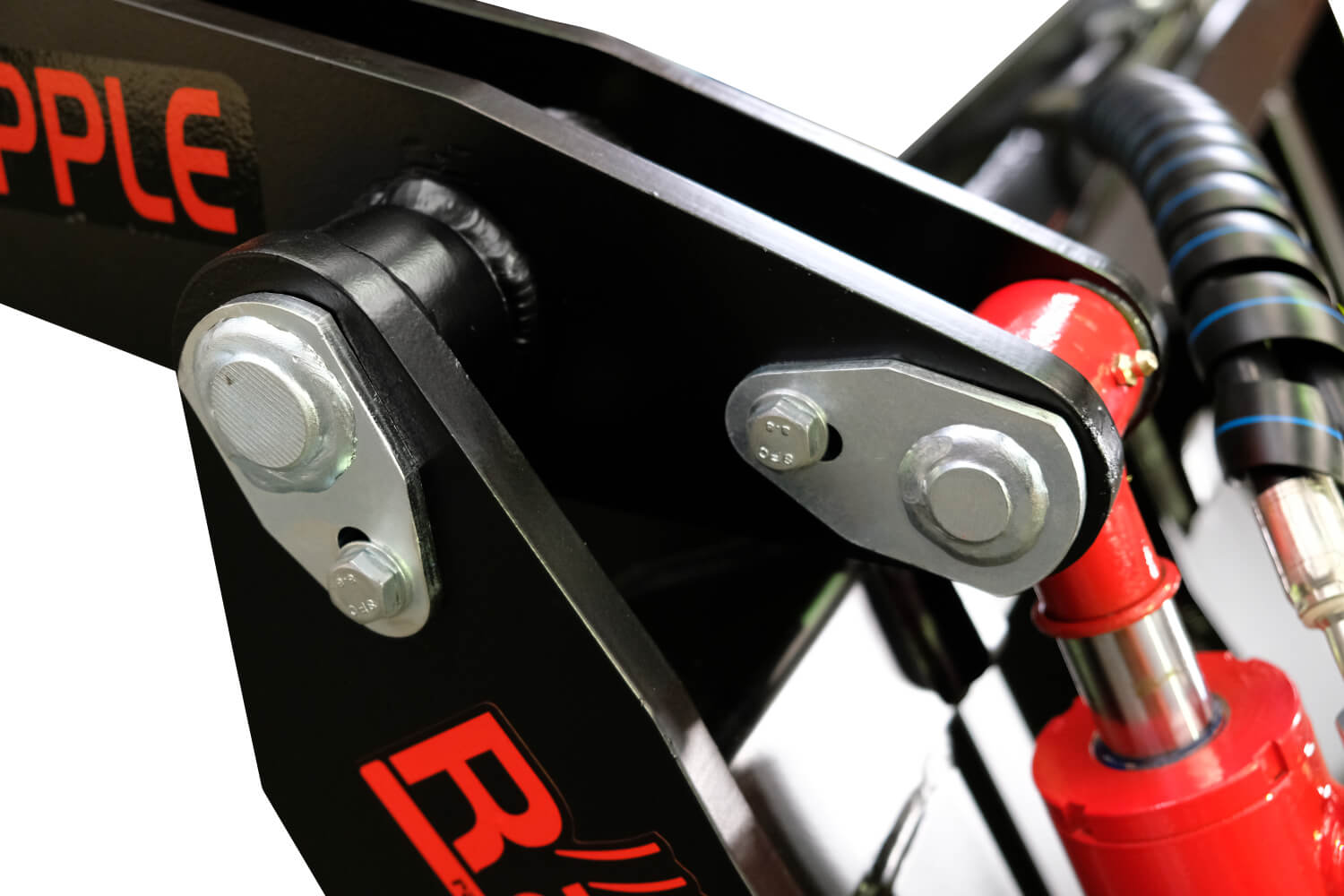

4 Heavy Pins & Bushes

The Rata Versatile Grapples features heavy duty pins & bushes throughout the build. All pins are high tensile and greasable with the main pivots being 35mm diameter and supported by extra bushes.

DSCF8284 v2

5 Excellent Pin Geometry

The pin geometry of the Versatile Grapple ensures a large arc of movement to close as tight as possible while also being able to open to large widths. This geometry also ensures full clamping force is available throughout the arc of movement.

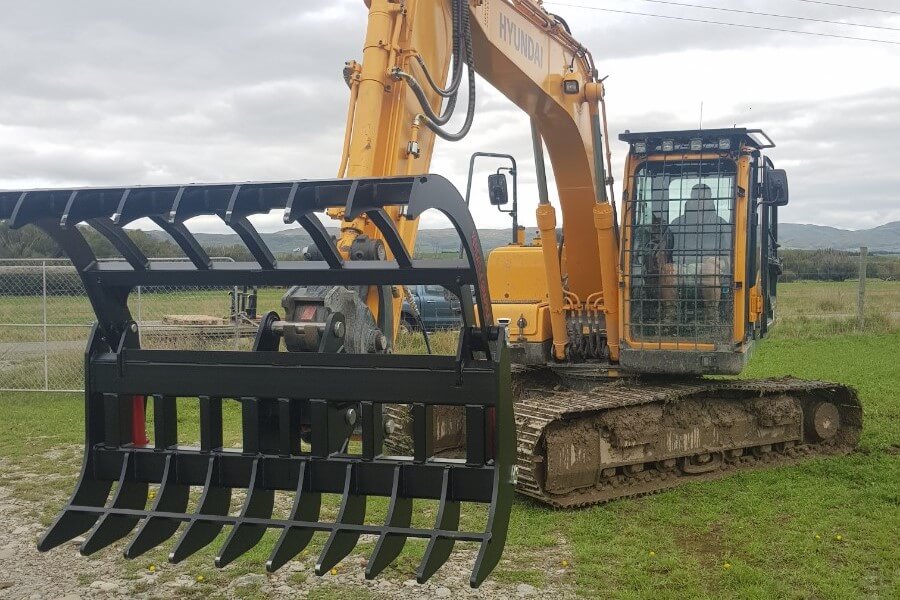

Excavator model Versatile Grapple

6 Excavator Models Available

Excavator models are available, these feature larger pivot points and 20mm thick tines along with thicker RHS back frames. Digger models are available from 0.9m to 1.8m wide. These models suit excavators from 4.5T to 20T

Dealer Locator

Versatile Grapples are sold throughout our nationwide network of dealers, find your nearest one today.
