Vogal SX045 Spare Parts Breakdown

All prices NZD RRP, +GST and freight

Also known as Vogal Mag 45, Mag 30

Exploded Parts Diagram

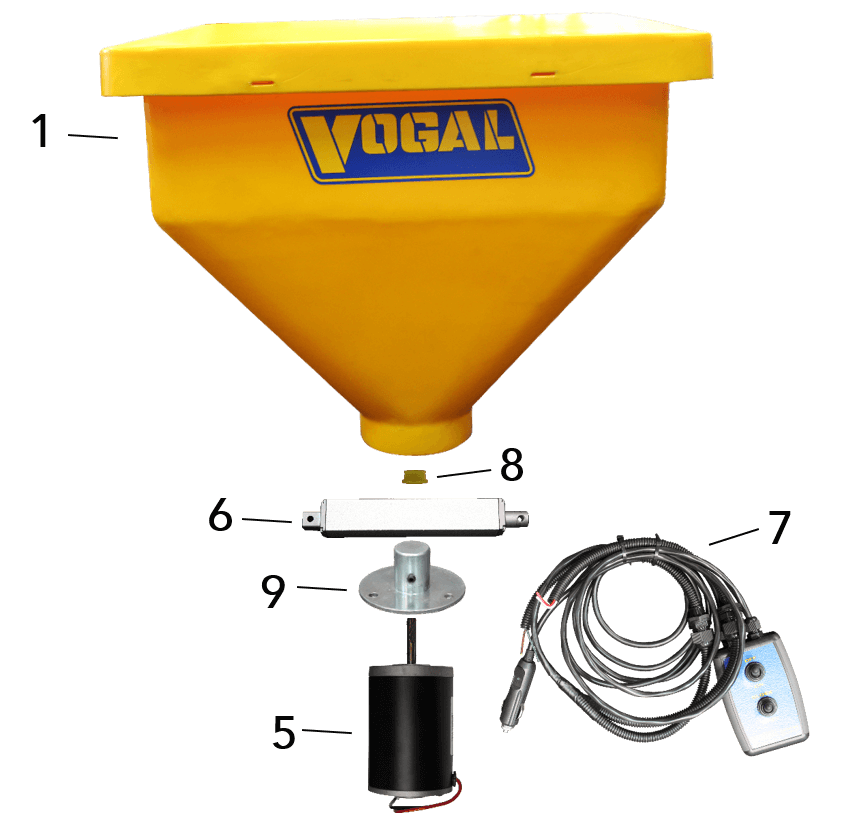

SX045 Exploded Diagram



Maintenance Specifications

No maintenance required

Table of Parts

For a larger image, click on the picture

No. Photo Code Description Price Notes
1 1795 1795 Hopper and Lid Yellow $200.00 Hoppers and lids also available separately
2 2715 2715 Serial Number Plate $6.30

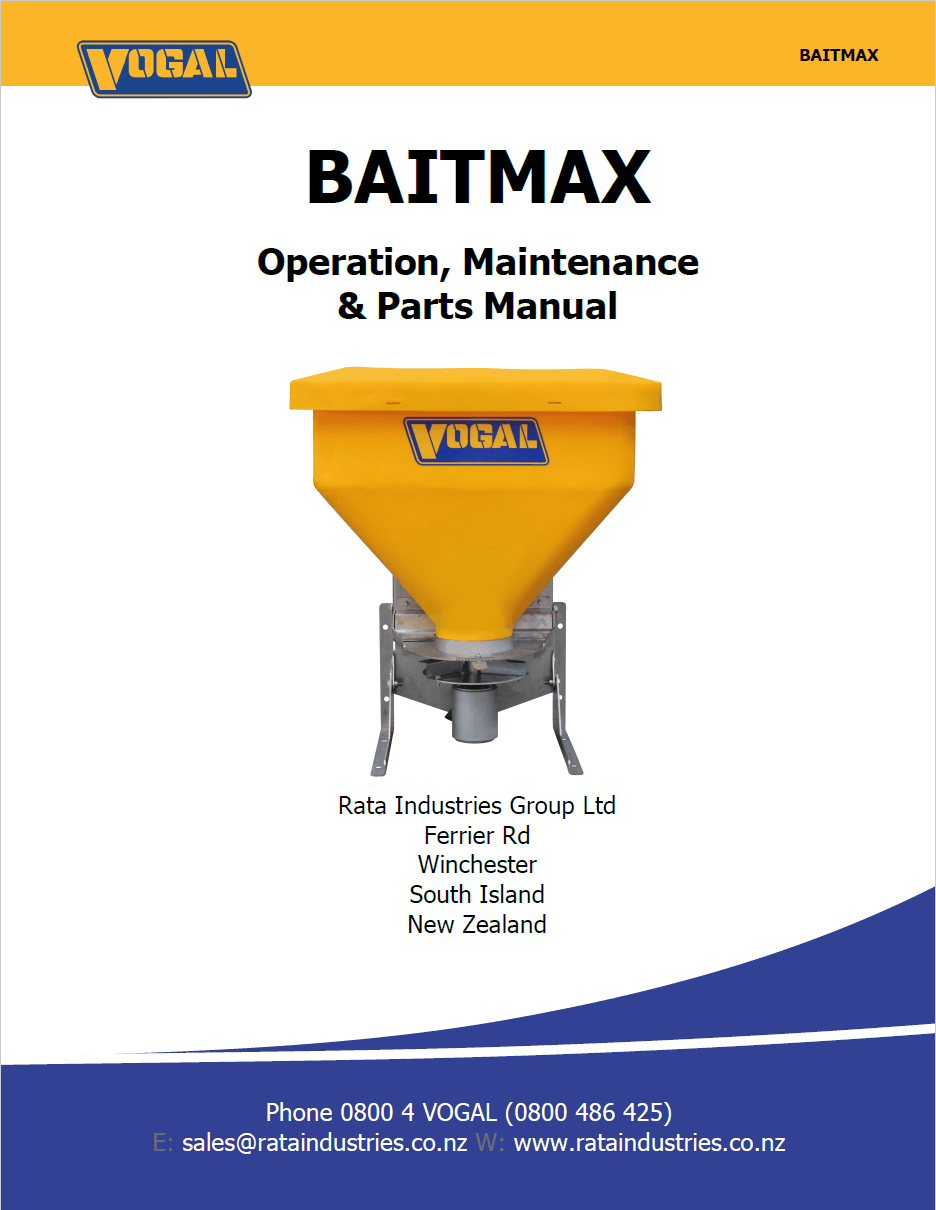

3 M BM45 M BM45 Baitmax User Manual $5.00
4 RATA30 RATA30 Vogal Warranty Sticker $2.60
5 5713 5713 12V Motor Baitmax $120.00 If the motor has a PVC sleeve around it, its the old motor and will need the motor mounts as well.

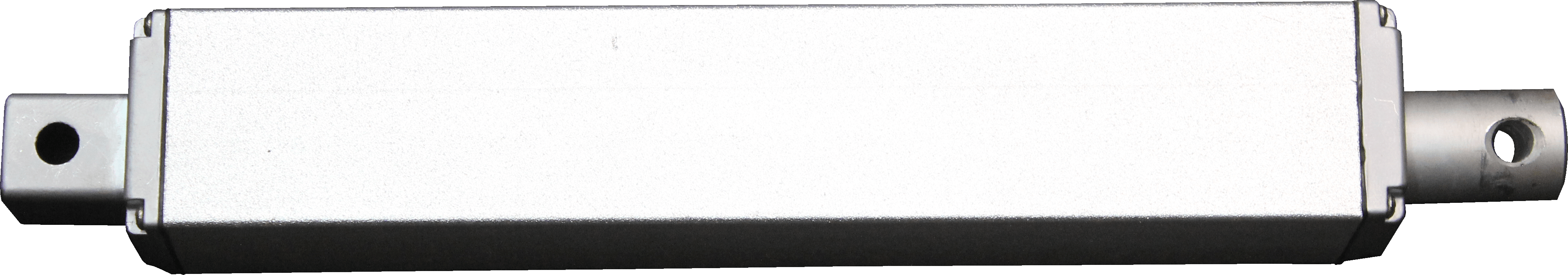

6 5714 5714 12V Actuator Baitmax $365.00

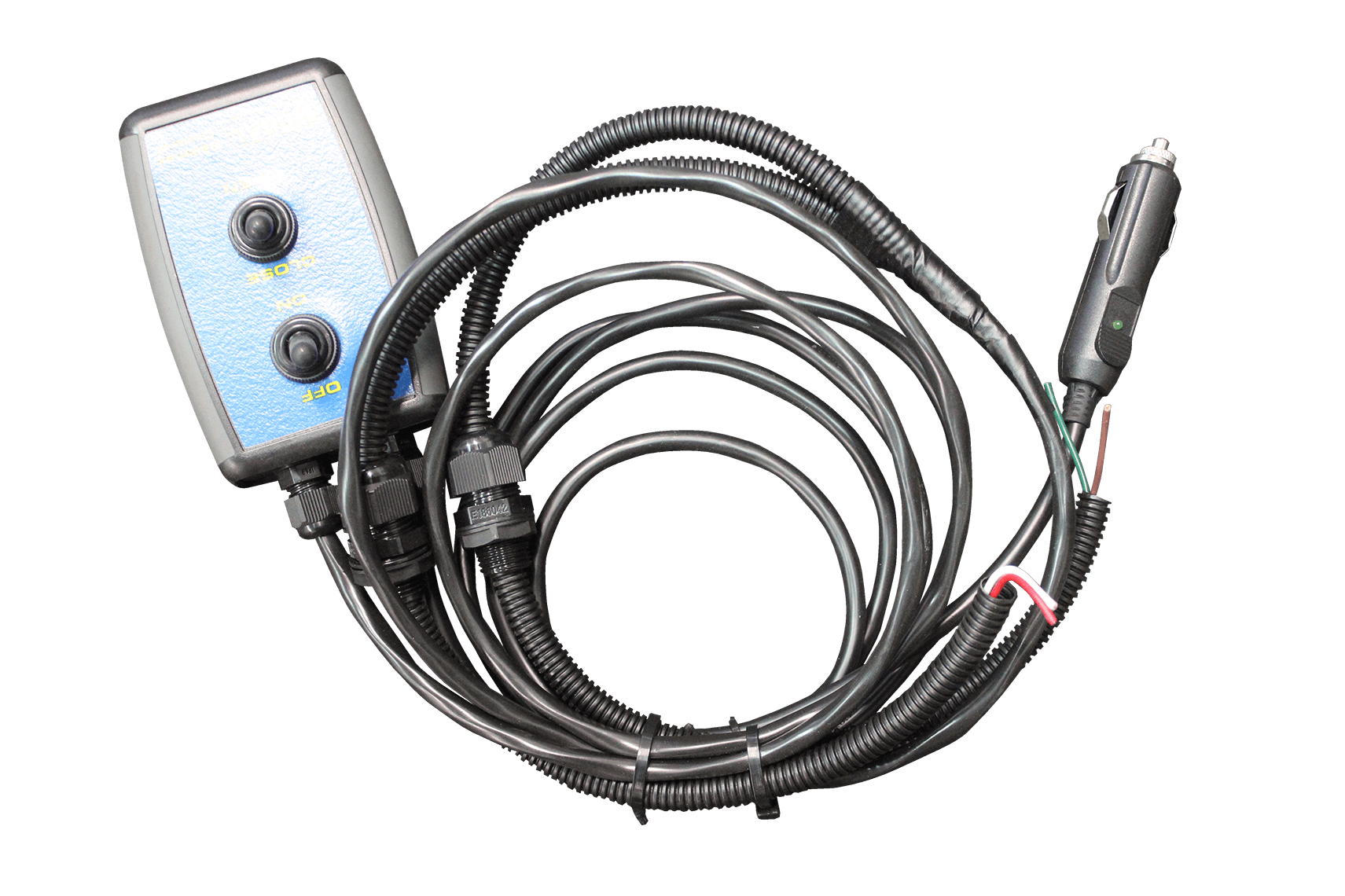

7 5716 5716 12V Controller Baitmax $520.00

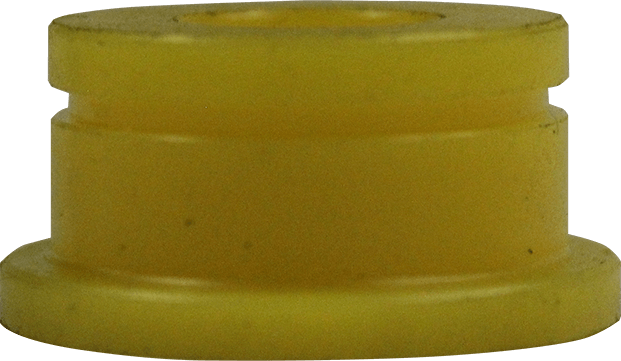

8 5701 33 5740 Agitator Bush Baitmax $35.00

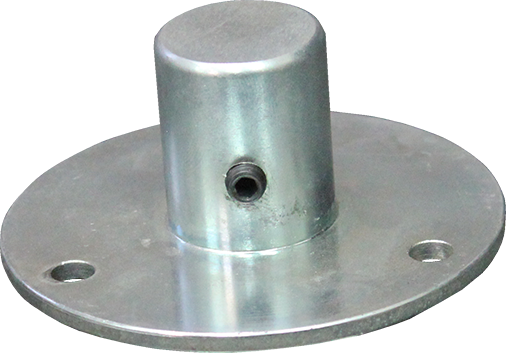

9 5741 5741 Spinner Disc Mount Baitmax $160.00
