Compact Power Claw™ Spare Parts Breakdown

    Maintenance Specifications

    Keep nuts & bolts tight at all time. Grease Regularly.

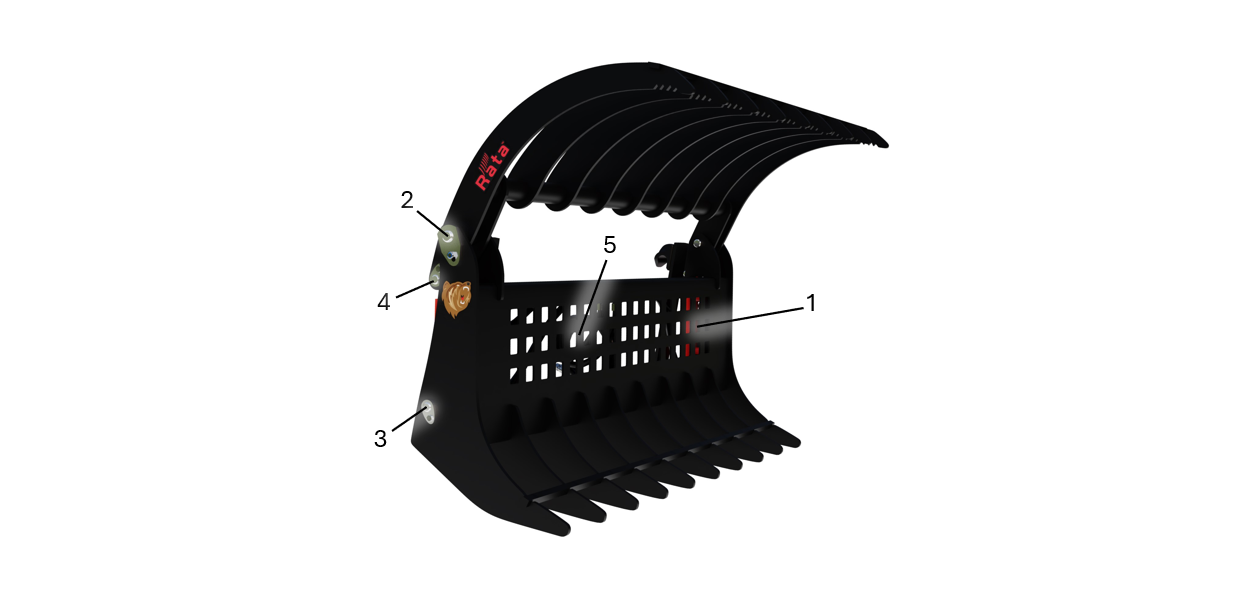

    Exploded Parts Diagram/s

    VGC135

    No. Code Description Notes
    1 23370 Compact Power Claw Ram 2x required
    2

    P25-125
    1" Machine Pins 125mm Long

    2x Required. Pivot point. Used for centre pivot on larger Power Claws also
    3 P19-100 Machine Pin for Compact Power Claw 100mm 2x required. Base of rams
    4 P19-75 Machine Pin for Compact Power Claw 75mm
    		 2x required. Spear end of rams
    5
    Hoses and fitting.
    		 Please enquire
