Maintenance Specifications

Keep nuts & bolts tight at all time. Grease Regularly.

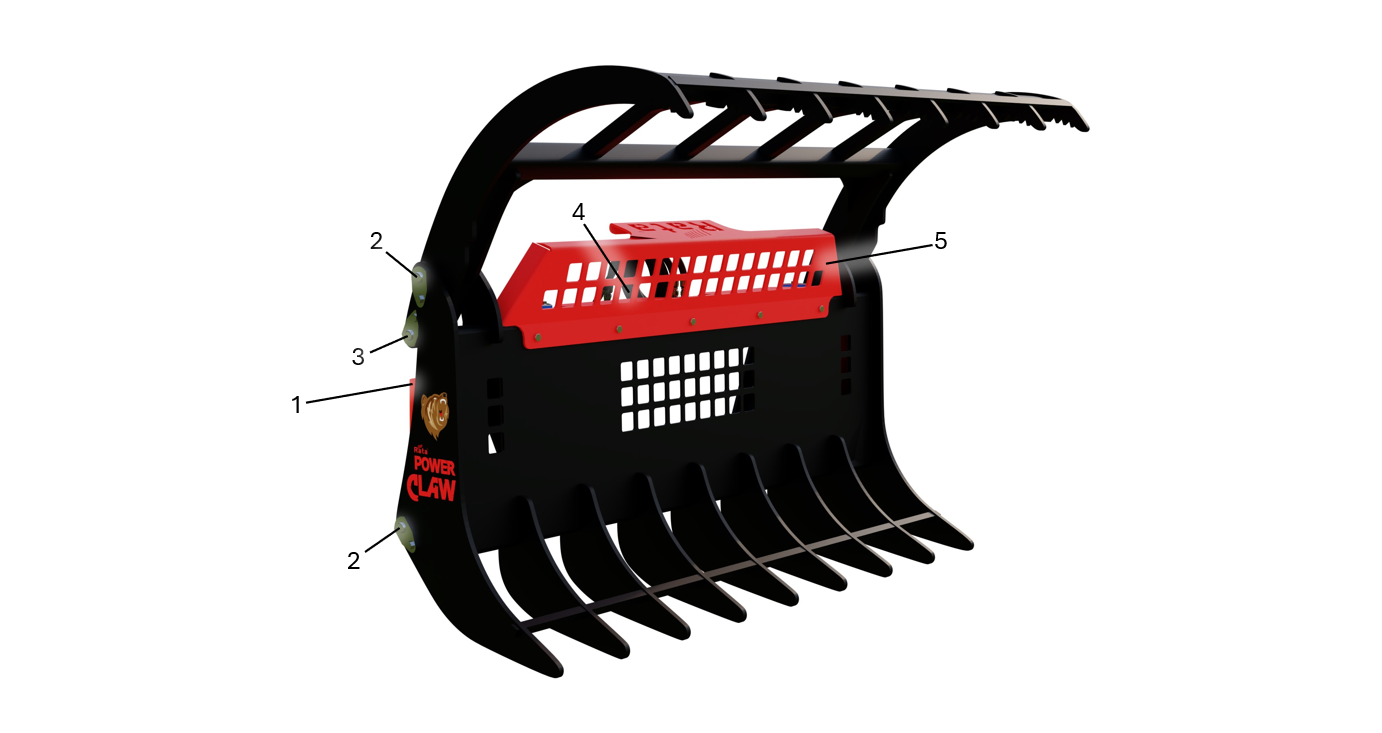

Exploded Parts Diagram/s

No.	Code	Description	Notes
1	23365	Power Claw Ram	2x required
2	P25-155	Machine Pins 155mm long	2x Required. Pivot point. Used for centre pivot on larger Power Claws also 2x required. Base of rams
3	P25-95	1" Machine Pins	2x required. Spear end of rams
4		Hoses and fitting.	Please enquire
5	PCMTD18	Power Claw Mid-Range Trash Deflector 1.8m	1x required. To suit VGM180
5.1	PCMTD15	Power Claw Mid-Range Trash Deflector 1.5m	1x required. To suit VGM150
