Maintenance Specifications

Keep nuts & bolts tight at all time. Grease Regularly.

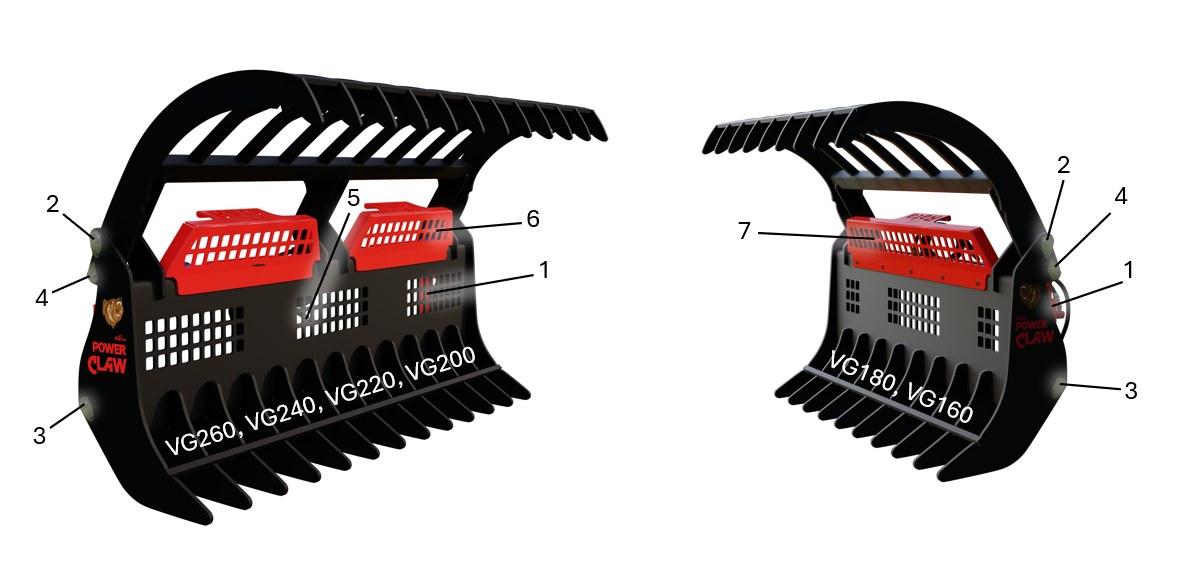

Exploded Parts Diagram/s

No.	Code	Description	Notes
1	23365	Power Claw Ram	2x required
2	P35-190	Machine Pins 190mm x 35mm Dia.	2x Required. Pivot point. Used for centre pivot on larger Power Claws also
3	P25-190	Machine Pins 190mm x 25mm Dia.	2x required. Base of rams
4	P25-95	Machine Pins 95mm x 25mm Dia.	2x required. Spear end of rams
5		Hoses and fitting.	Please enquire
6	PCTD26	Power Claw Trash Deflector 2.6m	2x required. To suit VG260
6.1	PCTD24	Power Claw Trash Deflector 2.4m	2x required. To suit VG240
6.2	PCTD22	Power Claw Trash Deflector 2.2m	2x required. To suit VG220
6.3	PCTD20	Power Claw Trash Deflector 2.0m	2x Required. To suit VG200
7	PCTD18	Power Claw Trash Deflector 1.8m	1x Required. To suit VG180
7.1	PCTD16	Power Claw Trash Deflector 1.6m	1x Required. To suit VG160

Please fill out the form and enter the part number/s you need. We'll get back to you shortly to arrange payment and dispatch.
