Vogal TPL750 Spare Parts Breakdown

    All prices NZD RRP, +GST and freight

    Also known as Vogal TPL1000 (parts apart from the hopper suit TPL500)

    Exploded Parts Diagram

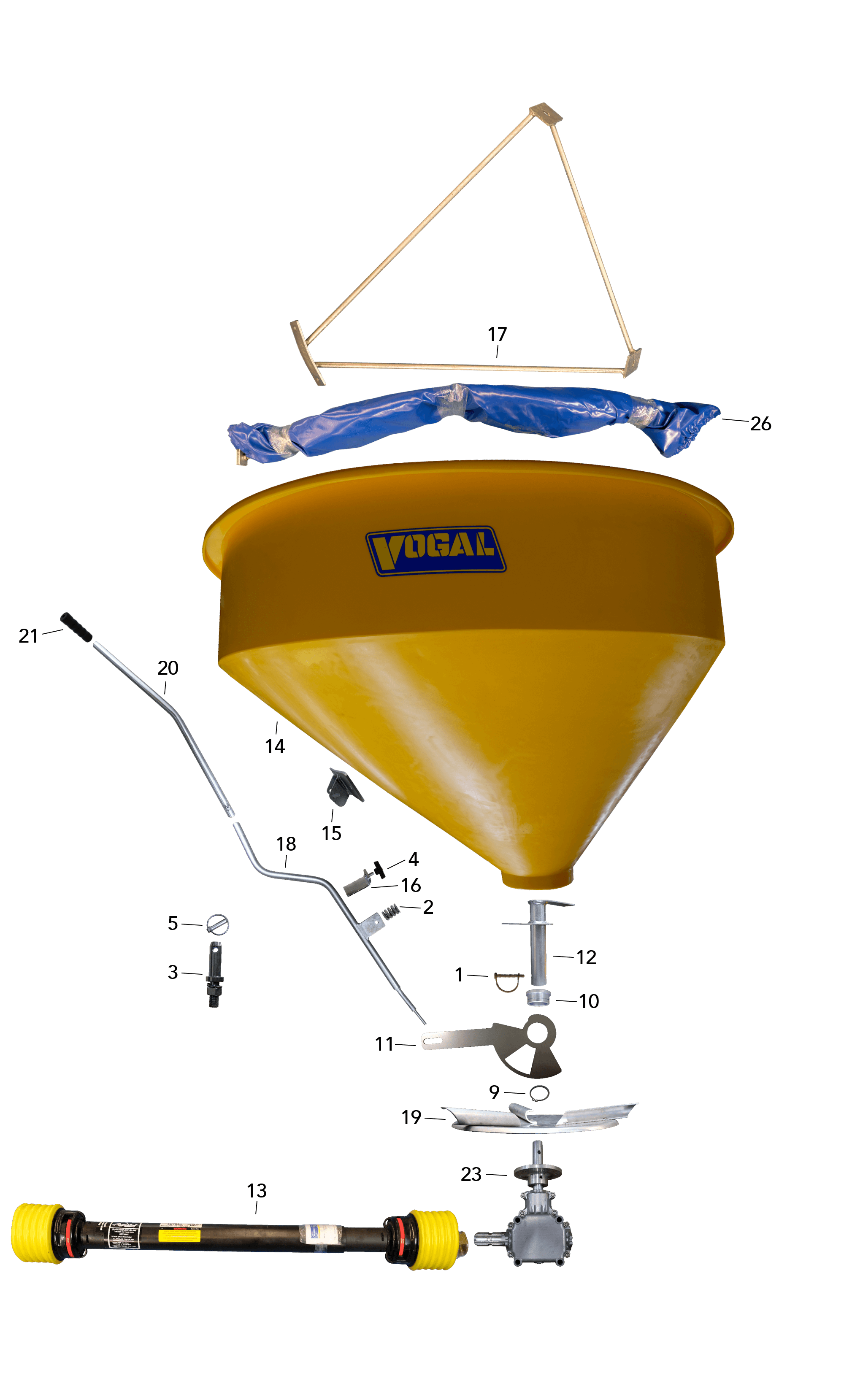

    TPL750 Exploded Diagram



    Maintenance Specifications

    Oil:

    500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

    Grease:

    General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

    Table of Parts

    For a larger image, click on the picture

    No. Photo Code Description Notes Precursor

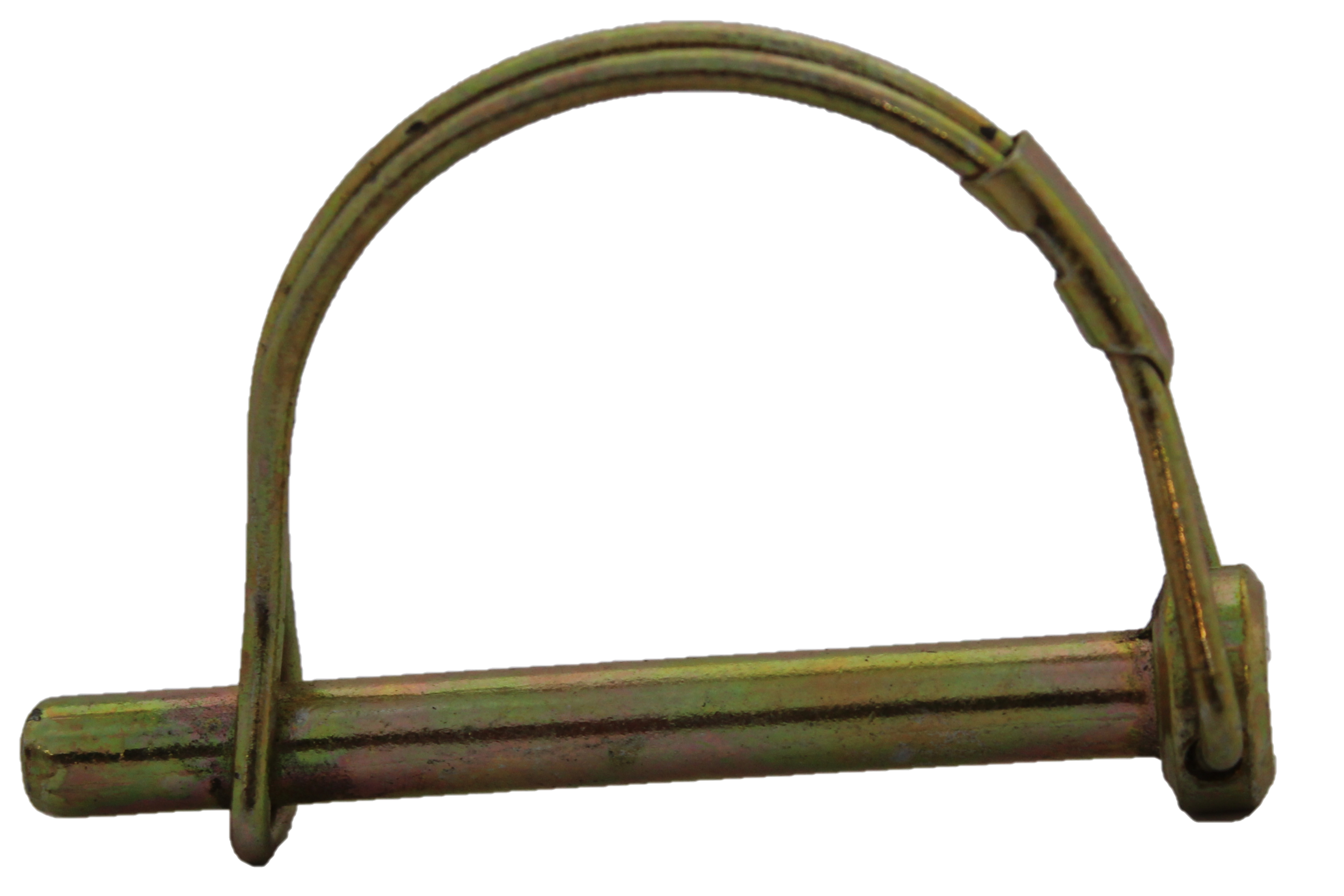

    1 1093 1093 D Pin

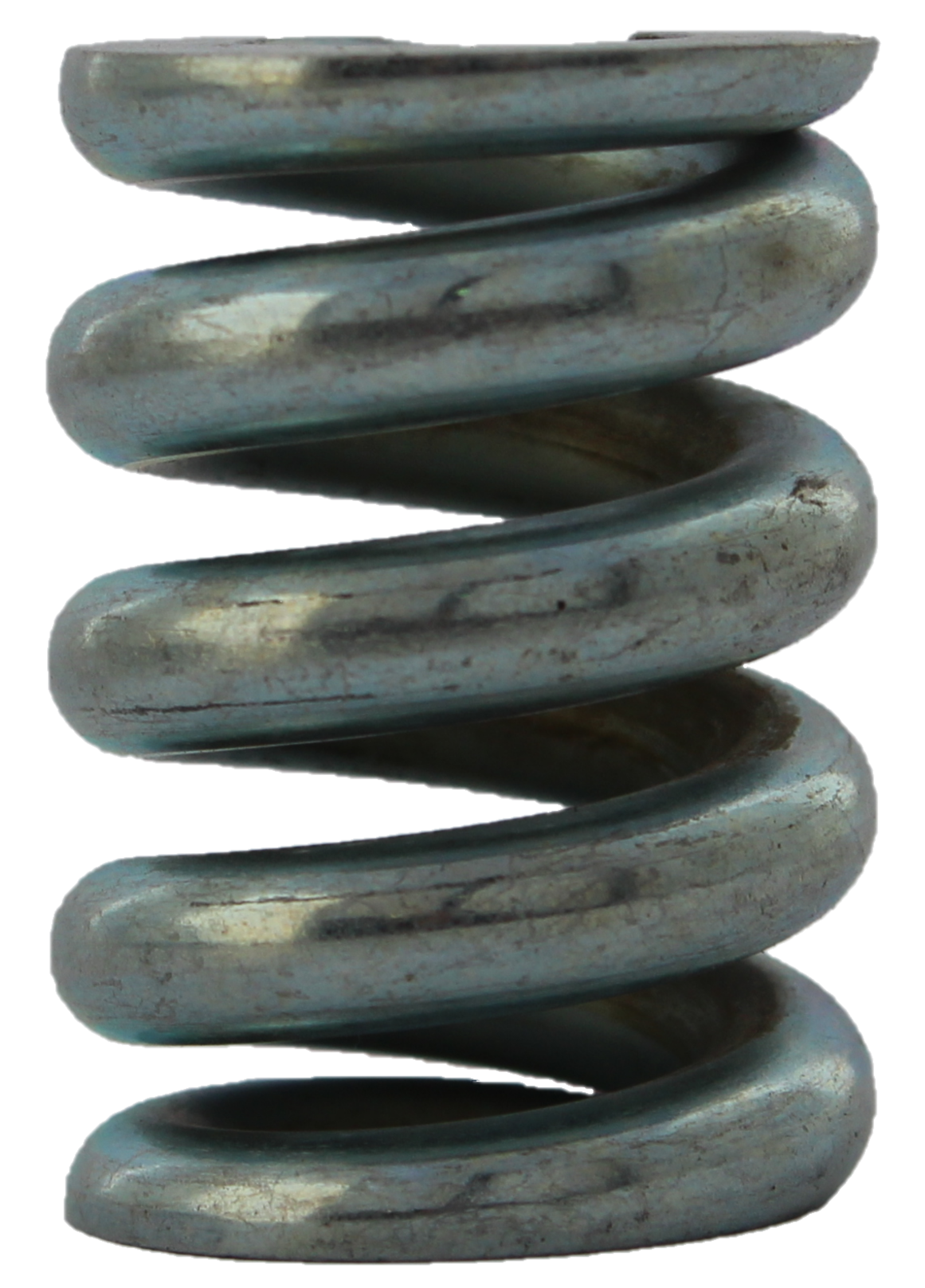

    2 1094 1094 Shutter Lever Spring Grease contact surfaces (both ends)

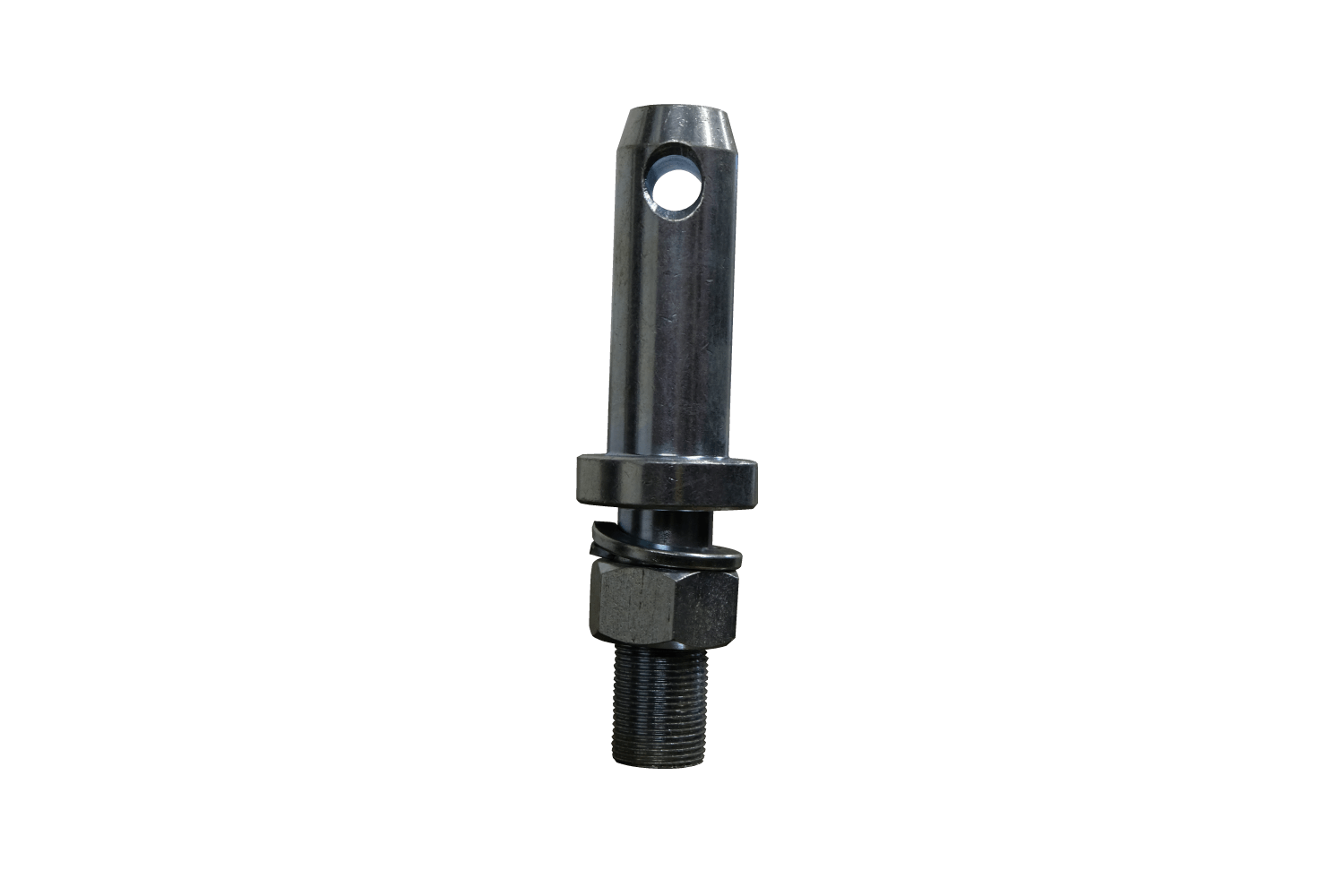

    3 1085 1085 Lower Link Pin

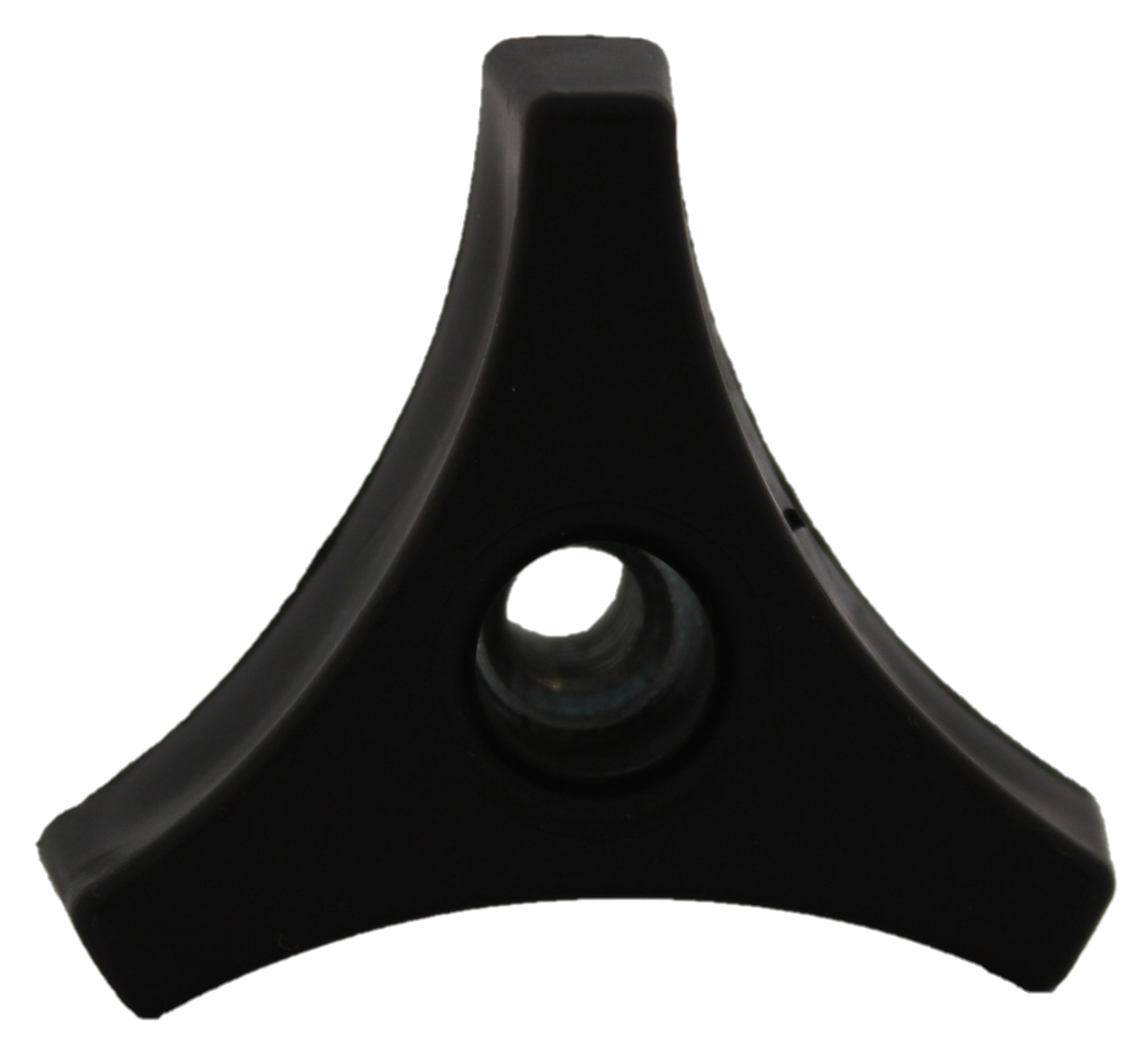

    4 1651 1651 Tri Knob Female 8mm

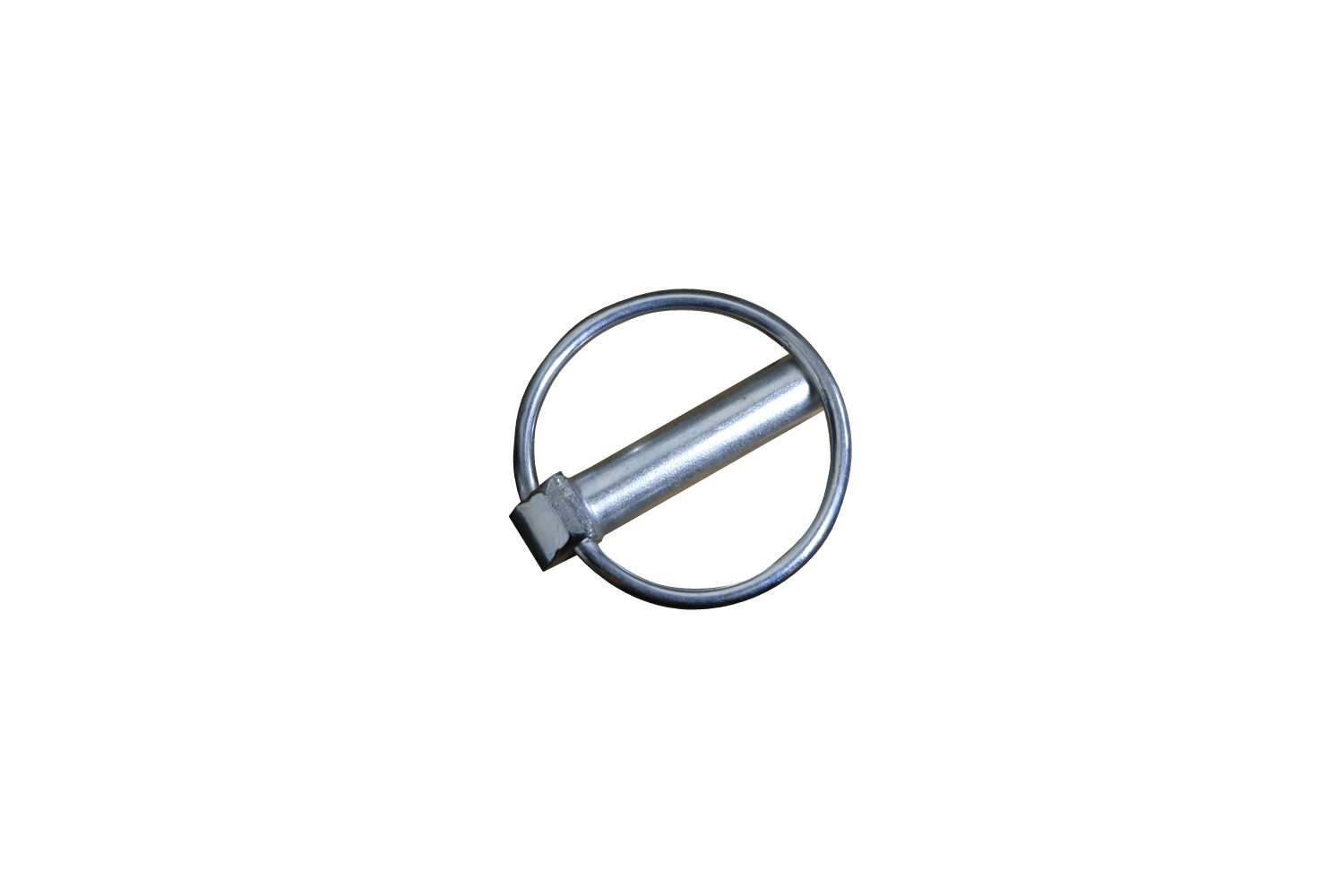

    5 1092 1092 Lynch Pin

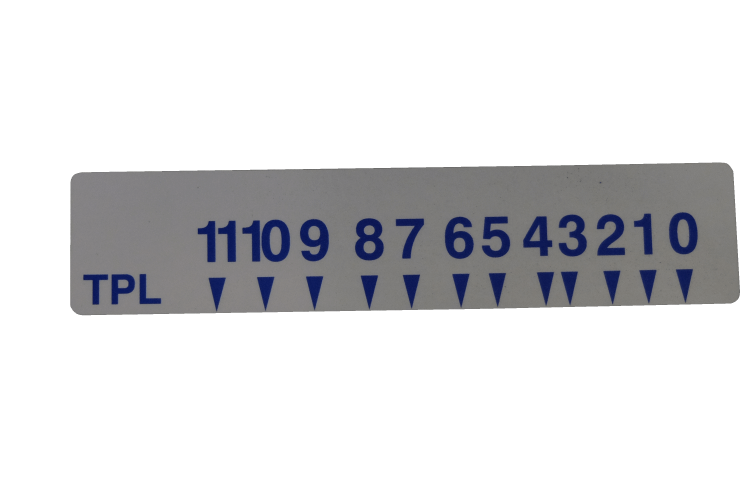

    6 1742 1742 Decal 11-0 TPL

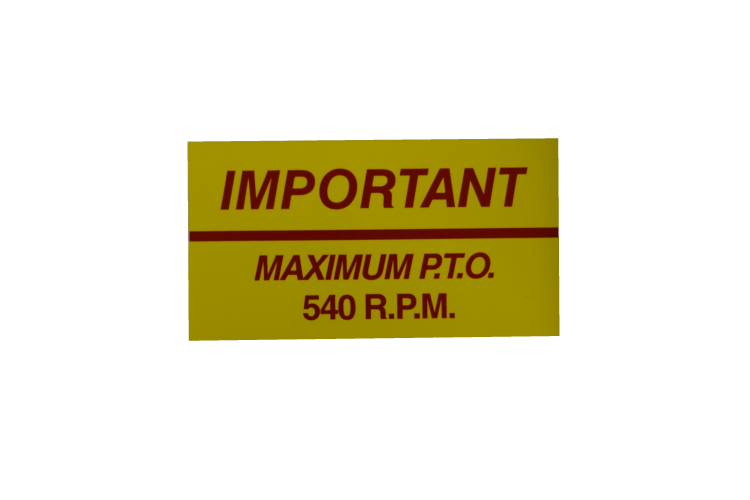

    7 1750 1750 Decal 540 RPM Max

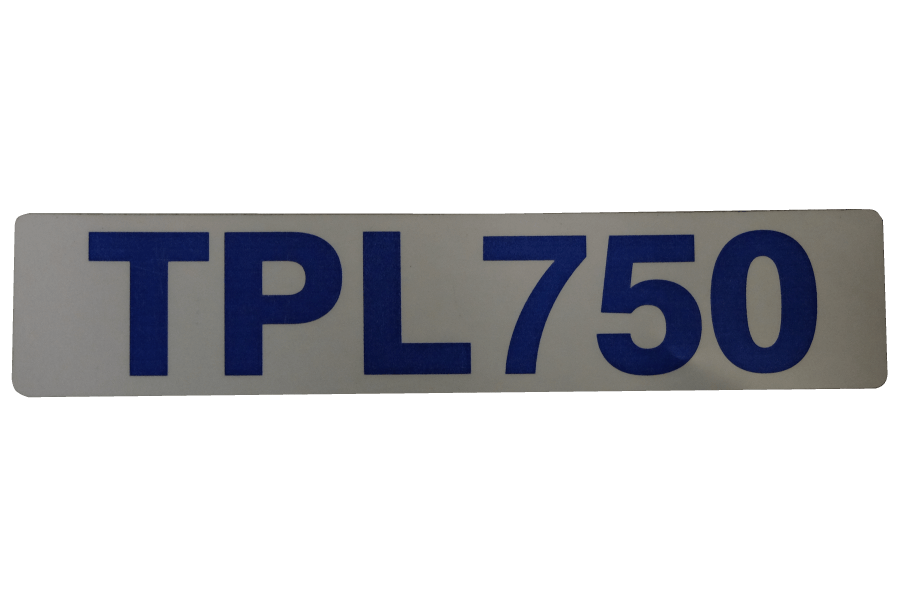

    8 3006 3006 Decal TPL750

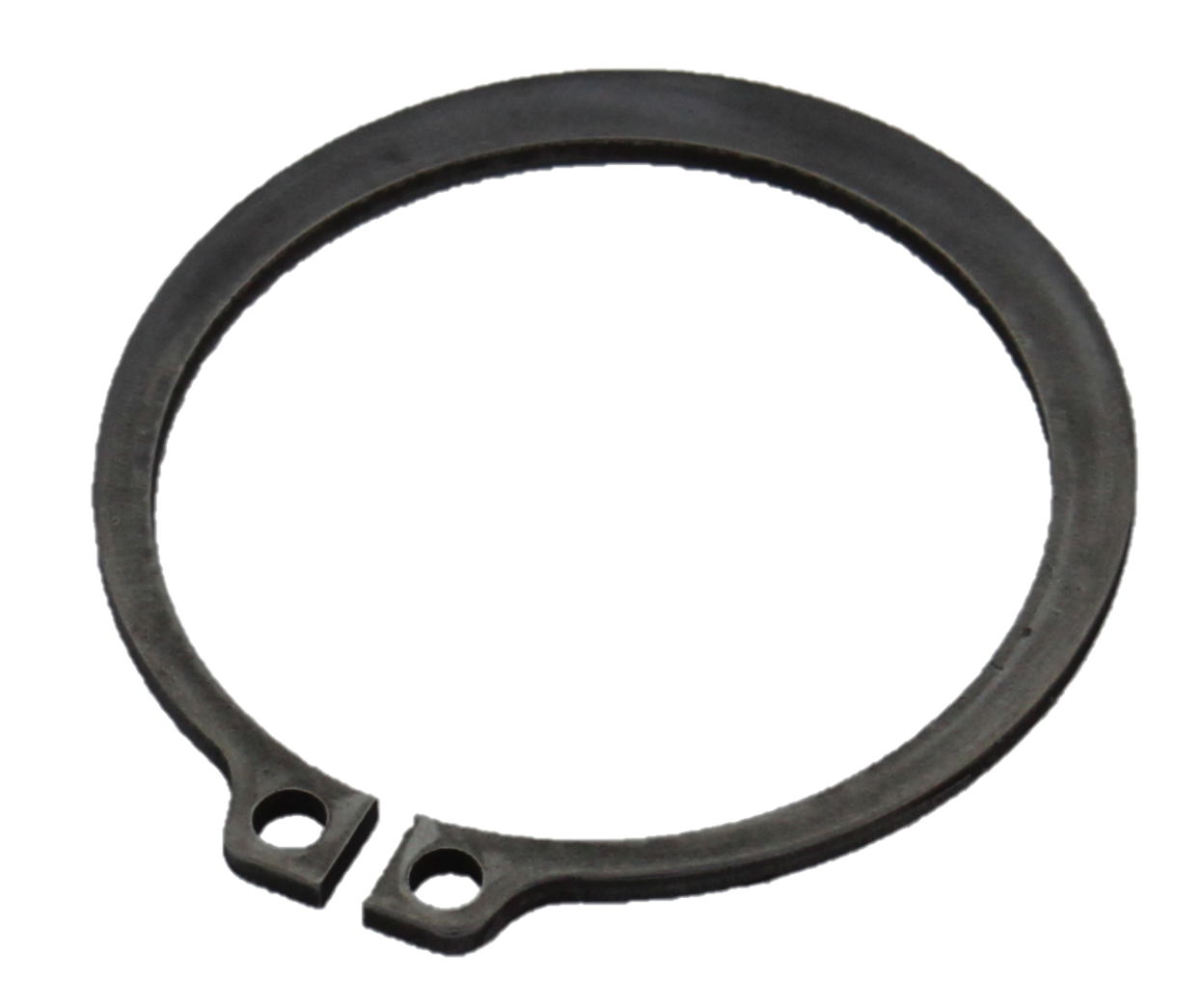

    9 5042S Slash S 5042S/S Circlip 45mm external S/S

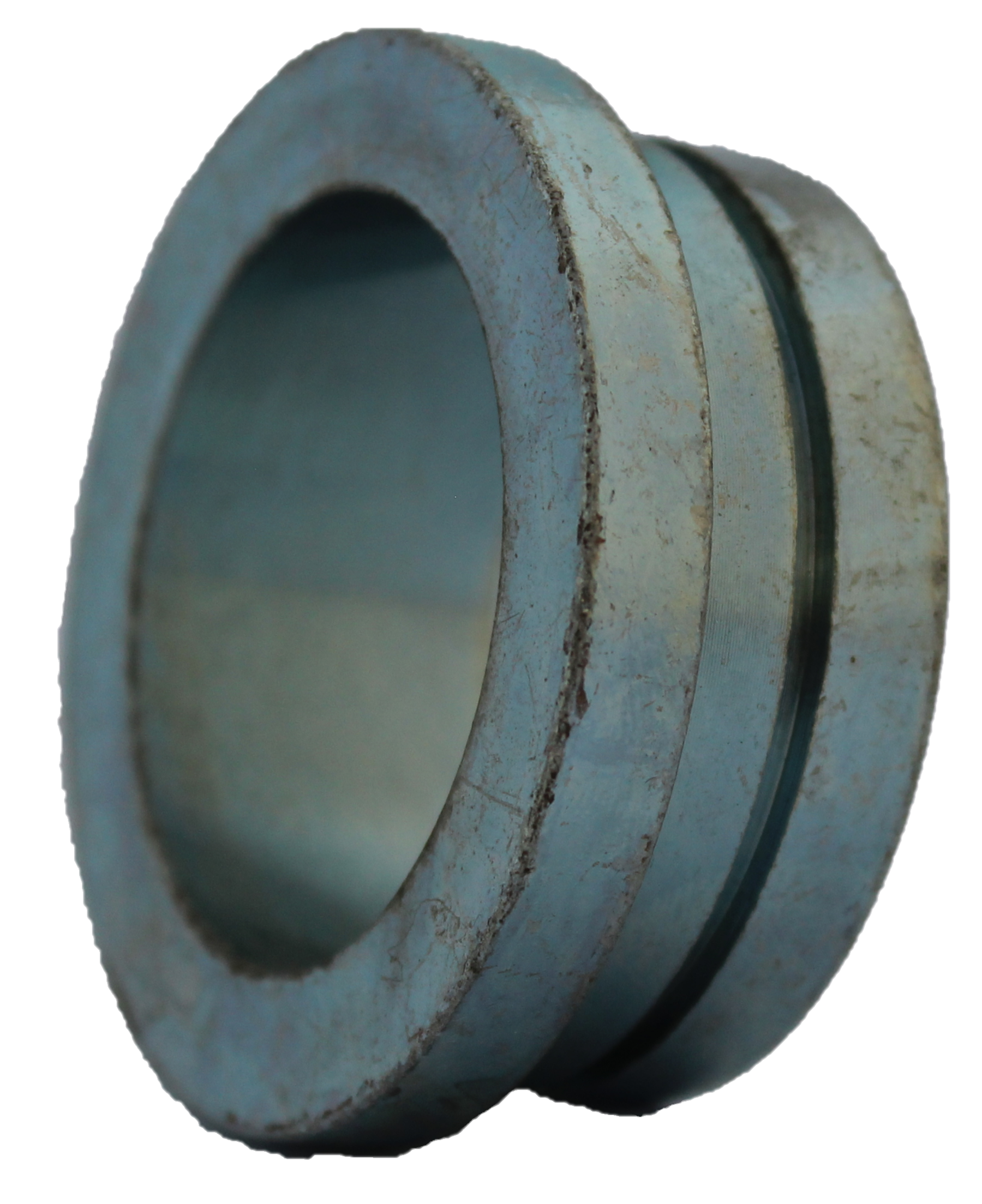

    10 SP100-003 SP100-003 Agitator Bush Recommend also purchasing item 5042S/S

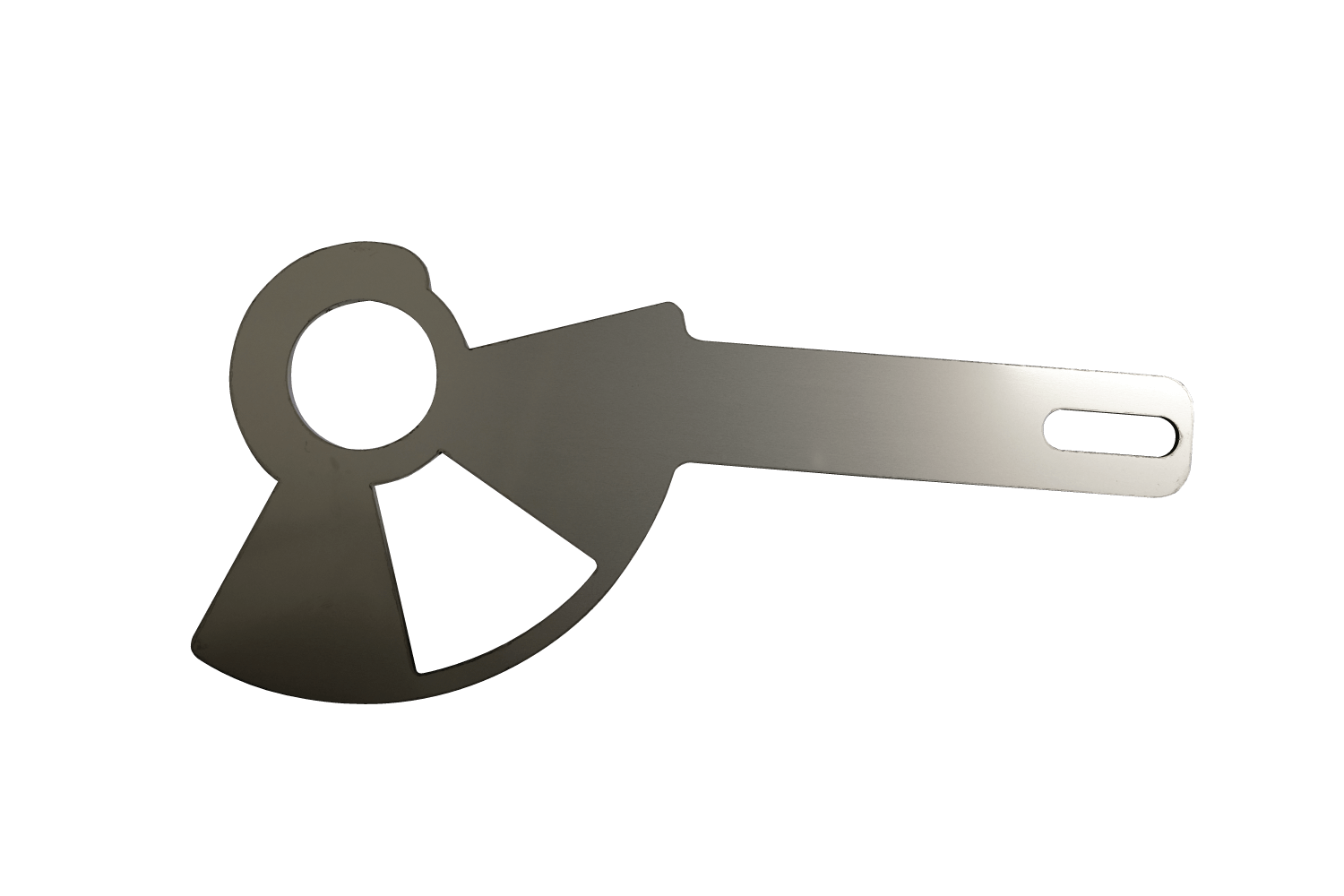

    11 3136 3136 TPL Shutter Plate

    Jumbo p/n: 1922 (note 1)
    11.1   4010a TPL fixed shutter plate c/w band Weld on

    Jumbo p/n: 1918-1 (note 1, 300mm hopper base band)

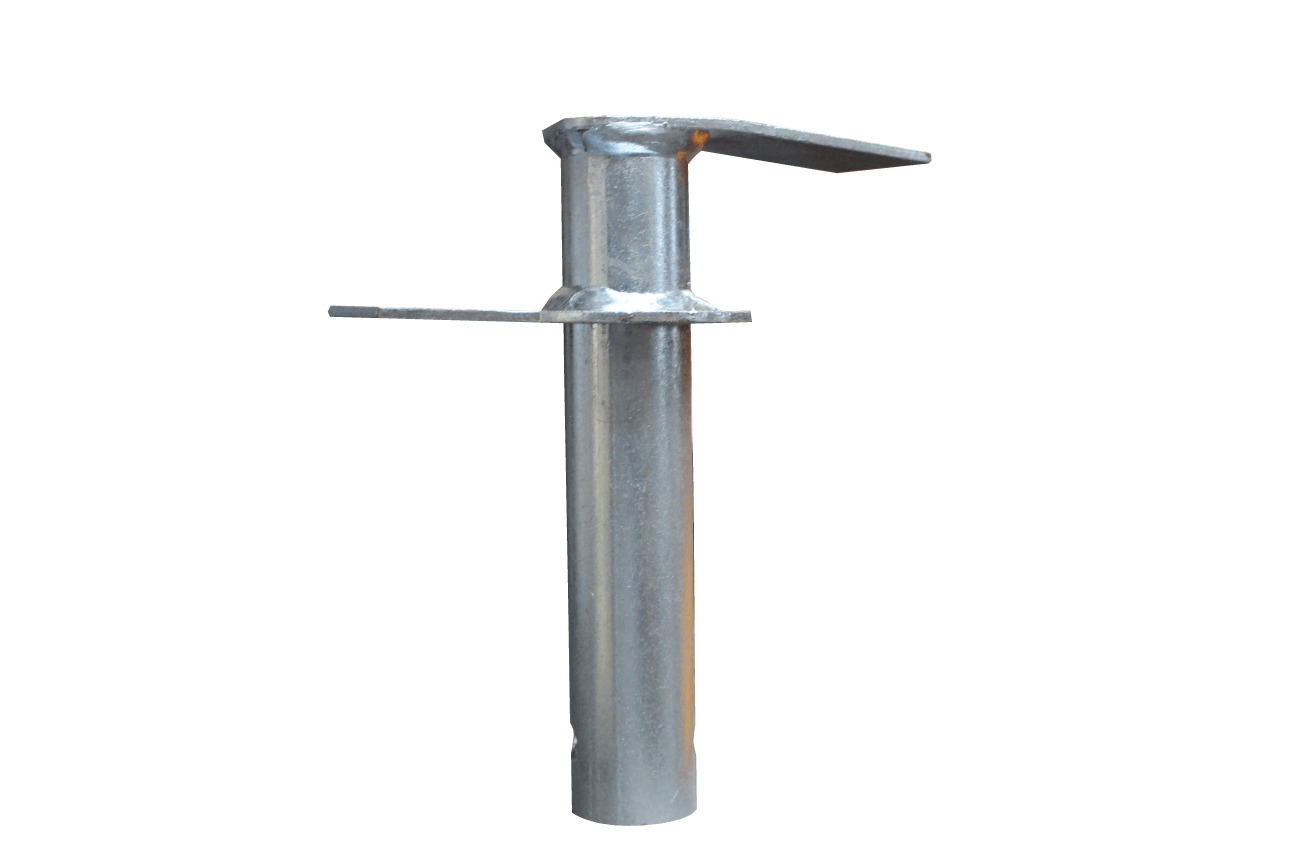

    12 SP136-008 SP136-008 Agitator

    Consider also item SP100-003

    Jumbo p/n: SP120-008 (note 1)

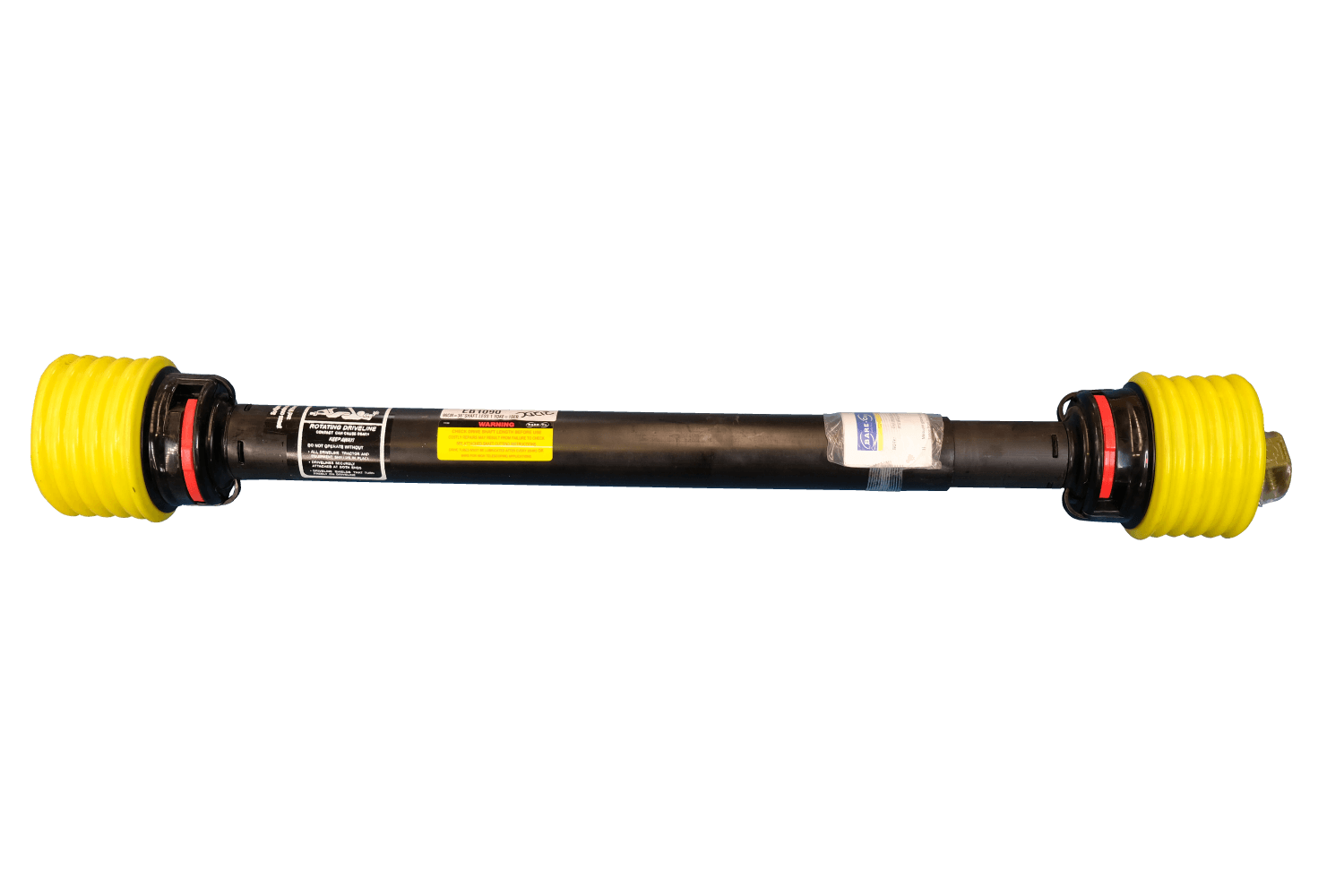

    13 3375 3375 TPL Drive Shaft
    14 3378 3378 Hopper Yellow - 750L

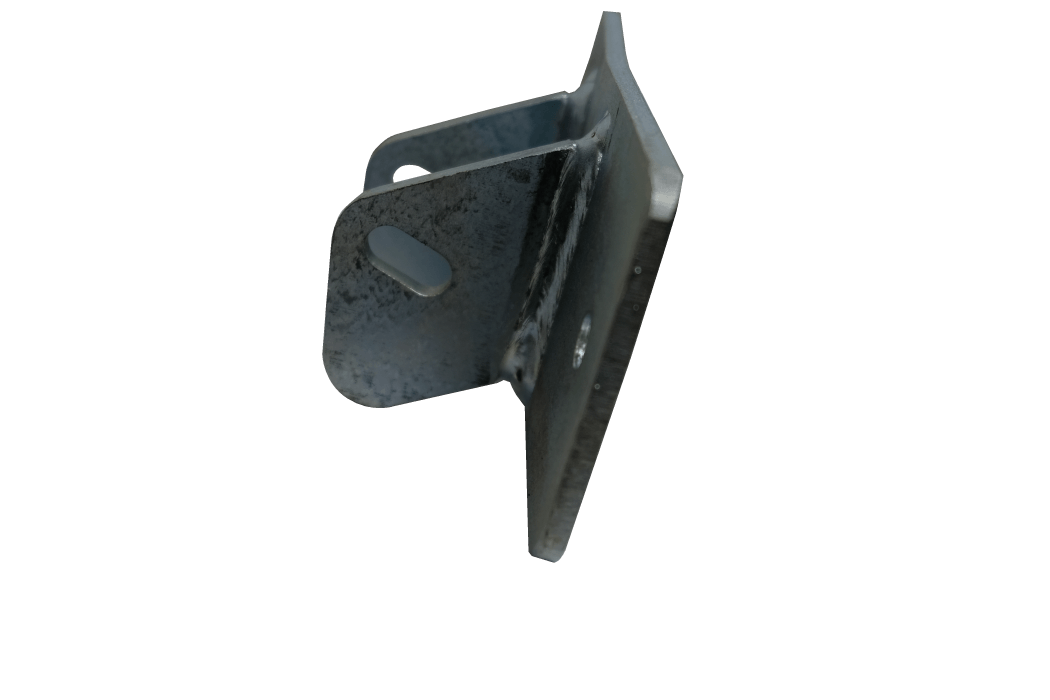

    15 SP106-004 SP106-004 Front Hopper Bracket TPL

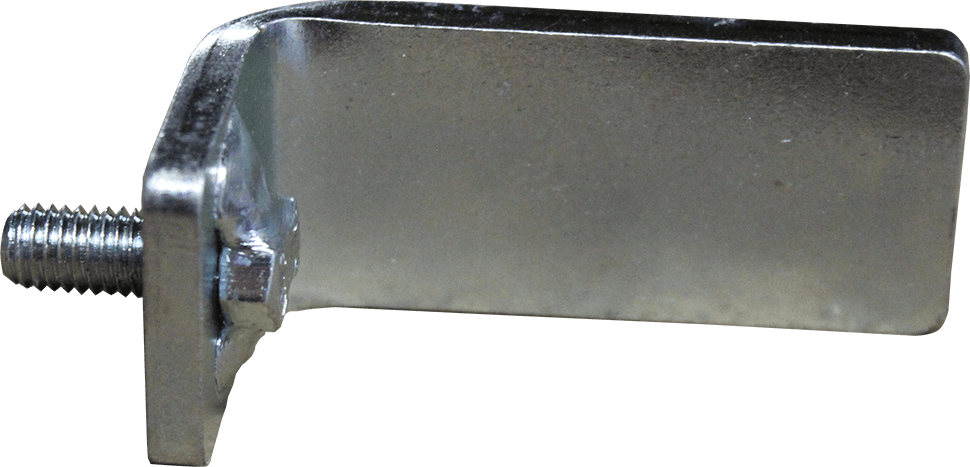

    16 SP100-035 33 SP100-035 Pointer

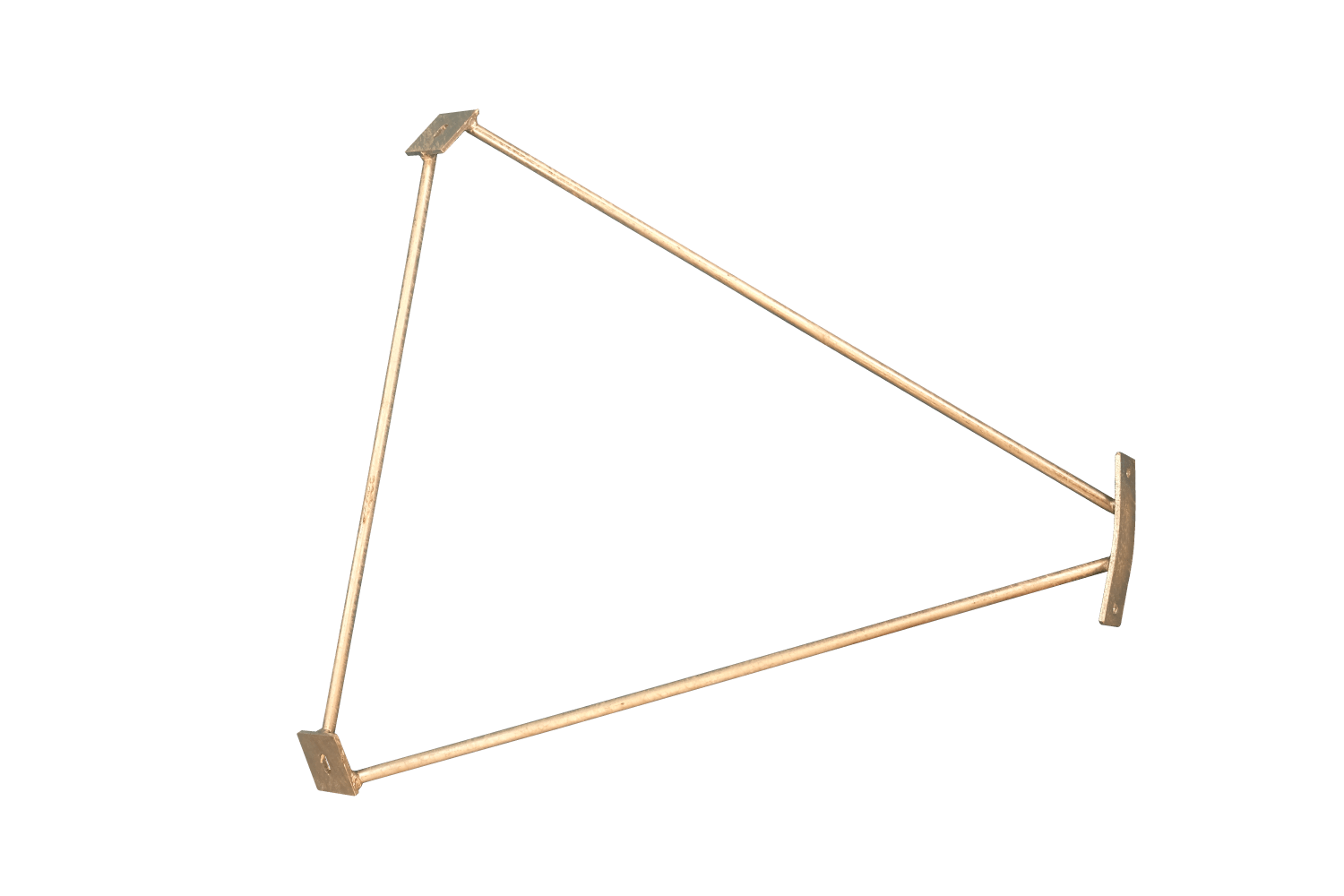

    17 SP106-005 SP106-005 Internal Hopper Brace TPL

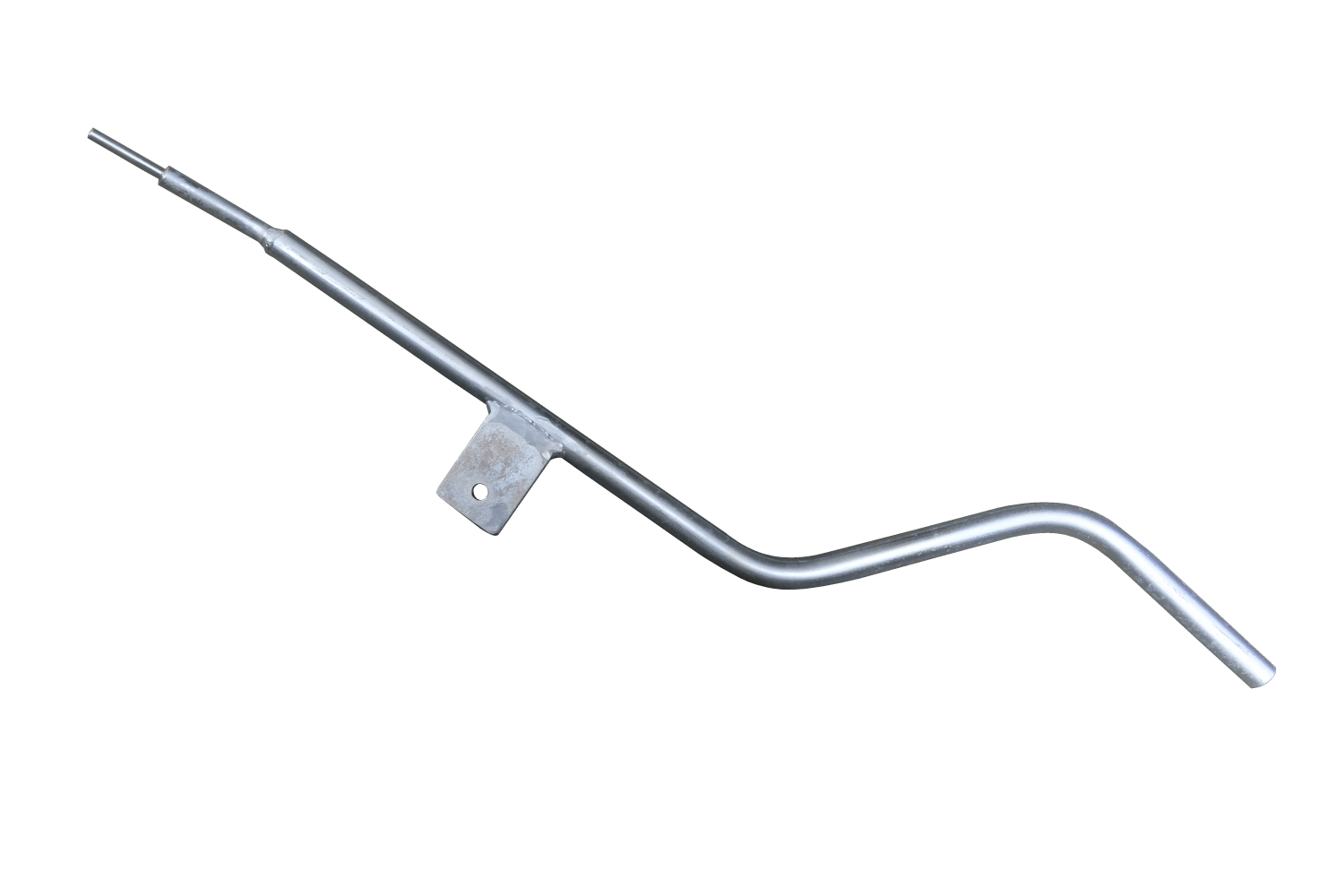

    18 SP106-012 SP106-012 Shutter Lever TPL   Jumbo p/n SP120-012 (note 1)

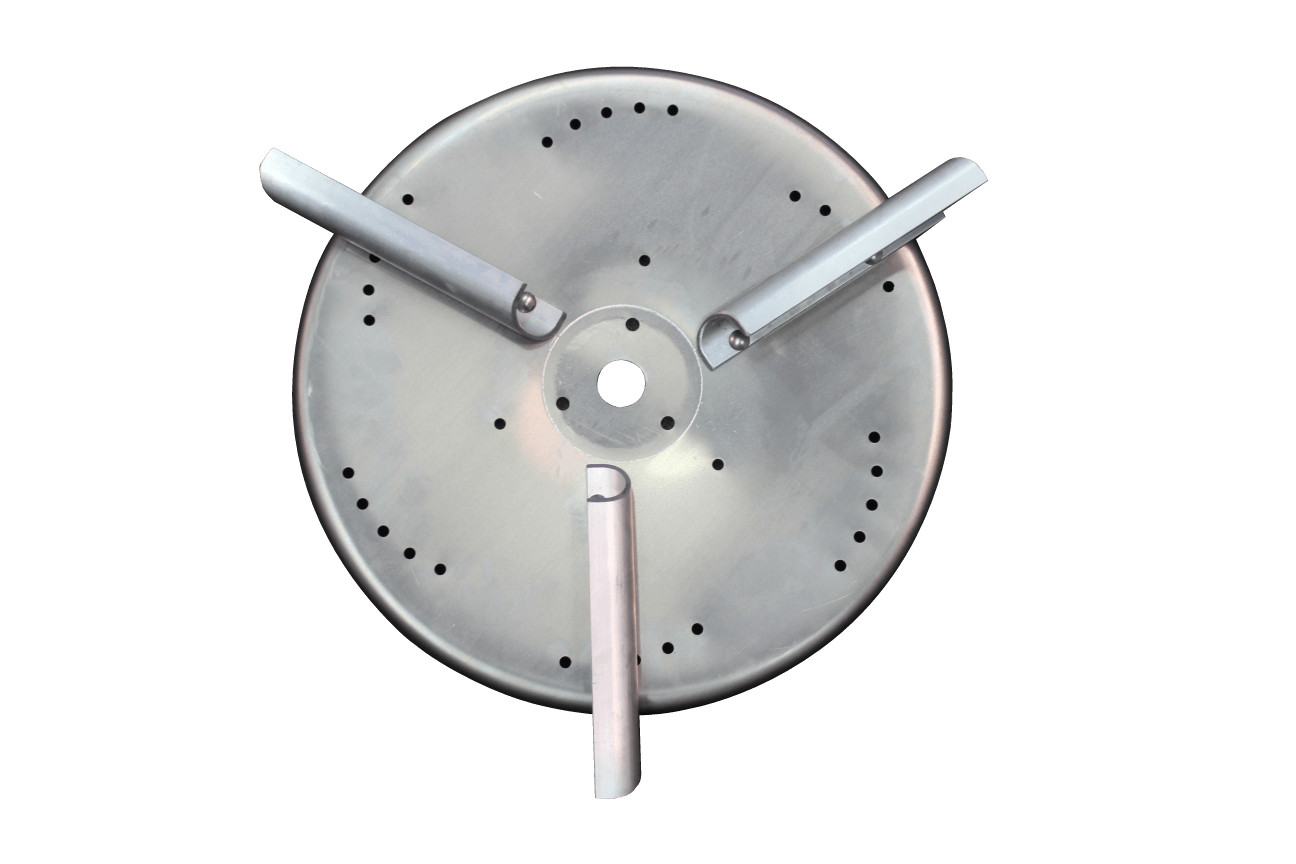

    19 SP136-006 Front SP136-006 Spinner Disc Complete Assembly Bolts to gearbox flange with 3x M8x16 S/S bolt, washer & spring washer
    19.1   SP136-005 Spinner Fin

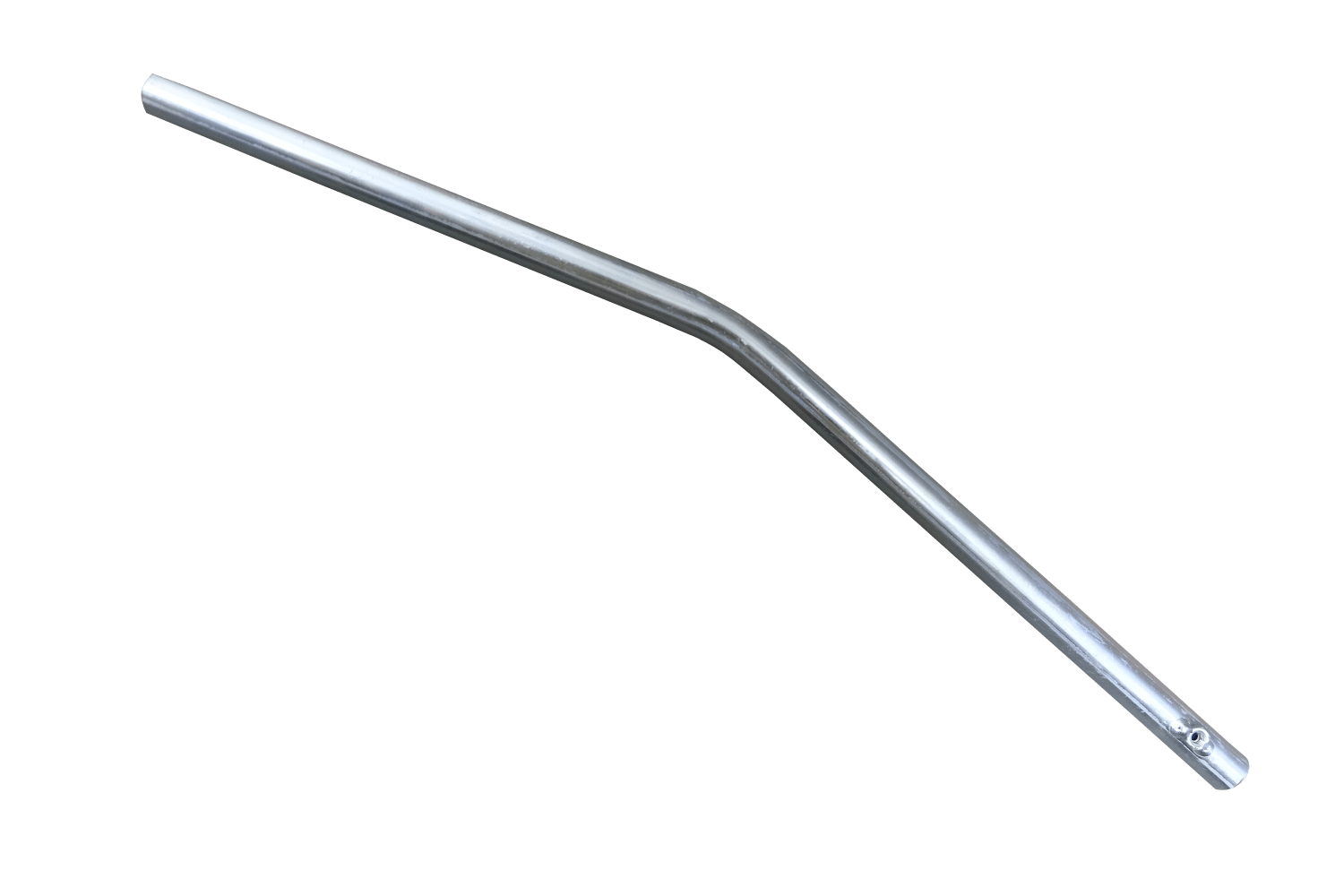

    20 SP120-013 SP120-013 Shutter Lever Extension

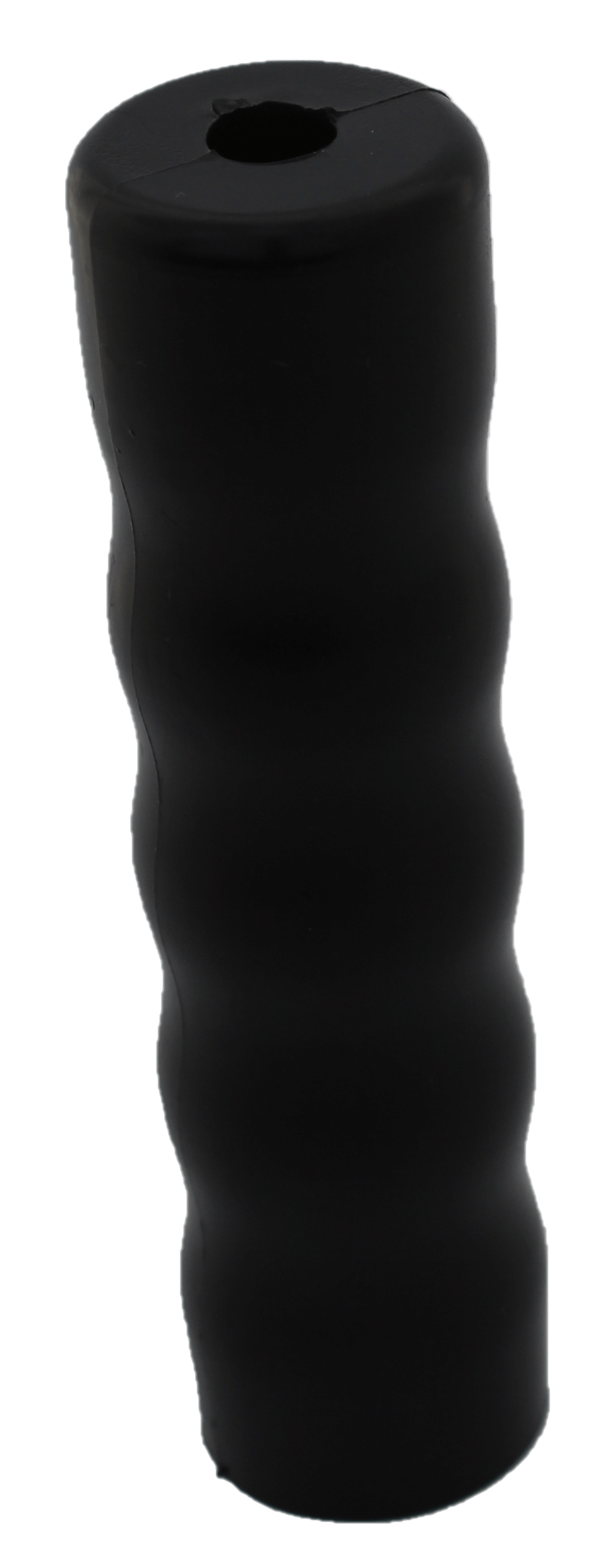

    21 1645 1645 Grip Handle 25mm
    22 2715 2715 Serial Number Plate

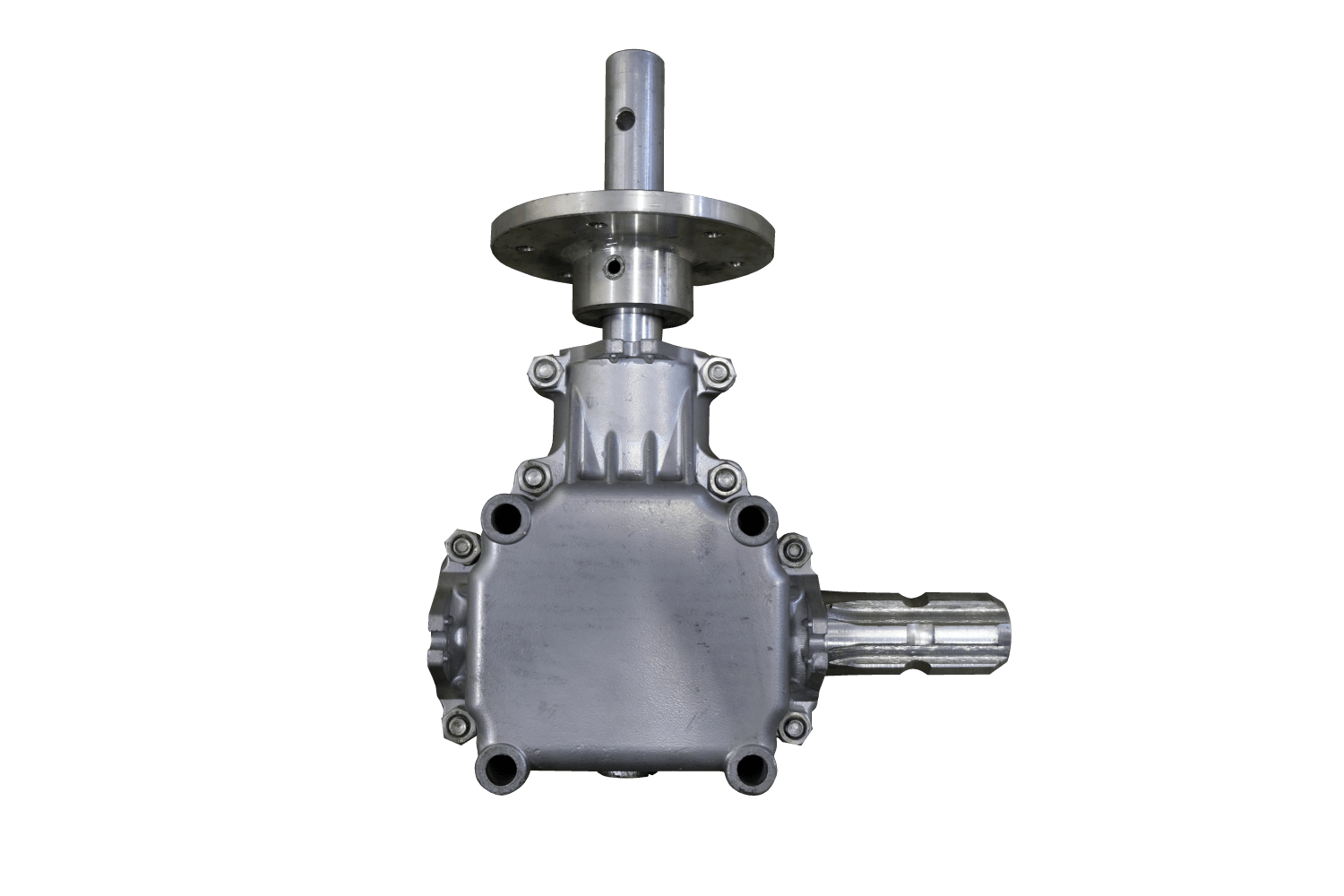

    23 3139 3139 Gearbox RV10 Complete TPL 95mm wide Jumbo p/n 2123 (note 2)

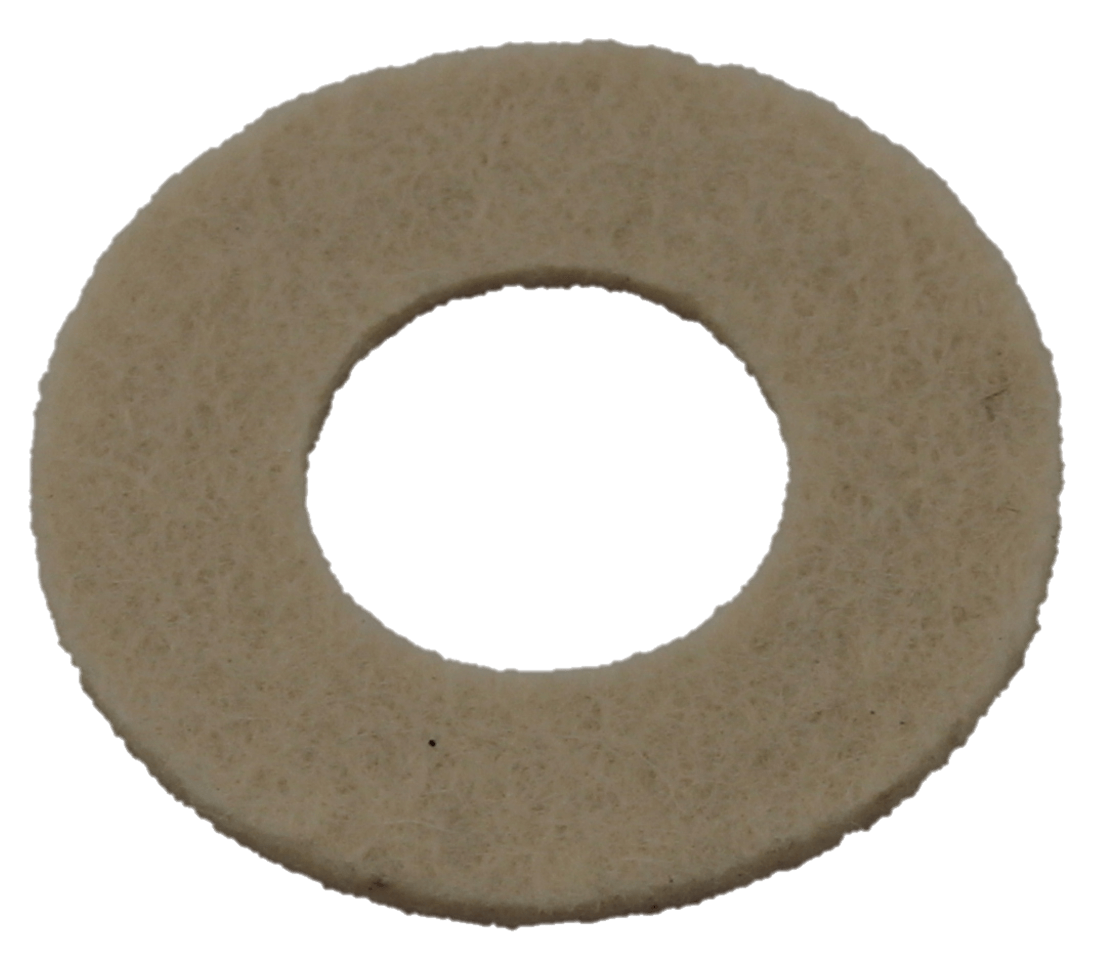

    23.1 1679 1679 Felt Washer Oil soak before use

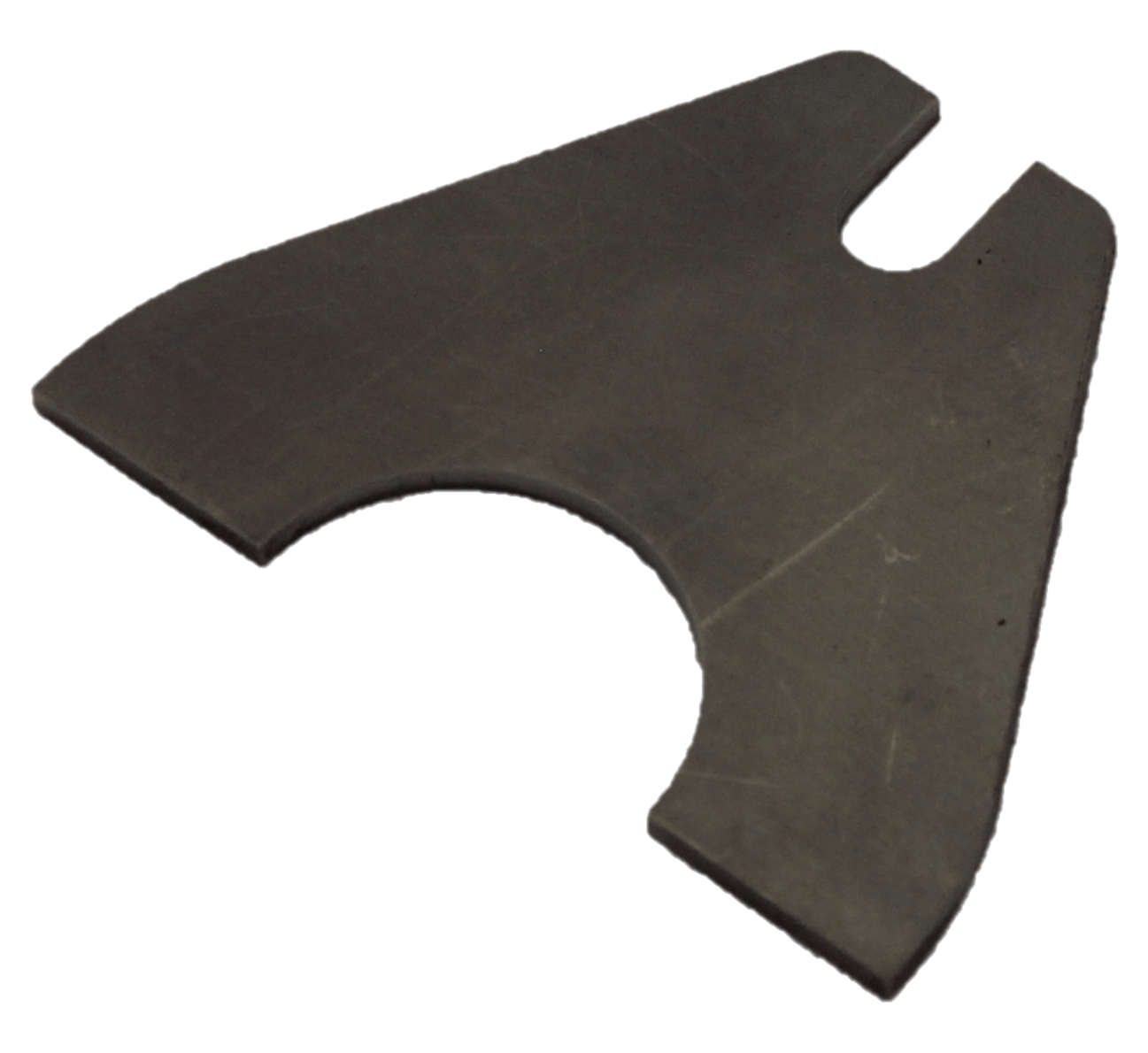

    23.2 1901 1901 S/S Shaft Guard

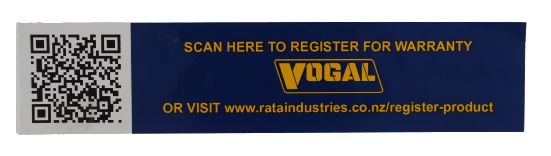

    24 RATA30 RATA30 Vogal Warranty Sticker

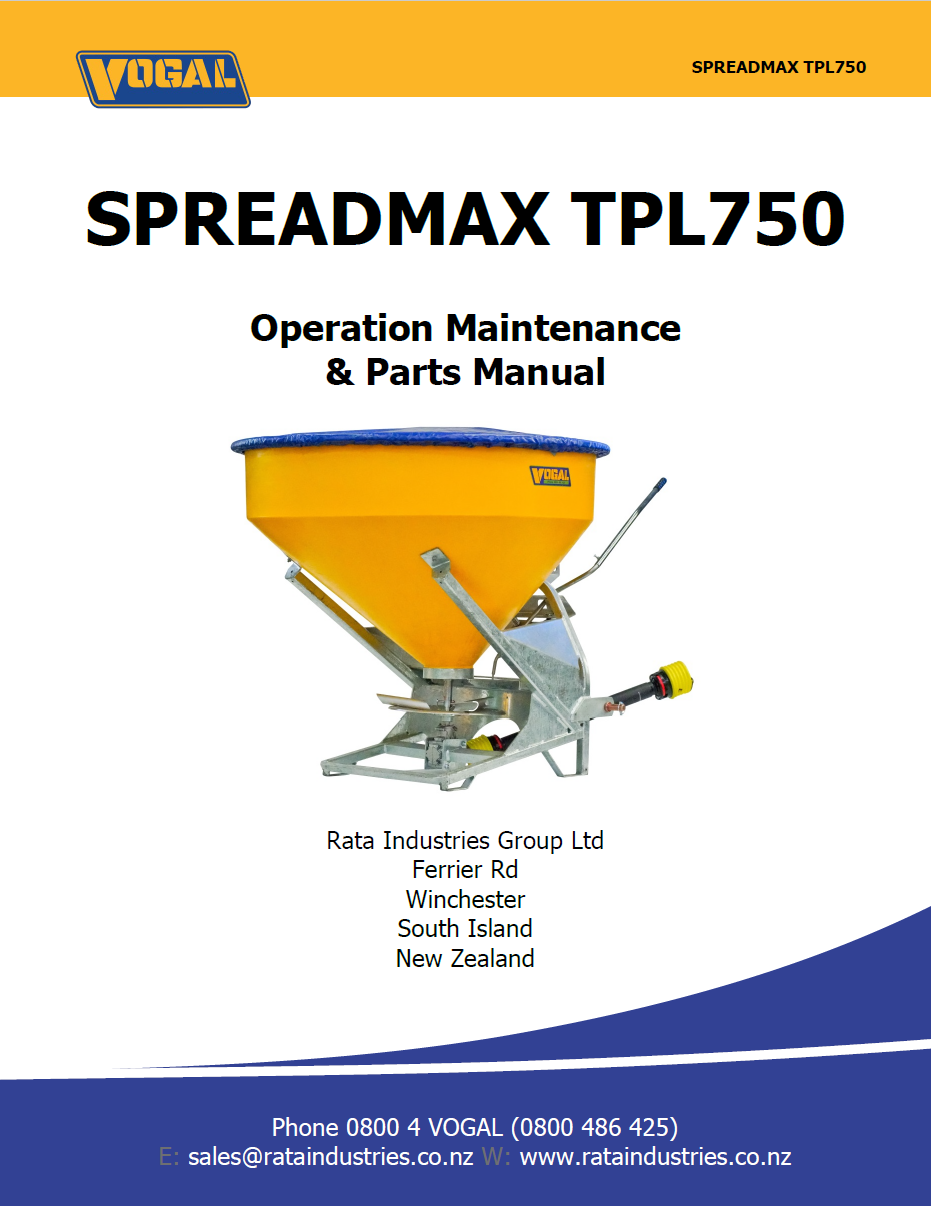

    25 M TPL750 M TPL750 TPL750 User Manual

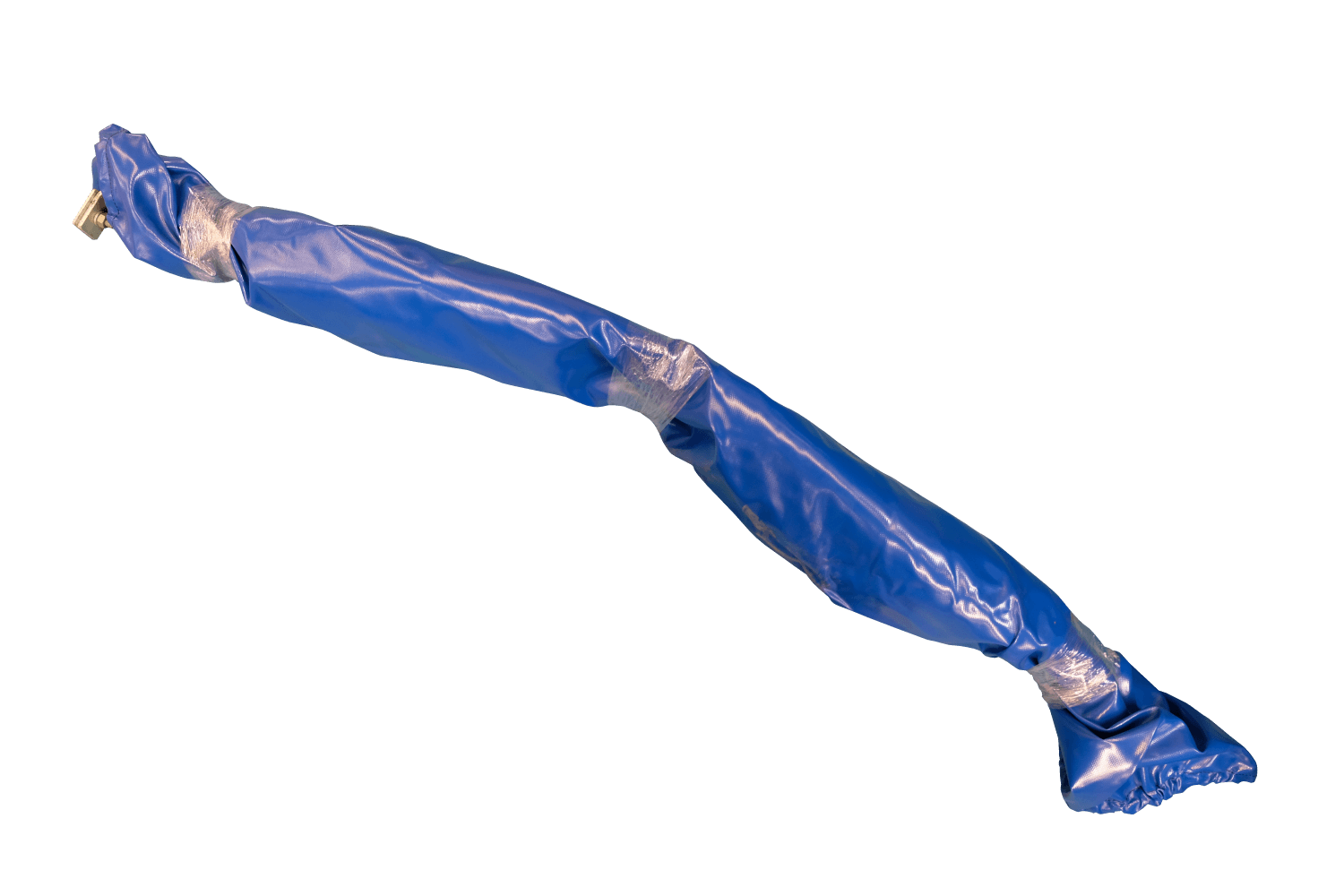

    26 V113

    V113

    		 Cover w/ brace TPL



    Notes

    Note 1:

    Jumbo Hopper

    Hoppers with two creases and not eccentric per the picture are known as Jumbo hoppers.

    This hopper is found on TPL1000 models with a serial number of between 0 and 2000, and uses parts denoted Jumbo.

    Note 2:

    Old style 105mm wide gearbox, no longer available. Fit current gearbox (p/n 3139) by utilising the rear bolt hole (furthest from the tractor).
