Vogal TT750 Spare Parts Breakdown

All prices NZD RRP, +GST and freight

Also known as Vogal TT625, TT825

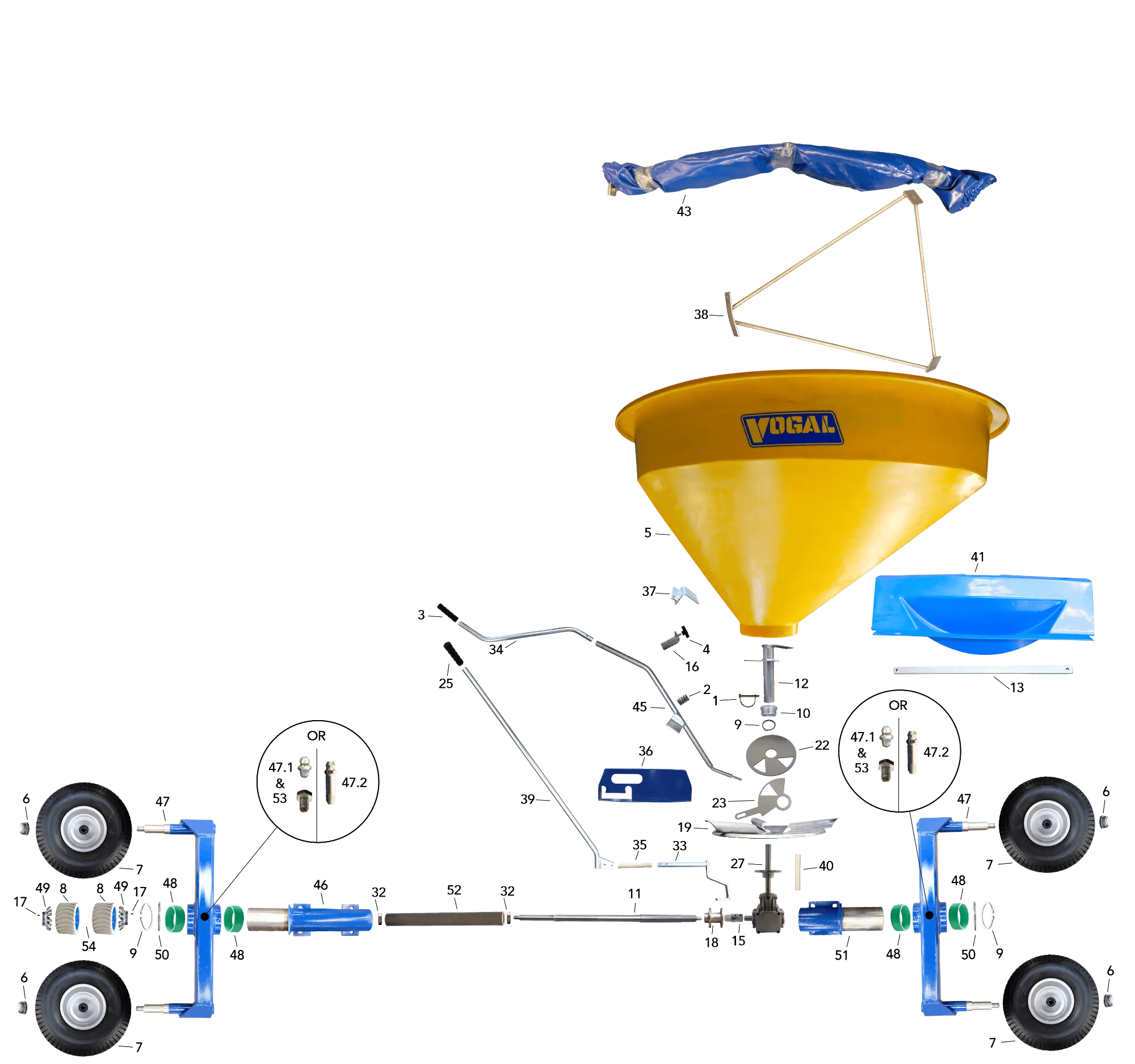

Exploded Parts Diagram

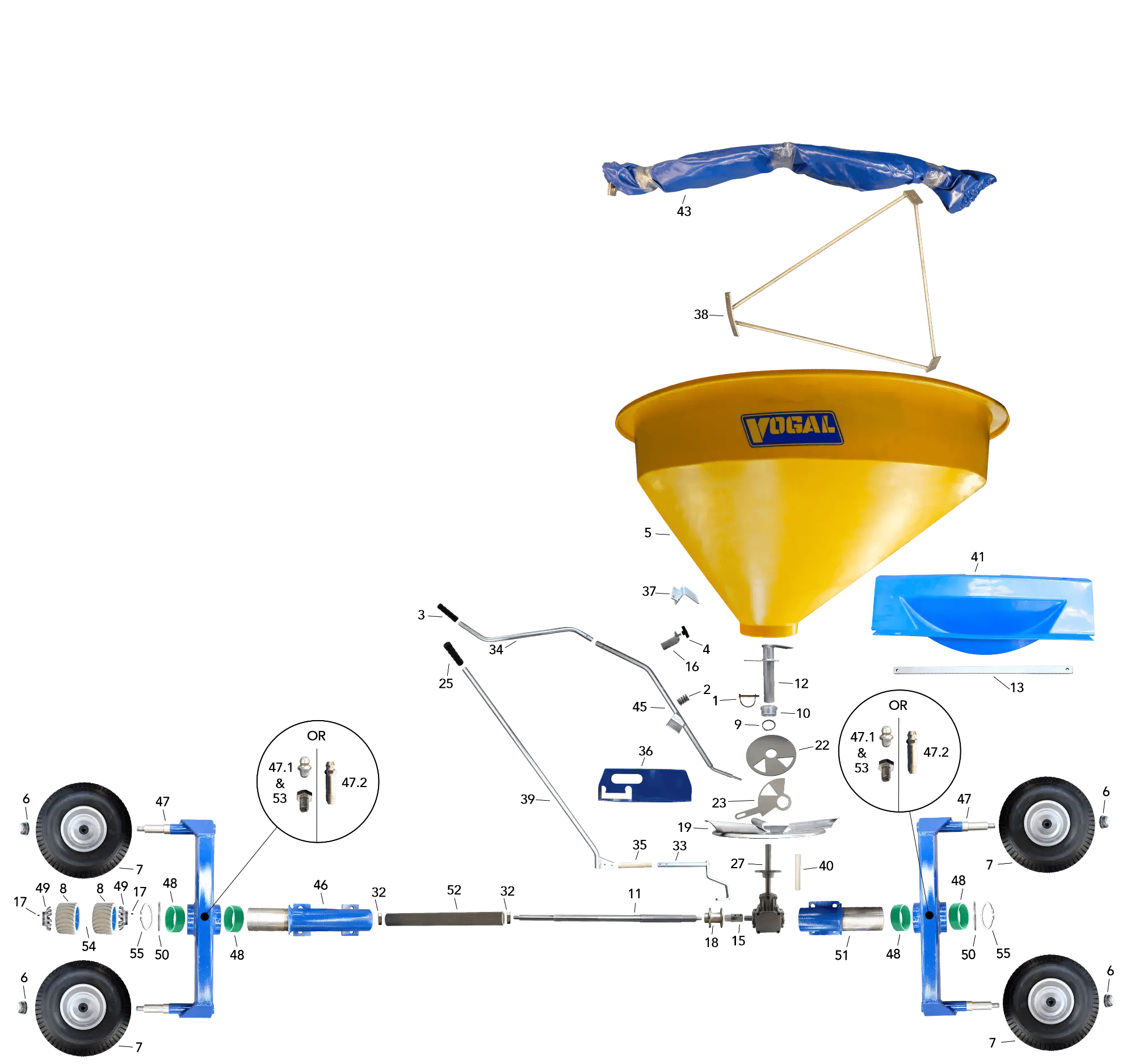

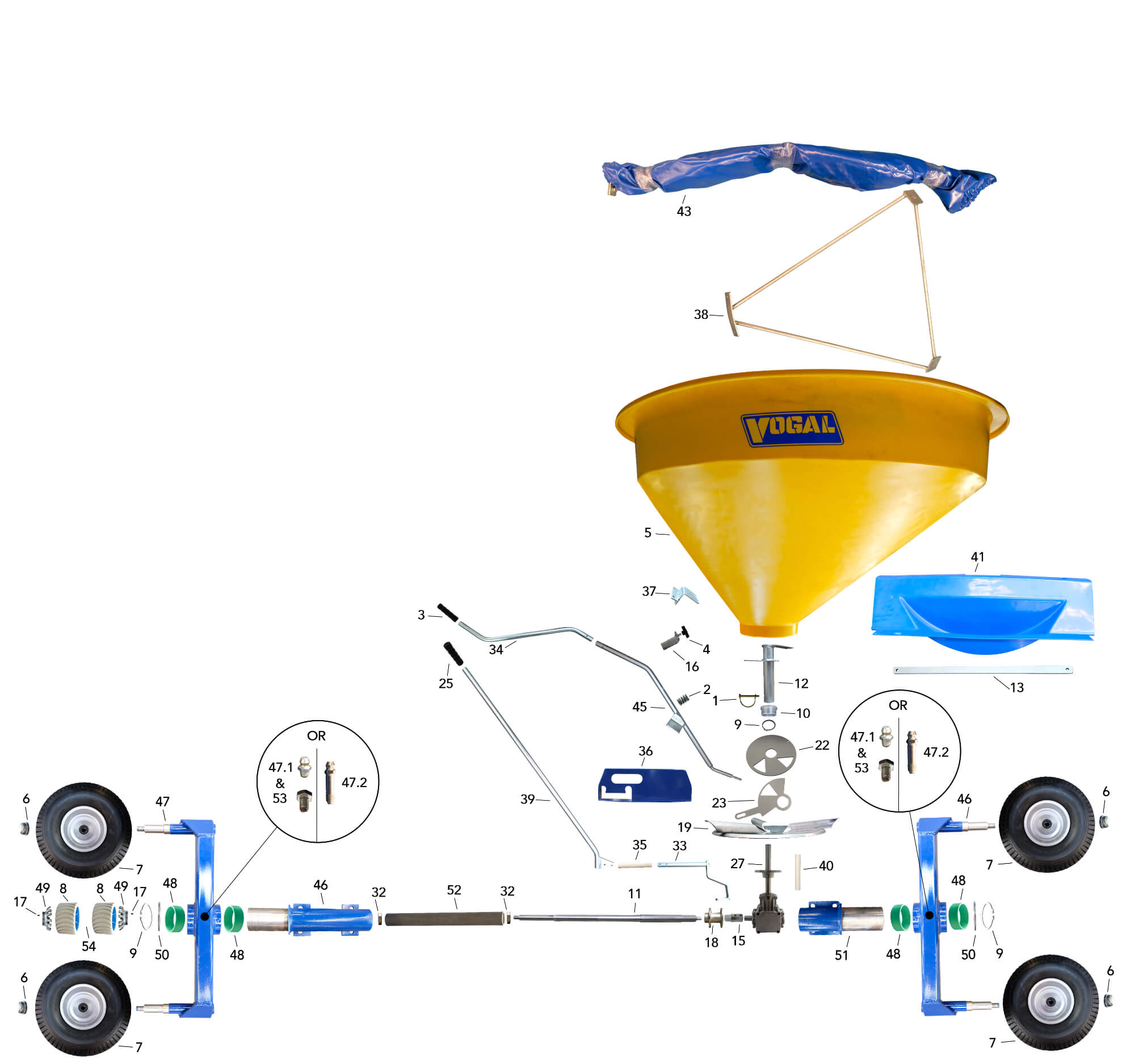

TT750 Exploded View



Maintenance Specifications

Oil:

500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

Grease:

General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

Tyres:

Inflate to 22 psi and check regularly. Reinflate as necessary.

Table of Parts

For a larger image, click on the picture

No. Photo Code Description Price Notes
1 1093 1093 D Pin $3.00
2 1094 1094 Shutter Lever Spring $6.95 Grease contact surfaces (both ends)

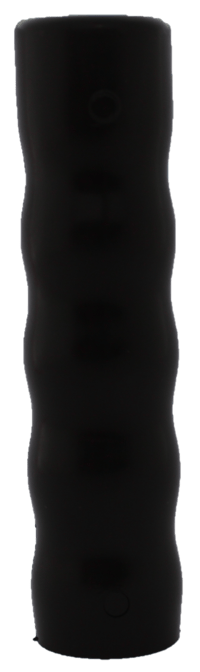

3 1644 1644 Grip Handle 22mm 7/8 PVC Black $6.00 Heat in boiling water for easier install
4 1651 1651 Tri Knob Female 8mm $7.00
5 3378 3378 Hopper Yellow 750L $1079.00
6 104410 104410 Hub Cap $21.10
7 2181 2181 Wheel (bearing) $192.00 Attaches to stub axles with M16 HD Washer & Nyloc Nut

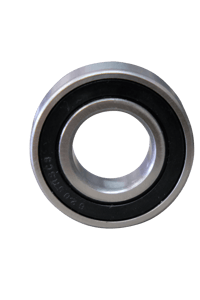

7.1 1572 Side 1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
7.2 Untitled 1876 Wheel Bearing Seal $13.92

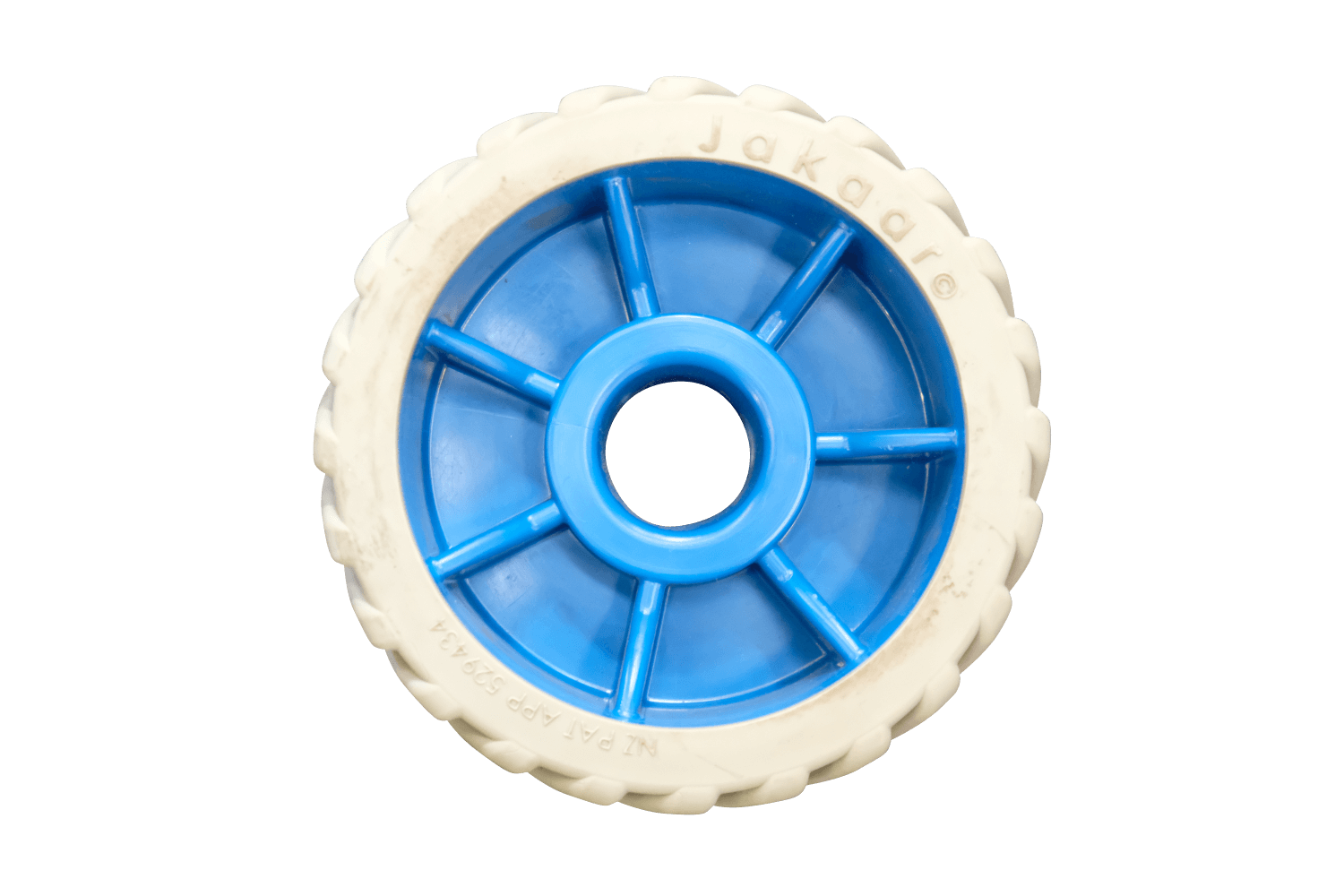

8 3130 (2) 3130 Wheel Wobble Roller $36.0
9 5043 (1) 5043 Circlip 70mm external S/S $23.00
10 SP136-028 SP136-028 Agitator Bush $29.40 Recommend also purchasing item 5042S/S
    SP193-007 Drive Axle $407.00
12 SP136-008 SP136-008 Agitator $47.67 Consider also item SP100-003
13 SP175-014 SP175-014 Towbar Adjuster $49.00

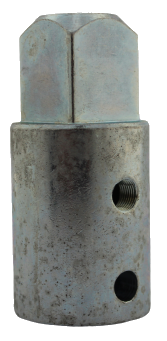

15 SP100-016 SP100-016 Drive Stub $62.01

Bolt - M8x50 ZP & Nyloc Nut

Grease Nipple - p/n 5051

16 SP100-035  33 SP100-035 Pointer $22.20
17 SP100-034 SP100-034 Drive Axle Key $6.00
18 SP100-015  33 SP100-015 Drive Slider Female $58.57

19 SP136-006 Front SP136-006 Spinner Disc Complete Assembly $163.02 Attaches using 3x 8x16 Stainless Steel Bolts & Spring Washers
19.1   SP136-005 Spinner Fin $14.00
20   2892 Shutter Plate $29.00
22 1931 1931 Shutter Adapter Plate $14.70
23 2892 2892 Shutter Plate $29.00
24   3019 Decal TT750 $4.65

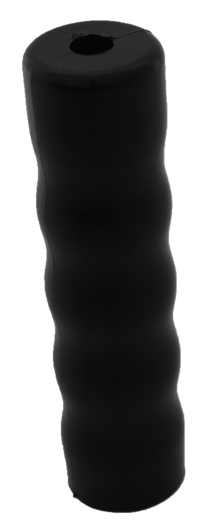

25 1645 1645 Grip Handle 25mm $6.00
26 2715 2715 Serial Number Plate Enquire

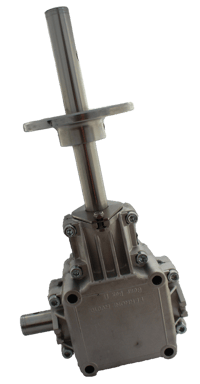

27 2120-1 3127 Gearbox Complete Assembly $364.00
27.1 1572 Side 1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
27.2 1868 1868 Gearbox Seal $7.50
27.3 1679 1679 Felt Washer $4.20 Oil soak before install
27.4 1901 1901 S/S Shaft Guard $2.00
30 RATA30 RATA30 Vogal Warranty Sticker Enquire

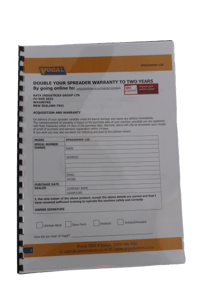

31 M SX120 M TT750 TT750 User Manual Enquire
32 1573

1573

Bearing Sealed 6206-2RS $7.05 For fabricated axle
33 SP136-015 SP136-015 Drive Operating Lever $77.00
34 SP100-030 SP100-030 Shutter Lever Extension $32.00

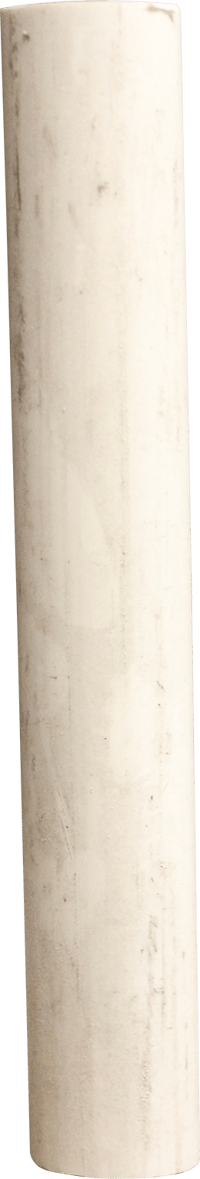

35 SP100-033 SP100-033 Drive Engage Liner Tube $6.00
36 SP100-036 33 SP100-036 Index Box $97.00
37 SP193-052 SP193-052 Front Hopper Bracket $44.24

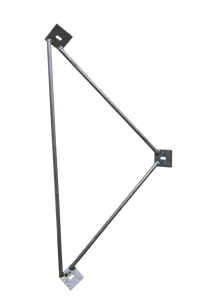

38 SP193-024 SP193-024 Hopper Tri Brace $108.05
39 SP136-113 SP136-113 Drive Handle MKll $39.00

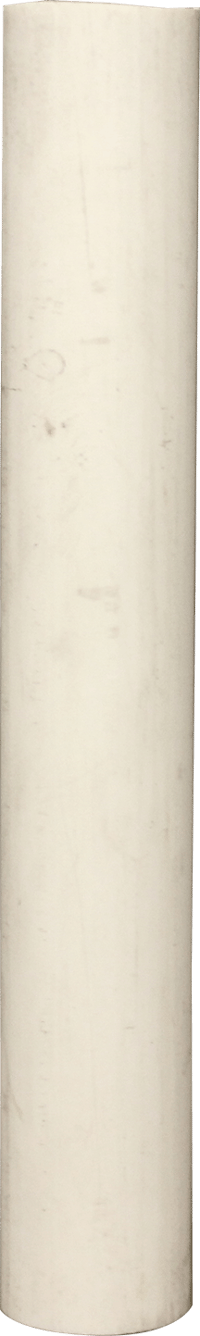

40 SP136-029 SP136-029 Tow Bar Bush Liner $5.00
41 1807 1807 Spinner Shield Blue $110.00
41.1   5008 Rivet $0.54
42   V111 Mudguards $690.00 Set of - optional extra
43 V113 V113 Cover and brace $265.00 Includes bolts and washers
44.1   3385 PVC Cover $217.00
44.2   SP193-015 Cover Brace $52.60
45 SP175-012 SP175-012 Shutter Lever $78.45
46 SP193-009 (1) SP193-009 Bearing Housing LH $274.26

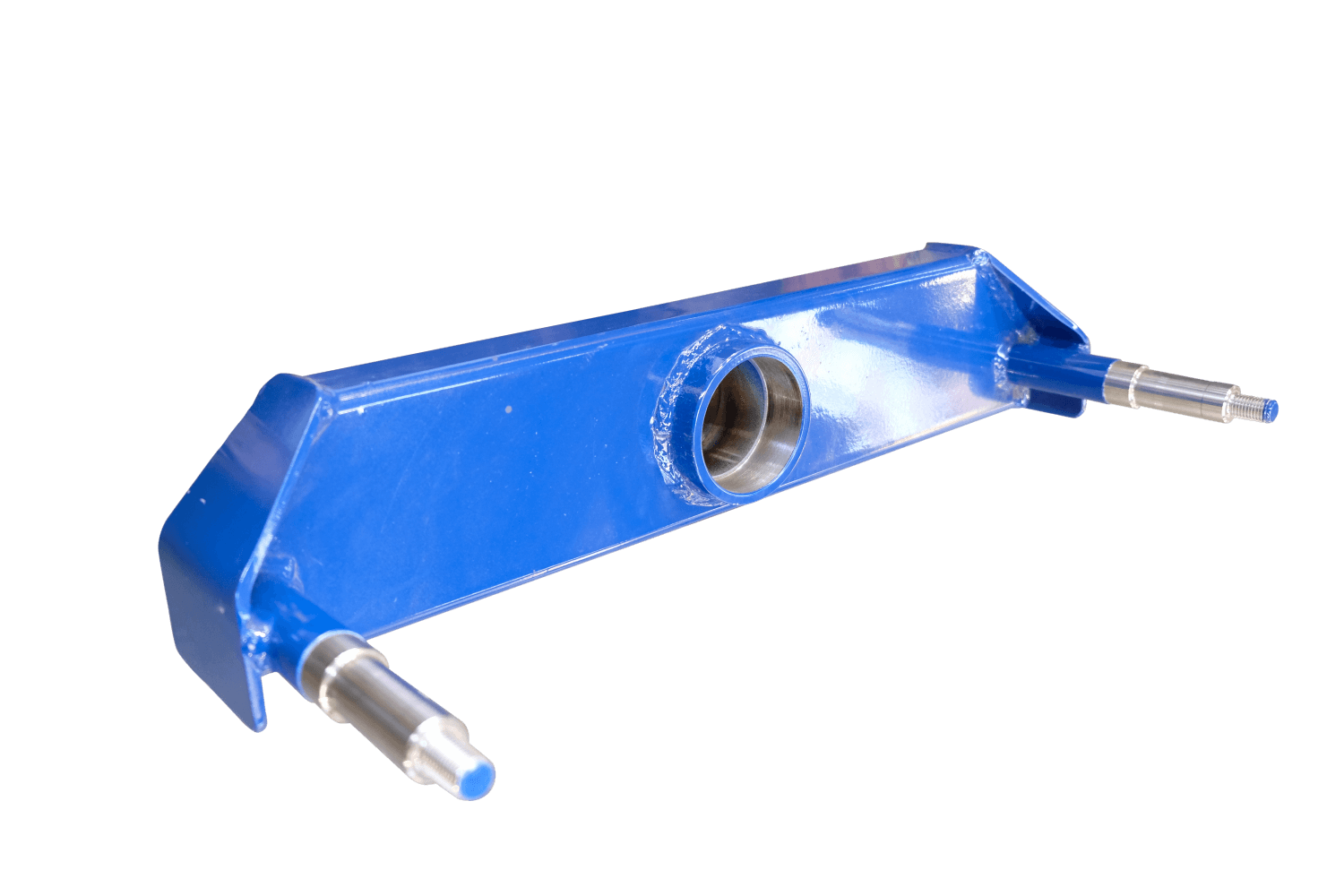

47 SP193-041 (1) SP193-041 Floating Axle Assembly $625.00
47.1 5058 5058 Grease Nipple M6 Straight $2.01
47.2 5082-1 5082 Extended Grease Nipple $2.58
48 SP193-042 (3) SP193-042 Axle Beam Bearing Bush (nylon) $75.00

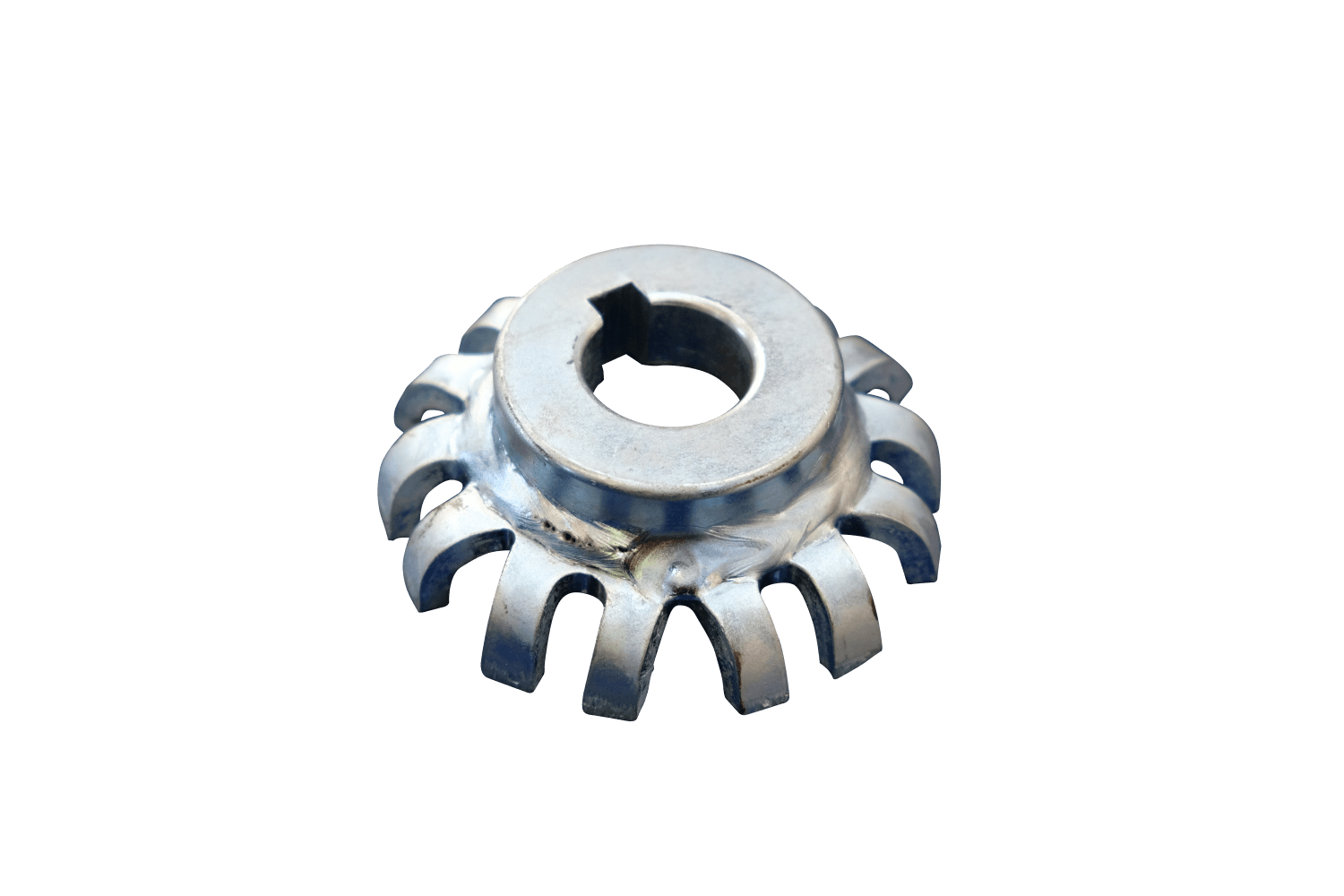

49 SP193-043 (1) SP193-043 Driving Plate $62.77

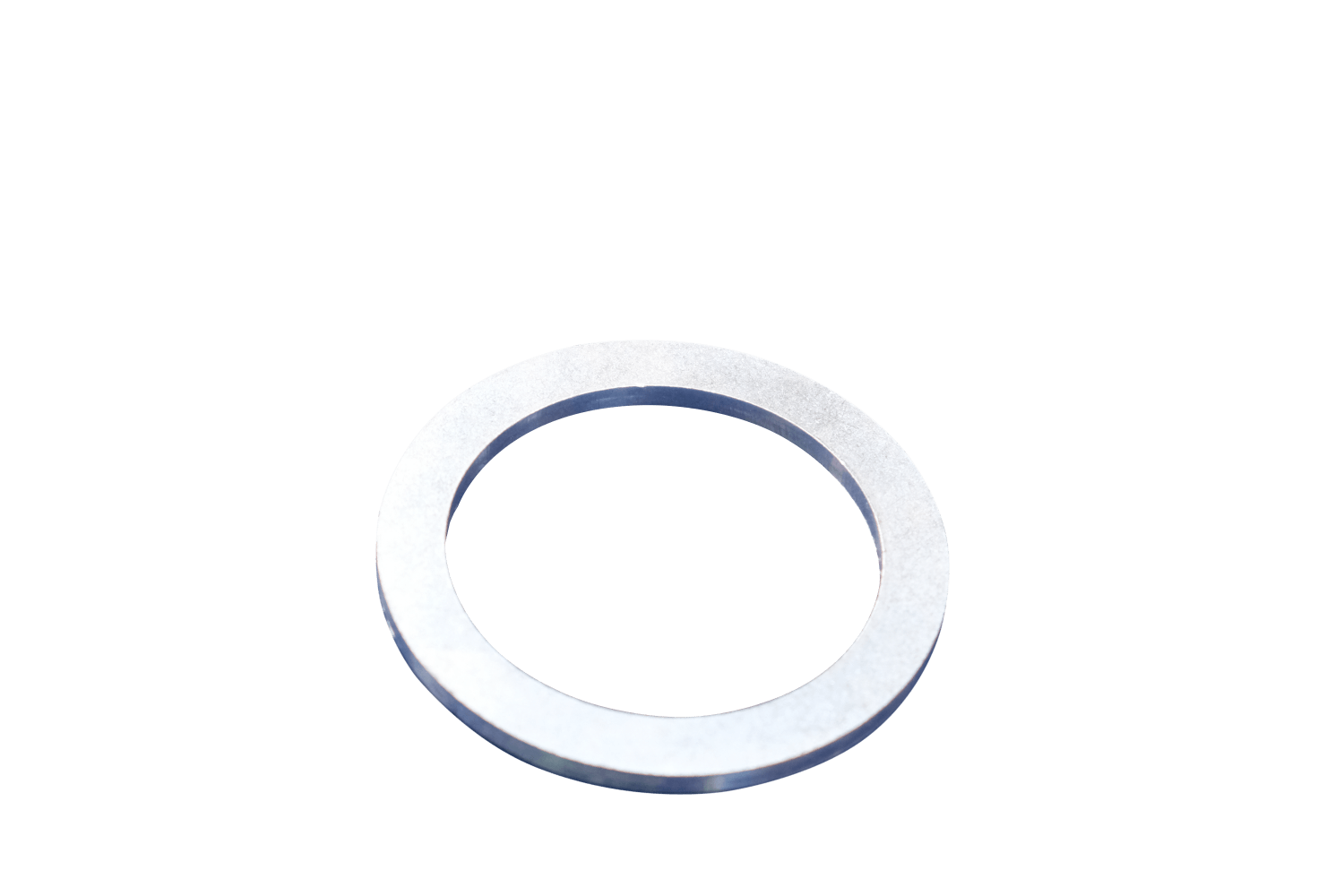

50 SP193-046 (4) SP193-046 TT Washer $17.67

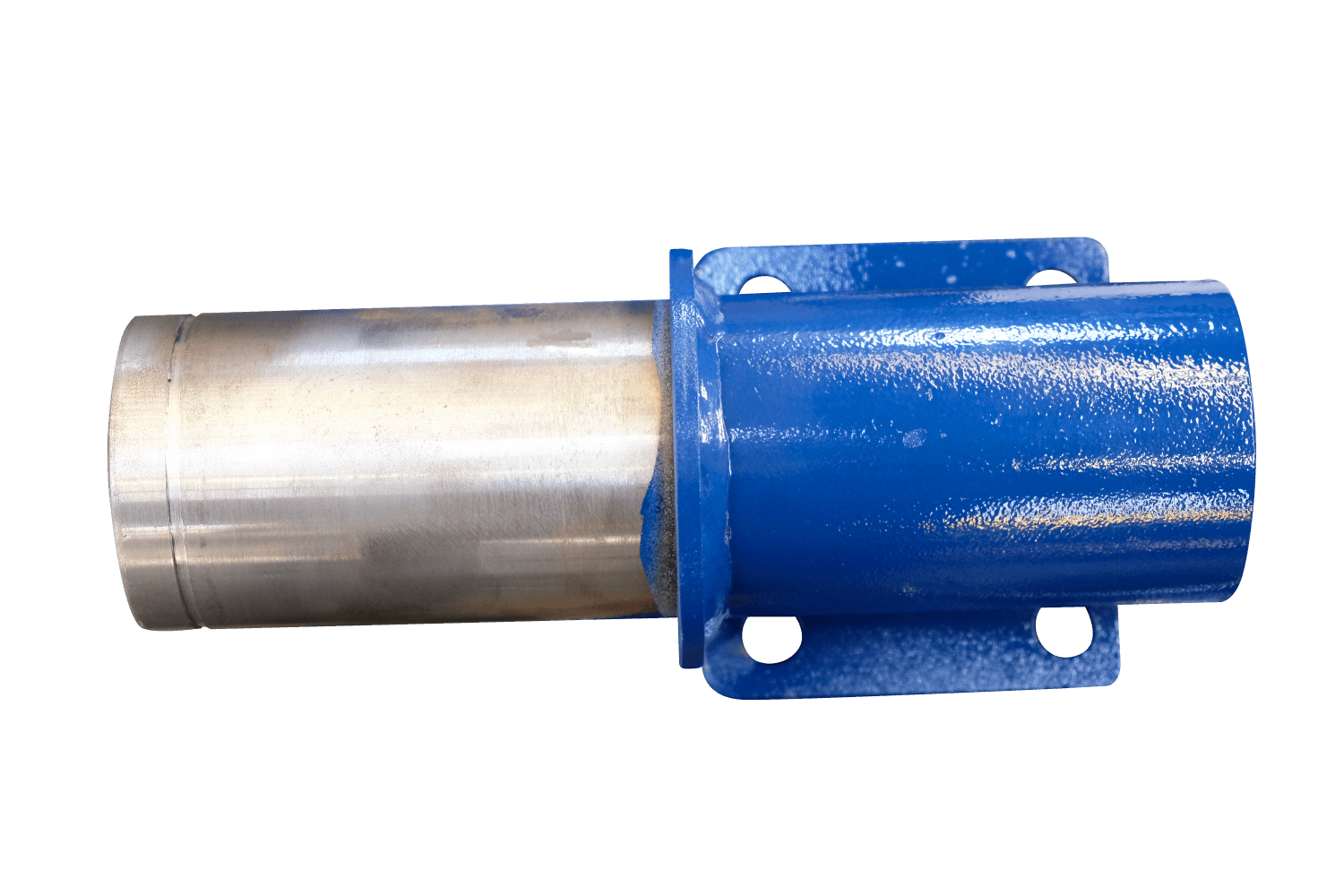

51 SP193-047 (2) SP193-047 Bearing Housing RH $198.00
52 SP193-049 (2) SP193-049 Bearing Spacer TT $33.68

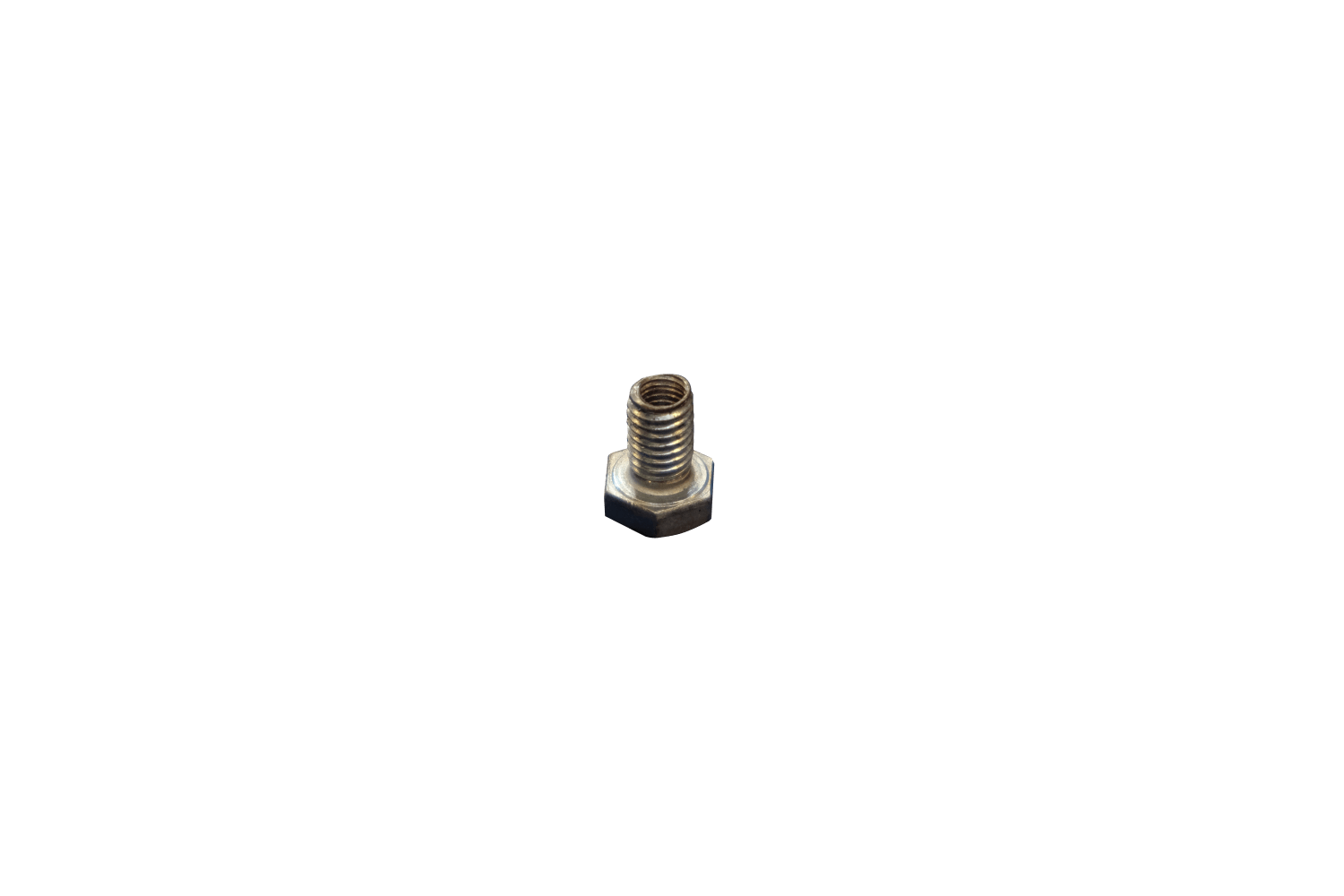

53 SP193-050 (2) SP193-050 Grease Bolt $13.02
54   SP193-039 Wobble Wheel Spacer $9.00
