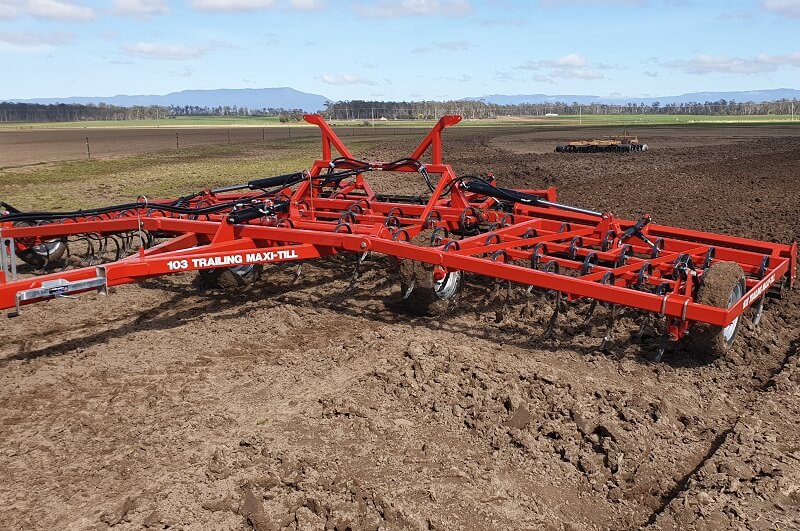

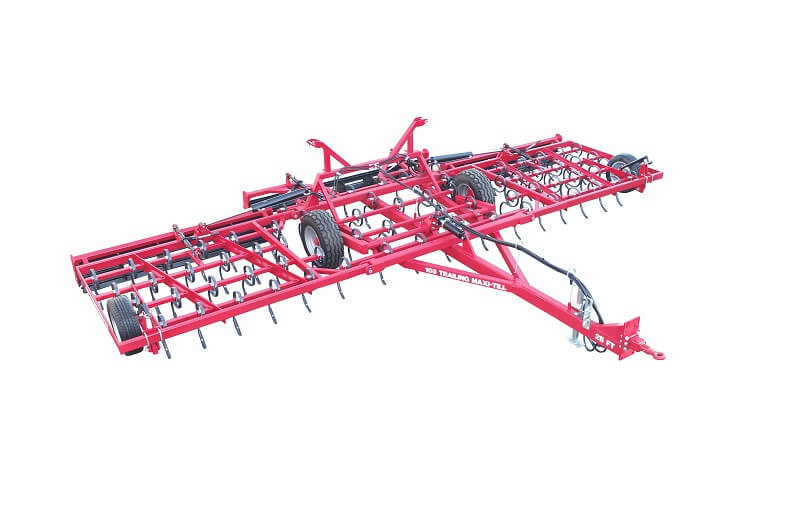

103 Trailing Maxitill

The 103 Fully Trailing Maxitill cultivator has "no equal" to its sound, rugged construction, 100mm tine spacing and correct placement of componentry, giving maximum strength at stress points.

It's floating contour following wings allow for complete coverage of ground, making for fast efficient seed bed preparation.

Options include levelling boards, finger tines in place of crumblers and a rear draw bar.

The transport width is 3m.

"Cultivating 15 acres per hour on less than a litre of fuel per acre"

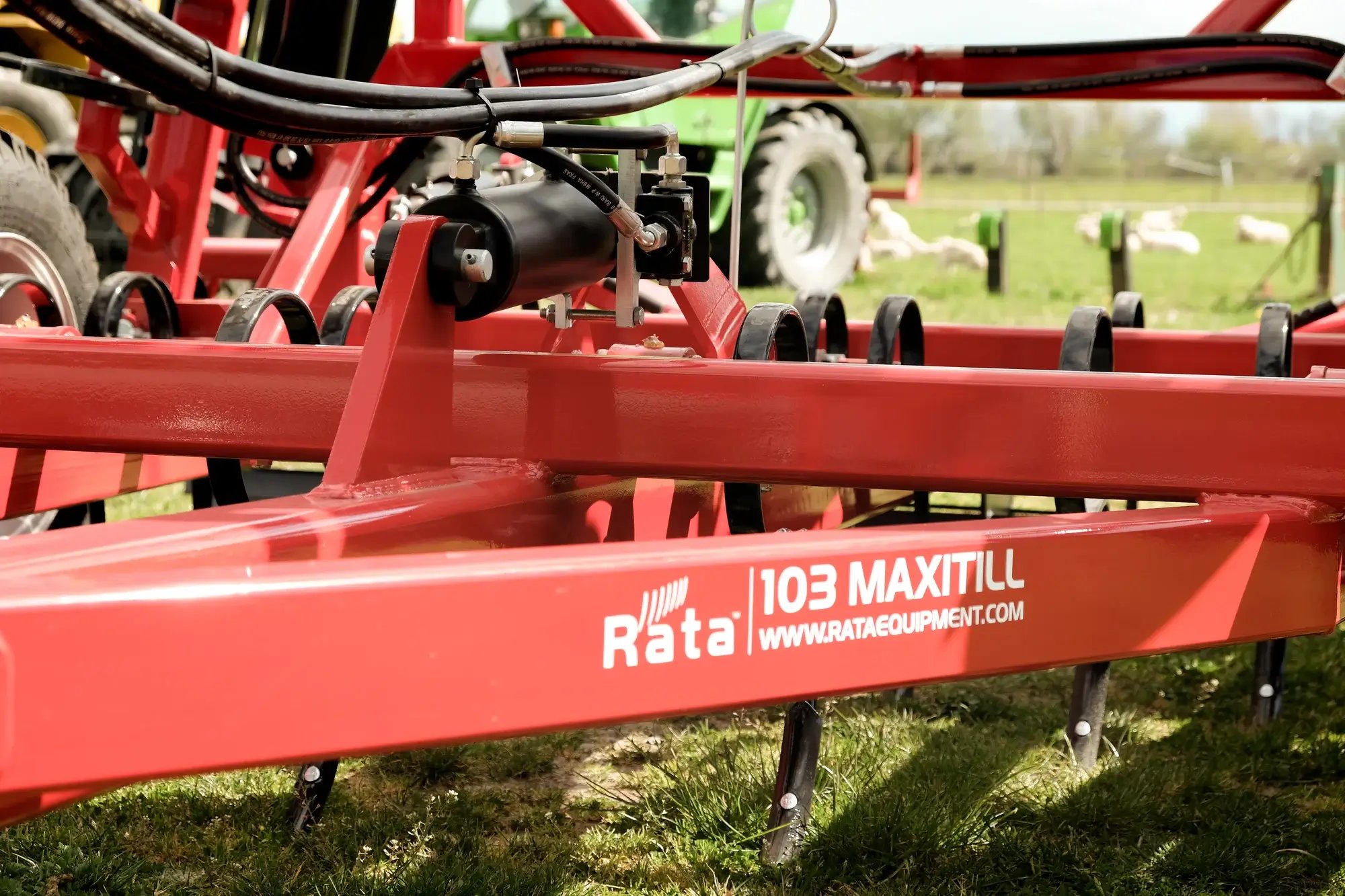

Product Gallery

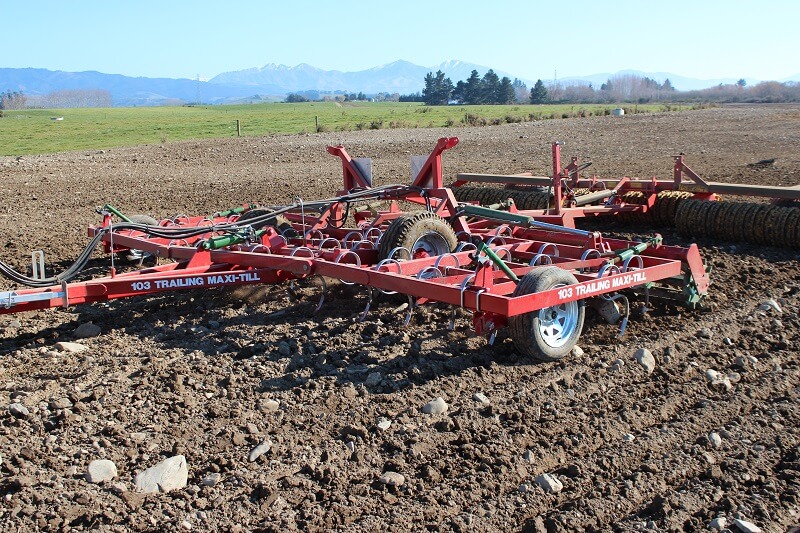

Rata 103 maxitill cultivator pulling a breaker ring roller

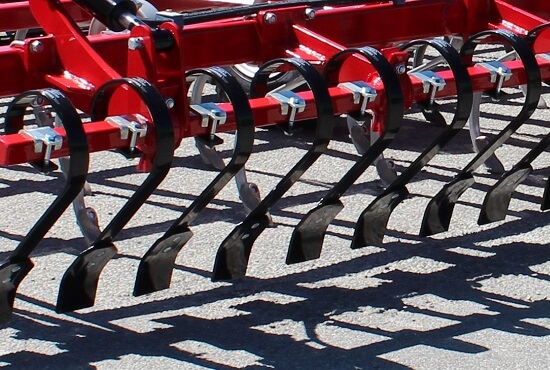

103 Trailing Maxitill with front levelling boards and rear finger tines

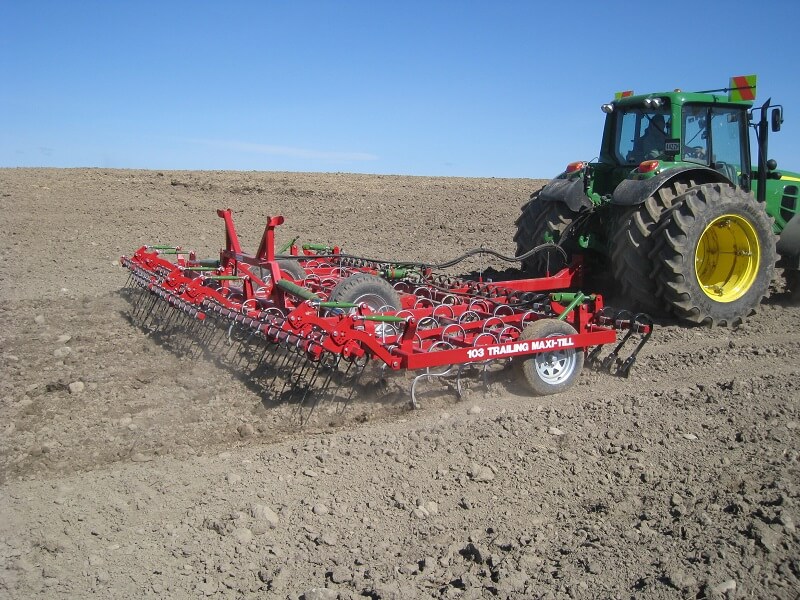

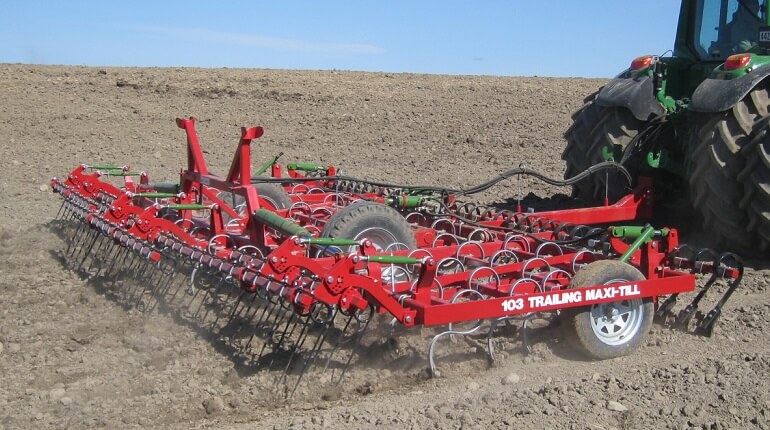

103 Trailing Maxitill behind john deere with levelling boards and finger tines

Specifications

Model (Code)	Working Width	Weight (kg)	Transport Width	Number of Tines
103FT20	6.10m (20ft)	2,200	3.1m	58
103FT22	6.85m (22.5ft)	2,300	3.1m	64
103FT25	7.60m (25ft)	2,500	3.1m	73
Note: Rear finger tines available in lieu of crumbler

Specifications (103 Maxitill Options)

Code	Description
LBP	Hydraulic Leveling Boards (Paddle type)
TCT	Tow Cart

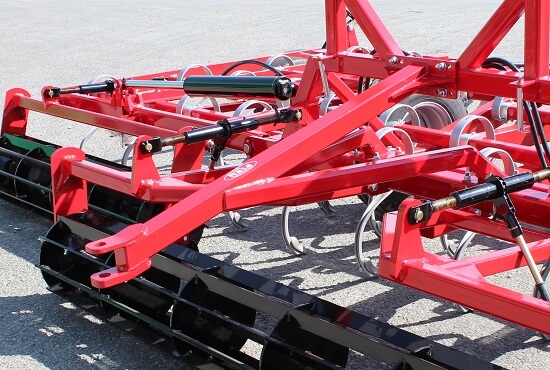

103RDB	Rear Draw Bar for 103 Maxitill

Features & Benefits

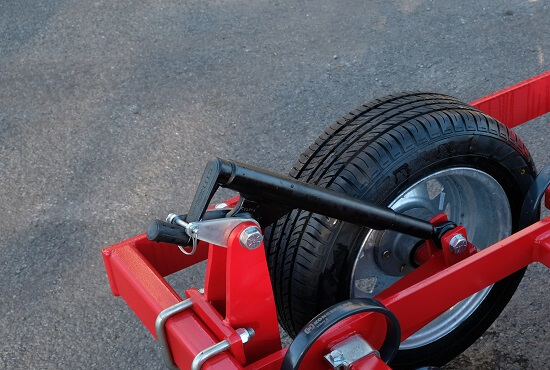

Wing Wheel

1 Adjustable Wing Wheels

103 Trailing Maxitills come standard with wing wheels for greater contour following. These wing wheels are also adjustable for enhanced depth control, enabling the operator to easily alter the tine depth.

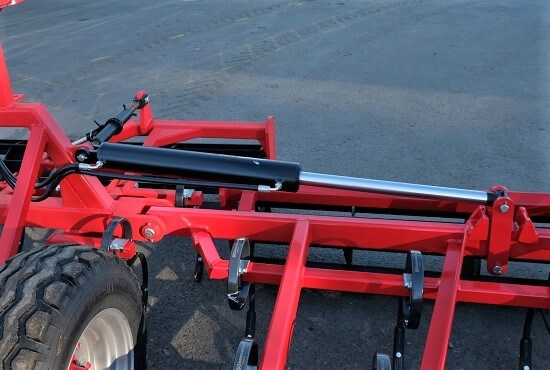

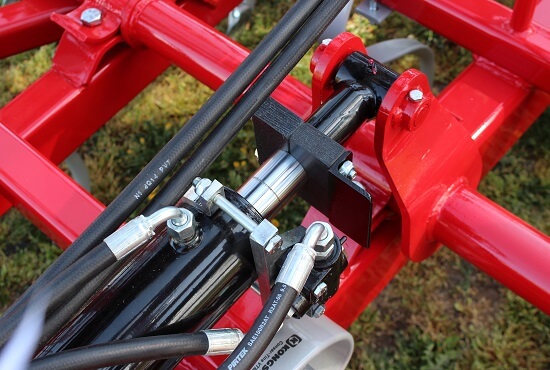

Hydraulic Cultivator Wing Lift

2 Hydraulic Wing Lift

The hydraulic fold on 103 Maxitill's is powered by two large high quality and fast acting NZ made hydraulic rams (one per wing). this adds to the 103's user friendly features.

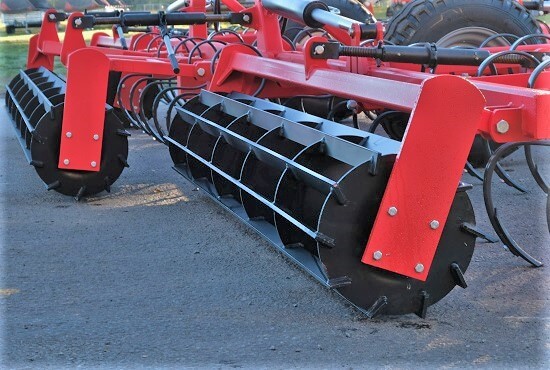

Crumbler Roller overlap on Rata 103 Maxitill cultivator

3 Crumbler Roller Overlap

Rata 103 Maxitills are standard with rear crumbler rollers, these crumbler roller overlap to give 100% ground coverage, ensuring you get the perfect finish every time. Note: A double row of finger tines is available in place of rear crumbler.

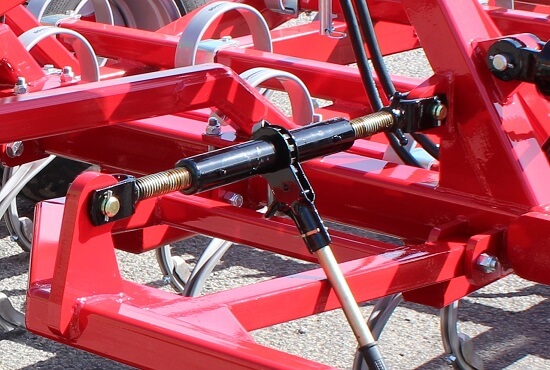

Turnbuckle crumbler adjustment on the Rata 103 Trailing Maxitill

4 Turnbuckle Adjustment

No matter if you get your Rata 103 with standard rear crumbler roller or optional finger tines, they are easily adjusted via a set of turnbuckles. This is a simple and effective way to adjust the working depth of your rear crumbler or finger tines.

Auto depth stop swith on Rata 103 Maxitill

5 Hydraulic Depth Stop

The main transport wheels of the 103 Maxitill are adusted via a large powerful hydraulic ram, this also features a hydraulic depth stop switch to prevent the tines digging in too deep.

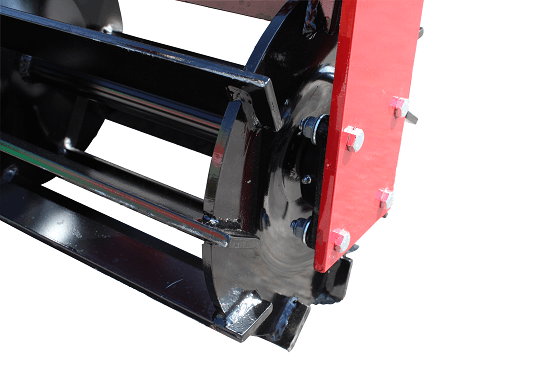

Crumbler bearings of Rata 103 Maxitill

6 Crumbler Bearings

All crumblers on the 103 Maxitill are mounted to the arms via high quality greasable bearings, this ensures smooth crumbler operation with minimum wear and tear.

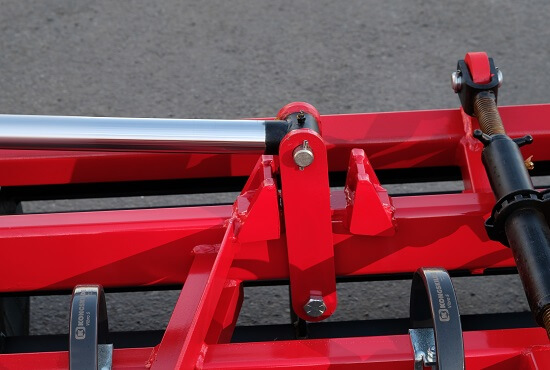

Wing flotation toggle for Rata 103 trailing maxitill

7 Wing Flotation Toggle

The hydraulic wing lift rams are mounted to the 103's cultivator wings via a flotation toggle, the flotation toggle provides for independent arm flotation and movement across varying contours, Enabling 100% coverage.

Grease access points

8 Easy Grease Access

All grease points on the Rata 103 Maxitill are easily accessed when in the transport position, this helps to make maintenance as fast and easy as possible.

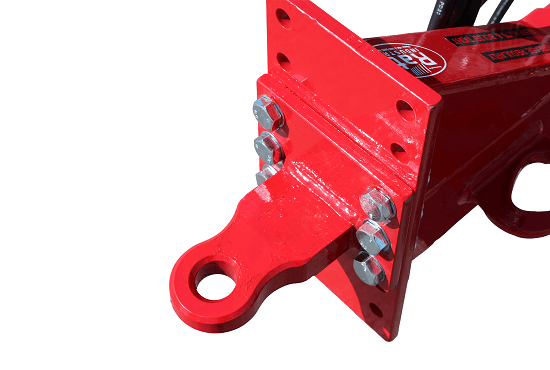

Bolt on towing eye for Rata Maxitills

9 Bolt On Tow Eye

The 103 Maxitill features a bolt on towing eye/tongue that can be adjusted up and down pre-drilled mounted points. Being bolt on also enables the operator to replace it with another towing interface at any time.

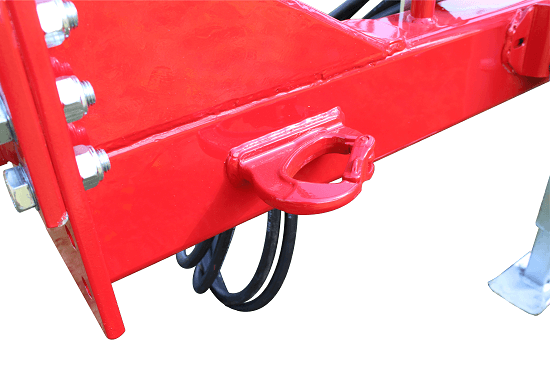

Rata 103 Maxitill Safety Chain mount

10 Safety Chain Mount

This high capacity hook provides a safety chain mount when travelling on public roads or anytime use of a safety chain is required.

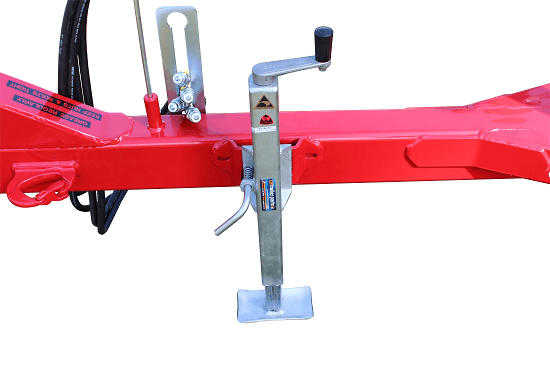

Drawbar stand for Rata Trailing Maxitills

11 Drawbar Stand

The standard draw bar stand for the 103 provides better storage when not in use, this also enables you to easily adjust the drawbar height for mounting. This stand is simply turned 90° to remove it out of the working area.

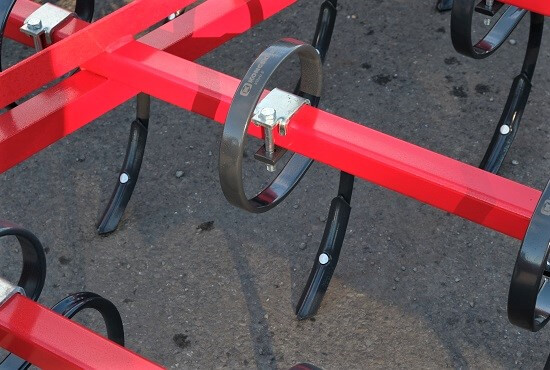

Reversable Points
