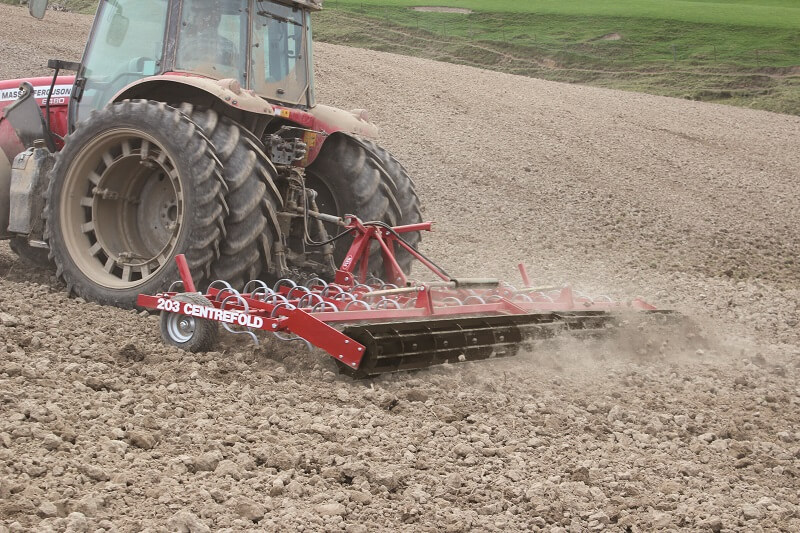

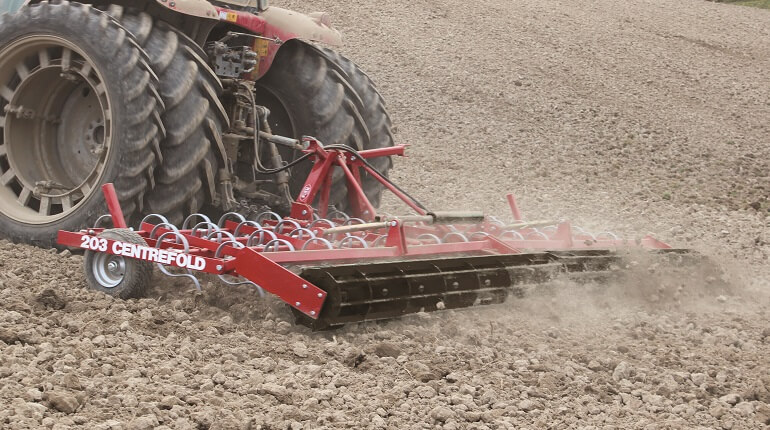

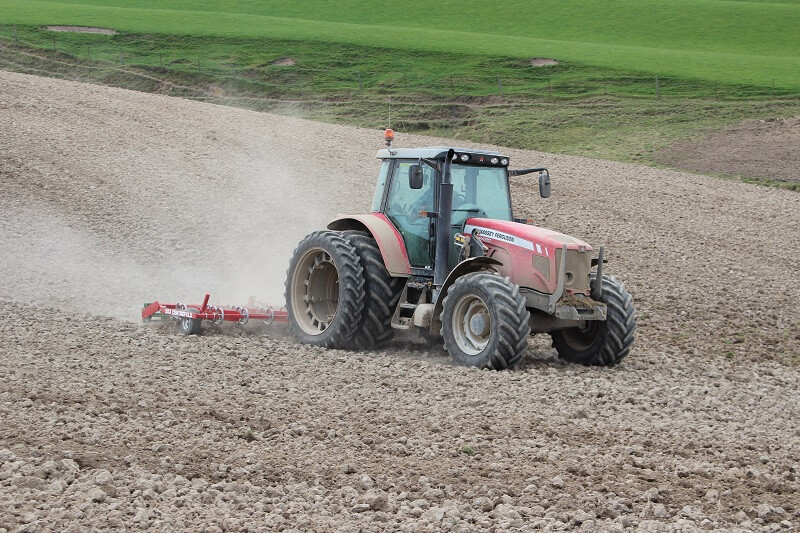

Rata 203 Centrefold Cultivator on Massey Ferguson

203 Centrefold Maxitill

The independent contour following wings ensure undulation ground is covered. The vigorous vibrating action of the world famous 'S' tine makes a highly effective means of breaking up furrows and clods. The levelling action of the rear crumbler adds to the effectiveness of the implement giving the speediest operation in preparation of a perfect seedbed.

Why The 203 Mounted Centrefold Maxi till?

Heavy duty angled flat bar roller crumblersTurnbuckle depth control Horizontal push ram for efficient wing flotation Rugged compact headstock Quality kongskilde "S" tines. 10mm x 32 standard Main frame in three sections. Eliminates centre ridging and frame stress

The 203 Centrefold contains features within the design to make it work more efficiently, reducing frame stress and fuel/horsepower requirements. The independent contour following wings ensure undulating ground is covered and with the construction being made up of three sections this eliminates any chance of centre ridging.

The vigorous vibrating action of the world-leading “S” tines makes a highly effective means of breaking up furrows and clods. The levelling action of the rear crumblers adds to the effectiveness of the implement giving the speediest operation in preparation of a perfect seed bed.

QUOTE REQUEST

Product Gallery

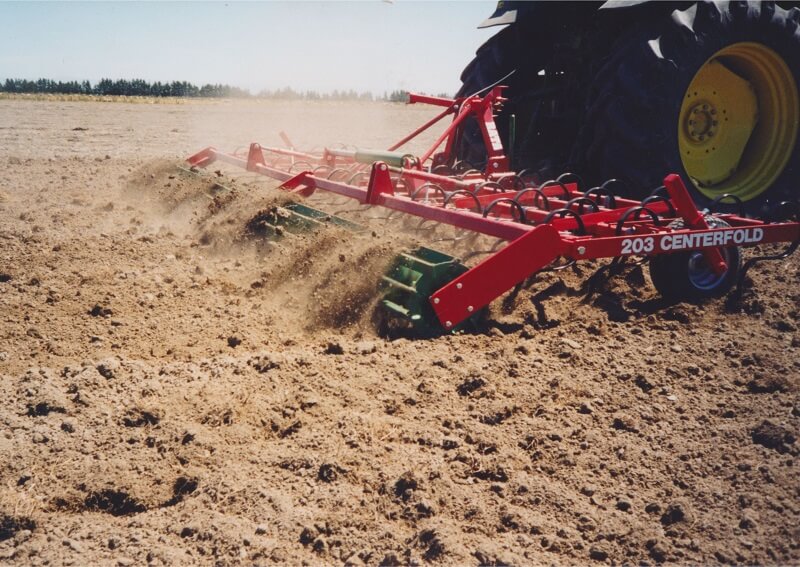

Rata Maxitill Cultivator behind John Deere Tractor

Original design resulting from years of testing, feedback, and improvement.

‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

QUOTE REQUEST

Specifications

Model (Code)	Working Width	Weight (kg)	Tine Spacing (mm)
203CF16	4.87m (16ft)	830	100
203CF18	5.48m (18ft)	900	100
203CF20	6.10m (20ft)	970	100
Note: Rear finger tines available in lieu of crumbler

Specifications (203 Maxitill Options)

Code	Description
RTH	Rear Tow Hitch
WIWH	Wing Wheels (pair)

Features & Benefits

Heavy Duty Headstock on linkage mounted Rata Maxitills

1 Heavy Duty Headstock

203 mounted maxitill's feature a compact and rugged headstock to cope with harsh conditions. Wing holder arms to secure the cultivator wings when not in use are build into the headstock.

Hydraulic wing lift on a Rata centrefold maxitill

2 Hydraulic Fold

The hydraulic fold on the 203 Maxitill is powered by a single large high quality and fast acting NZ made hydraulic ram, adding to the user friendly features of the 203.
