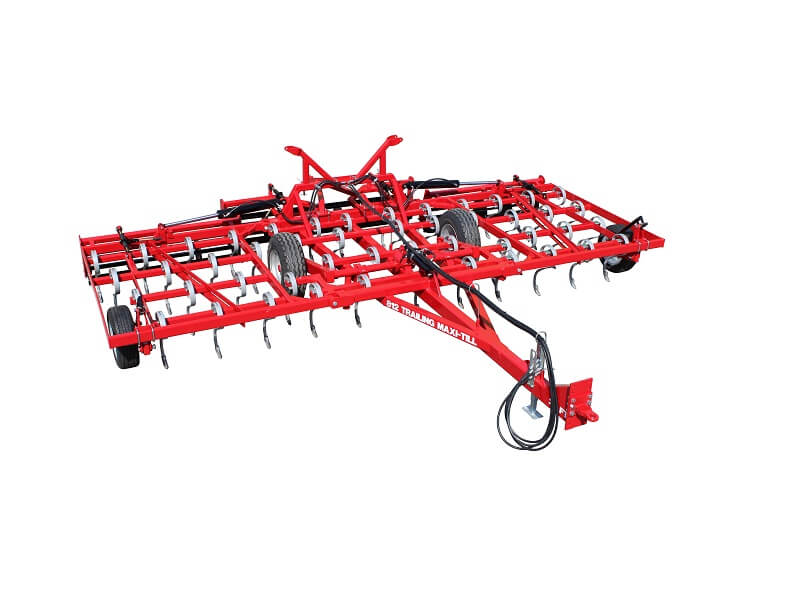

812 Trailing Maxitill

The 812 Trailing Maxitill cultivator is designed for greater trash clearance.

From the massive main beam that runs throughout the frame to the 65x65x6 box section, the 812 is built tough for New Zealand conditions. Floating contour wings allow for complete ground coverage, combined with the larger heavy duty world leading 50mm 'S' tines, 125mm tine spacing and heavy rear crumblers you get an efficient seed bed preparation and stubble incorporation that cannot be matched.

Road legal transport (3.1m) width up to 25 foot.

"Greater strength, better weight distribution and unequal trash clearance"

Product Gallery

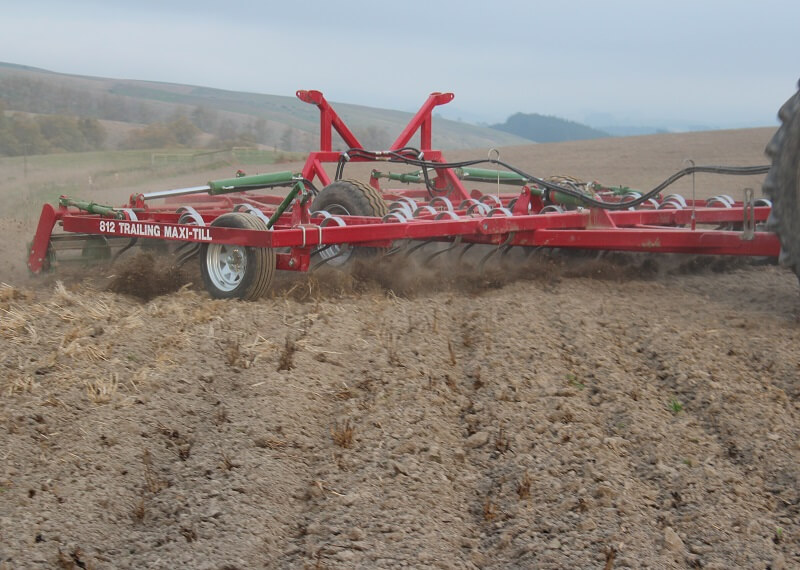

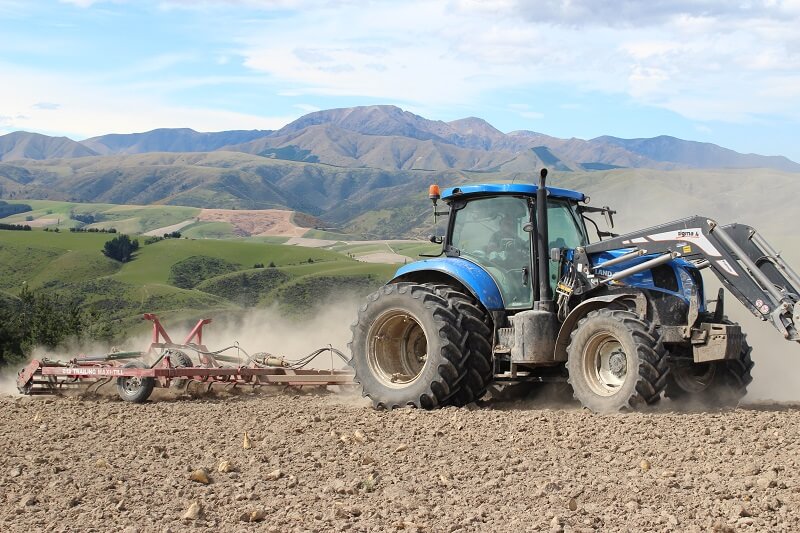

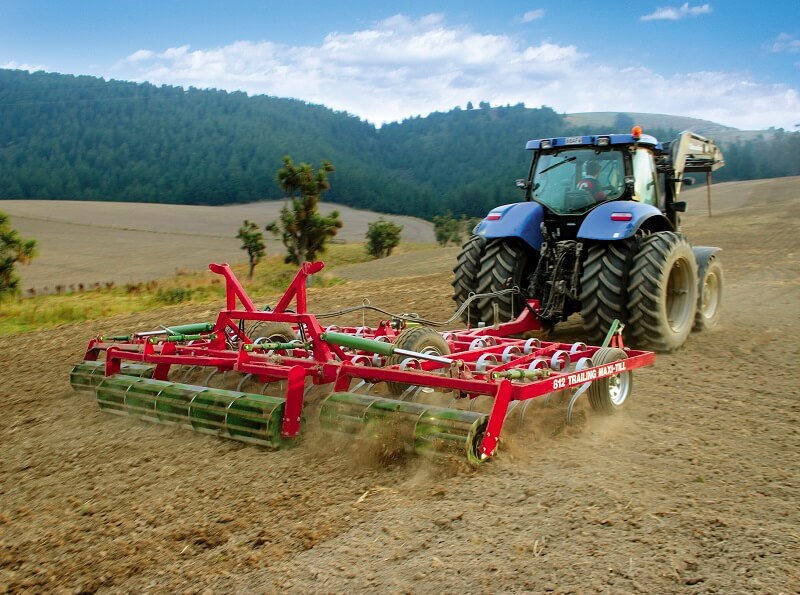

Rata 812 Trailing Maxitill behind New Holland Tractor

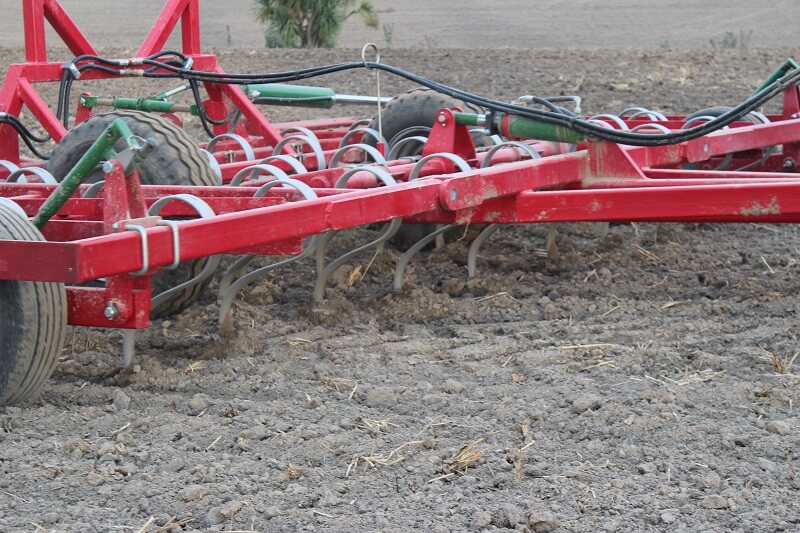

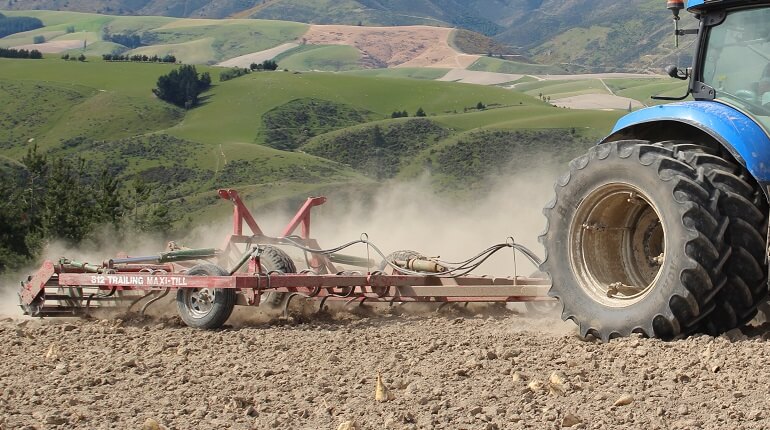

Rata 812 Trailing Maxitill cultivating stony ground behind New Holland Tractor

Specifications

Model (Code)	Working Width	Transport Width	Number of Tines	Minimum HP
812FT20	6.10m (20ft)	3.1m	48	144
812FT22	6.85m (22.5ft)	3.1	54	150
812FT25	7.60m (25ft)	3.1m	60	180
Note: Rear finger tines available in lieu of crumbler

Specifications (812 Maxitill Options)

Code	Description
LBP	Hydraulic Leveling Boards (Paddle type)
TCT	Tow Cart
812RDB	Rear Draw Bar for 812 Maxitill

Features & Benefits

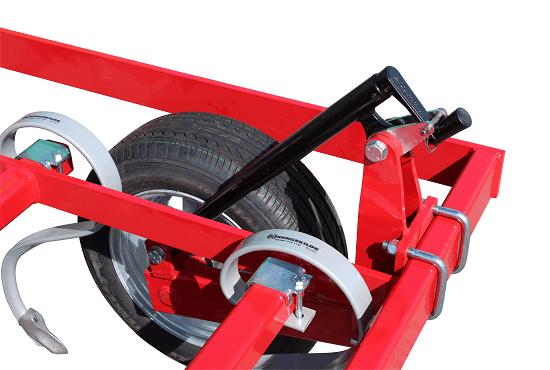

Adjustable wing wheels

1 Adjustable Wing Wheels

812 Trailing Maxitills come standard with wing wheels for greater contour following. These wing wheels are also adjustable for enhanced depth control, enabling the operator to easily alter the tine depth.

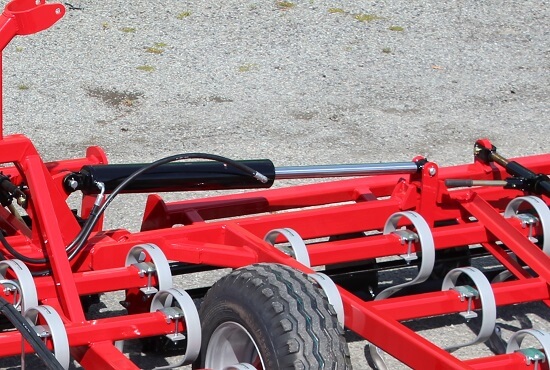

Hydraulic wing lift & transport

2 Hydraulic Wing Lift

The hydraulic fold on 812 Maxitill's is powered by two large high quality and fast acting NZ made hydraulic rams (one per wing). this adds to the 812's user friendly features.

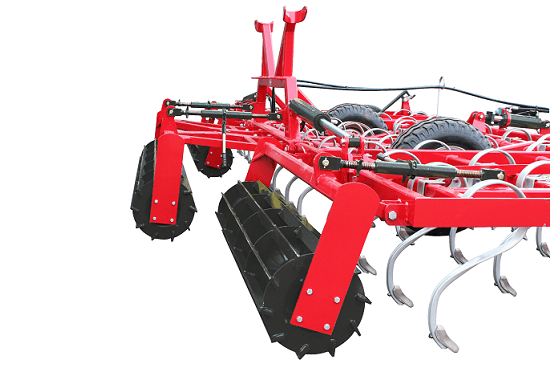

Rear crumbler roller overlap

3 Crumbler Roller Overlap

Rata 812 Maxitills are standard with rear crumbler rollers, these crumbler roller overlap to give 100% ground coverage, ensuring you get the perfect finish every time. Note: A double row of finger tines is available in place of rear crumberl.

Turnbuckle crumbler adjustment on the Rata 812 Trailing Maxitill

4 Turnbuckle Adjustment

No matter if you get your Rata 812 with standard rear crumbler roller or optional finger tines, they are easily adjusted via a set of turnbuckles. This is a simple and effective way to adjust the working depth of your rear crumbler or finger tines.

Auto depth stop swith on Rata 812 Maxitill

5 Hydraulic Depth Stop

The main transport wheels of the 812 Maxitill are adusted via a large powerful hydraulic ram, this also features a hydraulic depth stop switch to prevent the tines digging in too deep.

Crumbler bearings of Rata 812 Maxitill

6 Crumbler Bearings

All crumblers on the 812 Maxitill are mounted to the arms via high quality greasable bearings, this ensures smooth crumbler operation with minimum wear and tear.

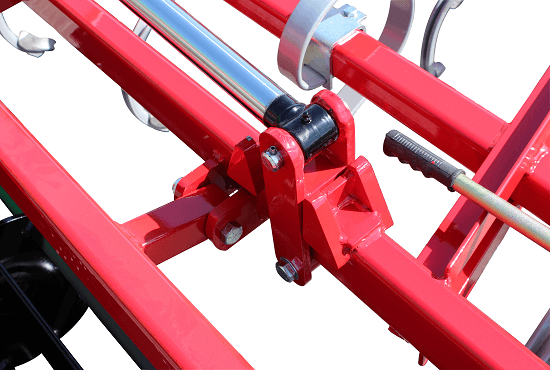

Flotation toggle on Rata Maxitill wing

7 Wing Flotation Toggle

The hydraulic wing lift rams are mounted to the 812's cultivator wings via a flotation toggle, the flotation toggle provides for independent arm flotation and movement across varying contours, Enabling 100% coverage.

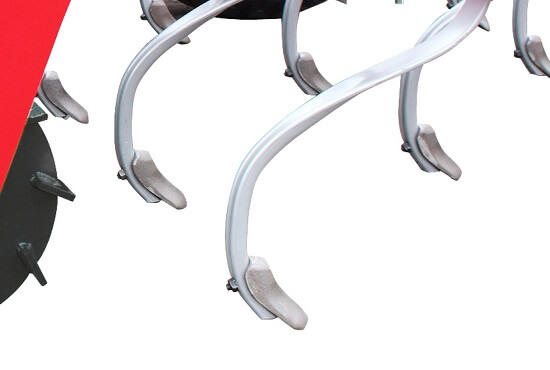

Ni-hard points on Rata 812 & 813 Maxitill tines

8 Ni-hard Points

The Rata 812 features high quality Ni-hard points mounted on world leading 50 x 10 'S' tines for work in abrasive ground, Ni-hard points offer high wear resistance longer life.

Easy grease access on Rata Maxitill Cultivators

9 Easy Grease Access

All grease points on the Rata 812 Maxitill are easily accessed when in the transport position, this helps to make maintenance as fast and easy as possible.

Bolt on towing eye for Rata Maxitills

10 Bolt On Tow Eye

The 812 Maxitill features a bolt on towing eye/tongue that can be adjusted up and down pre-drilled mounted points. Being bolt on also enables the operator to replace it with another towing interface at any time.

Drawbar stand for Rata Trailing Maxitills

11 Drawbar Stand

The standard draw bar stand for the 812 provides better storage when not in use, this also enables you to easily adjust the drawbar height for mounting. This stand is simply turned 90° to remove it out of the working area.

Rata 812 Maxitill Safety Chain mount

12 Safety Chain Mount

This high capacity hook provides a safety chain mount when travelling on public roads or anytime use of a safety chain is required.

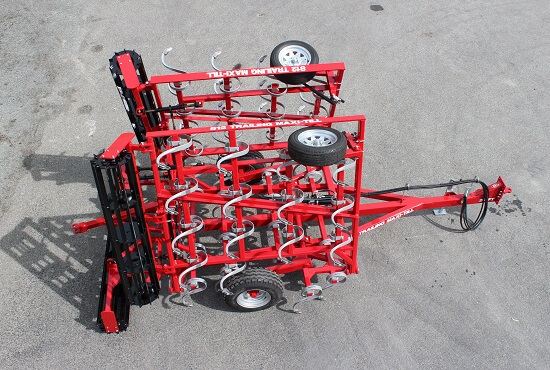

Road legal transport width

13 Legal Transport Width

When the 812 is folded into transport position it fits within the road legal transport width of 3.1m, this enables you to travel on public roads without the need of pilot vehicles.

Rear Tow Bar available
