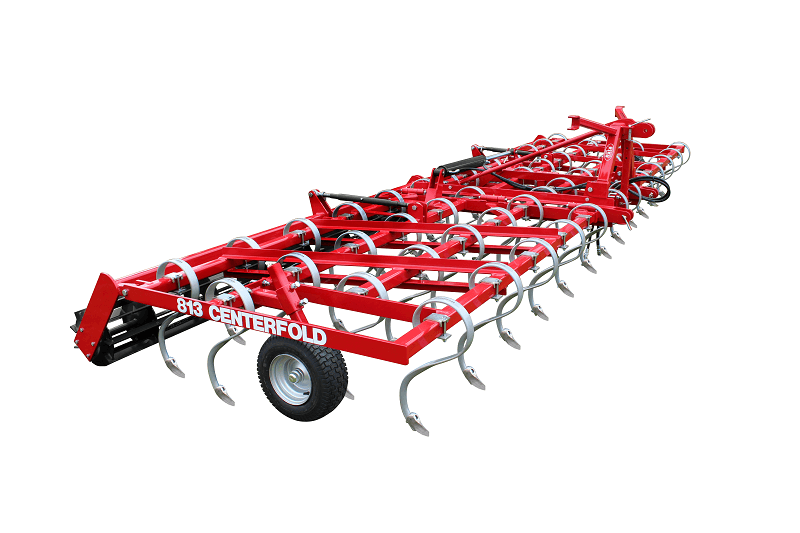

813 Centrefold Maxitill

The big brother to the 203 Centrefold, the 813 Mounted Centrefold is designed for greater trash clearance.The 50 x 10mm tines with Ni Hard points are spaced at 125mm apart giving excellent trash flow.

The heavier 65 x 65 x 6mm box section frame gives greater strength throughout the independent contour following wings which ensures all undulating ground is covered.

Centre ridging is eliminated with construction being made up of three sections. With the levelling action of the rear crumblers adding to the effectiveness of the machine, you get a better job faster, saving on fuel and maintenance.

Rear Finger tines are option

Product Gallery

Specifications

Model (Code)	Working Width	Weight (kg)	Number of Tines	Tine Spacing (mm)
813CF16	4.87m (16ft)	1030	38	125
813CF18	5.50m (18ft)	1,100	43	125
813CF20	6.10m (20ft)	1,170	52	125

Specifications (813 Maxitill Options)

Code	Description
WIWH	Wing Wheels
RTH	Rear Tow Hitch

Features & Benefits

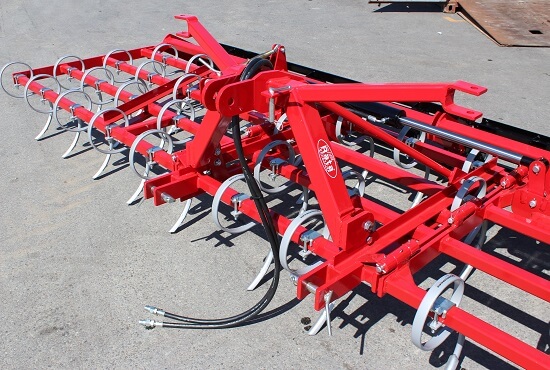

Heavy Duty Headstock on linkage mounted Rata Maxitills

1 Heavy Duty Headstock

813 mounted maxitill's feature a compact and rugged headstock to cope with harsh conditions. Wing holder arms to secure the cultivator wings when not in use are build into the headstock.

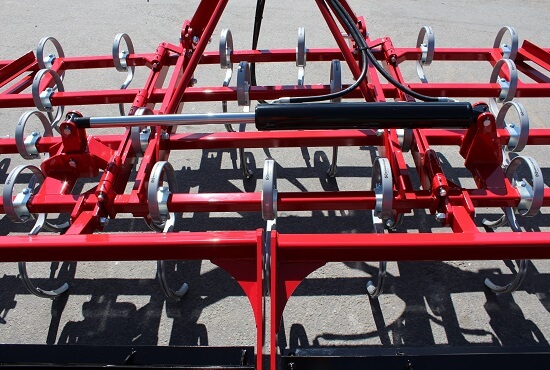

Hydraulic wing lift on a Rata centrefold maxitill

2 Hydraulic Fold

The hydraulic fold on the 813 Maxitill is powered by a single large high quality and fast acting NZ made hydraulic ram, adding to the user friendly features of the 813.

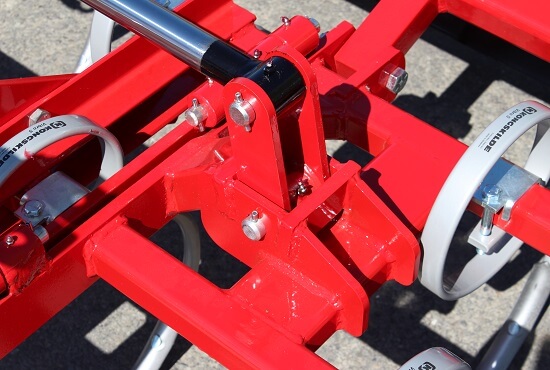

Wing flotation toggle on Rata Maxitill

3 Wing Flotation Toggle

Wing flotation toggles on Rata centrefold cultivators enable the wings to float and move vertically and independent of the centre frame, this ensures 100% ground coverage as the wings are able to cover the contours better.

Ni-hard points on Rata 813 maxitill

4 Ni-hard Points

Rata 813 Centrefold Maxitill's feature high wear resistant Ni-hard points for long life and high durability. These ni-hard points are mounted on world leading 50 x 10 'S' tines.

Crumbler bearings of Rata 813 Maxitill

5 Crumbler Bearings

Crumblers on the 813 Maxitill are mounted to the arms via high quality greasable bearings, this ensures smooth crumbler operation with minimum wear and tear.

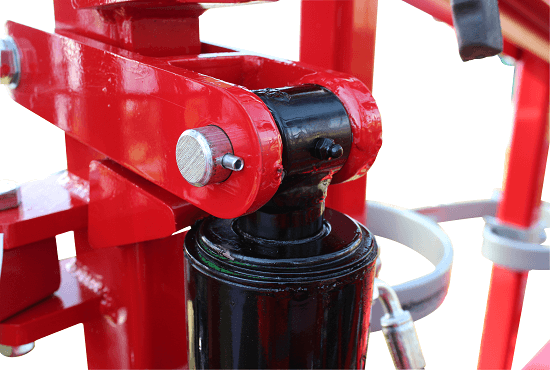

Easy grease access to Rata Cultivators

7 Easy Grease Access

All grease points on the Rata 813 Maxitill are easily accessed, this helps to make maintenance as fast and easy as possible.

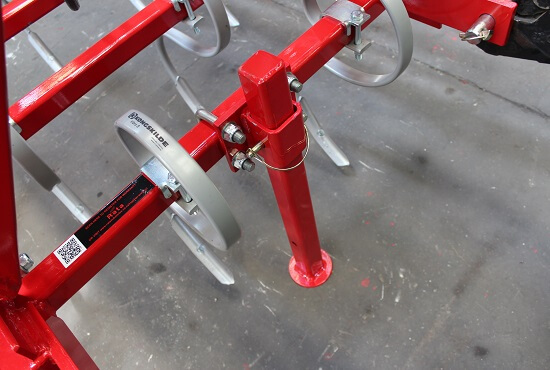

Storage stand for centrefold cultivators - Rata Equipment - Rata Industries

8 Storage Stand

Rata Centrefold maxitill's feature a frame stand for when in storage, this keep the implement secure and stable when not in use. Simply lift the stand when mounting up for work.

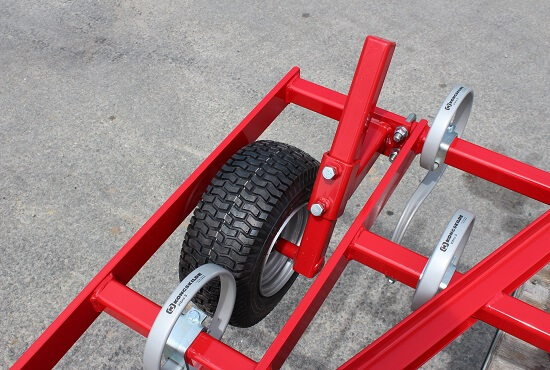

Optional wing wheels on Rata 3PL mounted maxitills

9 Optional Wing Wheels

Wing wheels are optional on the Centrefold maxitill range, these are recommended when working in ground where the outer ends of the wings need support. Note: Wing wheels are recommended for 18ft and 20ft models

Dealer Locator

The 813 Maxitill is sold throughout our nationwide network of dealers, find your nearest one today.
