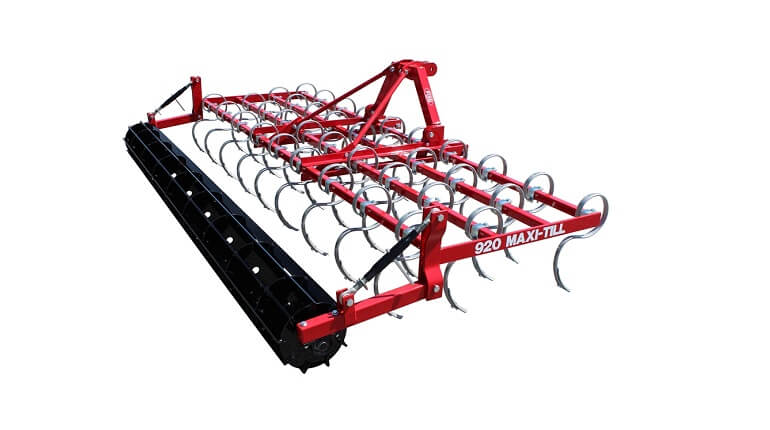

920 Maxitill (Roto-tiller)

The Rata 920 Maxi Till is simply famous for its rugged compact design, heavy flat bar crumblers and turnbuckle depth control.

The world leading tines used on the 920 Maxi Till vibrate backwards, sideways and forwards at a constant preset depth giving you a uniform seed bed.

The leveling action of the rear crumbler roller, adds to the effectiveness of the implement making this Maxi Till an excellent asset.

Why the 920 maxitill?

Heavy duty angled flat bar crumblersTurnbuckle depth control 100mm tine spacing Rugged bolted headstock

Known for its rugged, compact design and heavy flat bar crumblers with turnbuckle depth control.

The closely spaced, world-leading “S” tines vibrate backwards, sideways and forwards at a constant pre-set depth giving you a uniform seed bed.

The levelling action of the rear crumbler roller adds to the effectiveness of the implement.

When working in stony ground, single bar finger tines can be bolted on in place of the roller.

If farmers want to better utilise tractors in the 80-120hp range, and they are working acreages too small for bigger models, the Rata 920 Maxi Till is their machine.

QUOTE REQUEST

Product Gallery

Original design resulting from years of testing, feedback, and improvement.

‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

QUOTE REQUEST

Specifications

Model (Code)	Width	Number of Tines	Tine Spacing (mm)	Category
920MT15	1.50m (5ft)	15	100	Vineyard
920MT18	1.8m (6ft)	17	100	Maxitill
920MT20	2.0m (6.2ft)	19	100	Maxitill
920MT24	2.4m (8ft)	23	100	Maxitill
920MT30	3.0m ( 10ft)	30	100	Maxitill
920MT35	3.5m (11.6ft)	33	100	Maxitill
Note: Rear finger tines available in lieu of crumbler

Specifications (920 Maxitill Options)

Code	Description
SG	Side Guards (pair)
RTH	Rear Tow Hitch

Features & Benefits

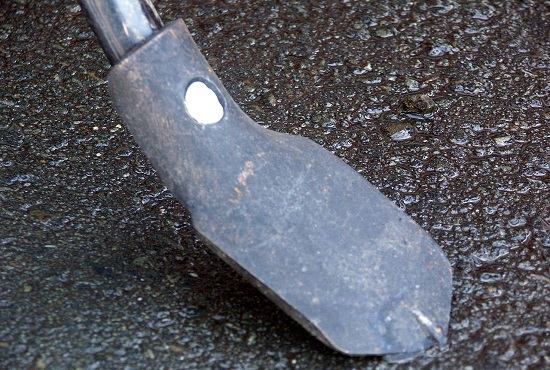

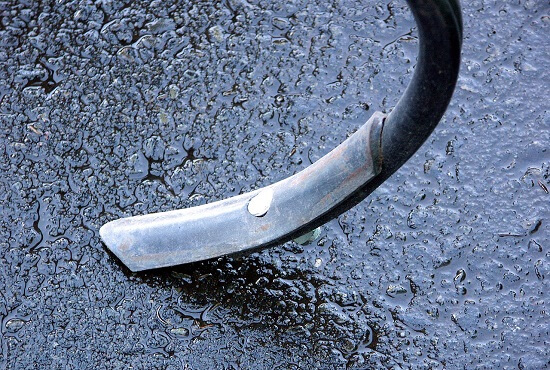

Vibrating S tines on Rata maxitill

1 Vibrating S Tines

S tines on the 920 Maxitill vibrate backwards, sideways and forwards while in the ground, this gives you a uniform and even seed bed ready for seeding.

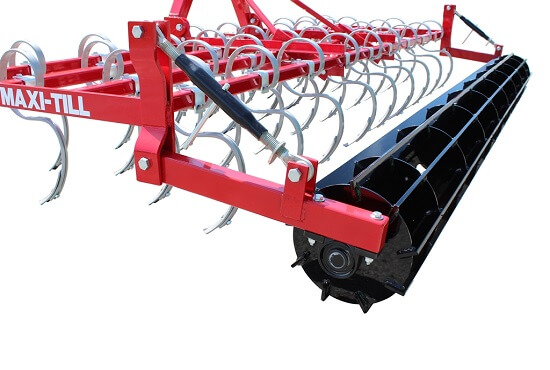

Crumbler adjustment on Rata 920 maxitill

2 Crumbler Roller

The leveling action of the rear crumbler roller finishes off the job and breaks down any large clumps of soil. This rear crumbler roller is also adjustable, allowing you to alter the working depth.
