Breaker Ring Roller

The Rata Breaker Ring Roller is fast becoming very popular with farmers and contractors alike.

Simple design and ruggedness of the machine makes it stand out from the crowd. Fitted with quality roller and breaker rings, the roller makes a fast efficient job, in just one pass, of leaving the ground firm, with free drainage. This reduces the risk of soil capping prior to seed germination. The rings are different diameters and rotate at different speeds, this helps to reduce soil stick and self clears in wet conditions. A rear towbar is an optional extra.

Why the breaker ring roller?

Heavy duty swivel towing eye Extendable draw bar Optional hydraulic leveling boards High strength frame Floating wings 3.1m transport width

The Rata Breaker Ring Rollers are fast becoming very popular with farmers and contractors alike. The simple design and ruggedness of the machine makes it stand out from the crowd.

Fitted with quality roller and breaker rings, the roller makes a fast efficient job, leaving the ground firm, with free drainage. This reduces the risk of soil capping prior to seed germination. The rings are different diameters and rotate at different speeds, this helps to reduce soil stick and self clears in wet conditions.

QUOTE REQUEST

Product Gallery

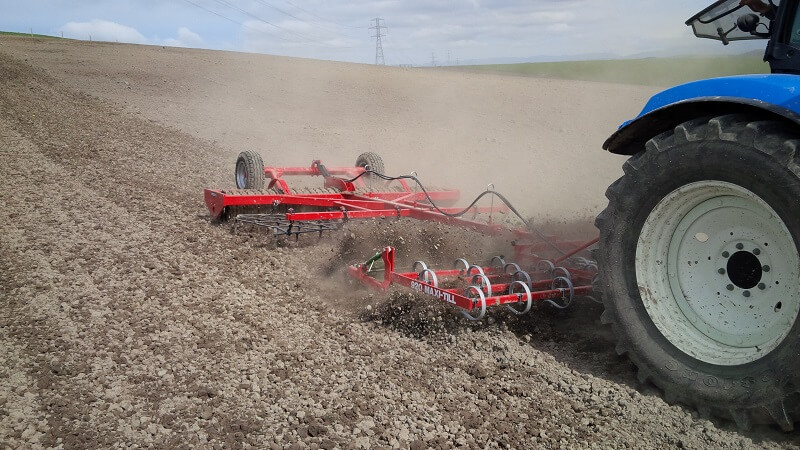

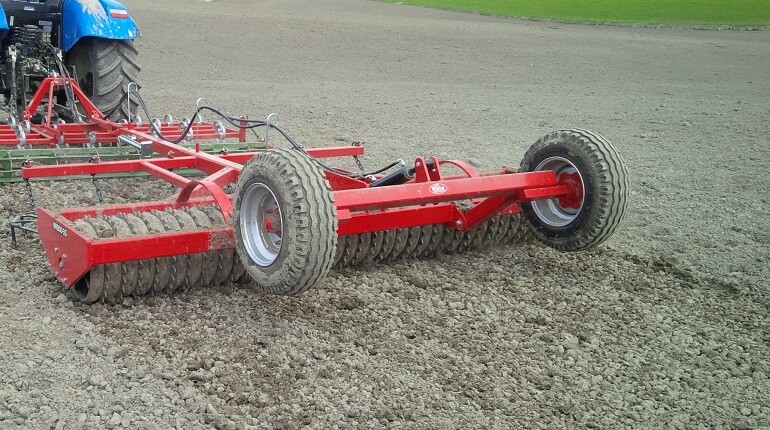

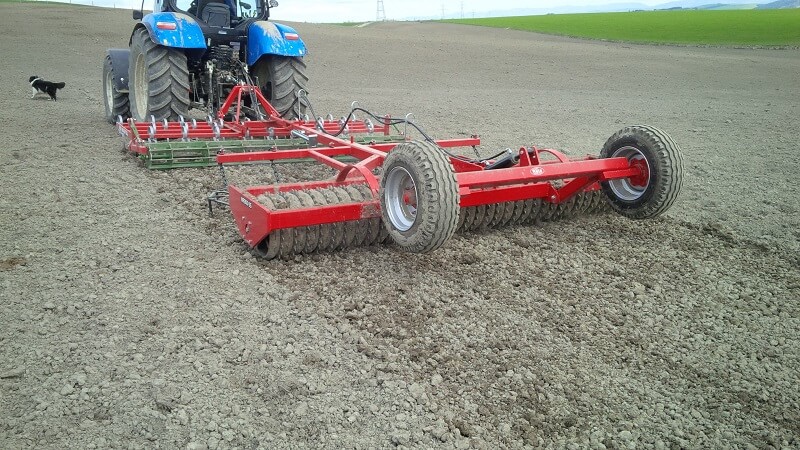

Rata Willet Breaker Ring Roller in action with Rata 920 Maxitill

Original design resulting from years of testing, feedback, and improvement.

‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

QUOTE REQUEST

Specifications

Model (Code)	Working Width	Transport Width (m)	Number of Rings	Weight (kg)
350414 (rigid)	3.0m (10ft)	3.3	30	1,590
350415 (rigid)	3.6m (12ft)	3.8	35	1,800
Note: Roller Rings are 500mm diameter

Specifications (Roller Options)

Code	Description
LBP	Hydraulic Leveling Boards (Paddle type)
350413	Rear Draw Bar for Rollers

Features & Benefits

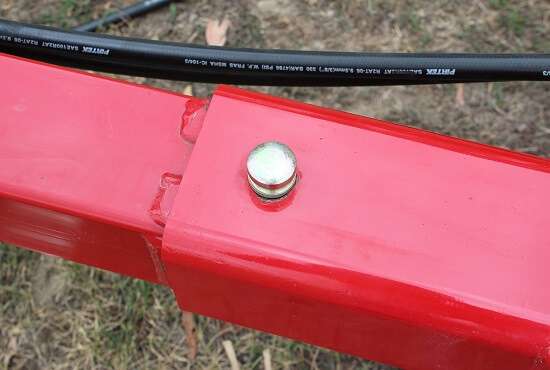

Accessible Grease Points on Rata Roller

1 Easy Grease Access

All grease points on the Rata Rollers are easily accessed, this makes maintenance and upkeep easier and faster.

High quality bearings on Rata Rollers

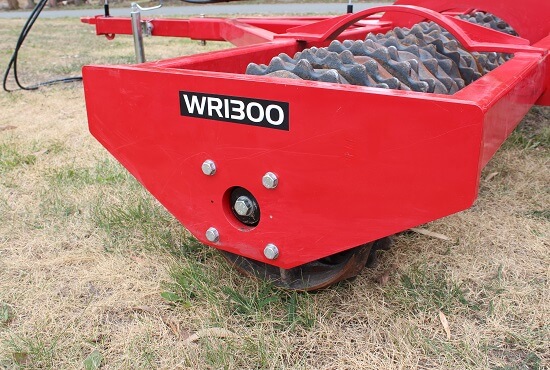

2 Bearing Mounted Axle

The main roller axle on which the roller rings are attached is secured at each end of the roller frame on high quality sealed bearings. This ensures smooth and wear free operation.
