Rata Double Mole Plough

Double Mole Plough

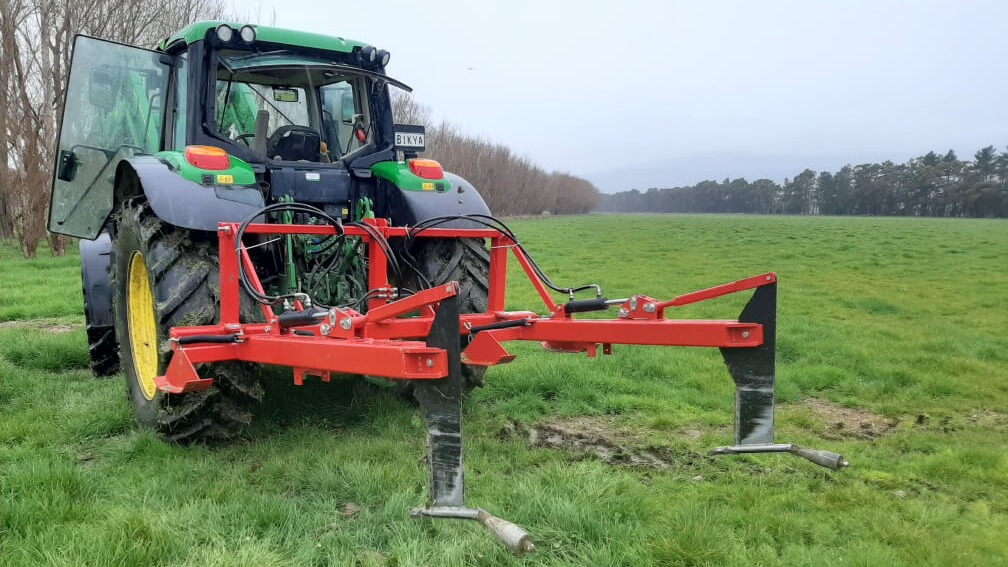

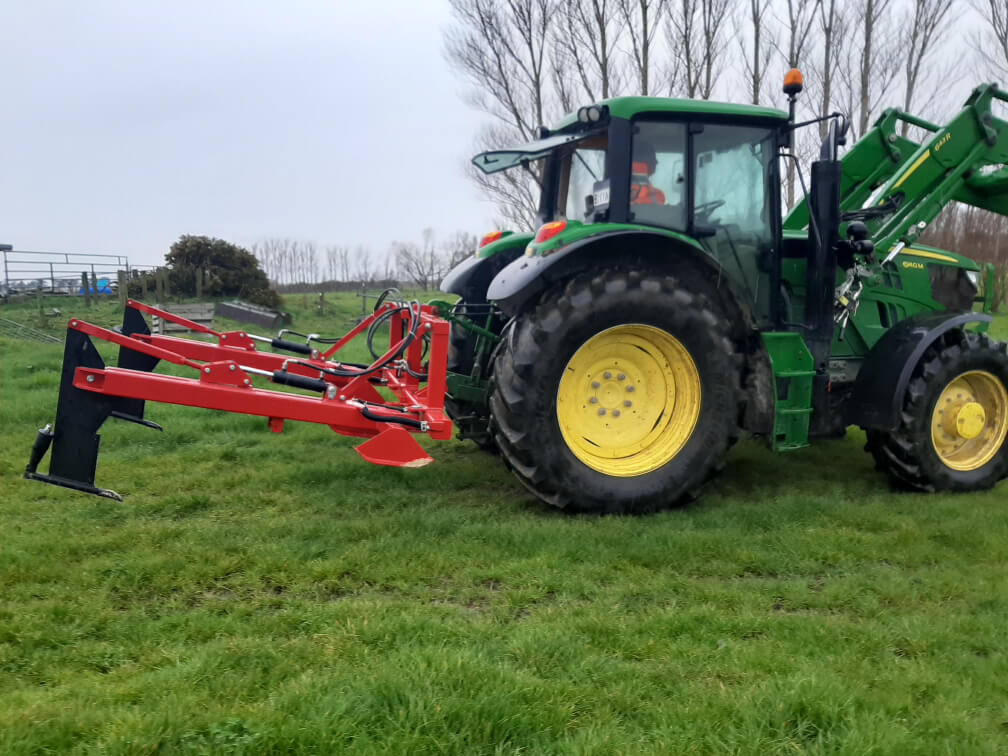

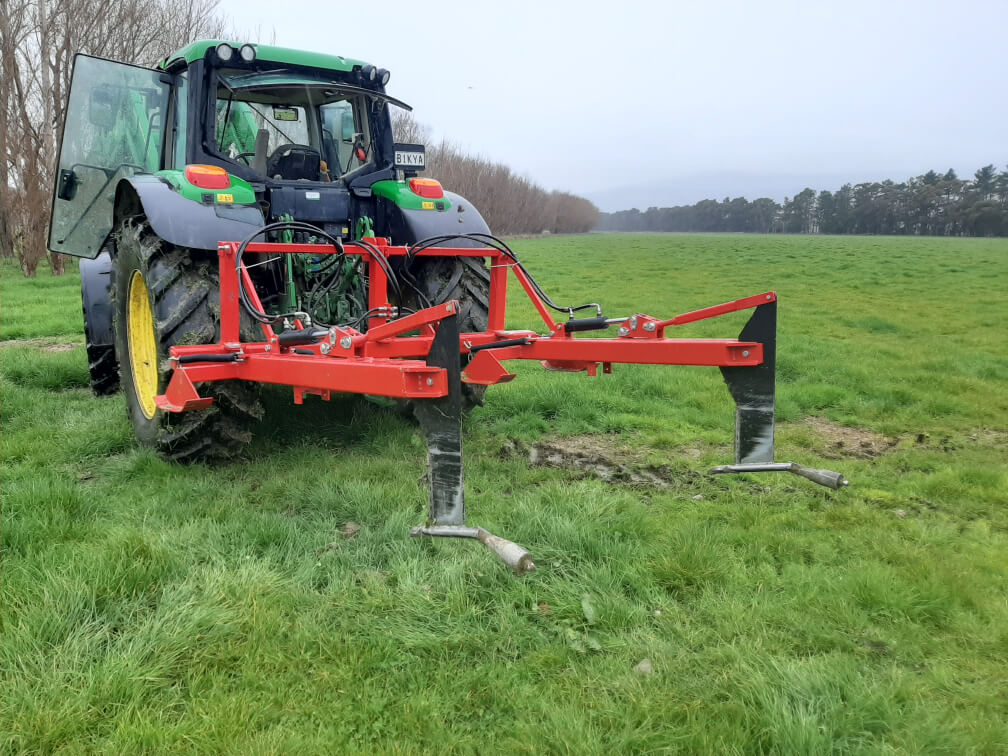

Rata Hydraulic Double Mole Ploughs are designed for fast, efficient subsoil drainage where a suitable clay subsoil is found. Leaving a very clean entry and exit from the ground, the fully floating headstock with long double bar RHS frames allow for smooth ground contour following, creating a stronger and longer lasting mole drain.

Double Mole Ploughs are ideal for those who need to install mole drains at twice the efficiency of a single mole plough.

Available in both Action and Access variants, Double Mole Ploughs are equipped with the Quickleg™ blade.

    Specifications

    Model (Code) Description Max Working Depth (mm)
    DMPH-N Hydraulic Action Double Mole Plough c/w Quickleg™ blades & plugs 450
    DMPH-S Hydraulic Access Double Mole Plough c/w Quickleg™ blades & plugs 450

    Features & Benefits

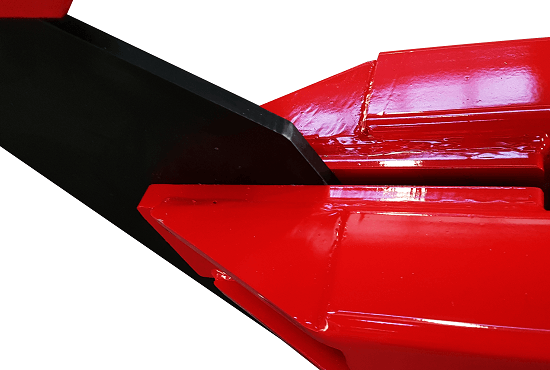

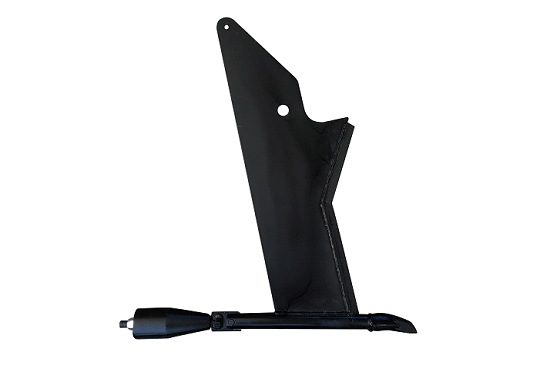

    Rata Quickleg blade for Mole Ploughs

    1 Quickleg™ Blade
    The Quickleg™ blade design is a standard feature on Rata Mole Ploughs. Quickleg blades remove the need for pasture pre-cutters due to its unique self cleaning design. This enables you to mole plough faster and turn corners!

    Revolving plug on Rata Mole Plough

    2 Revolving Plug
    The mole drain is created by this 75mm cast and hardened plug. This mole plug has the ability to revolve and float which ensures even wearing and allows it to follow natural contours of the ground.

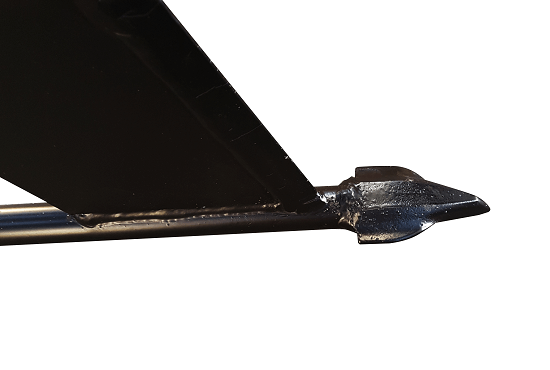

    WInged Ni-hard point on Rata Mole Ploughs

    3 Ni-hard Winged Point
    The leading edge of the Mole Plough is this cast Ni-hard winged point. Being cast Ni-hard ensures high wear resistance in abrasive soils while the point wings help get & keep the leg and plug into the ground.

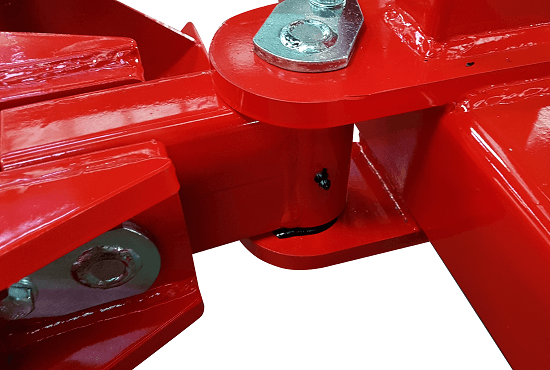

    Rata Mole Plough frame

    4 Twin RHS Frame
    Rata Mole Ploughs feature a heavy duty twin RHS box section frame with extensive gusseting and bracing, this twin RHS frame prevents twisting and flex while in the ground as found with other mole plough types.
