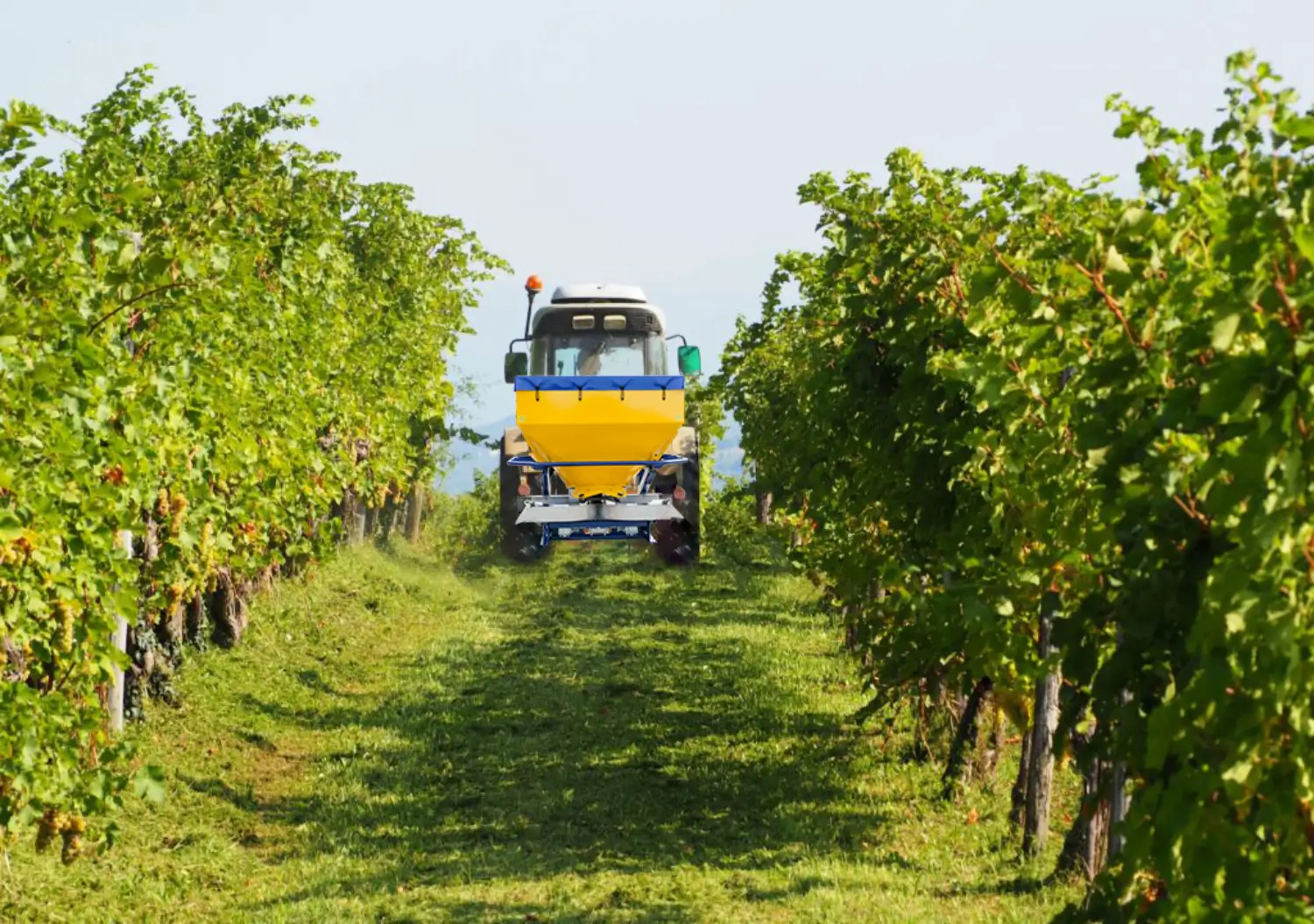

Cone Spreader in Vineyard

    *NEW PRODUCT* Vortex Spreader

    The Newly developed and innovative Vogal Vortex Spreader is designed to spread products that either have a high moisture (up to 35%) content or can be very dry/powdery and bridge over the spreader's apertures; such as lime and gypsum.

    QUOTE REQUEST

    DOWNLOAD BROCHURE

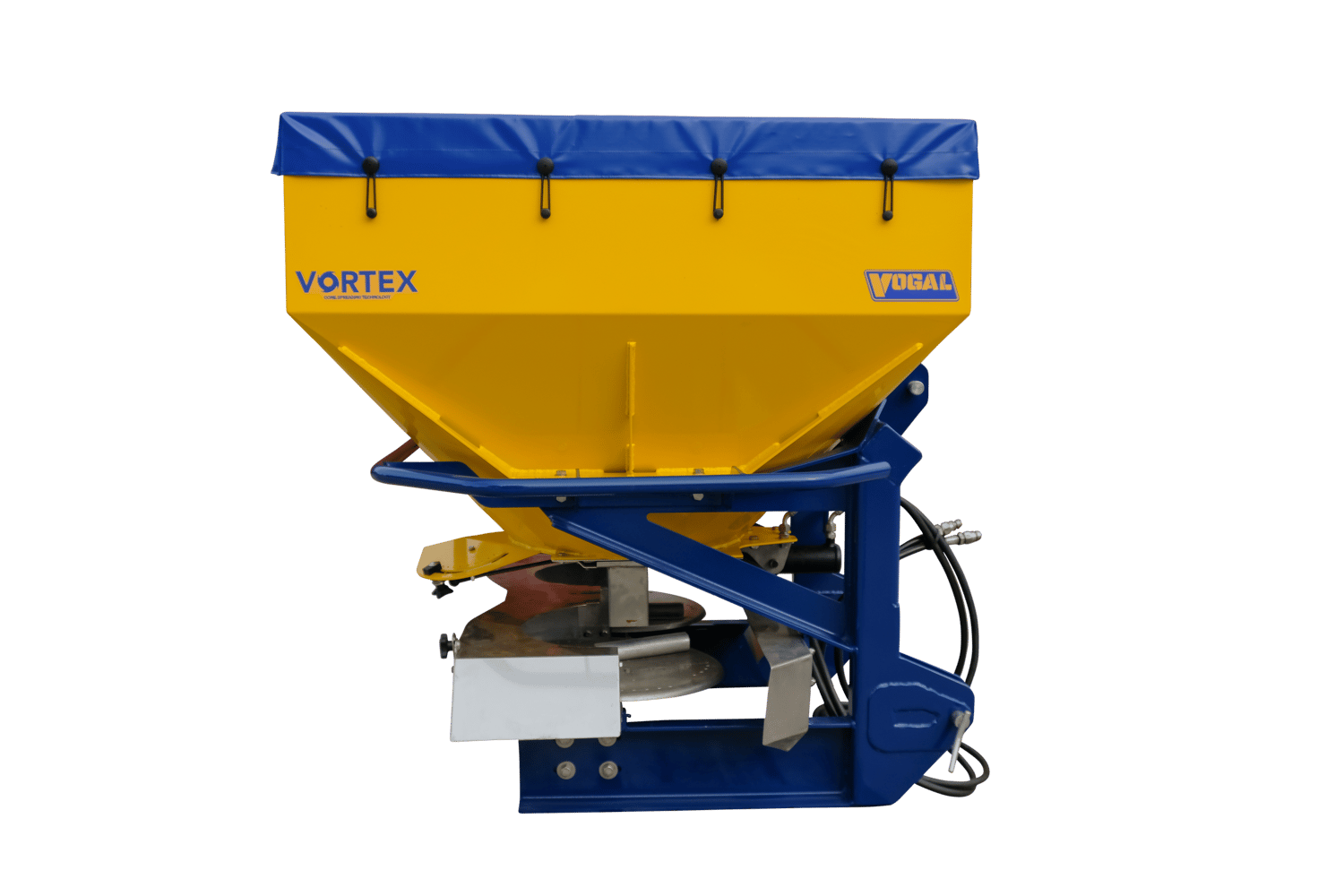

      What is the *NEW* Vortex Spreader?

      7334e36a-redtick_1000000000000000000028 Corrosion-resistant 7334e36a-redtick_1000000000000000000028Accurate spreading7334e36a-redtick_1000000000000000000028Robust construction 7334e36a-redtick_1000000000000000000028Spreads Lime and Gypsum

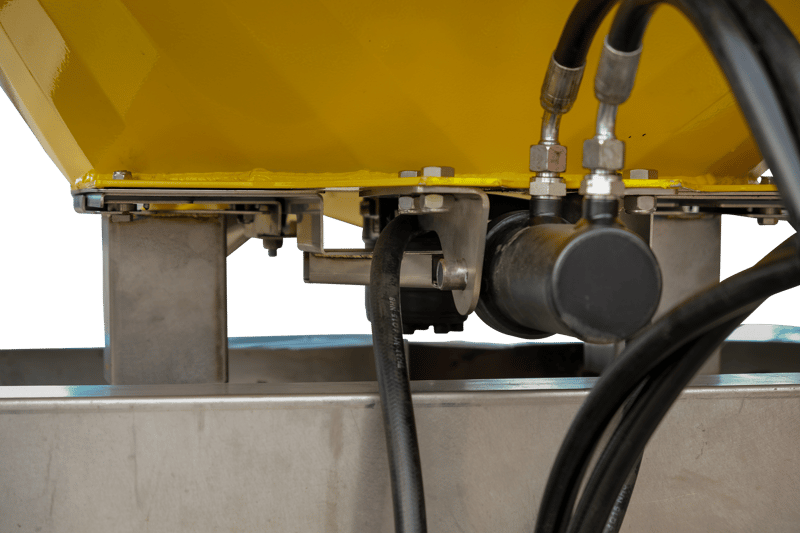

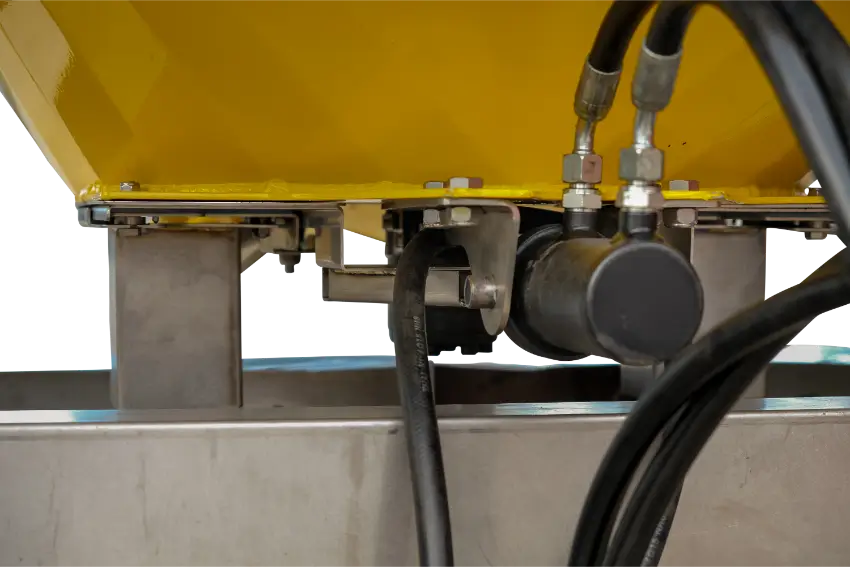

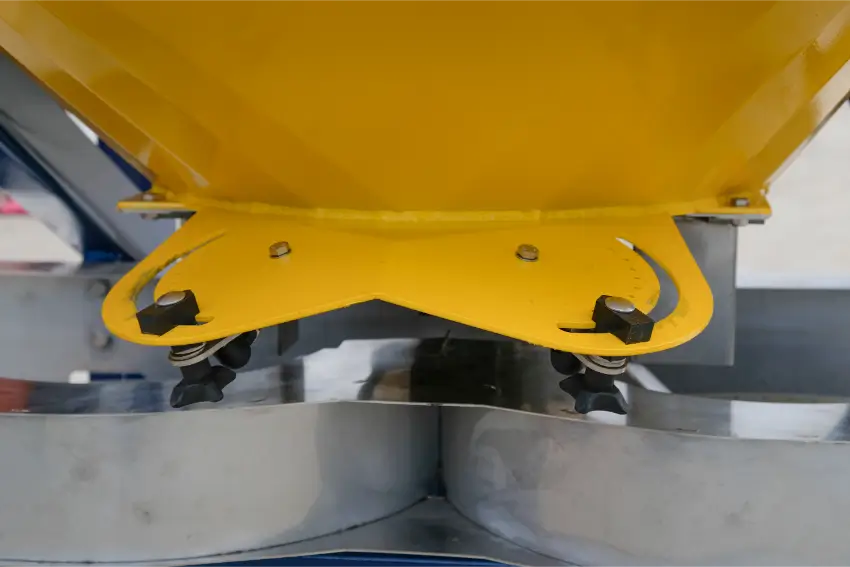

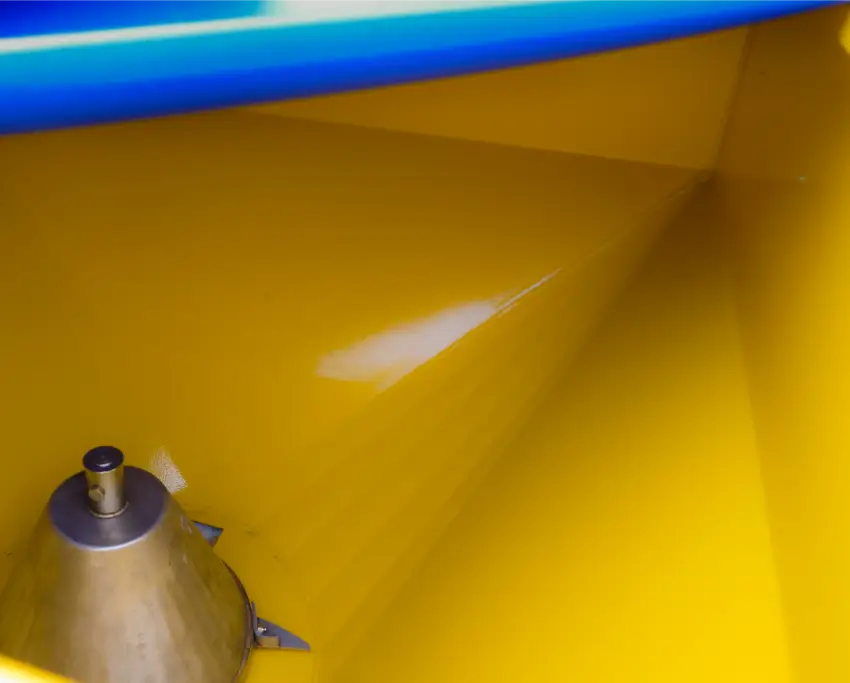

      With a very slow rotating agitator, the Vortex Spreader keeps the flow of product, despite up to 35% specific moisture. This system also improves the consistency of flow for other types of granular fertiliser, reducing granules being broken. The multi-position aperture adjustment means low applications of expensive fertiliser can be obtained and accurately spread.

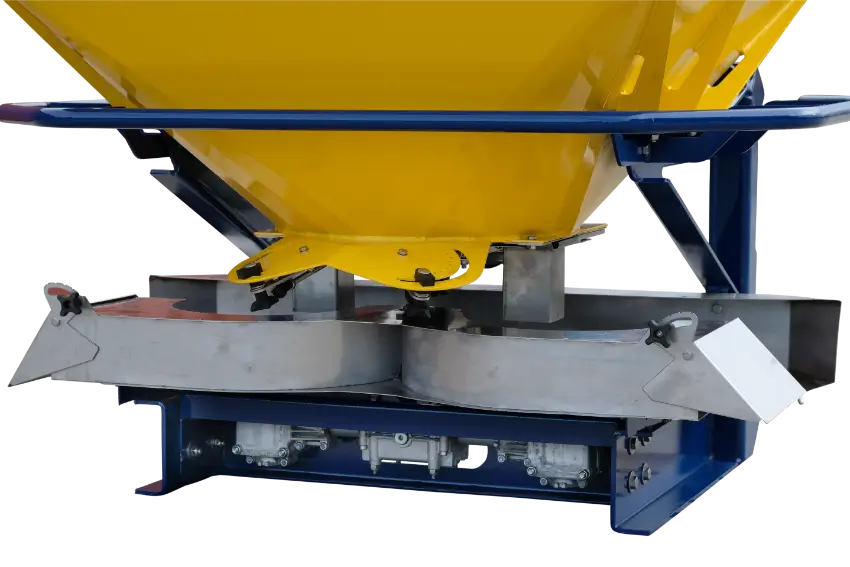

      • Spread width with dual banding kit: 2.0m-5 width
      • Frame and hopper protective coating: blasted + electro zinc spray + zinc primer + enamel top coat
      • All stainless-steel fasteners and shutter plates + agitator
      • Oil-filled gearbox


      Vortex Spreader Specifications

      Hopper Capacity 800L 1500L
      Overall Width 1200mm 1730mm
      Loading Height 1300mm 1650mm
      Spreader Weight 350kg 395kg
      Spreading discs Twin disc Twin disc

      The Vortex Spreaders Features & Benefits

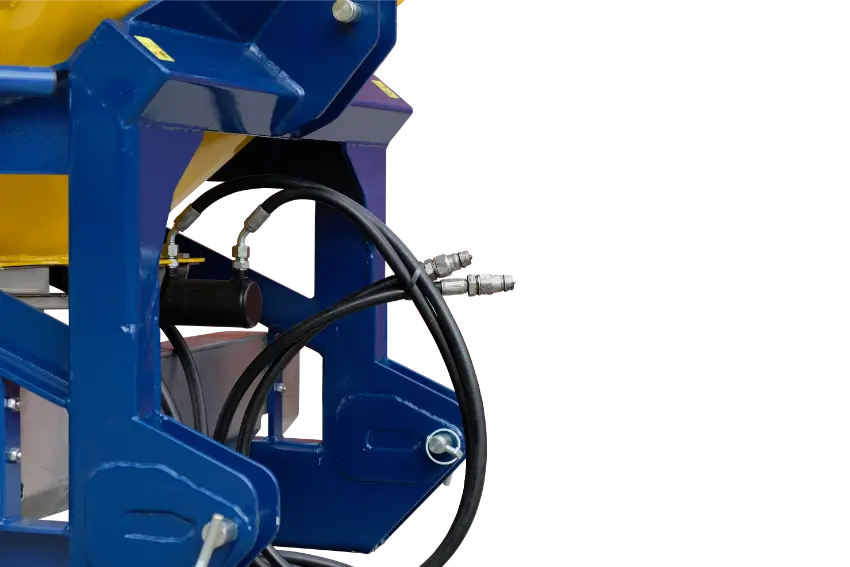

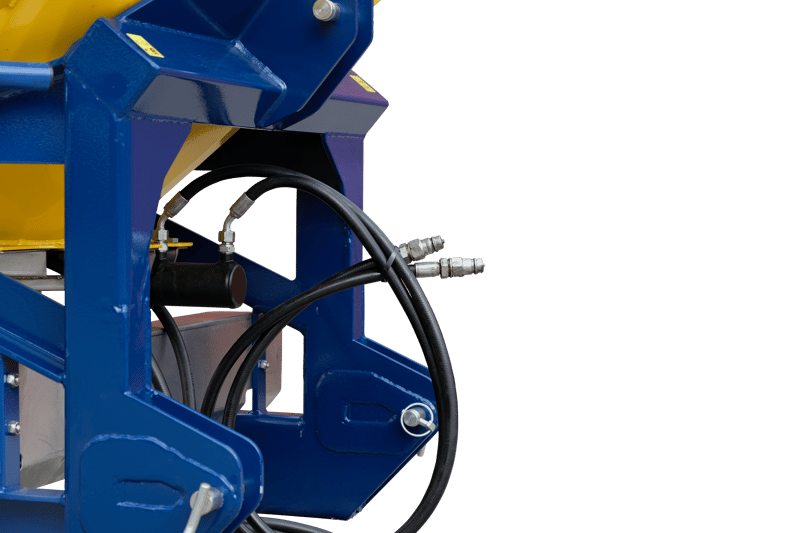

      Vortex Spreader 3PL Frame

      1 Robust Frame
      The 3PL and main frame is made from a 10mm thick profile plate and engineered to be capable of carrying a 1000kg load.

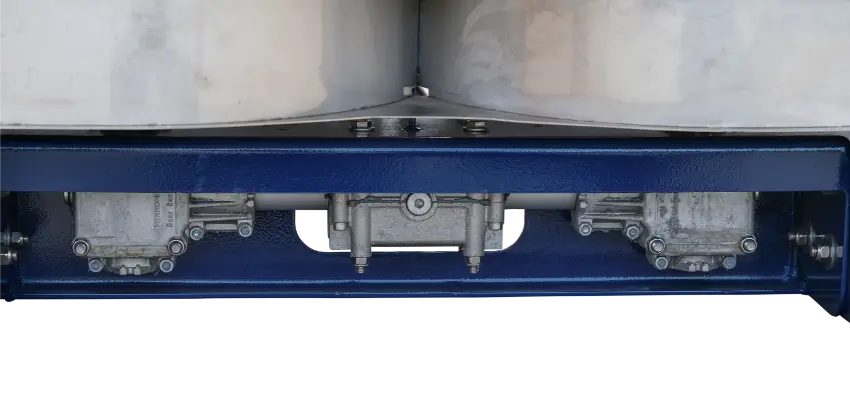

      Vortex Spreader Gearbox

      2 Twin Disc
      The twin gearbox drive system from the PTO offers a strong drive connection to the twin spreading discs.
      SHOW MORE

      Genuine NZ Made Product

      Genuine stamp

      Original design resulting from years of testing, feedback, and improvement Designed and made in New Zealand.
