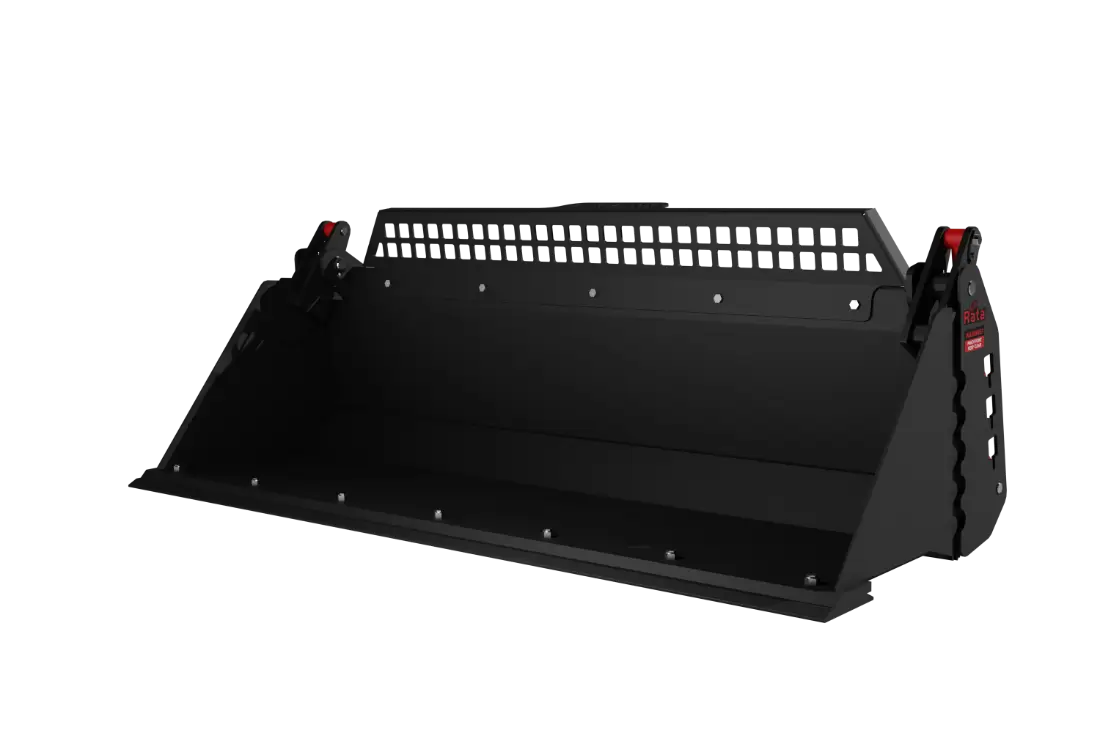

4 in 1 Standard CC 1100px

    4 in 1 Bucket

    The Rata 4 in 1 bucket range consists of three models to suit a range of different size machines and each model can be supplied in different widths. These are from 30 horse power machines up to 3 ton lift capacity telehandlers / loaders. 4 in 1 buckets enable you to use one tool to dig, blade, pull back and clamp up!

    "Dig, blade, pull-back and clamp up, all in one tool!"

    QUOTE REQUEST

      What Is The 4 in 1 Bucket?

      7334e36a-redtick_1000000000000000000028Use one tool to dig, blade pull back and clamp up!7334e36a-redtick_1000000000000000000028Hydraulic ram protection7334e36a-redtick_1000000000000000000028Optional bucket teeth 7334e36a-redtick_1000000000000000000028Strong folded design 7334e36a-redtick_1000000000000000000028Twin rams 7334e36a-redtick_1000000000000000000028High tensile pins

      The Rata 4 in 1 Buckets are a very useful attachment for any front end loader/ telehandler or other material handler enabling you to dig, blade, pull back & clamp up, all in one tool - an essential for any farming operation or construction site.

      Wear resistant cutting blades on all working edges ensure a long life with minimal wear part replacement.


      Product Interactive 3D Model

      View interactive 3D model

      Genuine stamp

      Original design resulting from years of testing, feedback, and improvement.

      ‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

      QUOTE REQUEST

      Specifications

      Hopper Capacity 240L/4x40kg Urea
      Overall Width 1560mm
      Loading Height 1240mm
      Dry Weight 90kg

      Specifications (Loaders up to 40hp)

      Model (Code) Width (m) Weight (kg)
      S4/120 1.2 170
      S4/150 1.5 240
      S4/180 1.8 280

      Specifications (Loaders 50hp and above)

      Model (Code) Width (m) Weight (kg)
      4/2100 2.15 450
      4/1200 2.0 430
      4/1180 1.85 395
      4/1170 1.7 360

      features & benefits

      Hydraulic Ram Protection

      1 Hydraulic Ram Protection
      Hydraulic rams on Rata 4 in 1 Buckets are isolated from the working area towards the rear of the bucket, some models feature enclosed rams such as in this picture.

      Optional Bucket Teeth

      2 Optional Bucket Teeth
      Bucket teeth are an optional extra for Rata 4 in 1 Buckets, Bucket teeth can be particularly handy where digging in tough ground is desired. Rata Bucket teeth are also easily replaceable.


      Dealer Locator

      4 in 1 Buckets are sold throughout our nationwide network of dealers, find your nearest one today.

      Nearest Dealer
