Bin Rotator

Bin Rotator

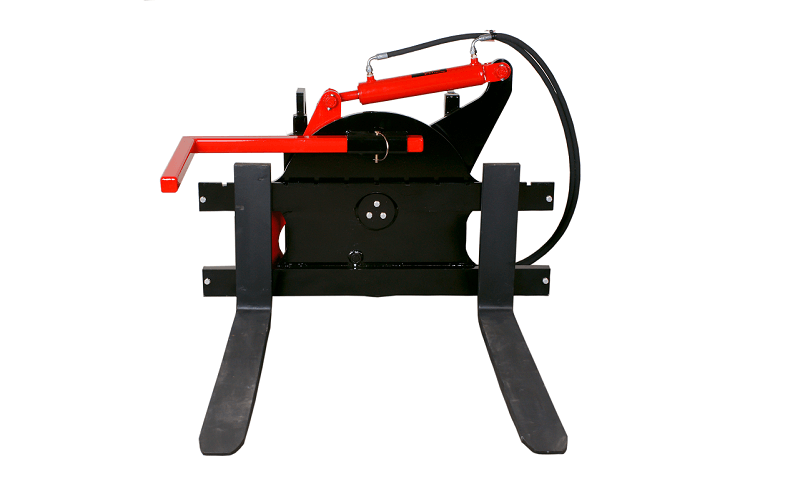

Rata manufacture this high quality 180 degree bin rotator/box tipper suitable for front end loaders and telehandlers with the operator in mind, therefore features like good pallet fork vision and operation time are paramount.

The bin rotator/box tipper is compact but rugged in construction, featuring fully greasable pivot points and high tensile pins. The side arm supports the bin/box, when being tipped or rotated.

Rata Bin Rotators are available for sale in NZ through our network of dealers.


    What Is The Bin Rotator?

    7334e36a-redtick_1000000000000000000028Fully greseable pivot points7334e36a-redtick_1000000000000000000028High tensile pins7334e36a-redtick_1000000000000000000028The side arm supports the bin/box, when being tipped or rotated 7334e36a-redtick_1000000000000000000028Hydraulic rotation

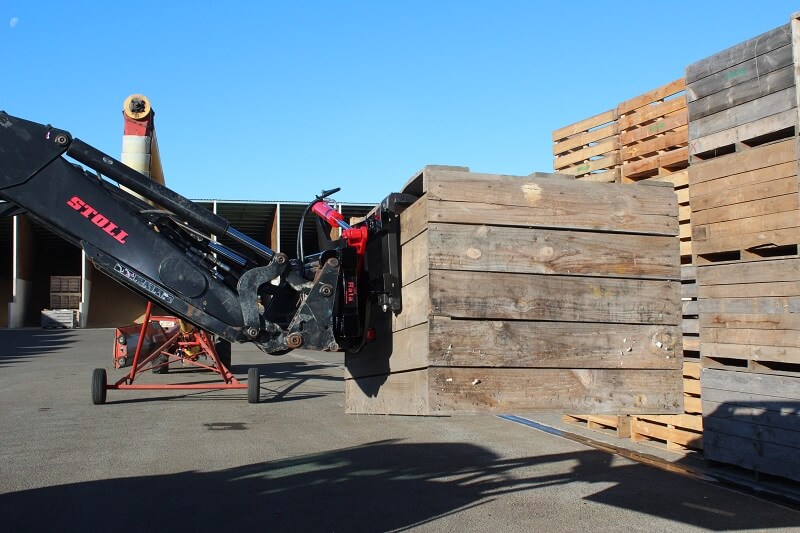

    The Rata Bin Rotator is available to fit on to your front end loader or telehandler! Manufactured with the operator in mind, our Bin Rotators have great features such as good fork vision and smooth and swift rotation.
    The bin rotator is compact but rugged in construction, featuring a heavy
    rotation bearing & fully greasable high tensile pins for a long life of smooth operation.

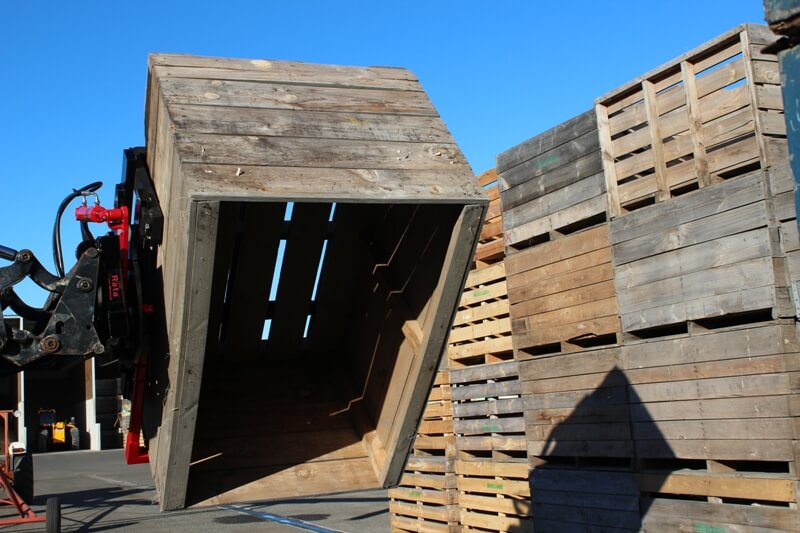

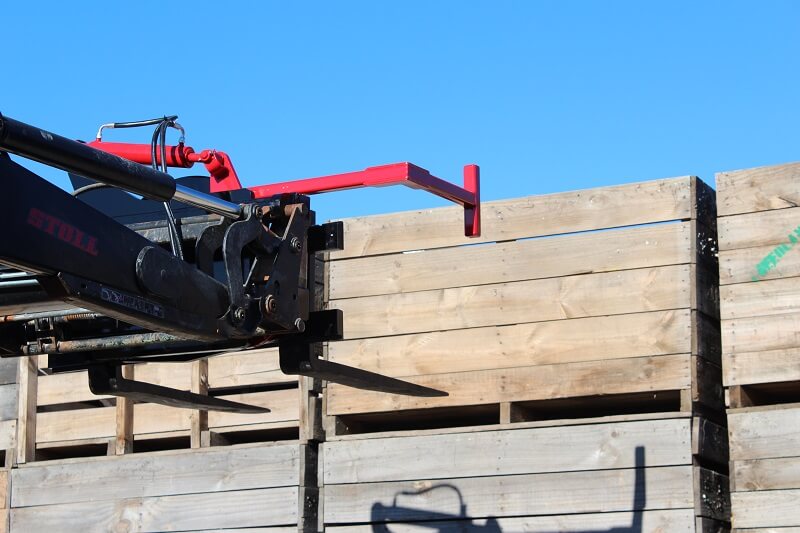

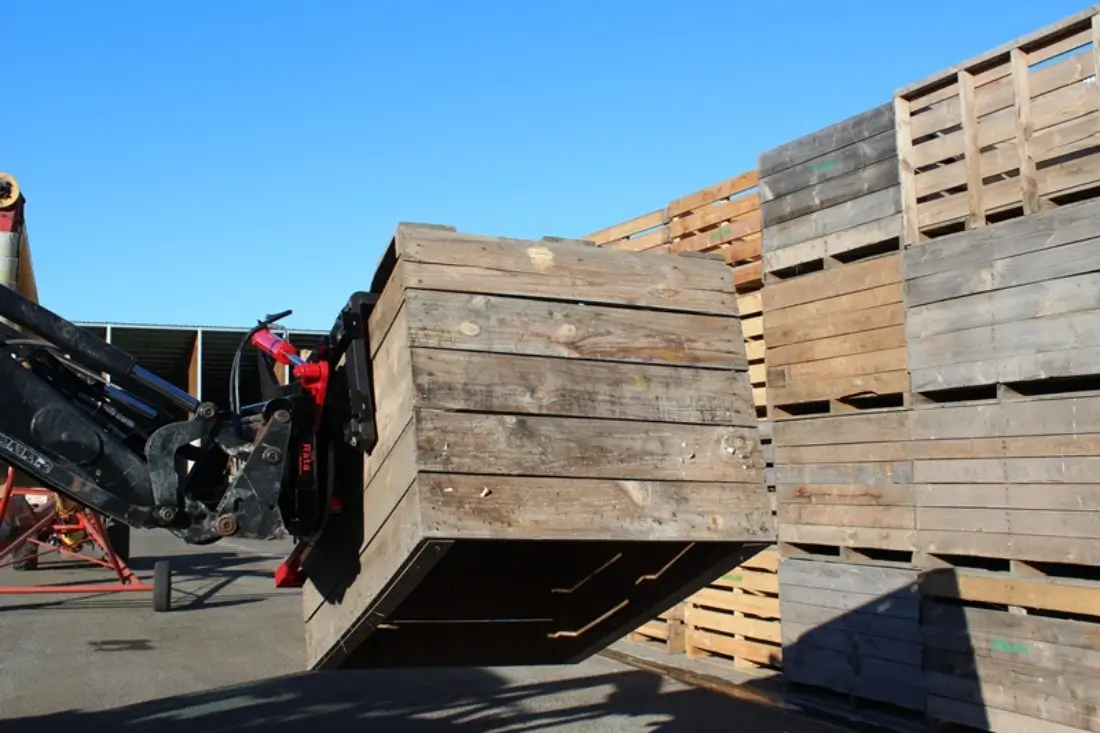

    The standard sidearm supports the box or bin when being tipped or rotated ensuring that the material is handled with precision and control throughout the full 180 degrees of rotation.

    Genuine stamp

    Original design resulting from years of testing, feedback, and improvement.

    ‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.



    Model (Code) Capacity (kg) Rotation ° Weight (kg)
    BR180 1,800kg 180 450

    Features & Benefits

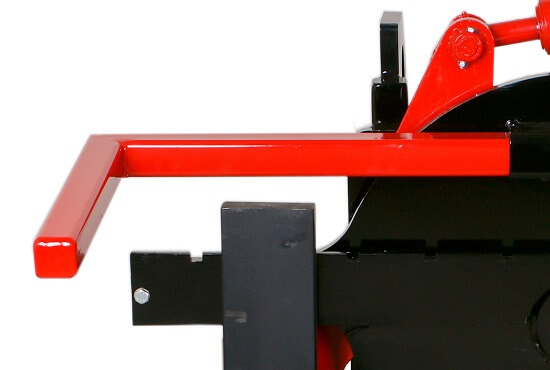

    Bin Rotator Side Arm

    1 Stabiliser Arm
    The side stabiliser arm is a standard feature on Rata Bin Rotators, it supports the box or bin when being rotated to ensure the material is handled with maximum control throughout the course of the rotation.

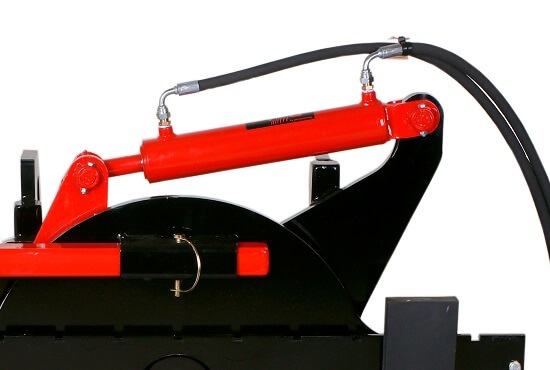

    Hydraulic Operation of Bin Rotation

    2 Hydraulic Rotation
    The 180° hydraulic rotation can either be clockwise or anti-clockwise (confirmed at time of order). High tensile & greaseable pivot pins & main rotation bearing provide a fast and smooth operation time

    Dealer Locator

    Bin Rotators are sold throughout our nationwide network of dealers, find your nearest one today.

    Nearest Dealer
