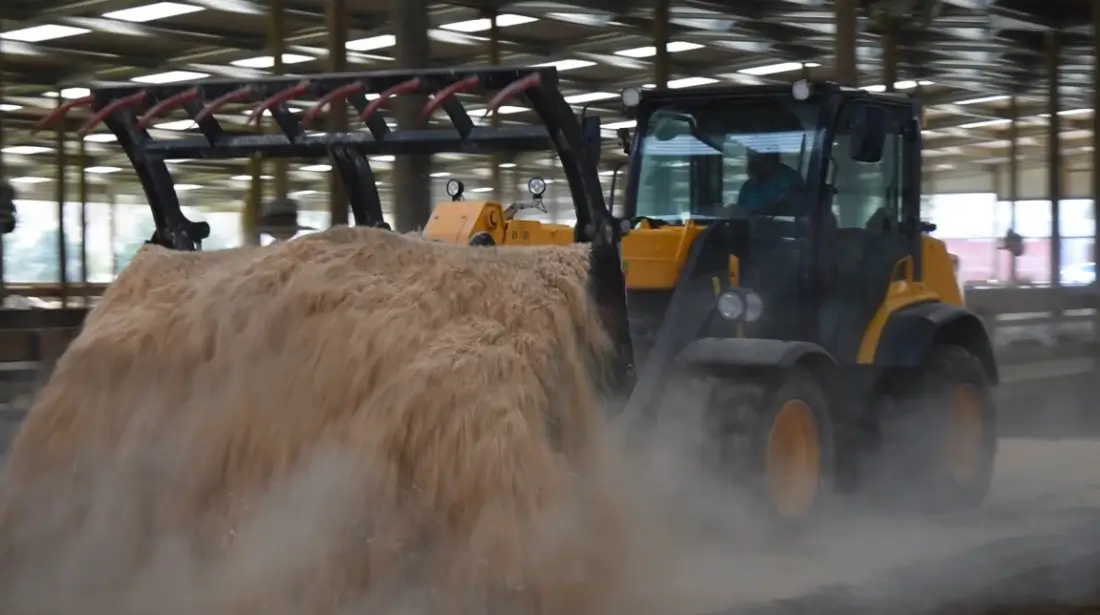

Telehandler Bucket Grab on Dieci

    Telehandler Bucket Grab

    Rata bucket grabs are a universal tool for agricultural and industrial use, and can be made to fit to almost any telehandler. They are excellent for handling silage, minerals, earth, sand, shrubs, wood chips, rubbish, straw, manure and much more. The powerful twin hydraulic rams give this attachment the superior strength needed to move your material.

      Specifications

      Model (Code) Width (m) Weight (KG) Capacity (m³)
      BGG220 2.2 610 1.10
      BGG240 2.4 680 1.20
      Note: Available with forged or fabricated top tines

      Models

      Firewood Bucket Grapple 2

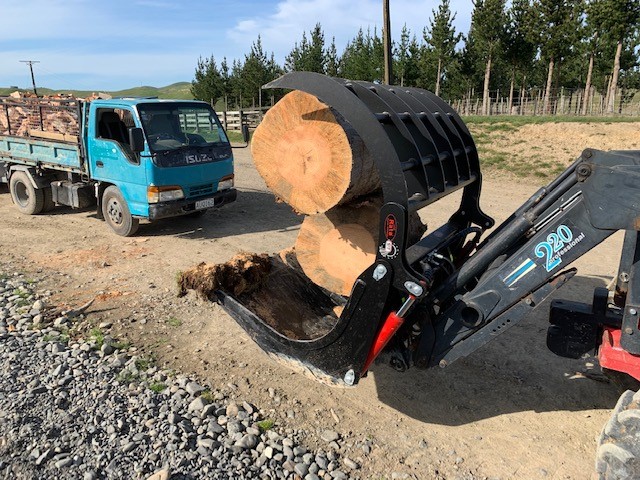

      1 Firewood/Log Handler
      Cutouts in the side of the bucket make it easy to scoop up logs. Grapple top clamps down for a secure grip on the material being handled. The solid base makes it easy to handle loose materials without them falling out

      Rata-Industries Thumbnail 5920

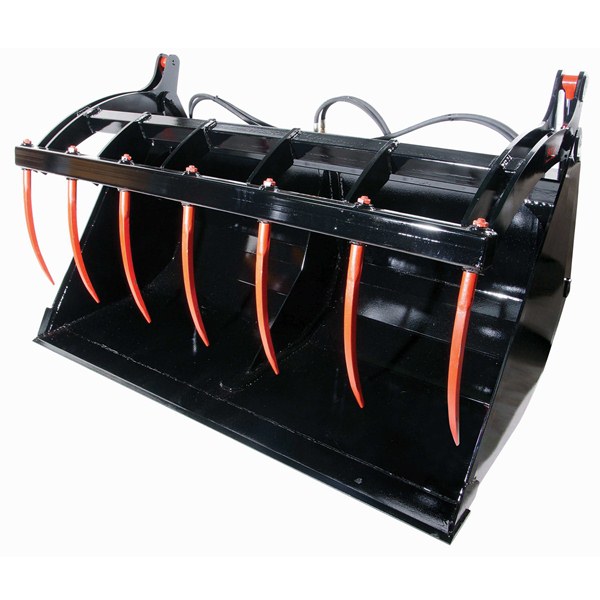

      2 Silage Handler

      High quality German made forged spring steel tines in the top make for easy handling of silage and other softer loose materials

      Fabricated Tines in place of Forged Tines

      3 Loose Goods Handler
      Make from high quality steel and internally braced, this bucket grab with a fabricated top is ideal for handling hard loose materials that are not suitable to be handled by forged tines

      Features & Benefits

      Rear mounted hydraulic rams on Rata Bucket Grab

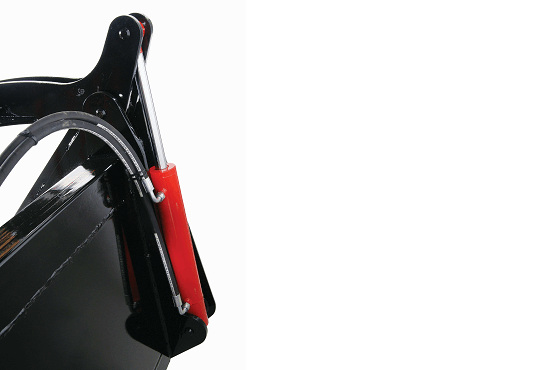

      1 Rear Mounted Rams
      Hydraulic rams on Rata Bucket Grabs are mounted to the rear of the bucket, this offers greater protection from any objects that could potentially cause damage in the working area.

      Heavy duty top frame of Rata Bucket Grab

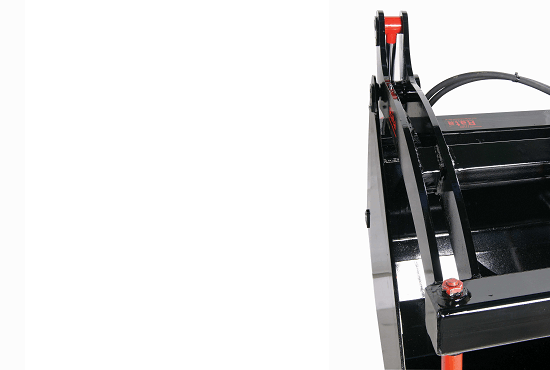

      2 Heavy Duty Grab
      Rata Bucket Grabs are built heavy duty all round to cope with any job, this is why the main arms of the Bucket Grab top feature twin steel plate as well as extensive bracing and gusseting.

      Wide opening width of Rata Bucket Grabs enable just about any load to be secured

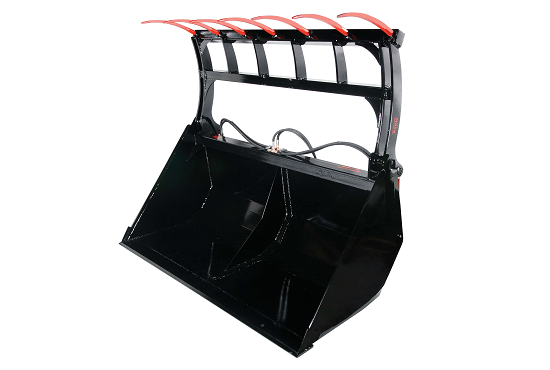

      3 Wide Open Dimension
      The wide opening dimension of Rata Bucket Grabs enable large quantity's of any material can be secured in one scoop. This also means the attachment can be used as a standard bucket with the grab open and out of the way.


      Dealer Locator

      Bucket Grabs are sold throughout our nationwide network of dealers, find your nearest one today.

      Nearest Dealer
