Lifting Jib

    Certified Lifting Jib

    Rata Certified Lifting Jibs are the safest attachment for handling construction components, from a single chain or wire rope. Beams or concrete moulds can be lifted into position with precision. The lifting jibs can be made to individual requirements and also to fit almost any loader or telehandler.

    QUOTE REQUEST



      What Is The Certified Lifting Jib?

      7334e36a-redtick_1000000000000000000028Lifting Hook 7334e36a-redtick_1000000000000000000028Independently Certified For Commercial Operations  7334e36a-redtick_1000000000000000000028 Robust RHS Frame

      7334e36a-redtick_1000000000000000000028 Comes Standard With A High Strength Lifting Hook

      The Rata Certified Lifting Jibs are the approved attachment for handling construction components from a single chain or wire
      rope. Beams or concrete moulds can be lifted into position with
      precision.

      This machine is available to fit almost any front end loader or telehandler. Rated to handle up to 6T.

      This popular piece of gear can be built to suit your requirements!


      Straight - White Background@4x (1)

      Original design resulting from years of testing, feedback, and improvement.

      “Having designed and manufactured equipment since 1986, we’ve already eliminated the issues most people never think about when buying. Often copied, never equalled.”

      QUOTE REQUEST

      DOWNLOAD THE BROCHURE

      Specifications

      Model (Code) Weight (kg) Capacity (kg) Reach Length (m)
      LJ250 250 2,500 2.4
      LJ300 220 3,000 0.6
      LJ600 260 6,000 0.6

      Features & Benefits

      IMG_6855

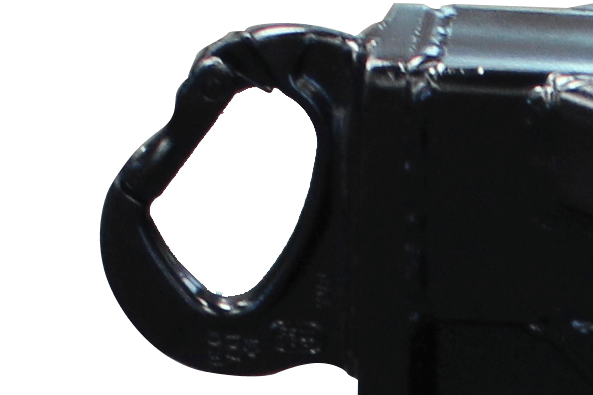

      1 Lifting Hook
      Rata Certified Lifting Jibs come standard with a lifting hook. This enables you to handle just about any material via a chain or wire rope.

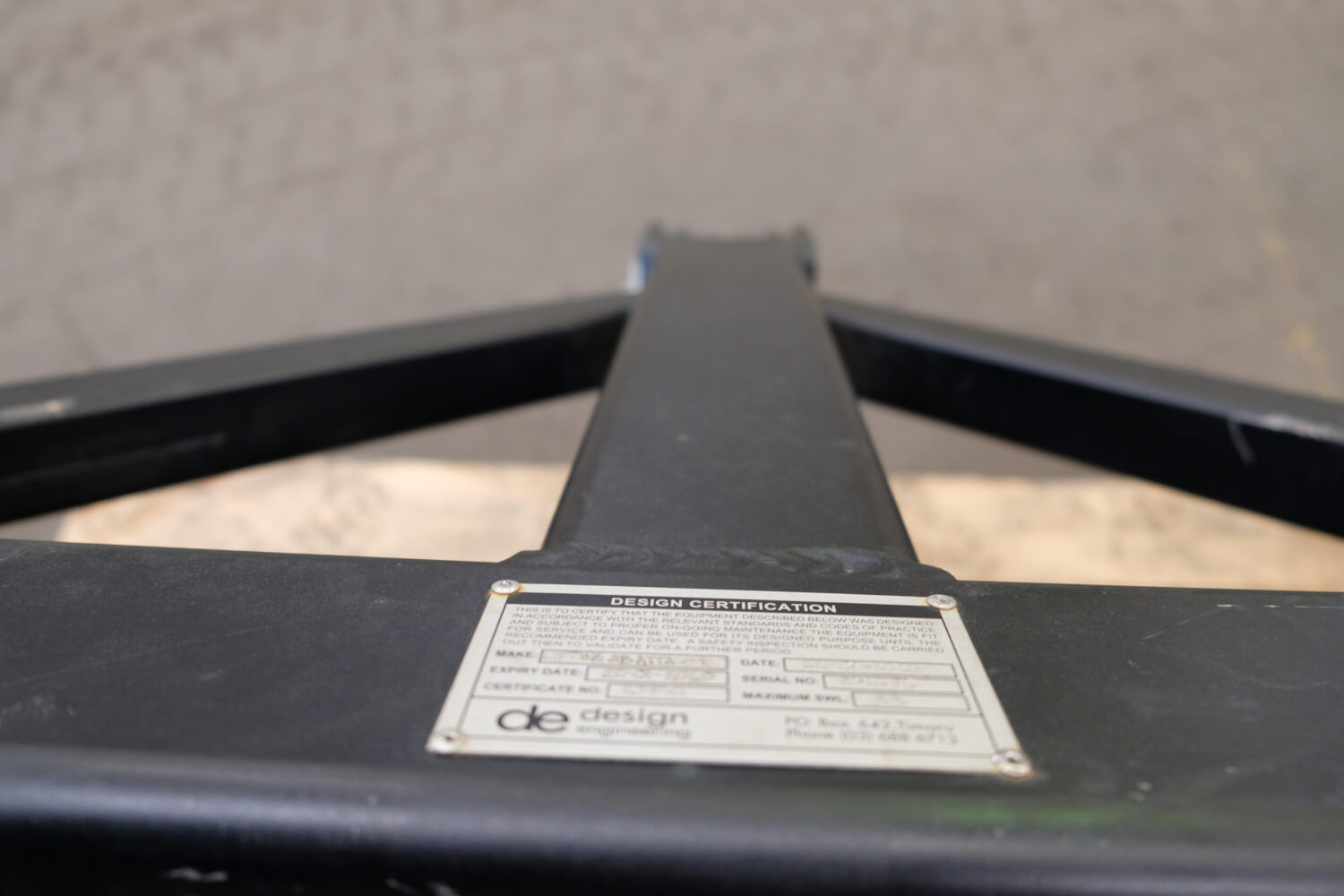

      Cert Plate

      2 Independently Certified
      Every Rata Lifting Jib is independently certified by external engineers, this enables you to work with peace of mind knowing your Rata Lifting Jib complies with all legal & engineering standards.
