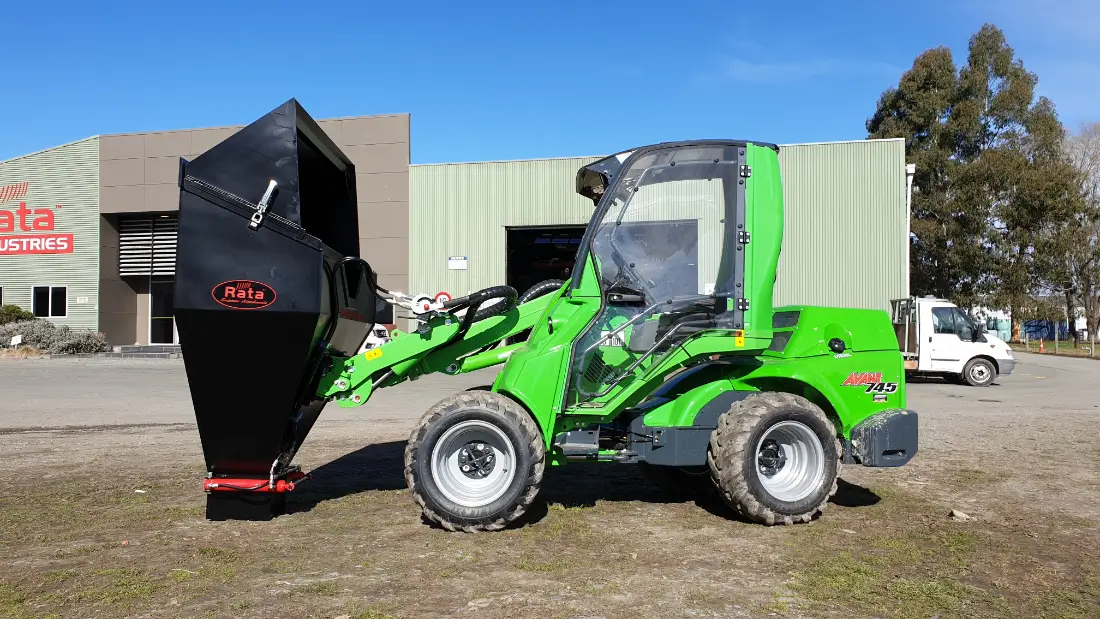

20190822_121045 Funnel Bucket

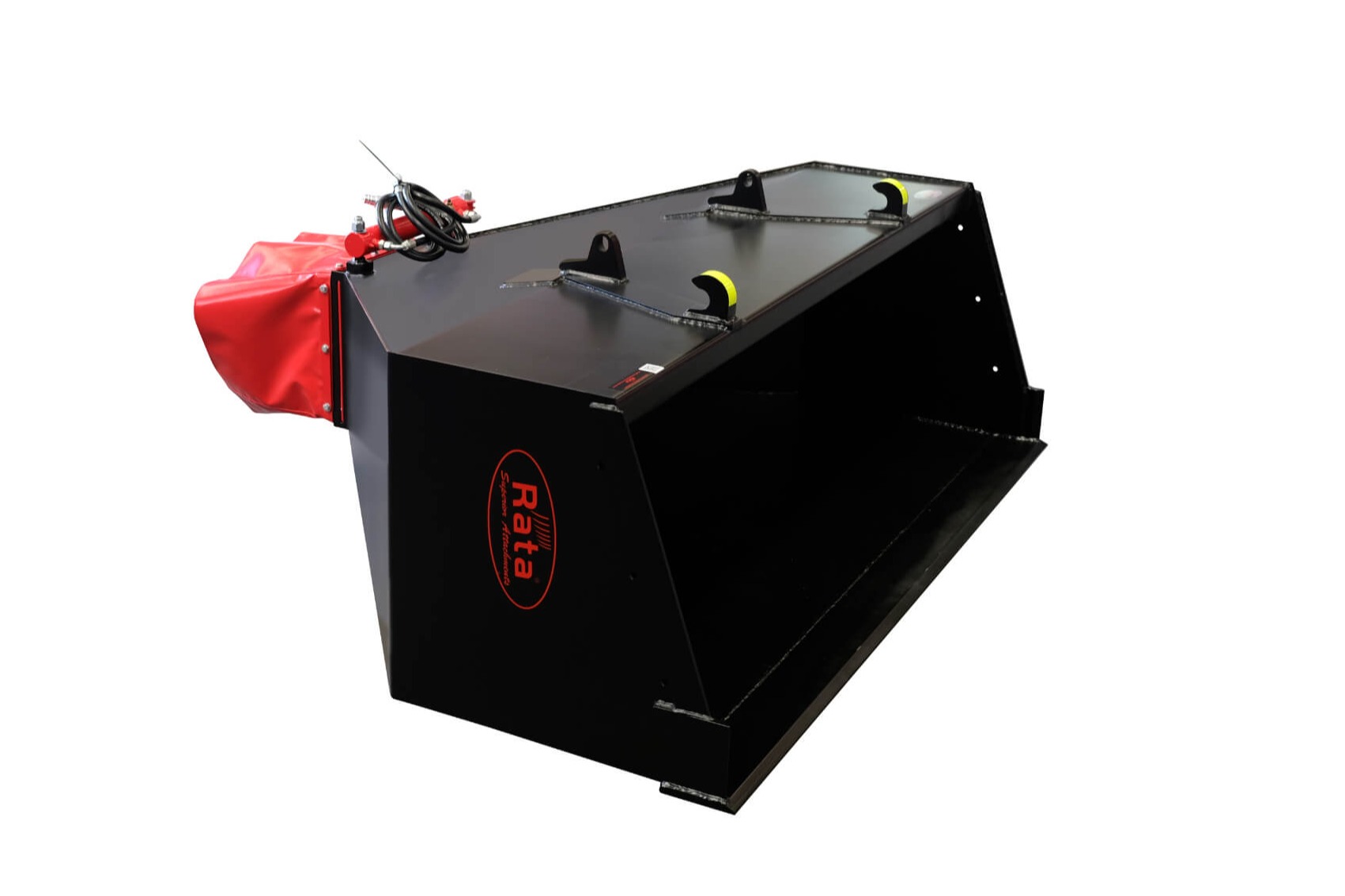

    Funnel Bucket

    The Rata Equipment Funnel Bucket is designed to make filling bags and transferring materials faster, easier & safer. Fertiliser, Sand, Gravel, Stone, Grain, and most materials can be handled with ease by the Rata Funnel Bucket.

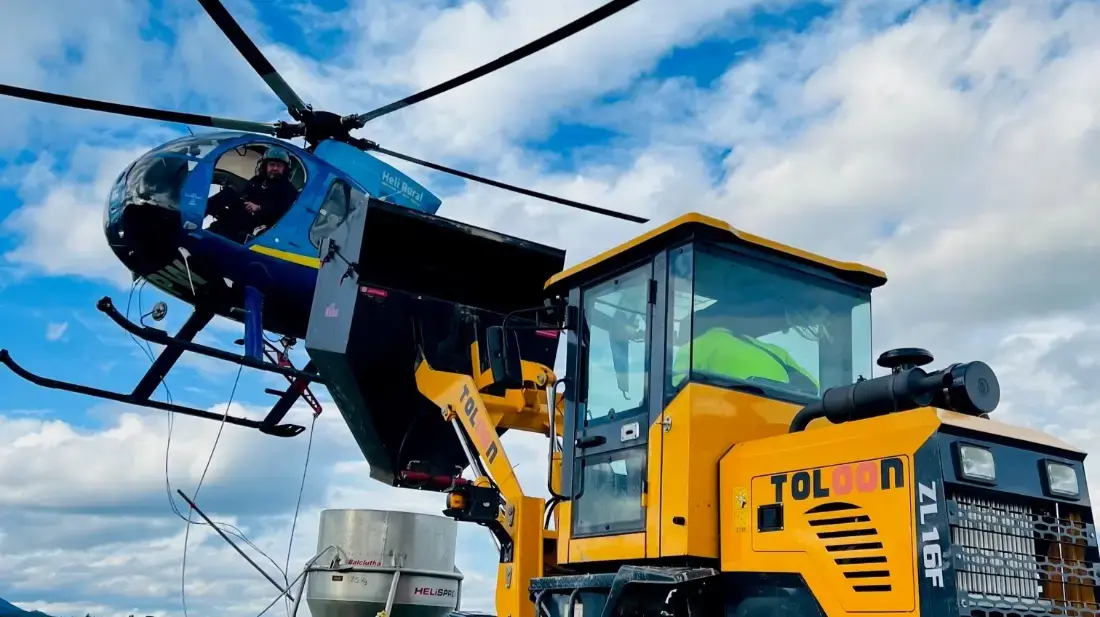

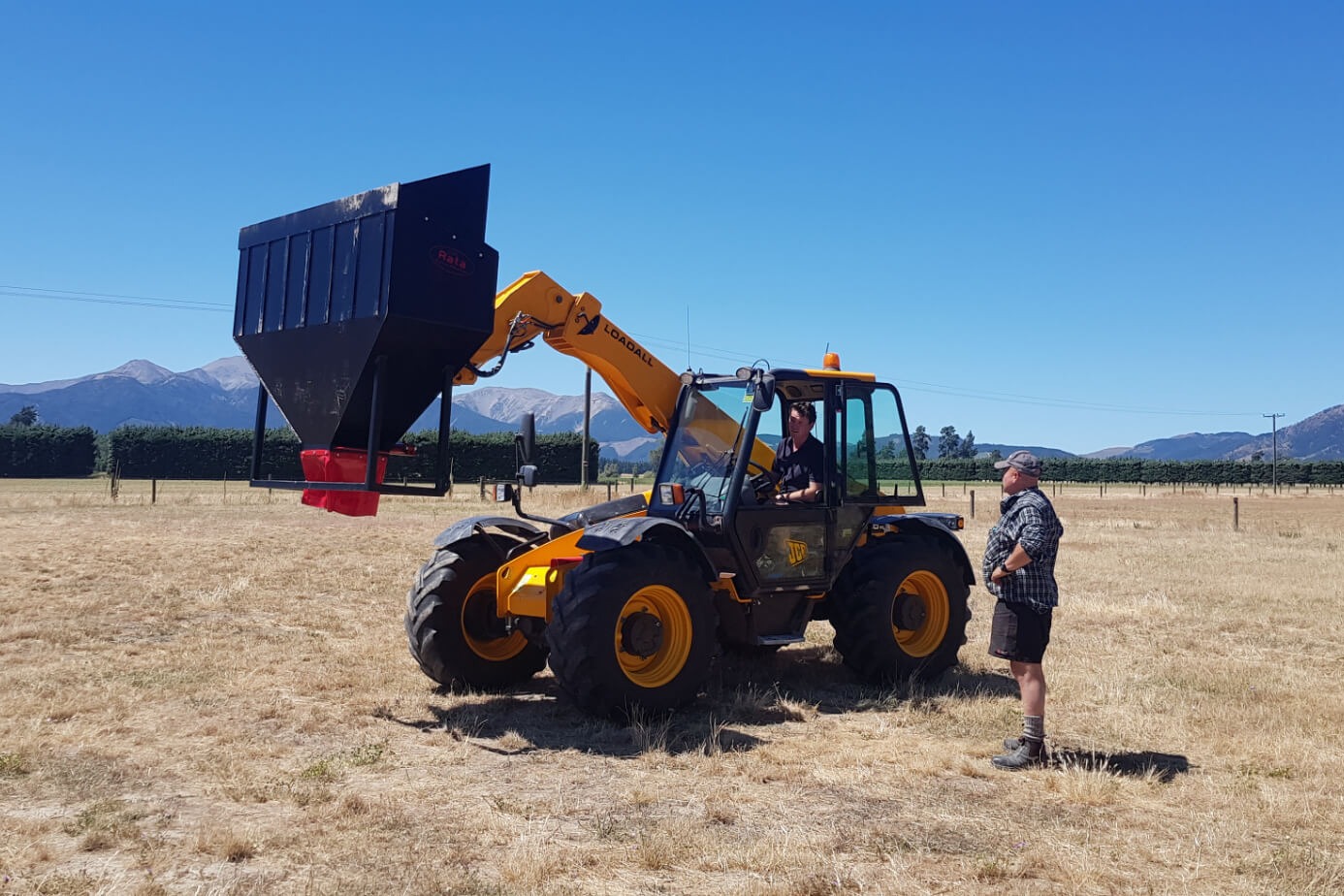

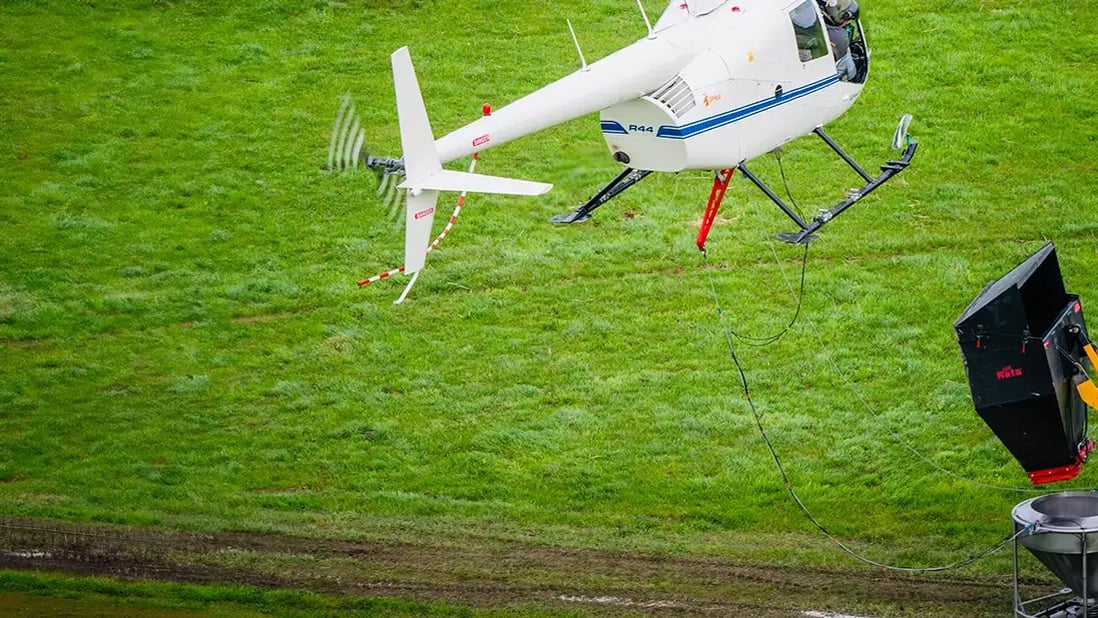

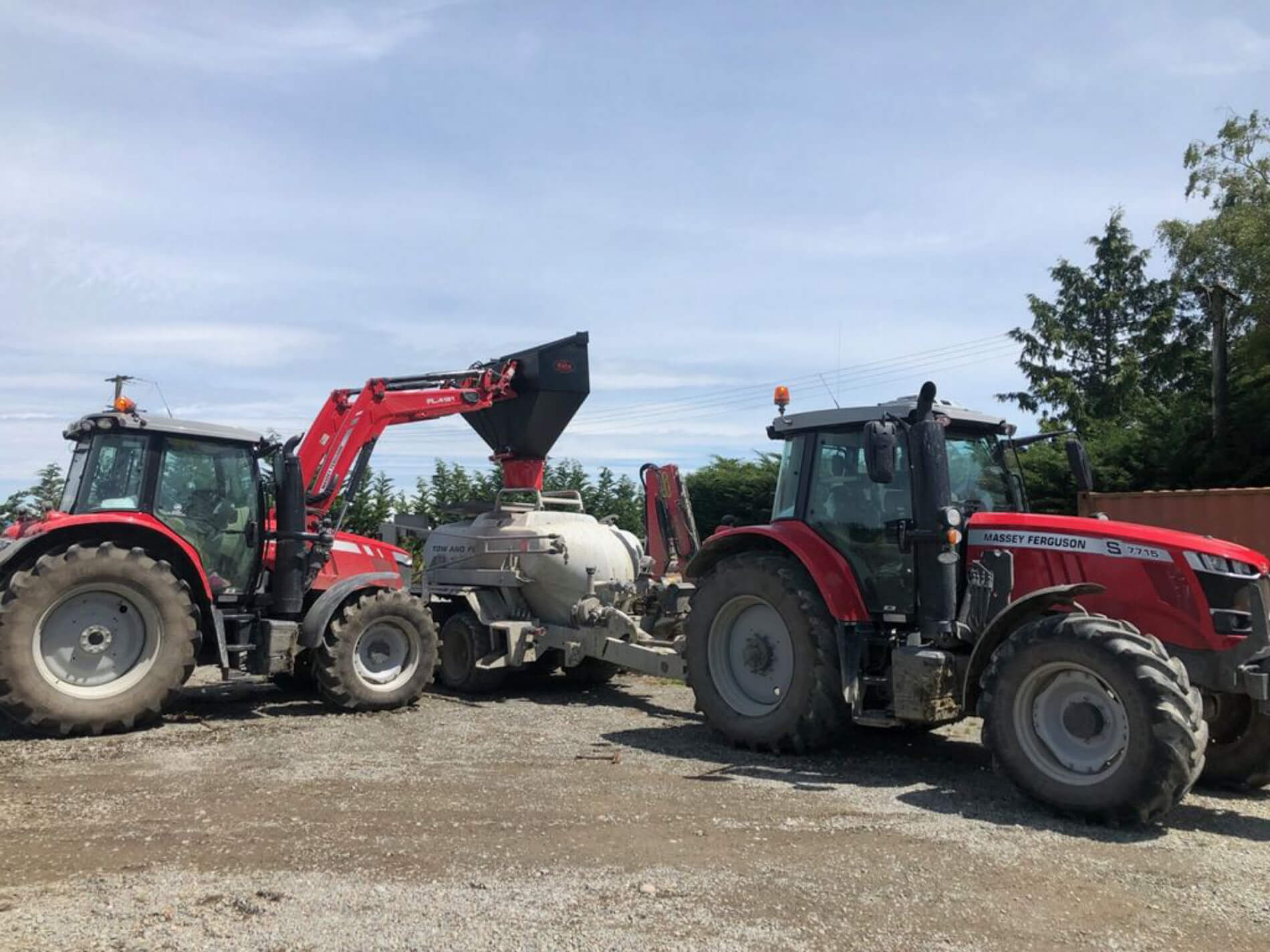

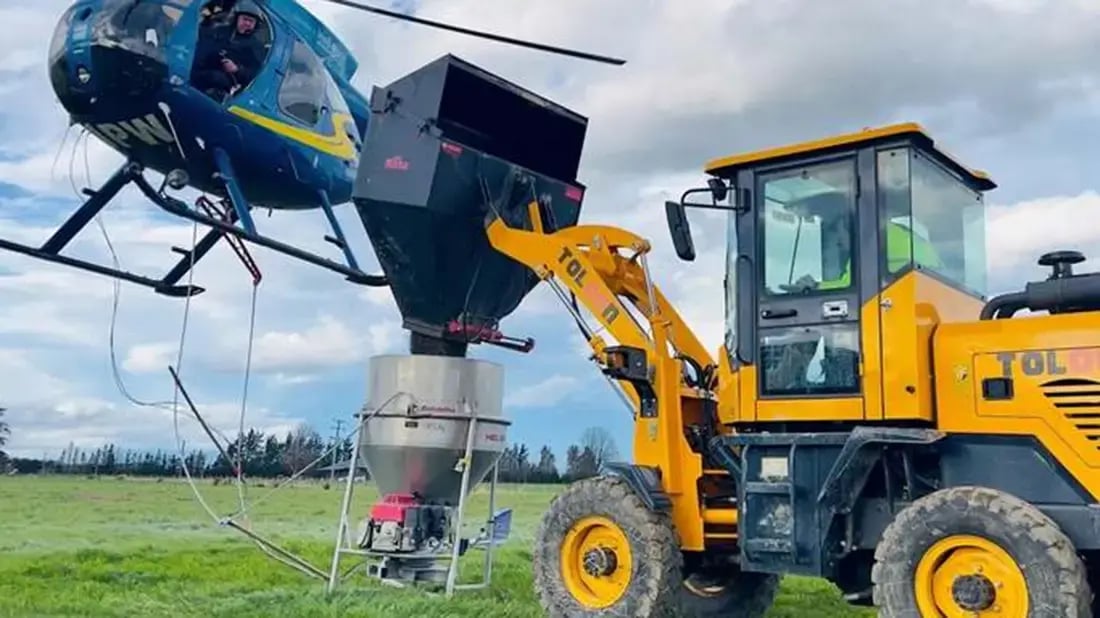

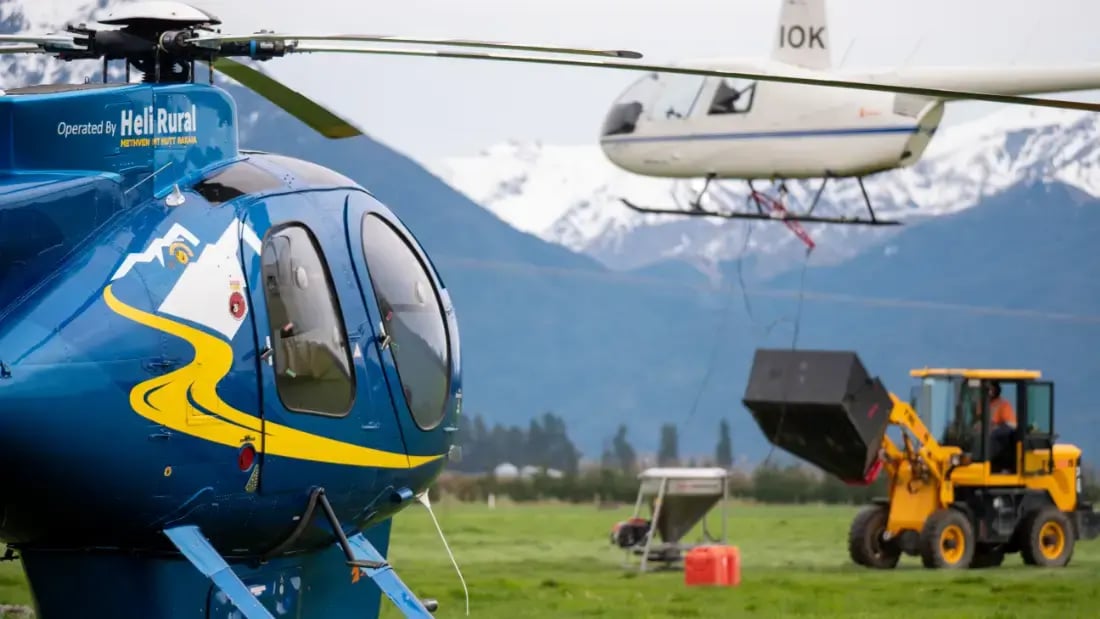

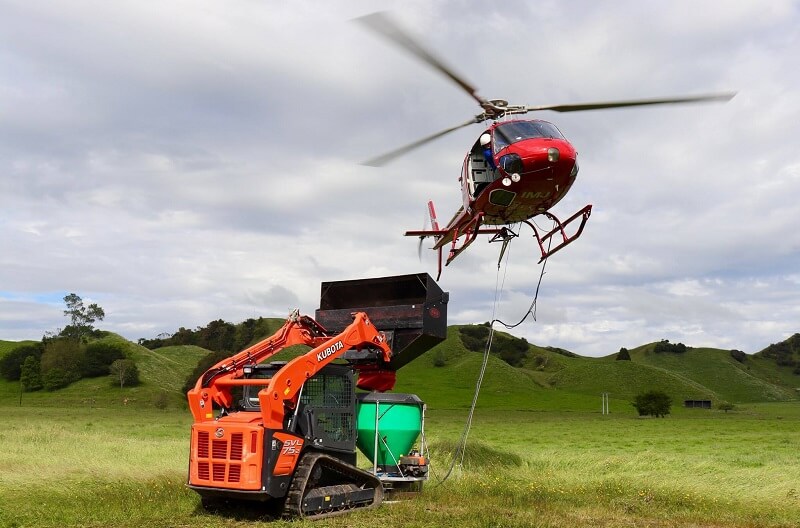

    Rata Funnel Buckets have become a popular attachment for loading seed drills, fertiliser spreaders & helicopter hoppers where reliability & safety is paramount.

    Enquire now to find out how we can make your operation safer and more profitable with a Funnel Bucket!

      Specifications

      Model (Code) Width (m) Capacity (L) Capacity (m³) Tare Weight (Kg) Approx weight capacity of Urea (Kg)
      FB750H 1.5 750 0.75 410
      FB1500H 2.1 1,500 1.50 475 1080
      FBS Optional Bolt on front skirt

      Features & Benefits

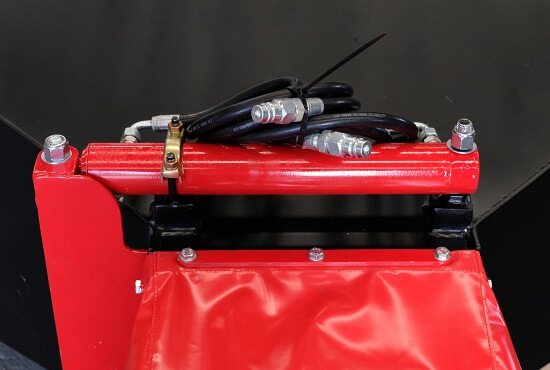

      Hydraulic Actuator

      1 Hydraulic Actuator
      Rata Funnel Buckets feature a fully hydraulic actuation system powered by the Loader or Telehandlers 3rd service, this enables you to load & discharge the material without having to leave the Tractor or Telehandlers cab

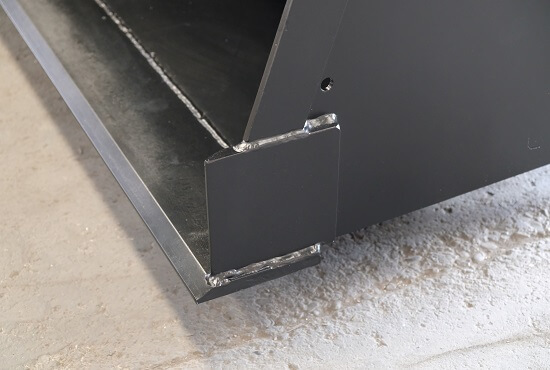

      Wear protection

      2 Wear Protection
      Cutting edges on the Rata Funnel Bucket are made of high tensile wear resistant steel to ensure a long abrasion resistant life, the buckets side edges & base also feature 10mm wear strips to prevent wear to the 6mm bucket skin itself.

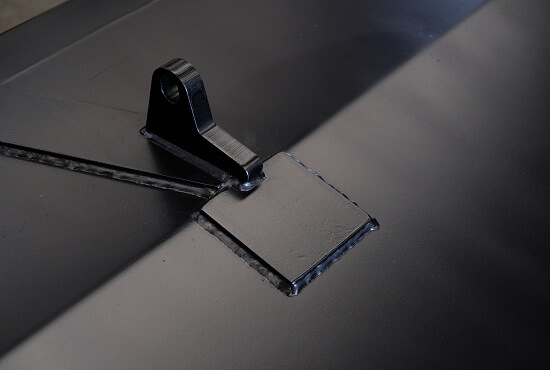

      HD Build

      3 Heavy Duty Build
      Rata Funnel Buckets feature an overall heavy duty build to cope with heavy loads & demanding conditions. Gusseting around hitch areas helps to disperse stress across a greater portion of the bucket back frame.

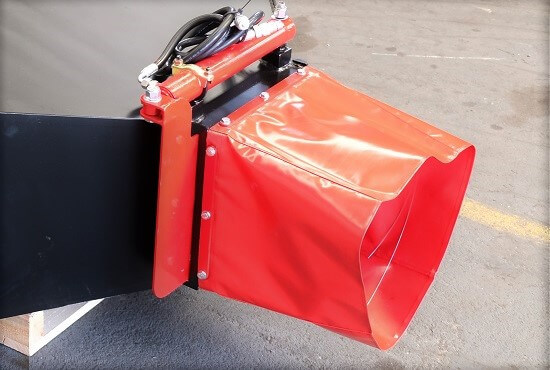

      Flexible Canvas Chute

      4 Flexible Canvas Chute
      A flexible canvas chute ensures material is dispensed accurately with minimum spillage or waste. The chute is 400x400 for fast unload times when the shutter is fully open.


      Dealer Locator

      Funnel Buckets are sold throughout our nationwide network of dealers, find your nearest one today.
