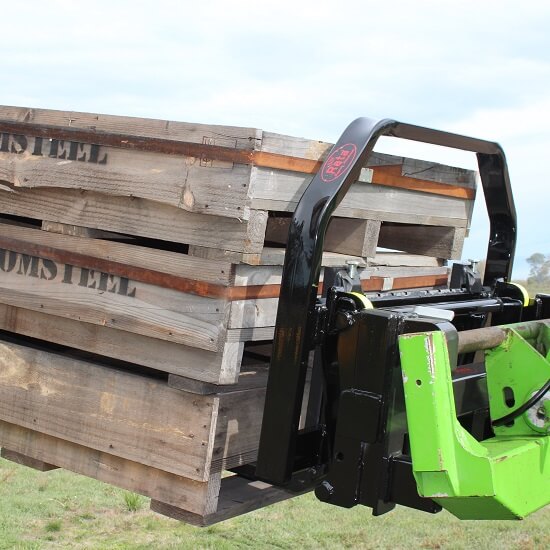

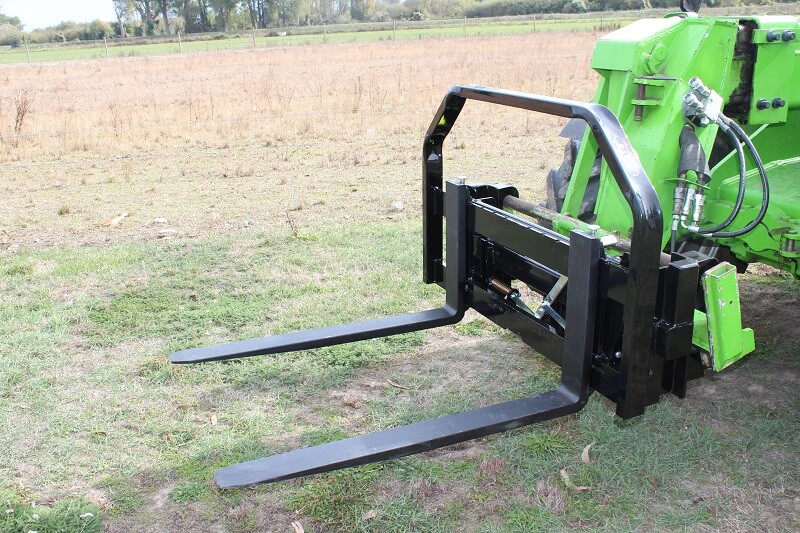

Rata Pallet Forks and Quick Hitch Adaptor on Merlo Telehandler

    Pallet Forks

    Features include fixed or adjustable width forks, optional hydraulic side shift and high back safety frame. Pallet forks can be made to fit to almost any front end loader or material handler. Adjustable forks can be locked into place along the sliding bar by the locking bolt on the top of the fork. 1800kg and 2500kg capacity forks have a class 2 fork carriage.

      Specifications

      Model (Code) Description Approx. Weight (kg)
      AWPF05 Adjustable width 500kg capacity 90
      AWPF1 Adjustable width 1000kg capacity 125

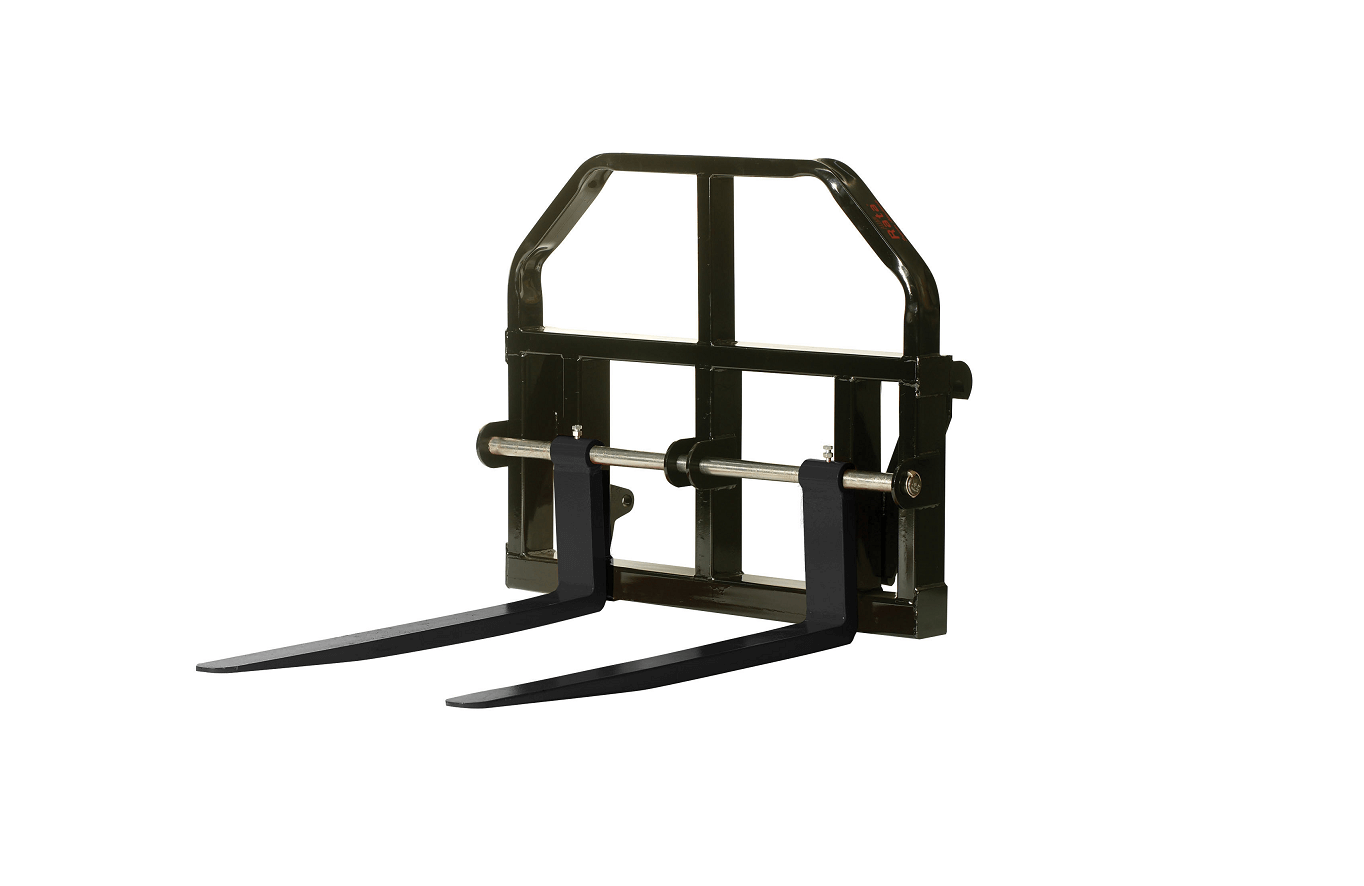

      AWPF5 Adjustable width 1500kg capacity 163
      AWPF8 Adjustable width 1800kg capacity 171
      AWPF25 Adjustable width 2500kg capacity 235
      AWPF25T Adjustable width 12500kg capacity (To suit telehandlers) 250

      Other Pallet Fork options available on request

      Weights are approximate only, and will vary depending on the hitch type



      Specifications (Fixed Width Models)

      Model (Code) Description Approx. Weight (kg)

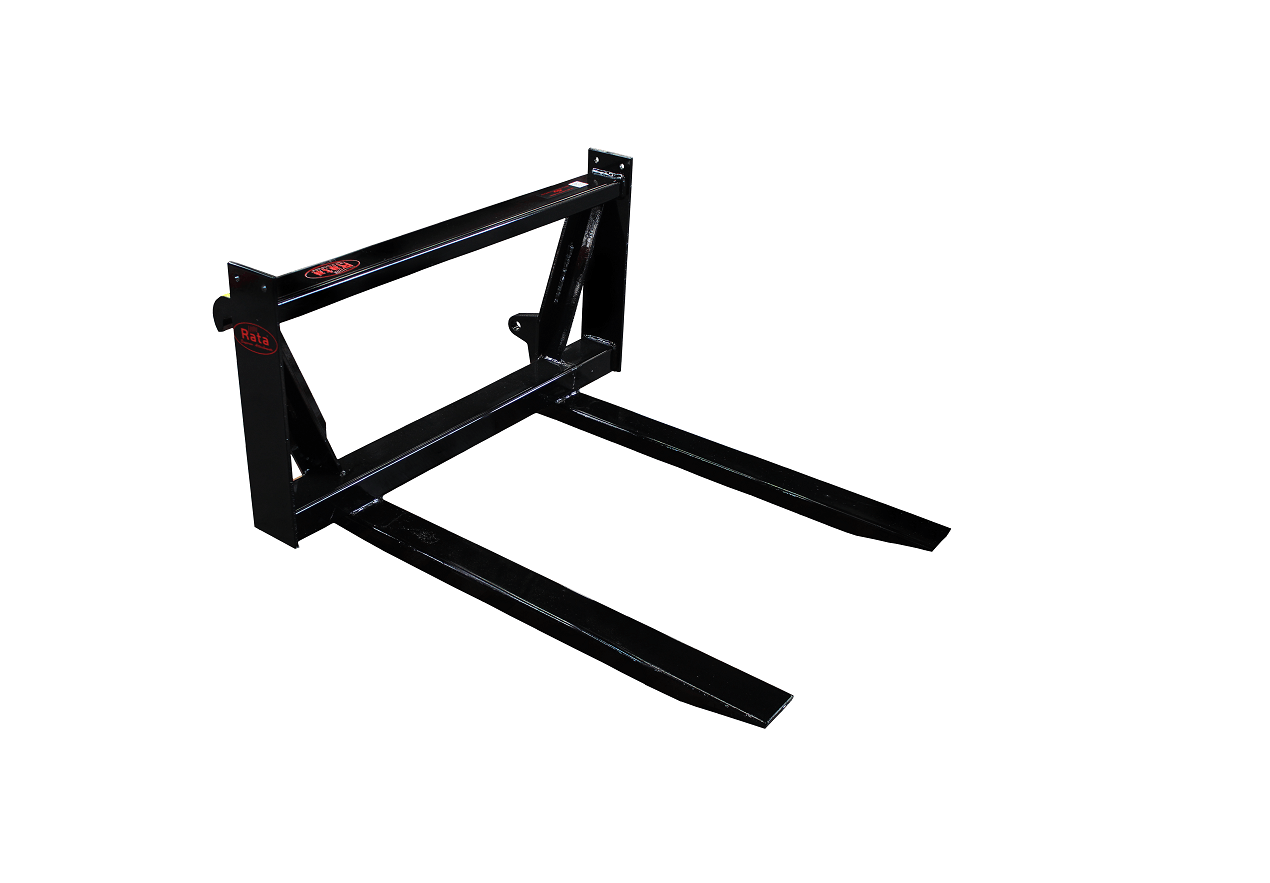

      ESPF1 Economy fixed width 1,000kg capacity (No back frame) 78
      FWPF1 Fixed width 1,000kg capacity 102

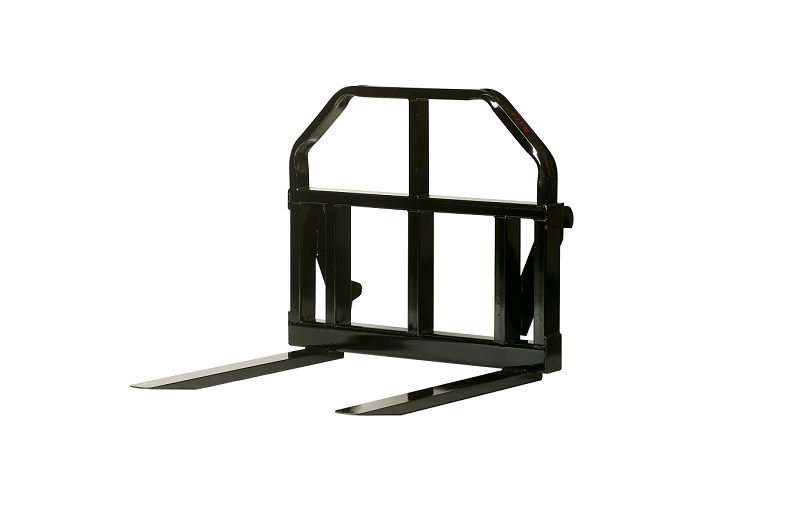

      FWPF5 Fixed width 1,500kg capacity 155

      Note: 800mm outside of fork blades unless specified otherwise

      Weights are approximate only, and will vary depending on the hitch type

      Specifications (Pallet Fork Options)

      Model (Code) Description
      HYDSS Hydraulic side shift for AWPF8 & AWPF25
      HYDSS1 Hydraulic side shift for AWPF5
      HYDSS2 Hydraulic side shift for AWPF05 & AWPF1
      PF150 Fork extension kit 150mm wide x 1800mm long
      Note: HYDSS can be retrofitted. HYDSS1 & HYDSS2 have to be fitted at time of order.

      Features & Benefits

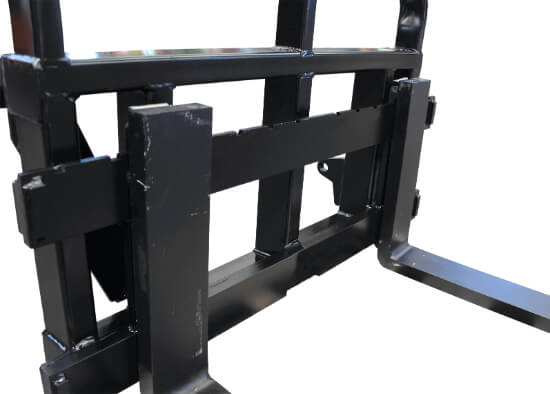

      Claas 2 Carriage

      1 Class 2 Carriage
      Pallet Fork models AWPF8 and AWPF25 both feature a class 2 fork carriage, this is a standard forklift style carriage that offers greater support for loads of higher weights.

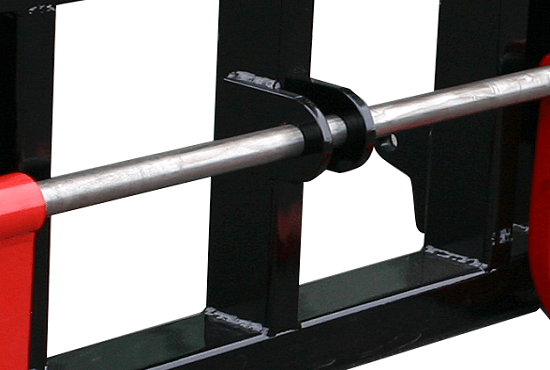

      Class 1 Carriage

      2 Class 1 Carriage
      Models AWPF05, AWPF1 & AWPF5 all feature a Class 1 solid bar carriage. This carriage is suitable for the lower weight ranges and also offers a 'floating fork' feature as tines are only fixed at one point from which they can swing.

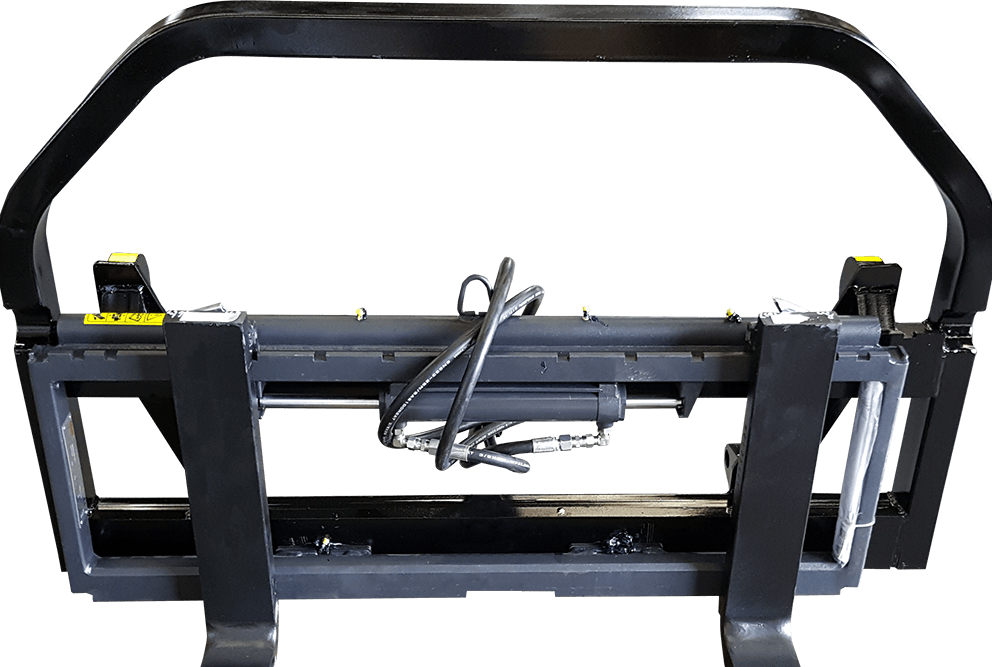

      AWPF8 HYDSS

      3 Full Range of Options
      There are a full range of options for Rata Pallet Forks to make this attachment even more versatile. Side shifters and fork extensions can help to make your tractor as useful as any yard forklift!


      Dealer Locator

      Pallet Forks are sold throughout our nationwide network of dealers, find your nearest one today.
