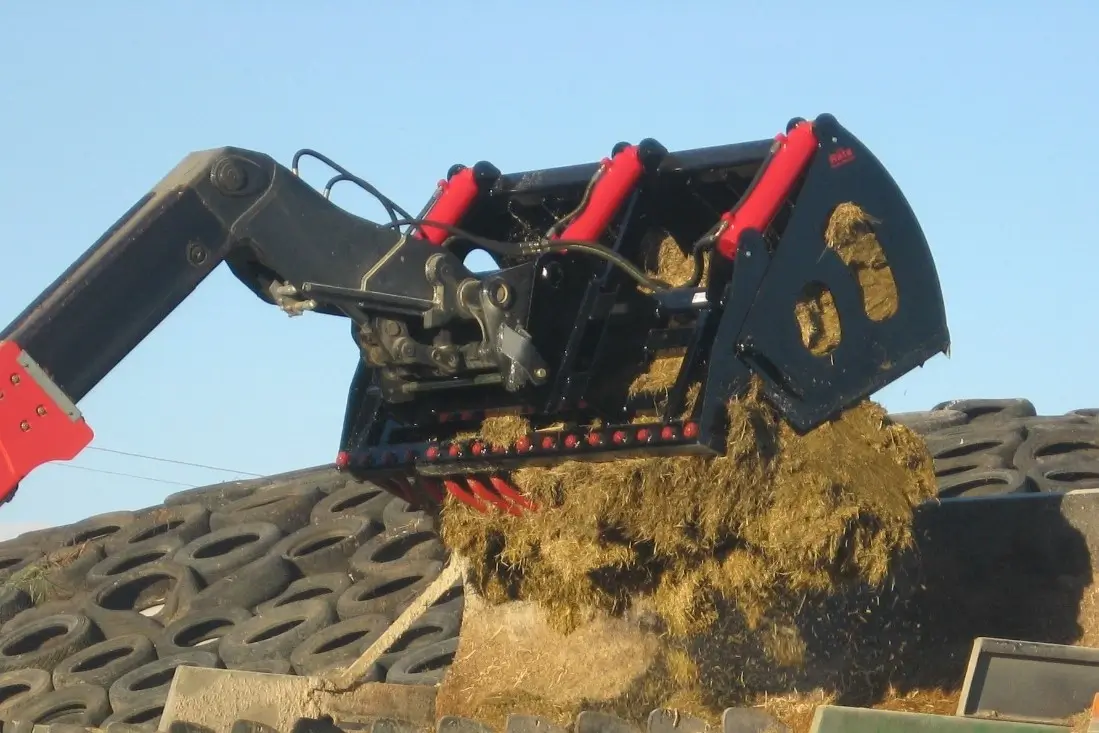

IMG_1113_2 Shear Grab 2

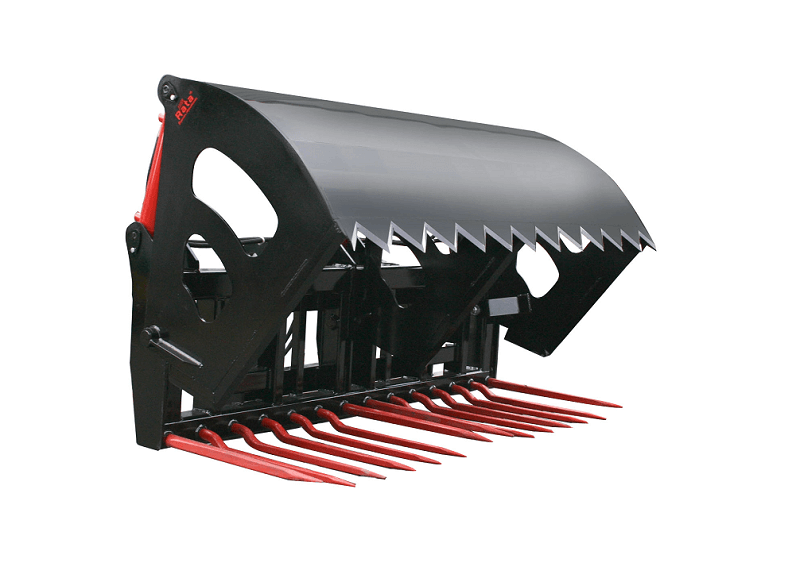

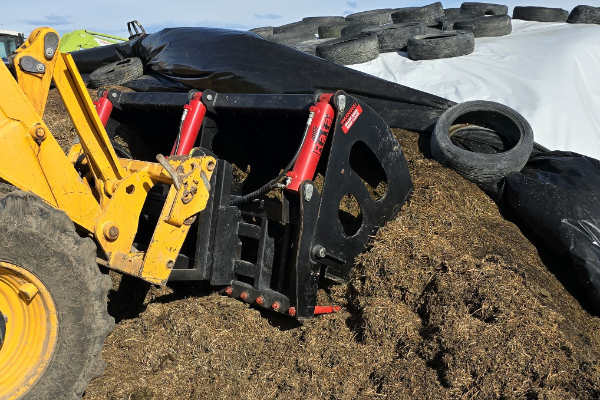

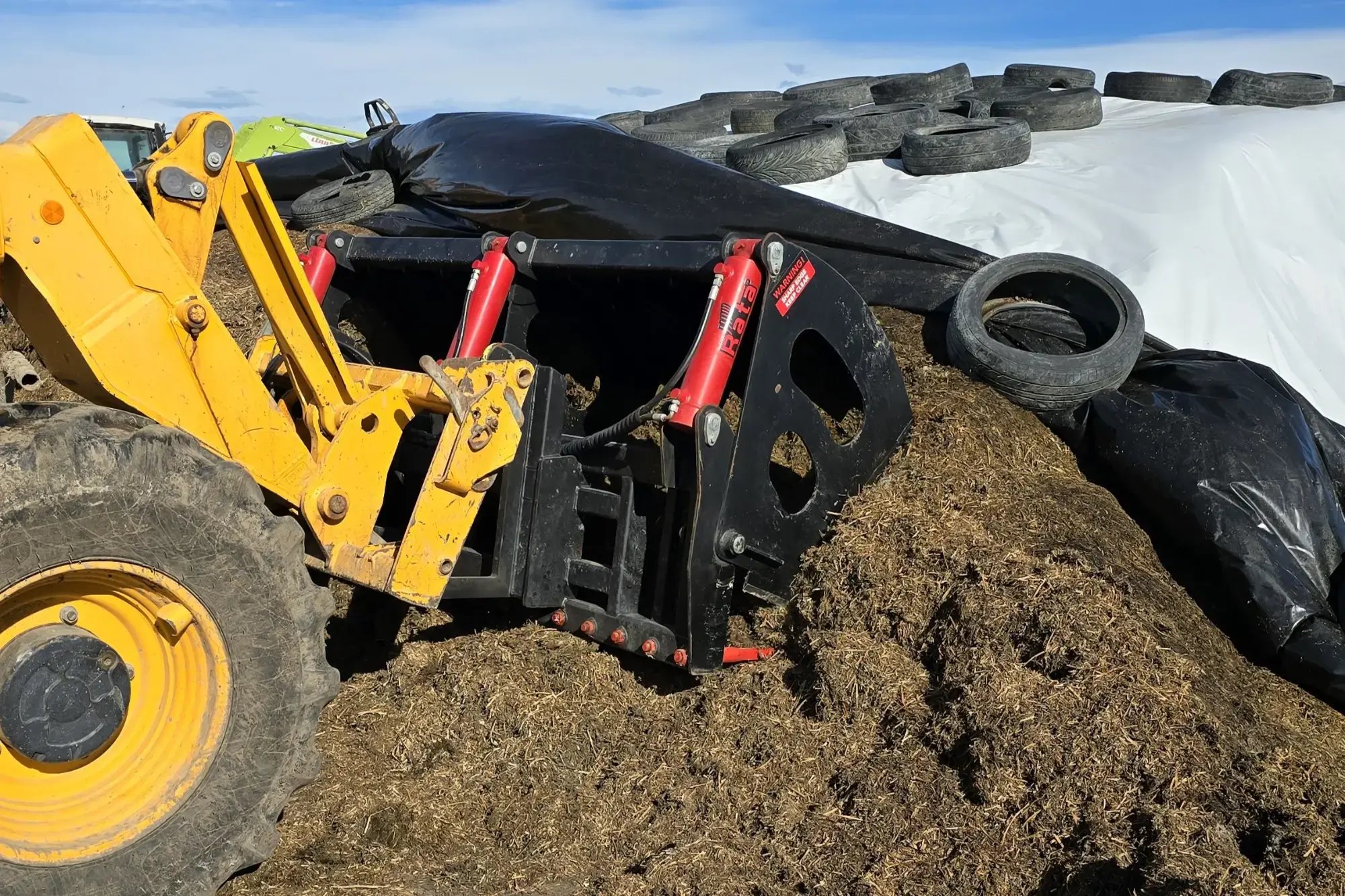

    Shear Grab

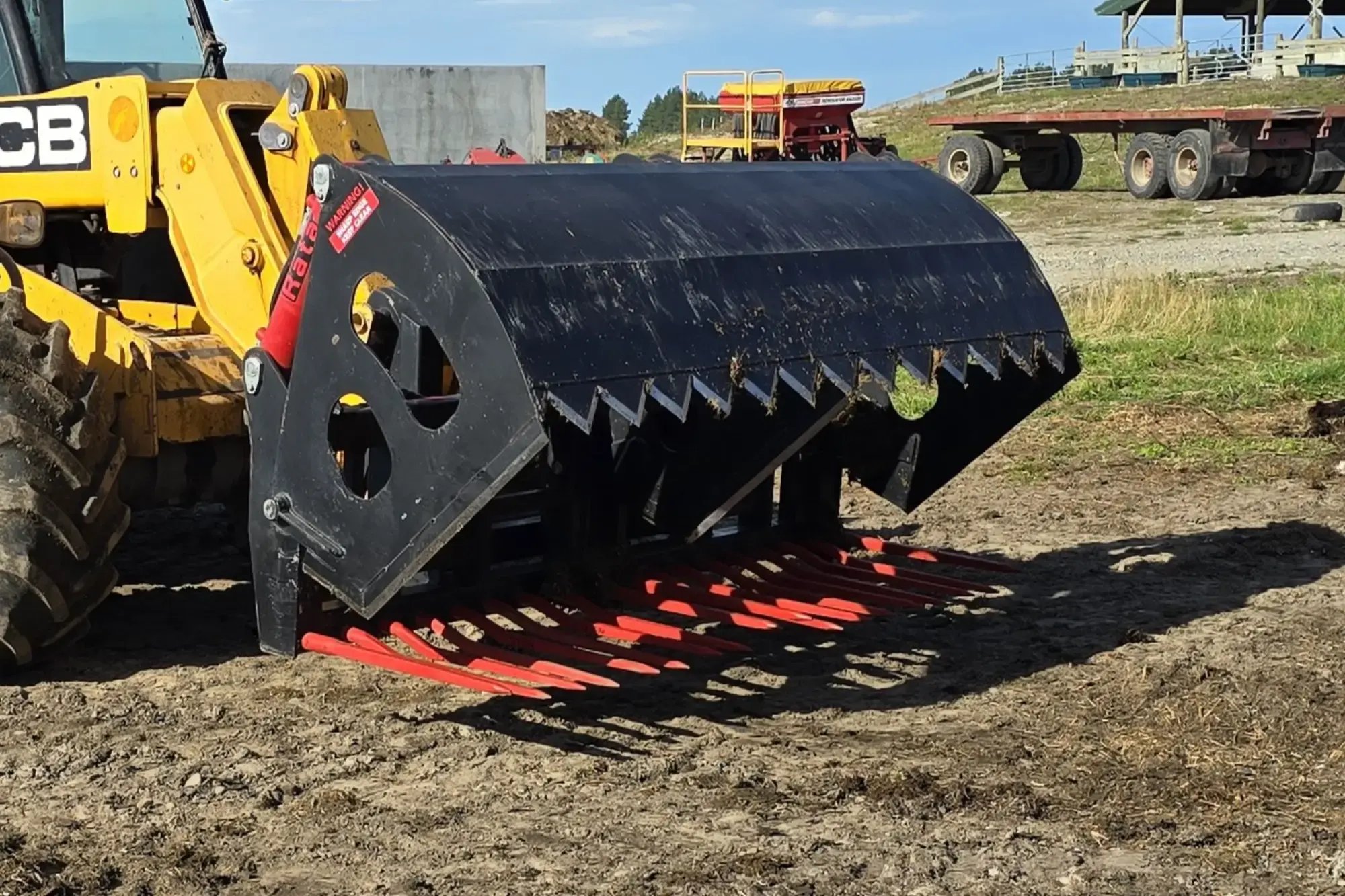

    Through the combinaton of the clean cut obtained from the unique serrated knife edge and rounded front design, the implement leaves a sealed pit face, eliminating secondary fermentation.  The side walls and closely spaced cranked tines minimise silage/maize loss during transport.

    • High tensile steel
    • Robust frame
    • Powerful rams.

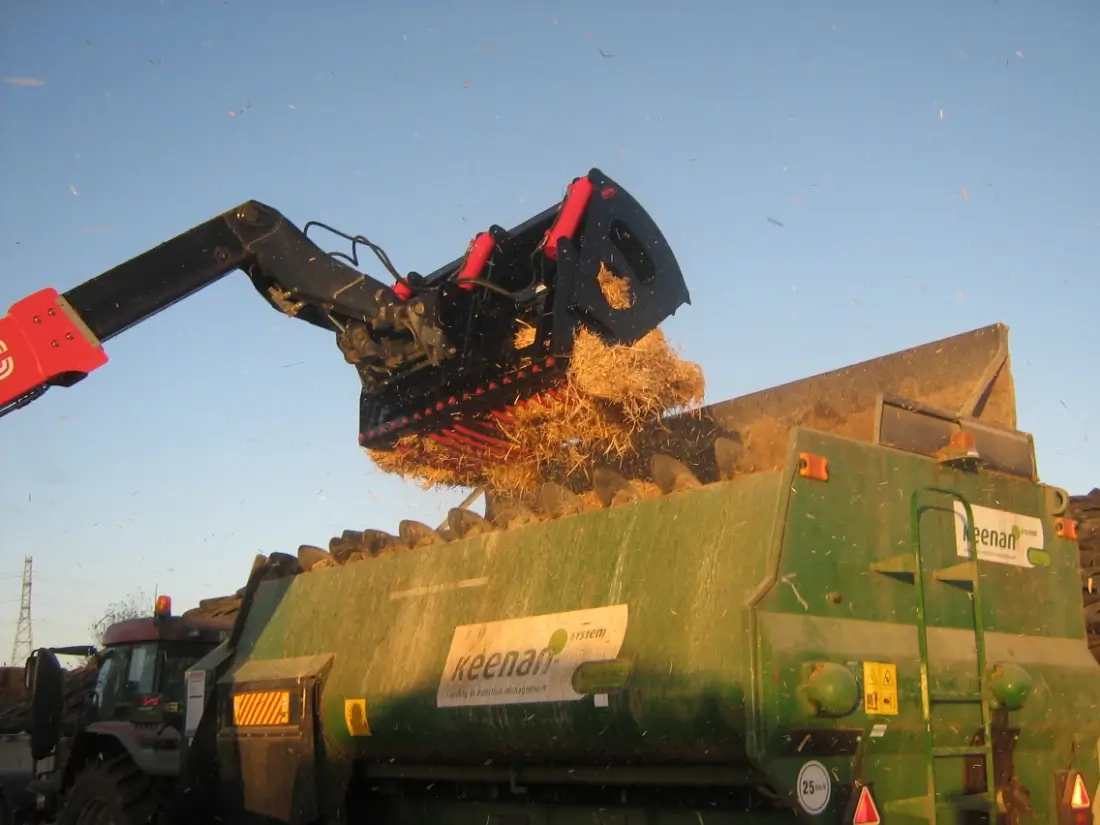

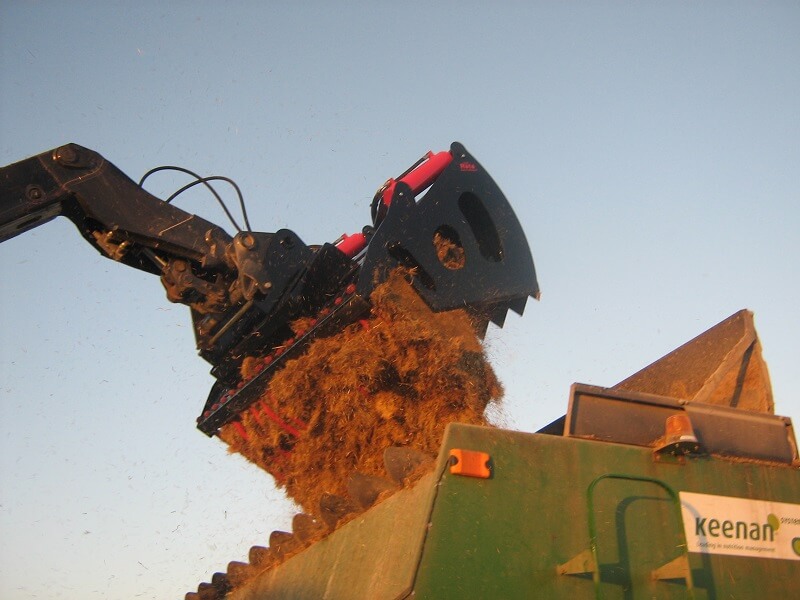

    Conserving feed with a Rata Silage Shear Grab.

      Specifications

      Model (Code) Width (m) Weight (kg) Capacity (m³) Number of Tines Minimum HP (See note)
      SHG120 1.2 440 0.58 9 80
      SHG150 1.5 480 0.73 10 100
      SHG180 1.8 520 0.88 12 120

      SHG240 2.4 830 1.10 17 160
      Note: HP ratings are for tractors only. Enquire what size would be best for your telehandler or other machinery

      Features & Benefits

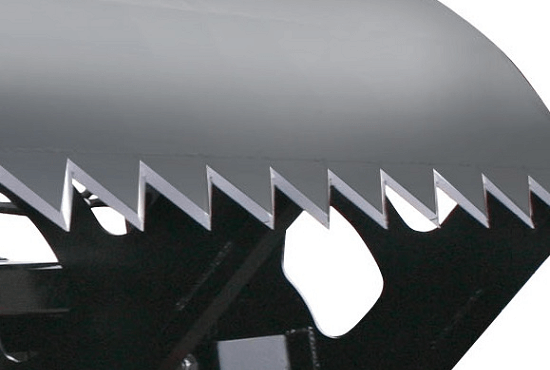

      Serated teeth of Rata Silage Grab

      1 Serrated Knife Edge
      All Rata Silage Shear Grabs feature a serrated knife cutting edge. Serrated teeth cut the silage faster, stay sharper for longer, serrated teeth along with rounded grab face also help keep the stack sealed which prevents secondary fermentation.

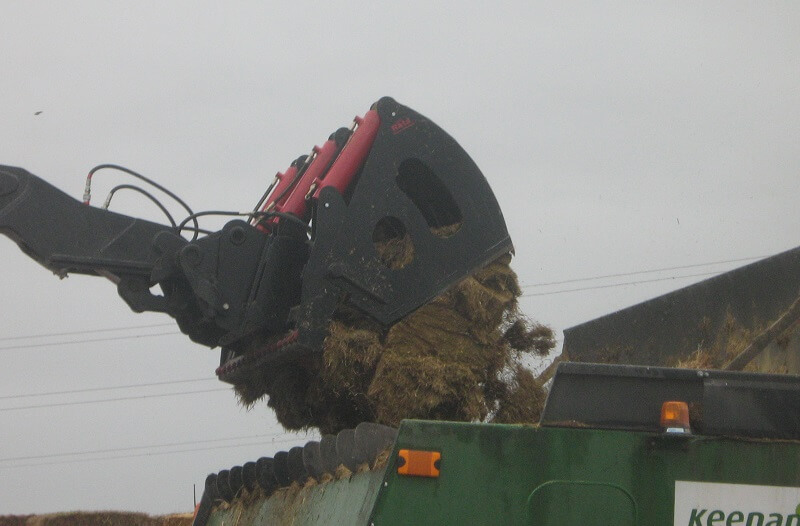

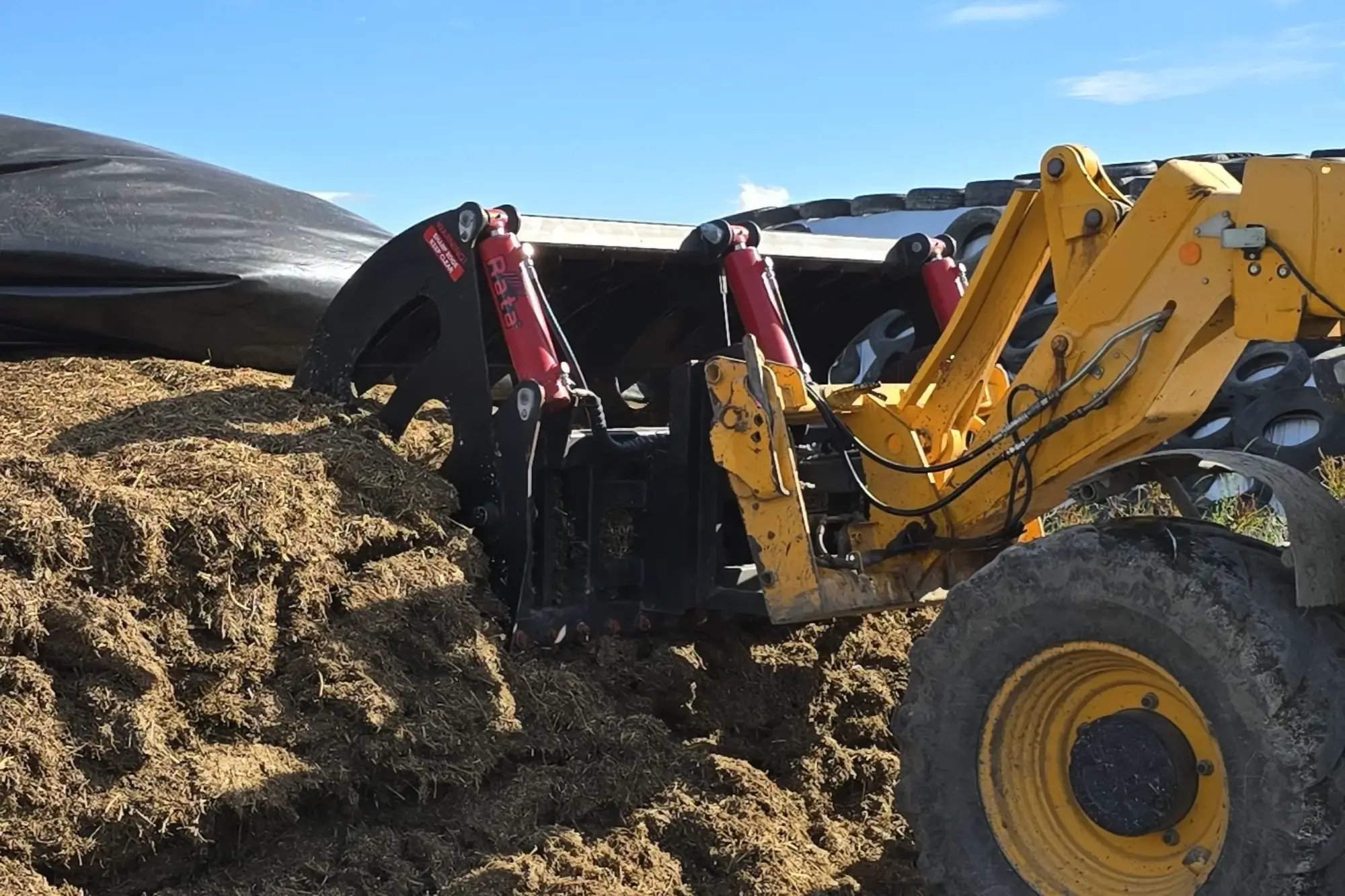

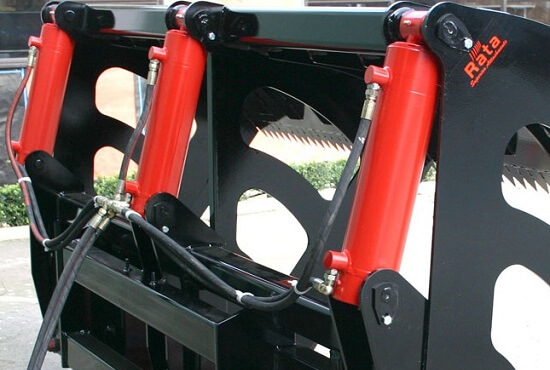

      Powerful Hydraulic Rams of the Rata Shear Grab

      2 Powerful Hydraulic Rams
      Hydraulic rams on Rata Shear Grabs are large and powerful to cut through the most dense silage stacks. Models under 2.1m wide have 2 Rams, Models 2.1m wide and above come with 3 hydraulic rams.

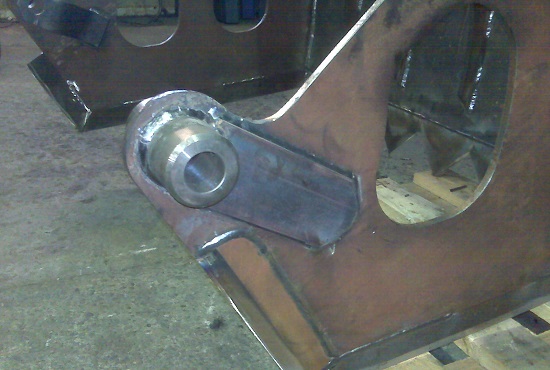

      Heavy duty build of Rata Silage Shear Grab

      3 Heavy Duty Build
      Rata Shear Grabs are designed and built heavy duty to cope with a long, hard working life. Heavy steel plate, bushes and bosses ensure maximum strength and support, particularly around pivot points and high stress load areas.

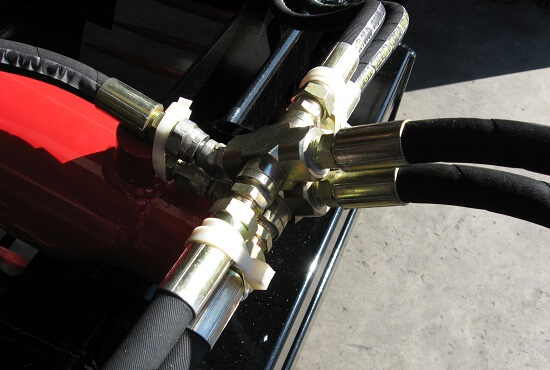

      Hydraulic hoses on Rata Shear Grab

      4 Smart Hose Routing
      Hydraulic hoses are routed to keep away from the working area of the Shear Grab, this ensures they are kept out of harms way whilst remaining easy to access.
      SHOW MORE
