Vogal EX500 Spare Parts Breakdown

All prices NZD RRP, +GST and freight

Also known as Vogal EX550, SX500 and SX450

Exploded Parts Diagram

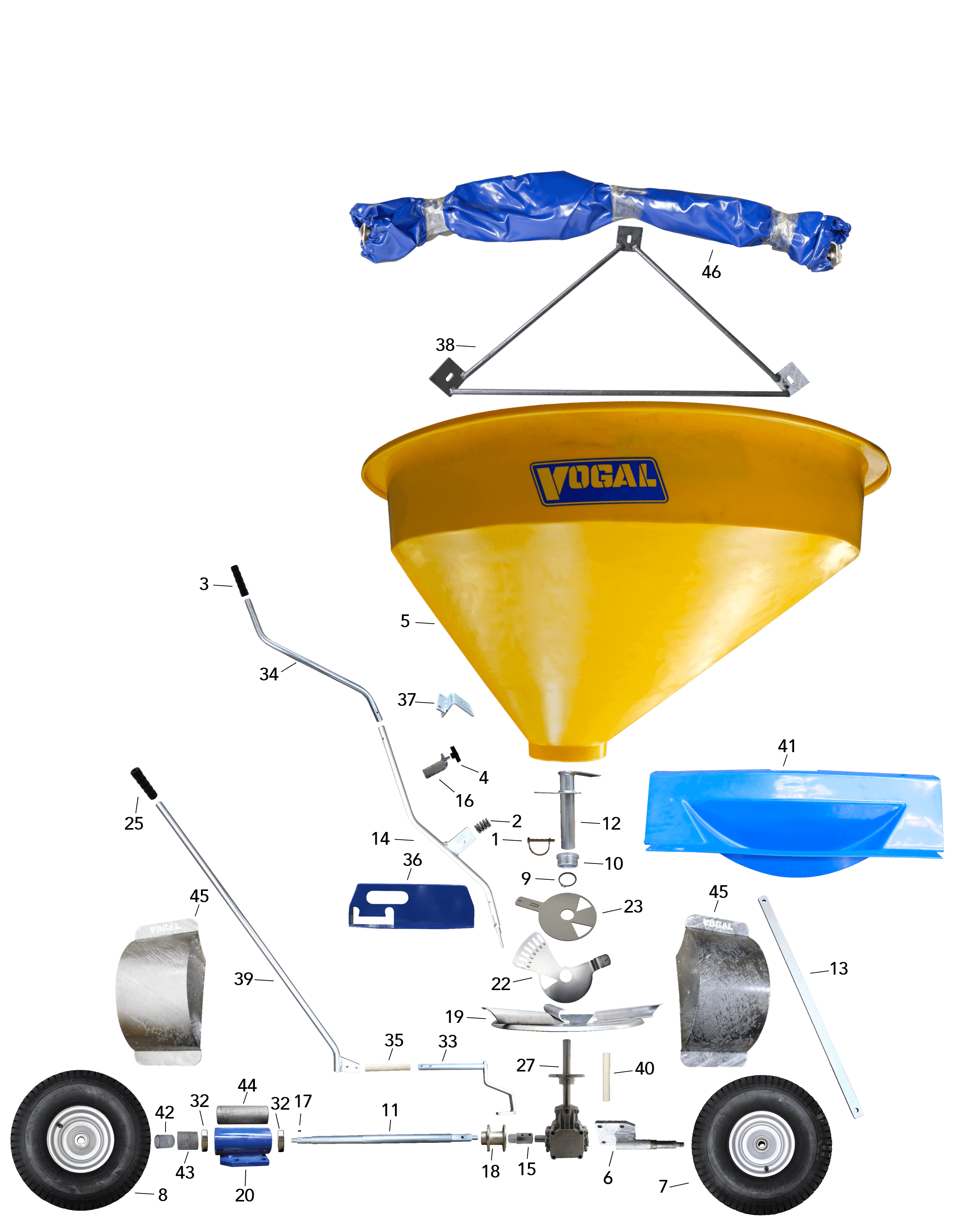

EX500 Exploded View v2

Maintenance Specifications

Oil:

500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

Grease:

General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

Tyres:

Inflate to 22 psi and check regularly. Reinflate as necessary.

Table of Parts

To see a larger image of the part, right click on the photo and select "open image in new tab" then click on the new tab that has opened

No. Photo Code Description Notes
1 1093 1093 D Pin
2 1094 1094 Shutter Lever Spring Grease contact surfaces (both ends)
3 1644 1644 Grip Handle 22mm 7/8 PVC Black Heat in boiling water for easier install
4 1651 1651 Tri Knob Female 8mm

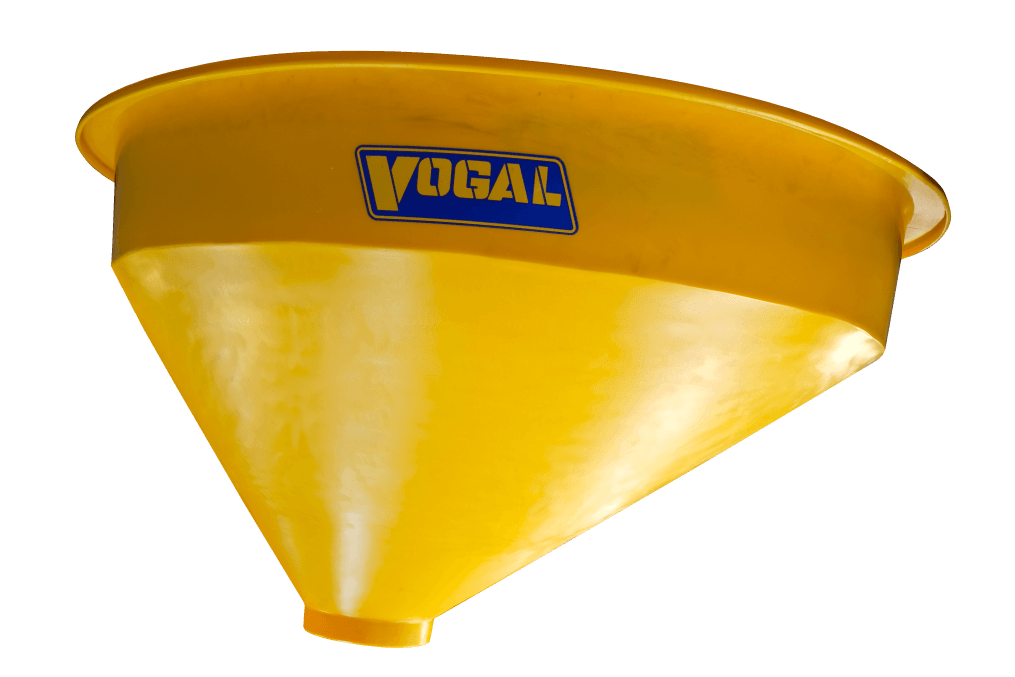

5 2893 2893 Hopper Yellow 500L

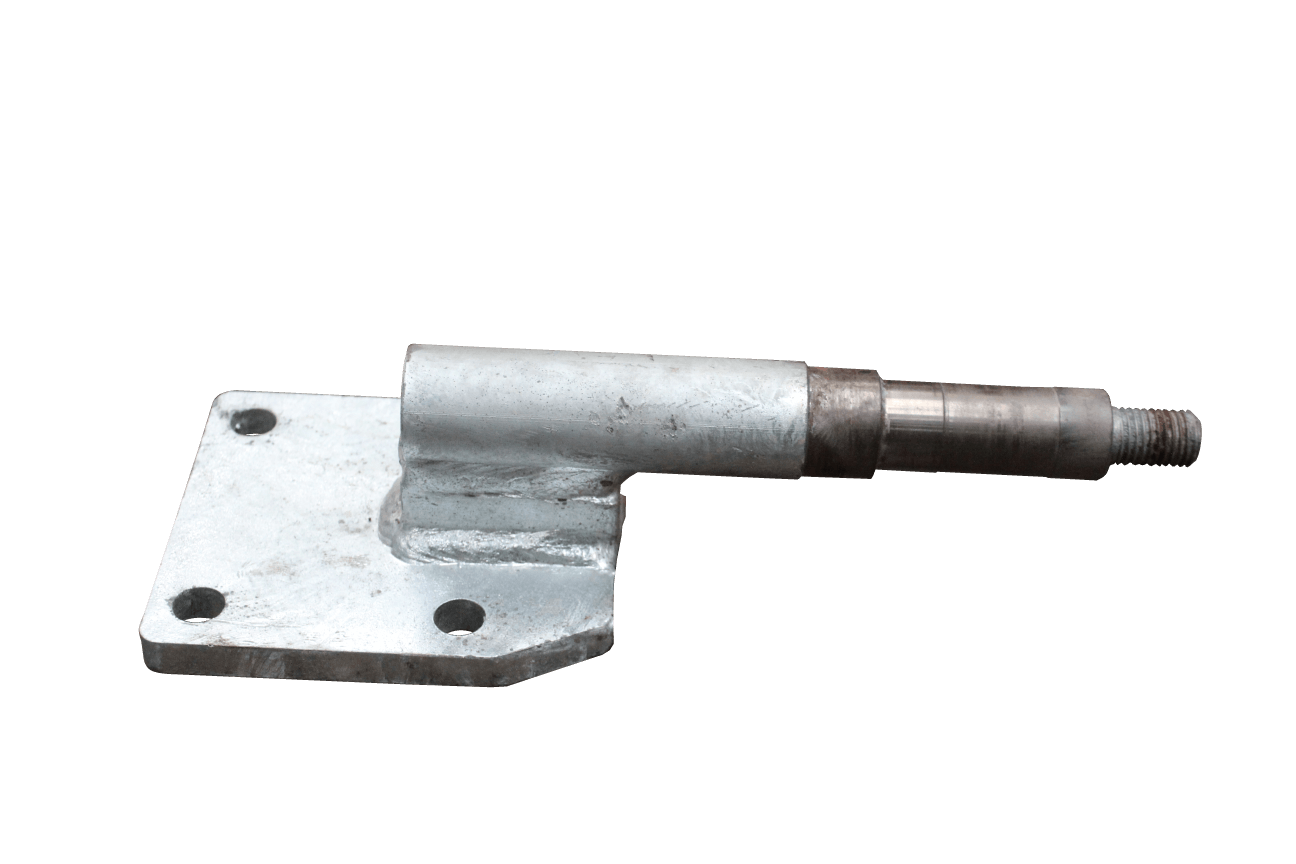

6 SP175-016 SP175-016 Bolt on Stub Axle

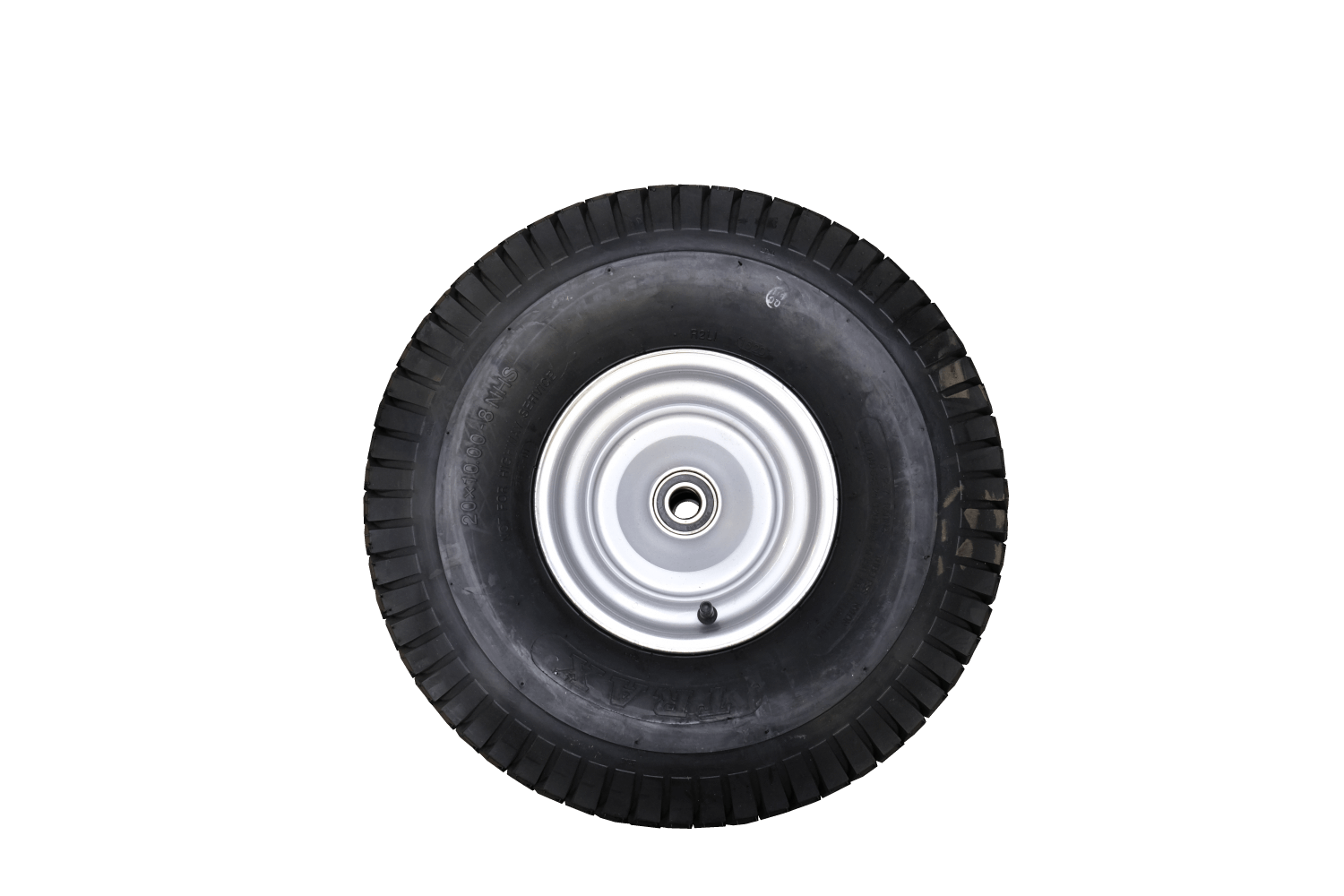

7 2190 2190 Wheel (bearing) Attaches to stub axle
7.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
7.2 Untitled 1876 Wheel Bearing Seal

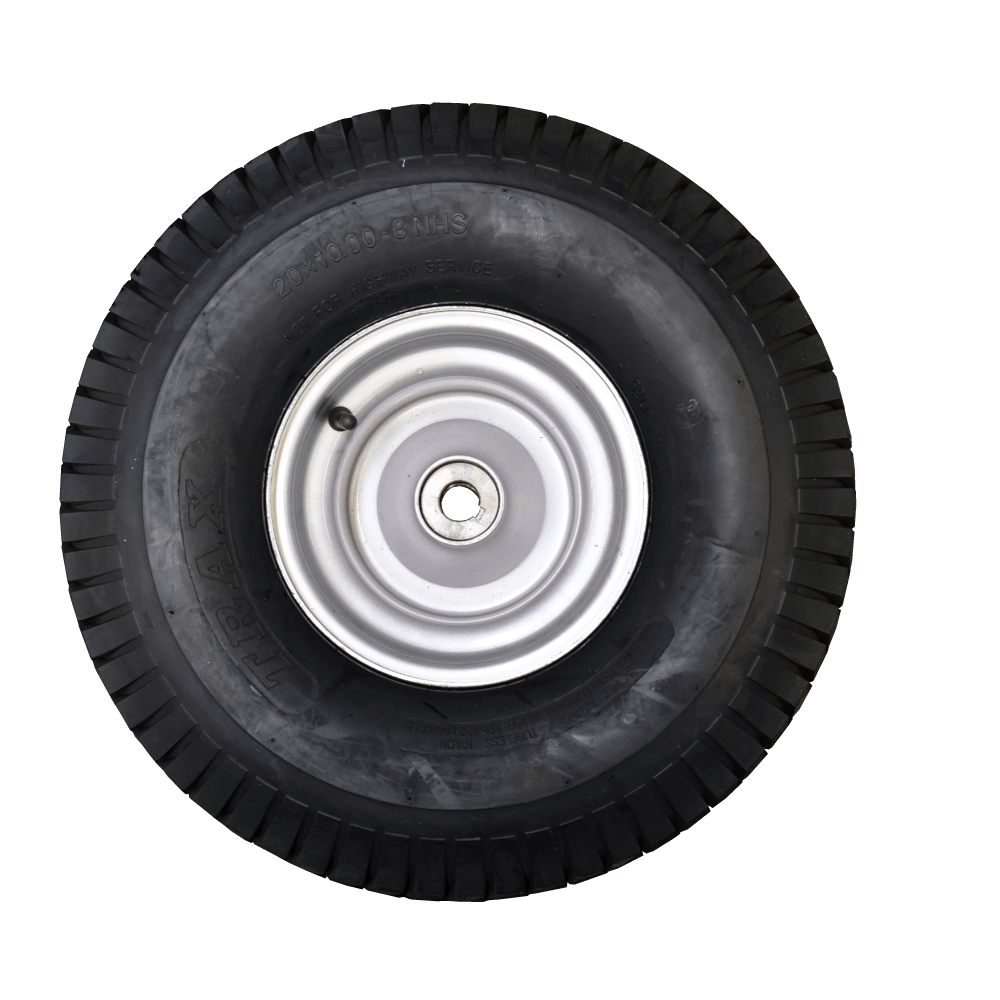

8 2191 2191 Wheel (keyed) Attached to end of drive axle, will likely also need item SP100-034
9 5042S Slash S 5042S/S Circlip 45mm external S/S

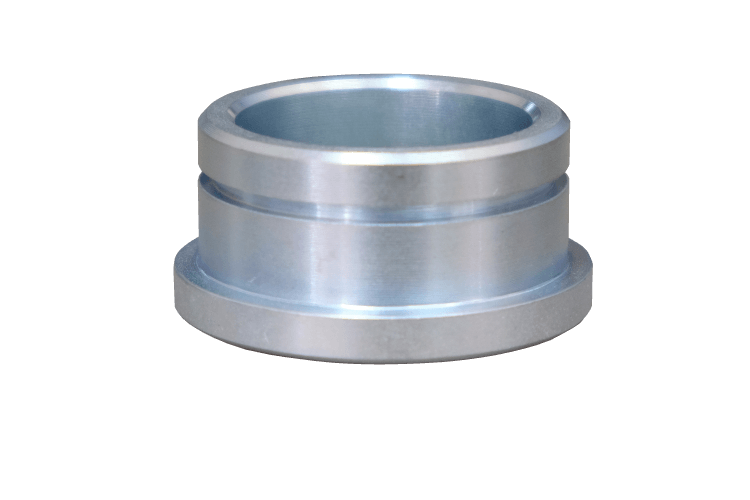

10 SP136-028 SP136-028 Agitator Bush Recommend also purchasing item 5042S/S

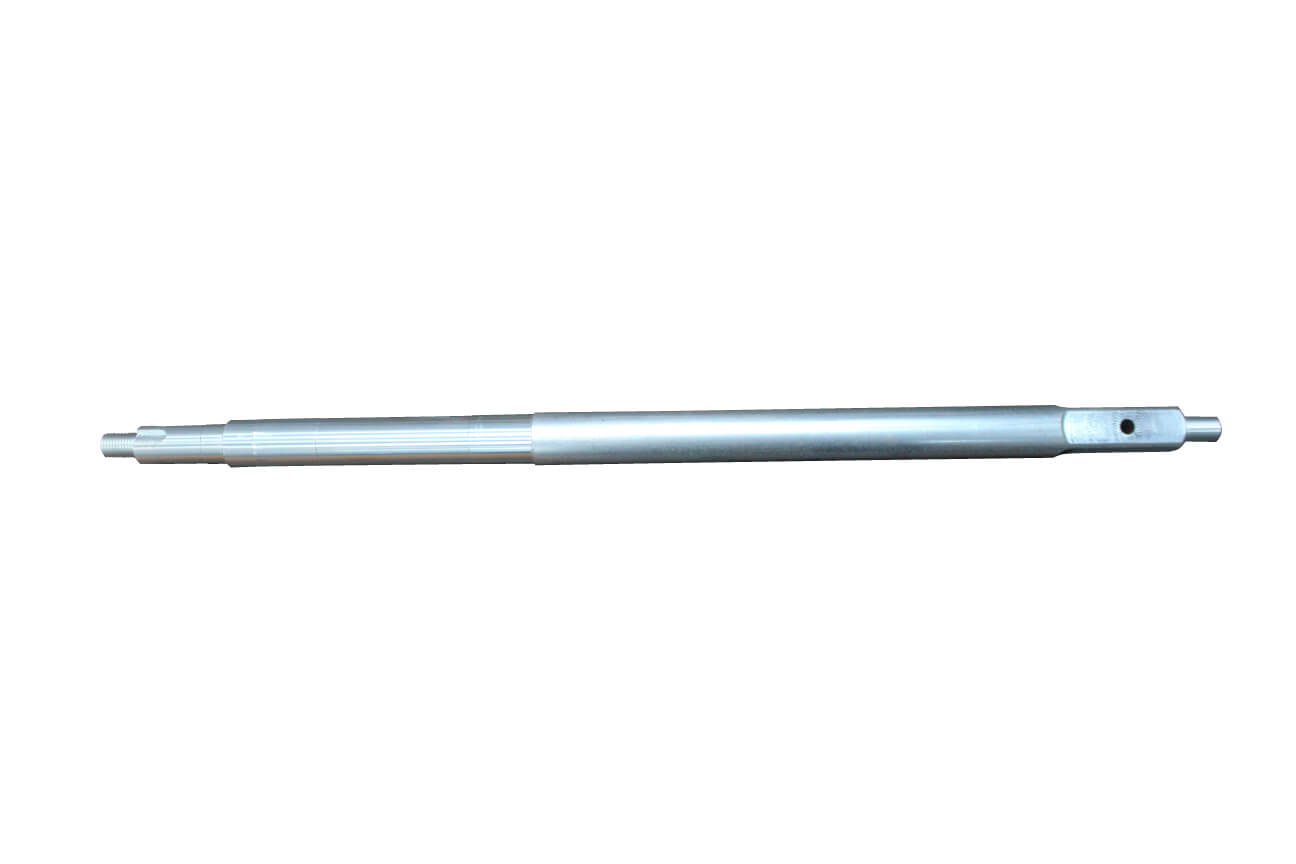

11 SP136-007 SP136-007 Drive Axle Consider also item SP100-034
12 SP136-008 SP136-008 Agitator Consider also item SP136-028
13 SP175-014 SP175-014 Towbar Adjuster

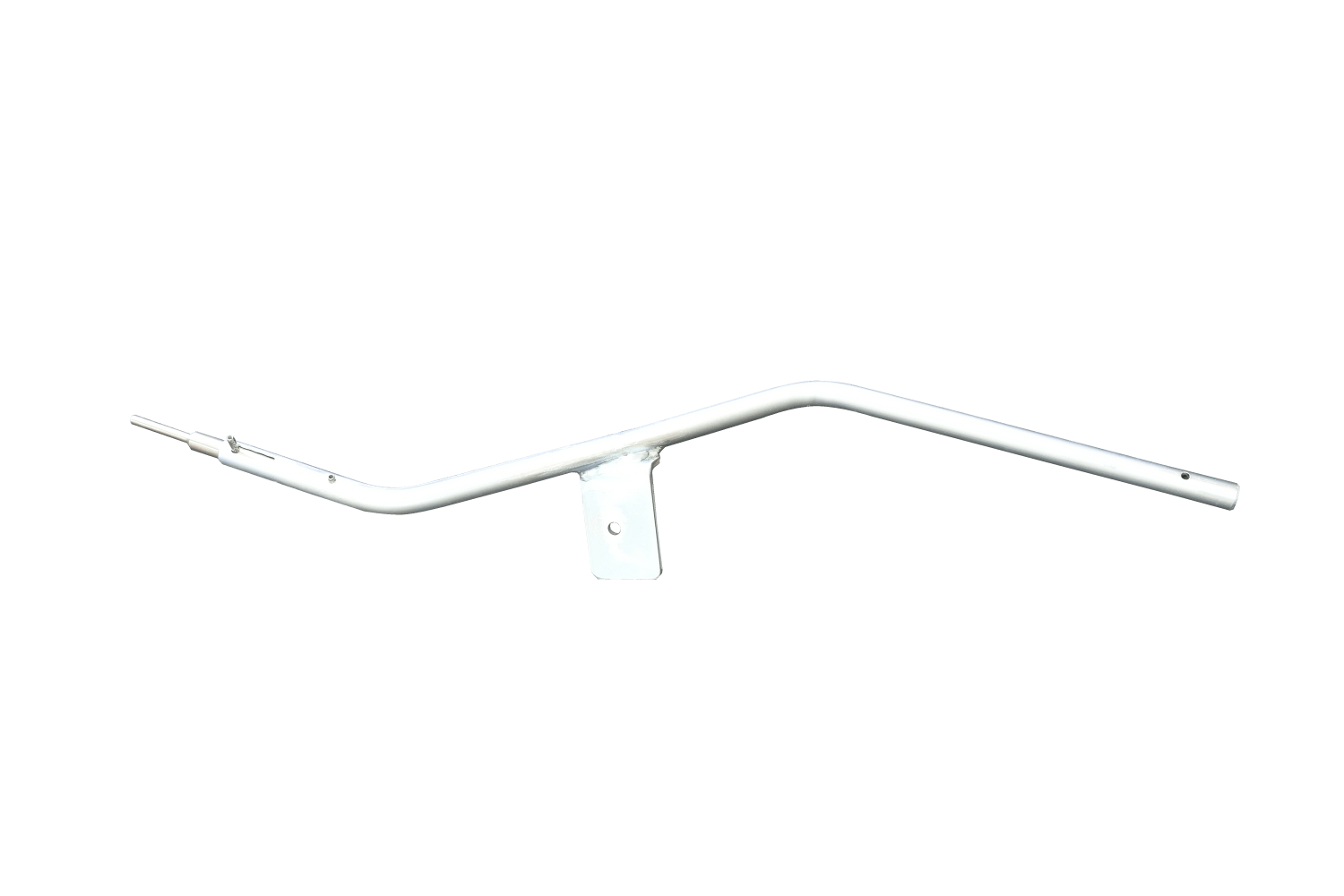

14 SP136-112a SP136-112a EX500 Shutter Lever - complete

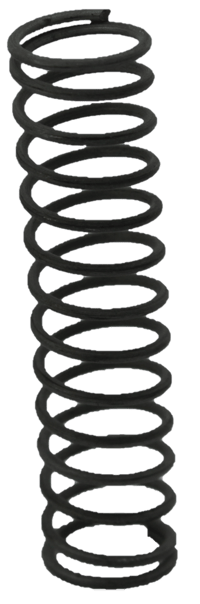

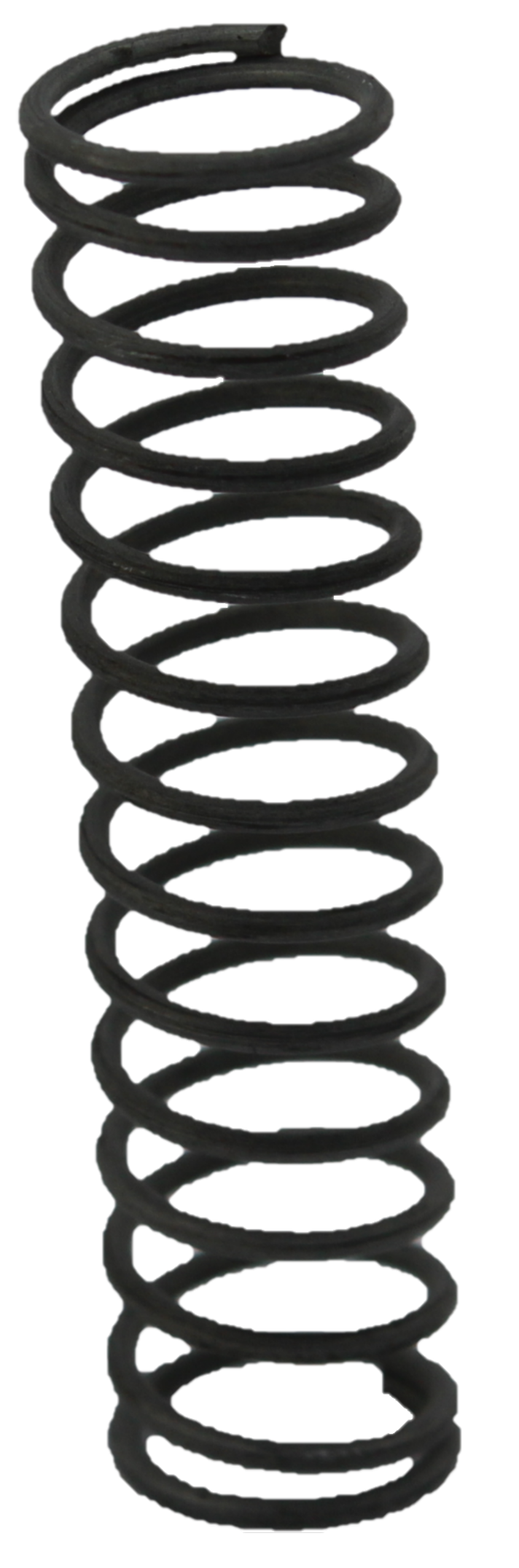

14.1 1241 1241 Spring Roll pin 6x30 p/n 5020 required to hold this in place

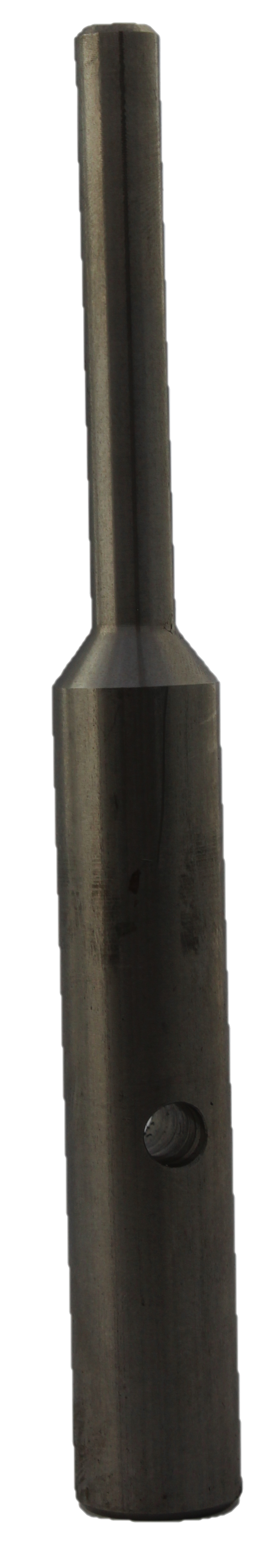

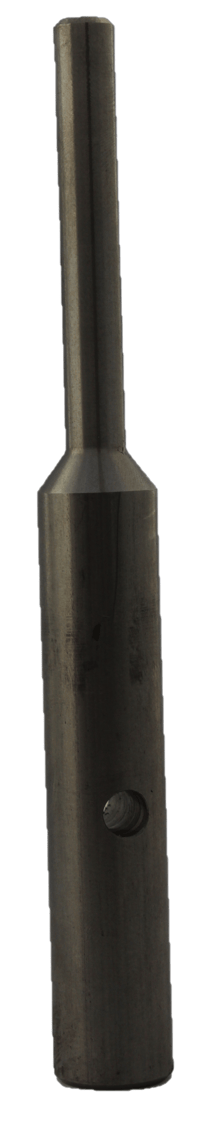

14.2 1594 1594 Index Pin Roll pin 6x50 p/n 5024 goes through this
14.3 SP136-112 SP136-112 Shutter Lever EX500
15 SP100-016 SP100-016 Drive Stub

Bolt - M8x50 ZP & Nyloc Nut

Grease Nipple - p/n 5054A

16 SP100-035  33 SP100-035 Pointer
17 SP100-034 SP100-034 Drive Axle Key
18 SP100-015  33 SP100-015 Drive Slider Female SX450 and SX500 use p/n
SP121-006

19 SP136-006 Front SP136-006 Spinner Disc Complete Assembly Bolts to gearbox with M8x16 S/S bolt, washer & spring washer
19.1   SP136-005 Spinner Fin

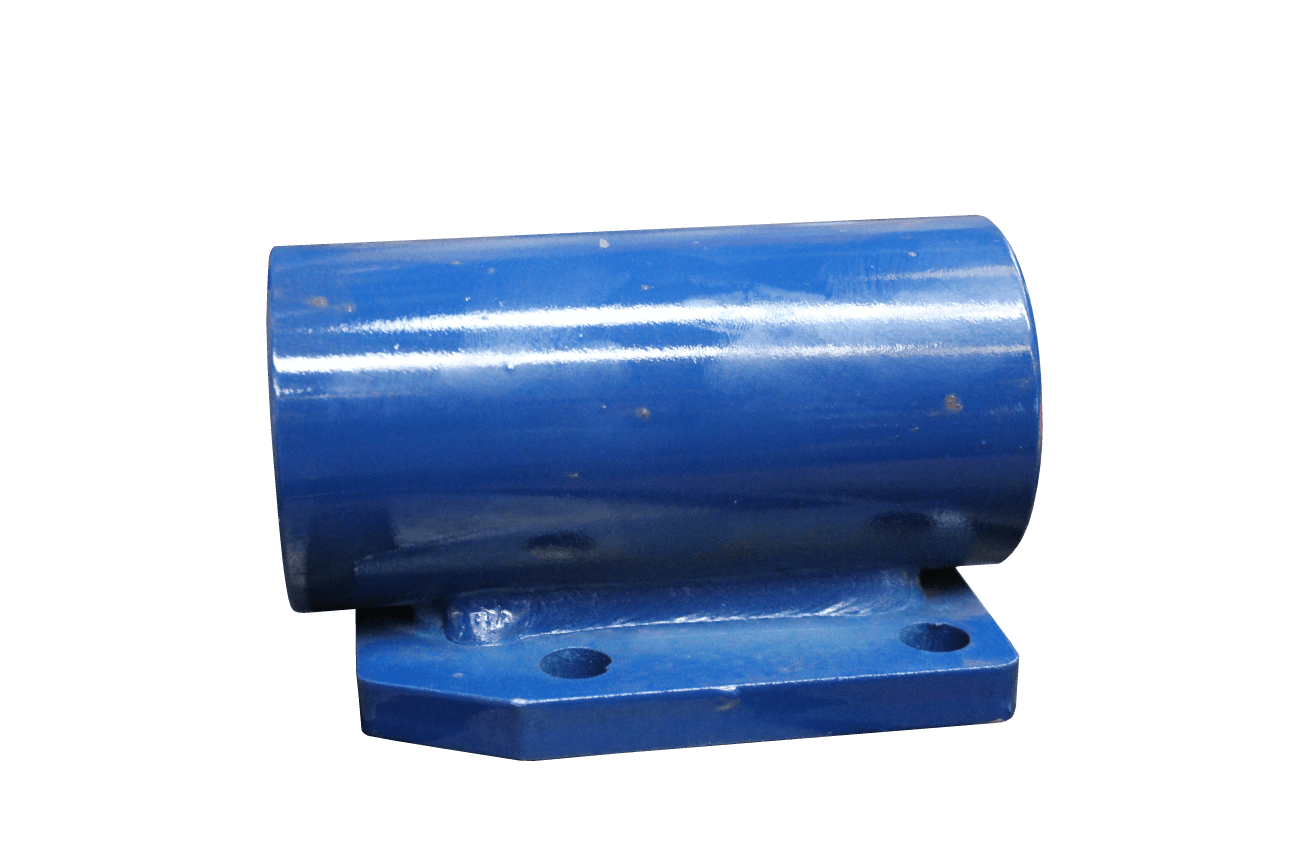

20 SP136-009 SP136-009 Bearing Housing

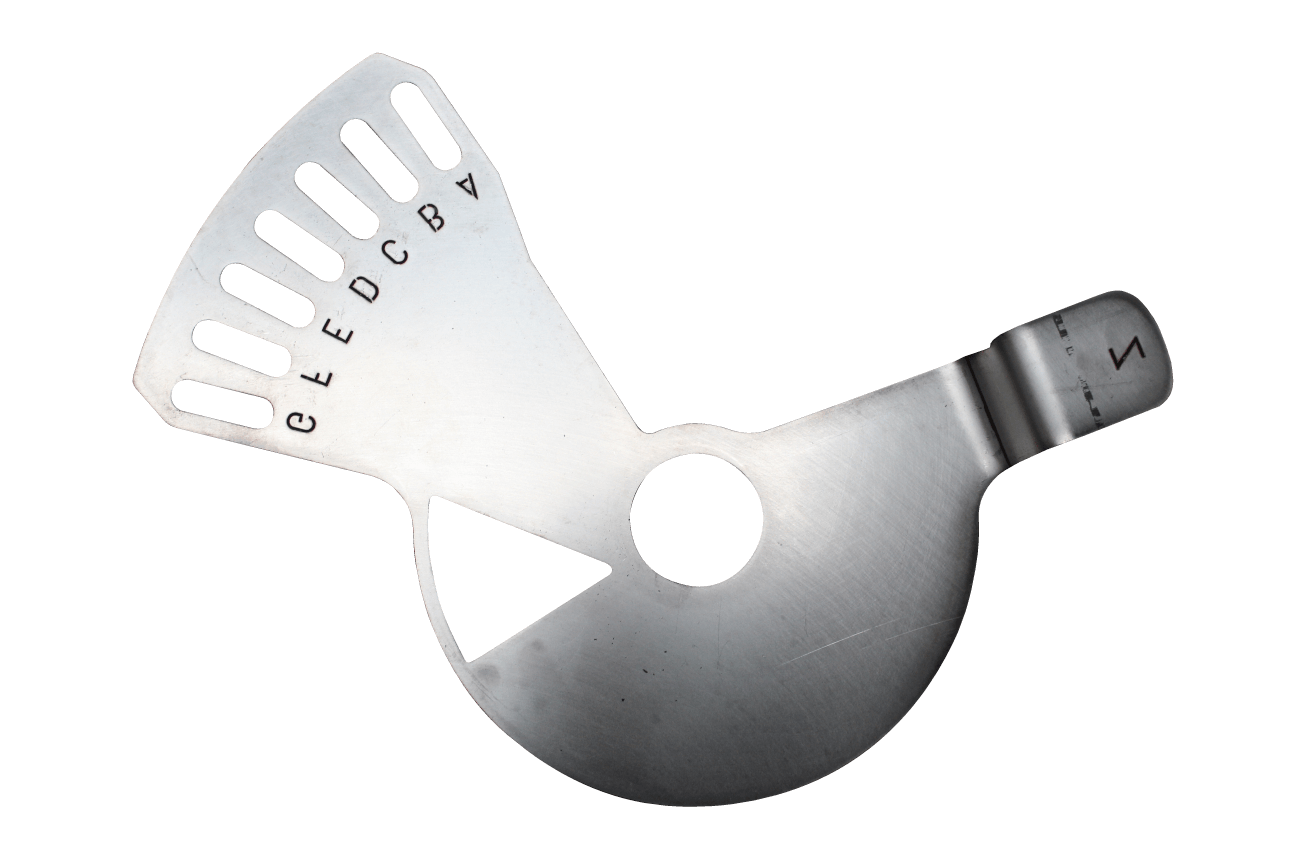

22 SP136-003 SP136-003 Shutter Lower Z

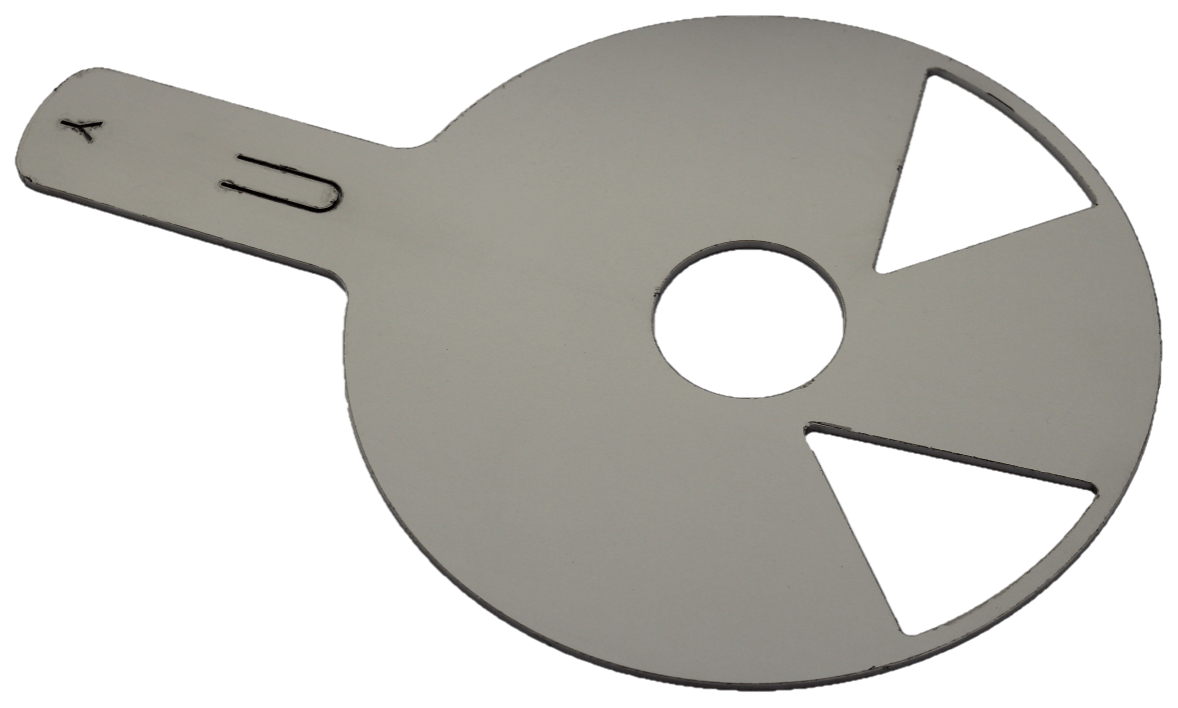

23 1939 1939 SP136-002/P Upper Shutter

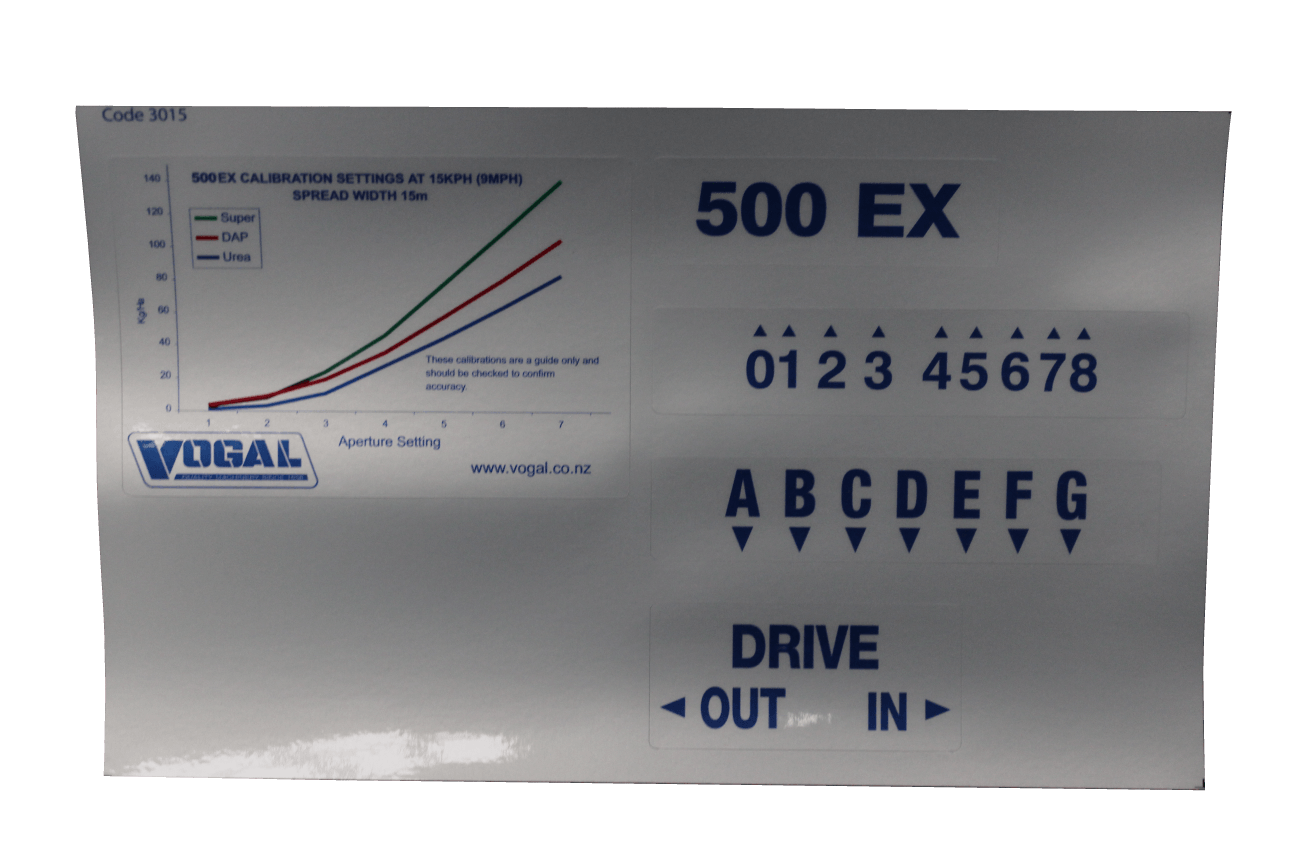

24 3015 3015 Decal 500EX
25 1645 1645 Grip Handle 25mm
26 2715 2715 Serial Number Plate
27 2120-1 2120 Gearbox Complete Assembly Click here for Parts Breakdown
27.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
27.2 1868 1868 Gearbox Seal
28 1679 1679 Felt Washer Oil soak before install
29 1901 1901 S/S Shaft Guard
30 RATA30 RATA30 Vogal Warranty Sticker
31 M SX120 M EX500 EX500 User Manual

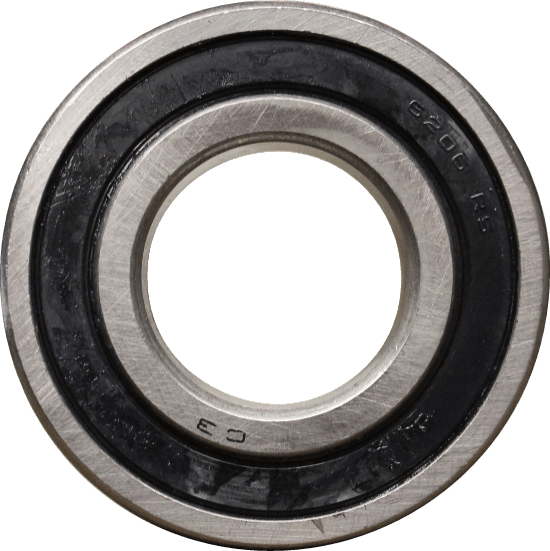

32 1573

1573

Bearing Sealed 6206-2RS For fabricated axle

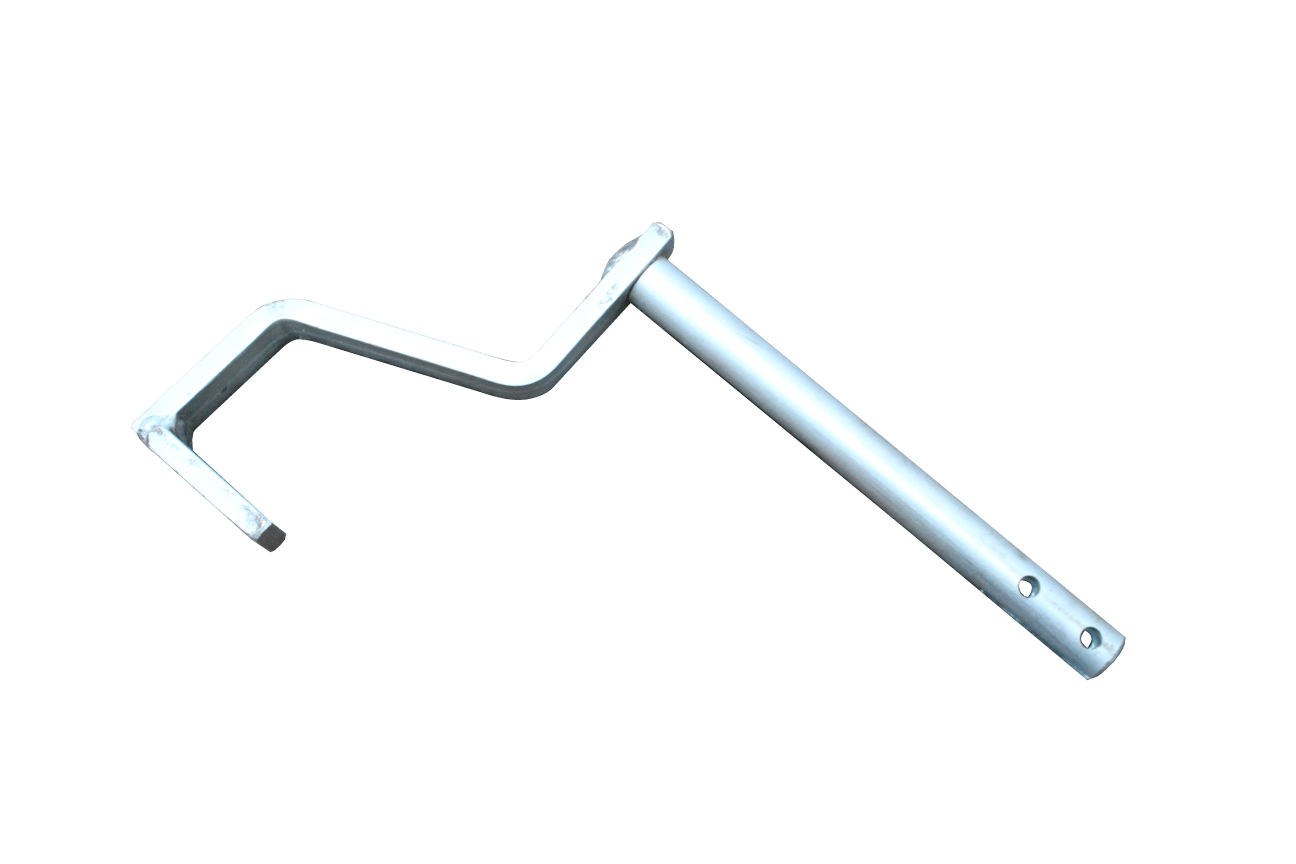

33 SP136-015 SP136-015 Drive Operating Lever

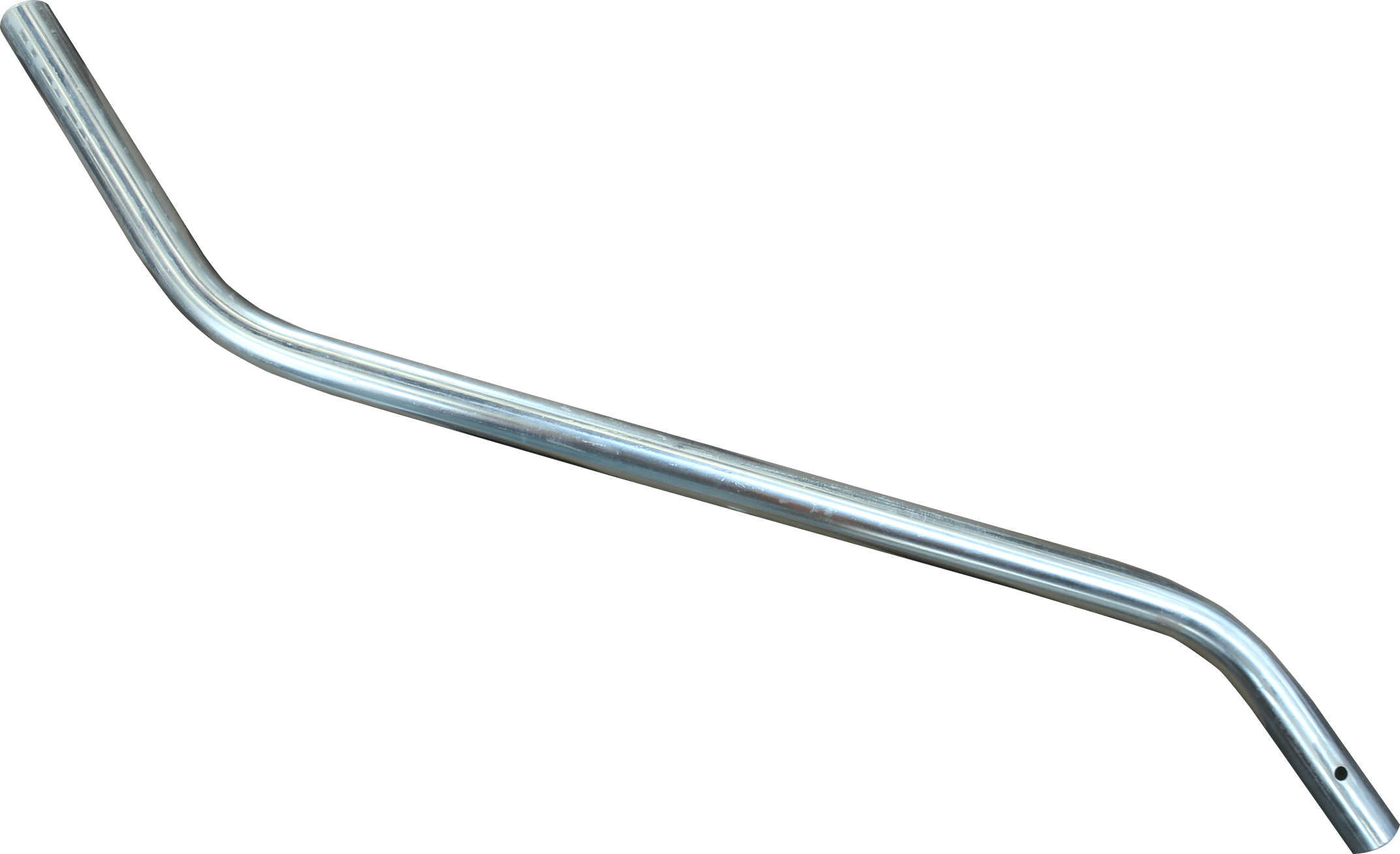

34 SP100-030 SP100-030 Shutter Lever Extension
35 SP100-033 SP100-033 Drive Engage Liner Tube

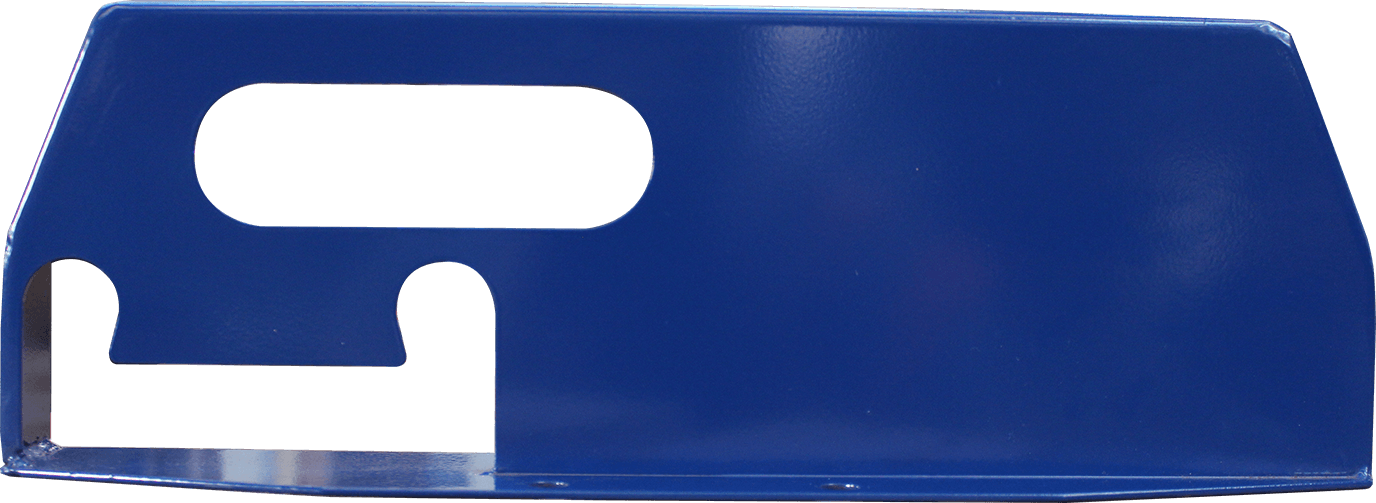

36 SP100-036 33 SP100-036 Index Box

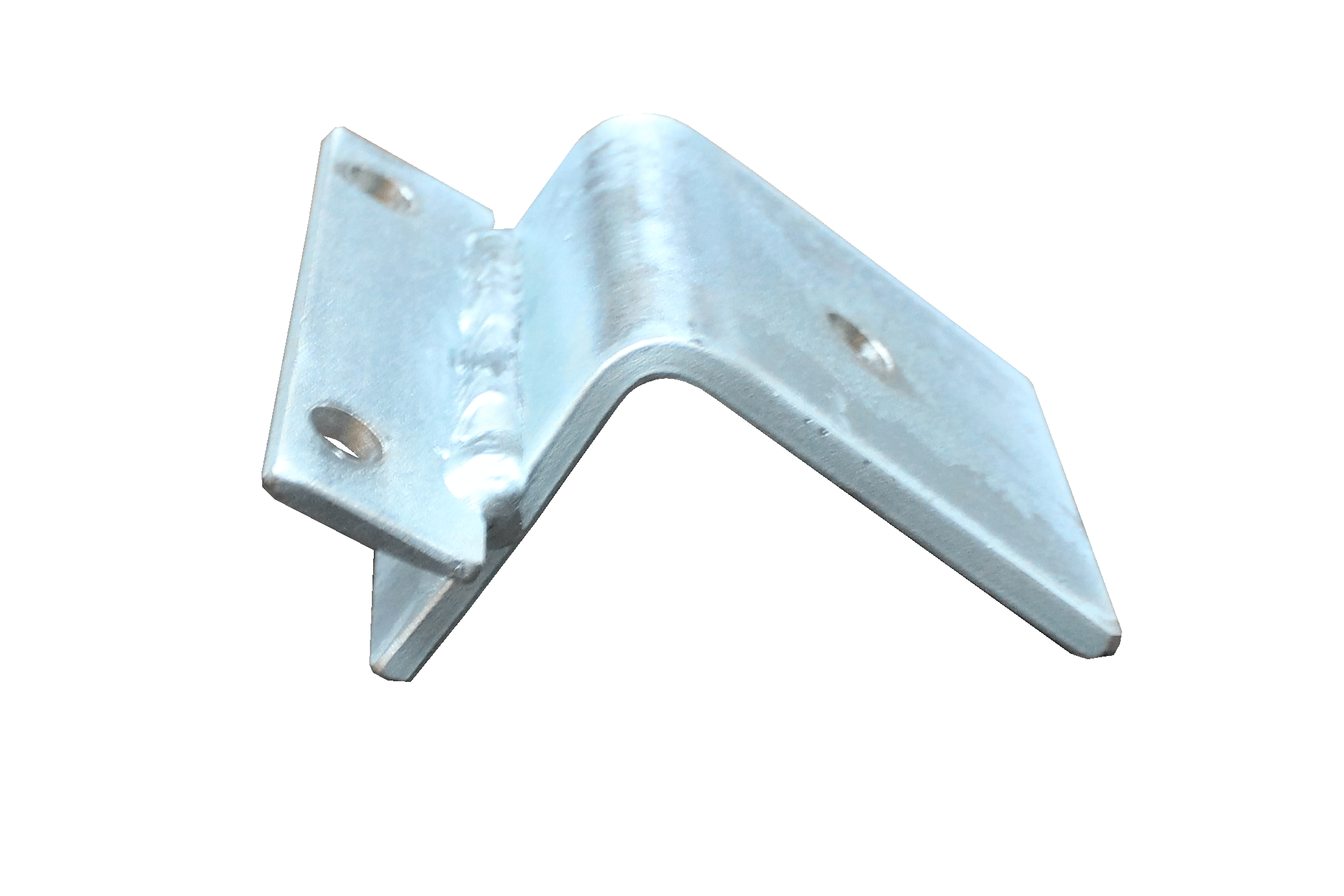

37 SP193-052 SP193-052 Front Hopper Bracket

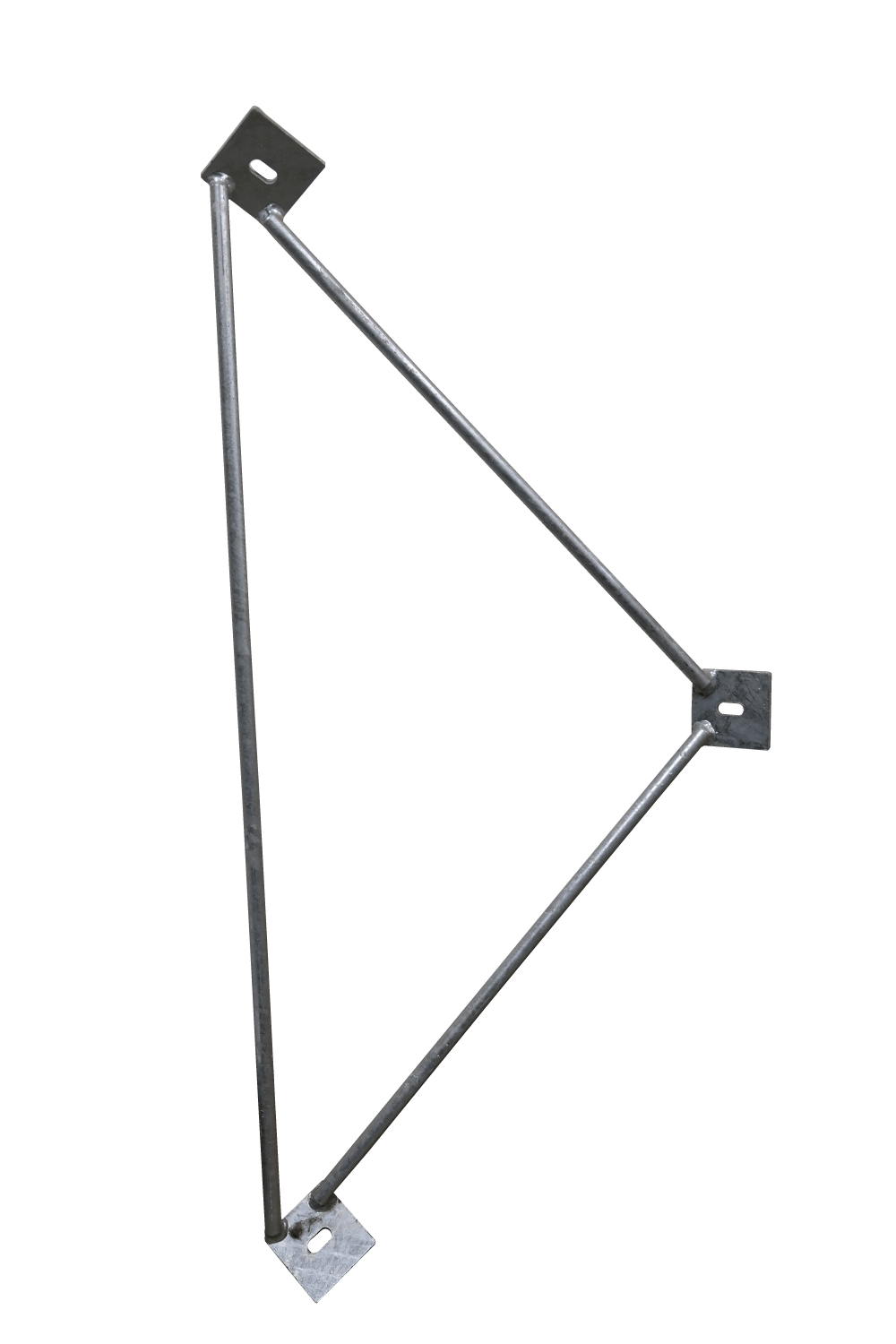

38 SP193-024 SP193-024 Hopper Tri Brace

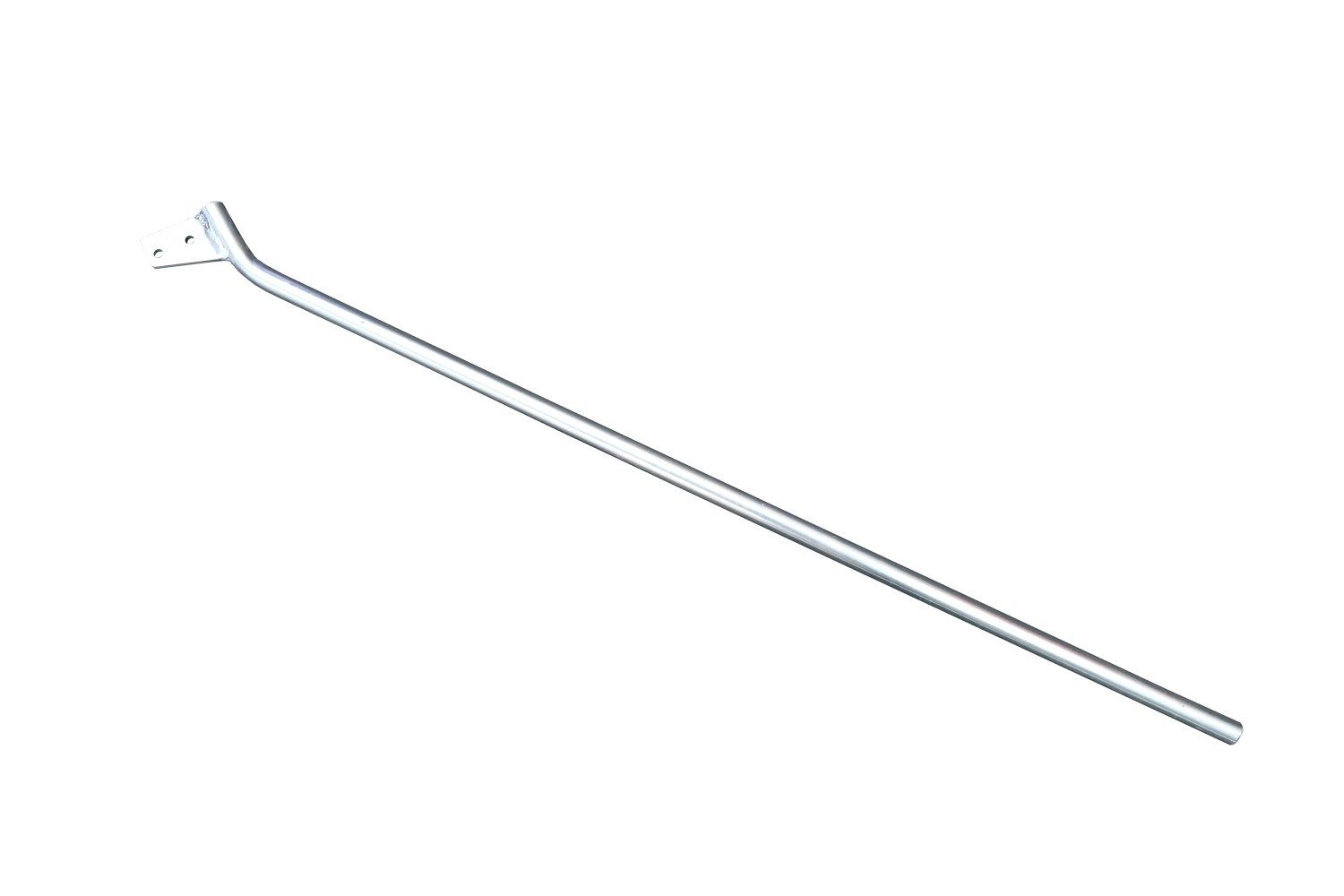

39 SP136-113 SP136-113 Drive Handle MKll
40 SP136-029 SP136-029 Tow Bar Bush Liner

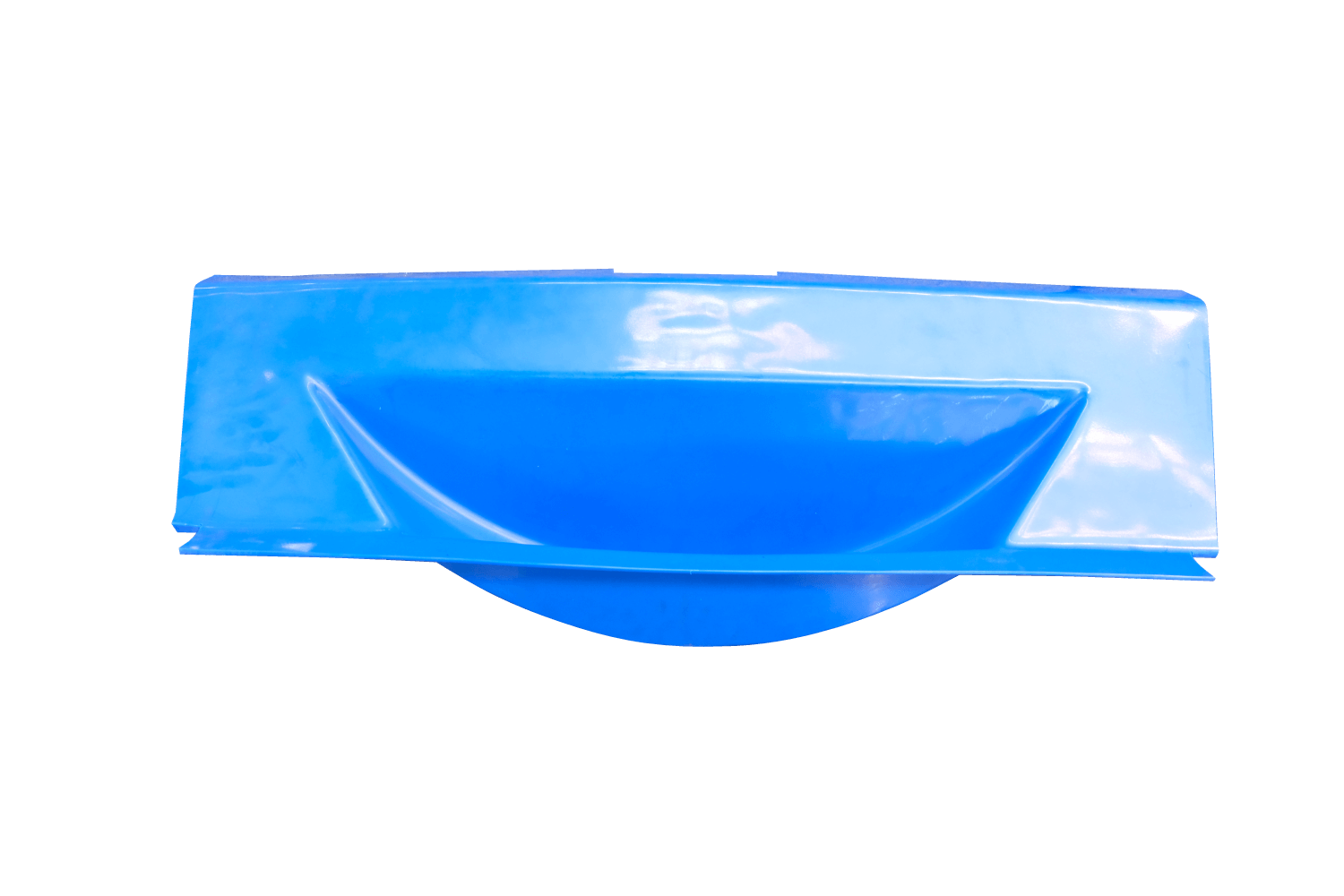

41 1807 1807 Spinner Shield Blue

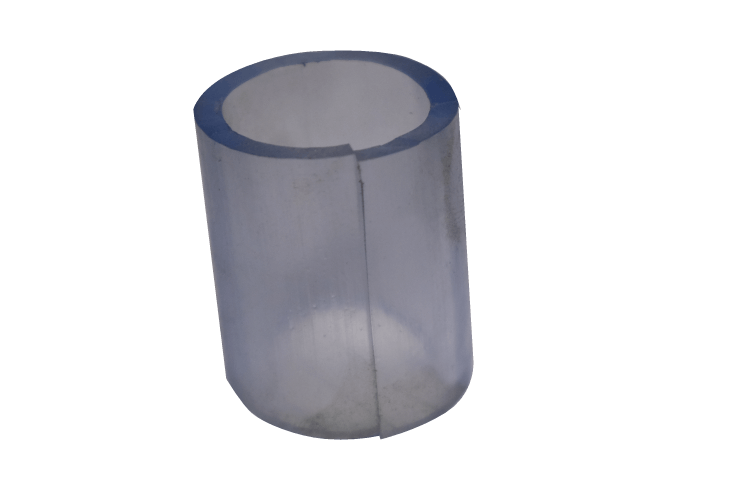

42 SP136-031 SP136-031 Drive Axle Spacer Liner

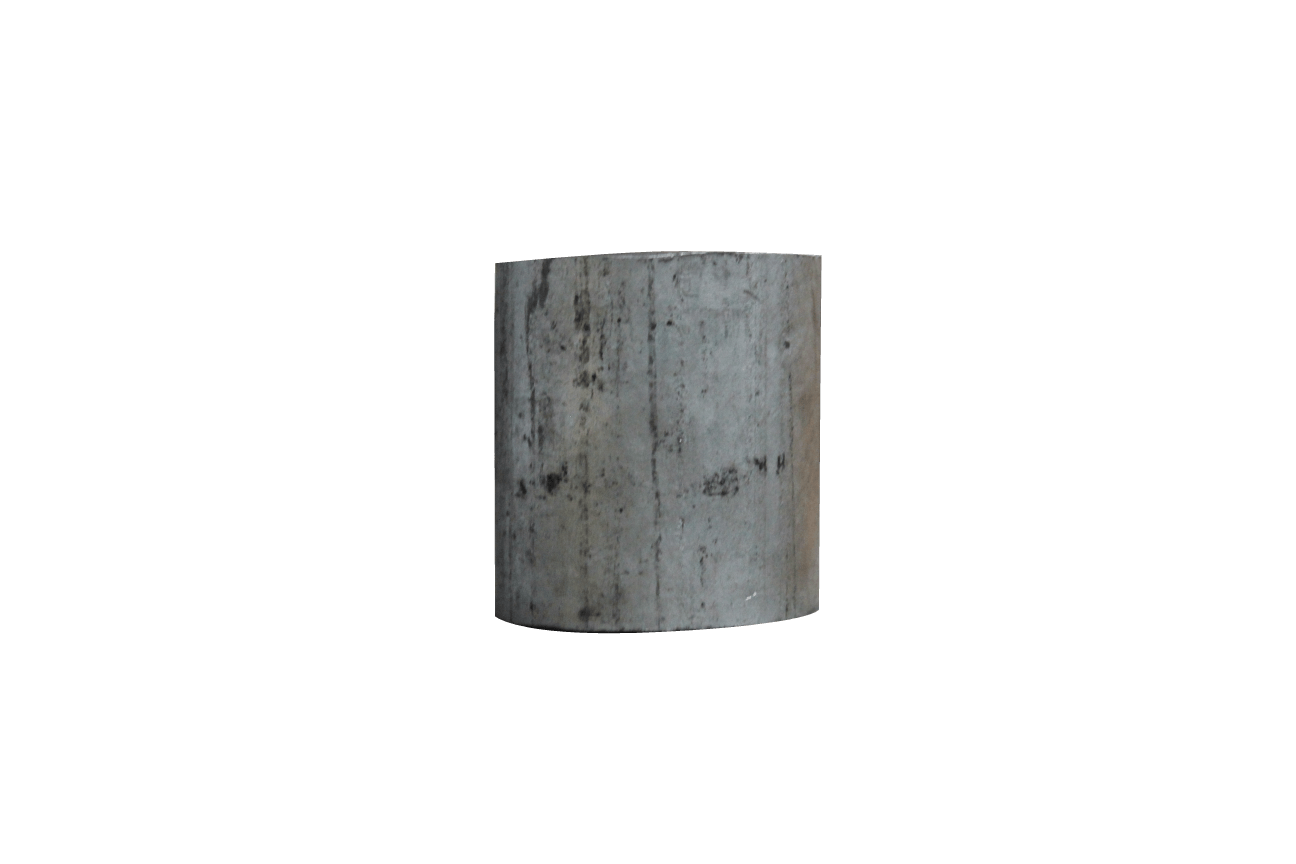

43 SP136-032 SP136-032 Drive Axle Spacer

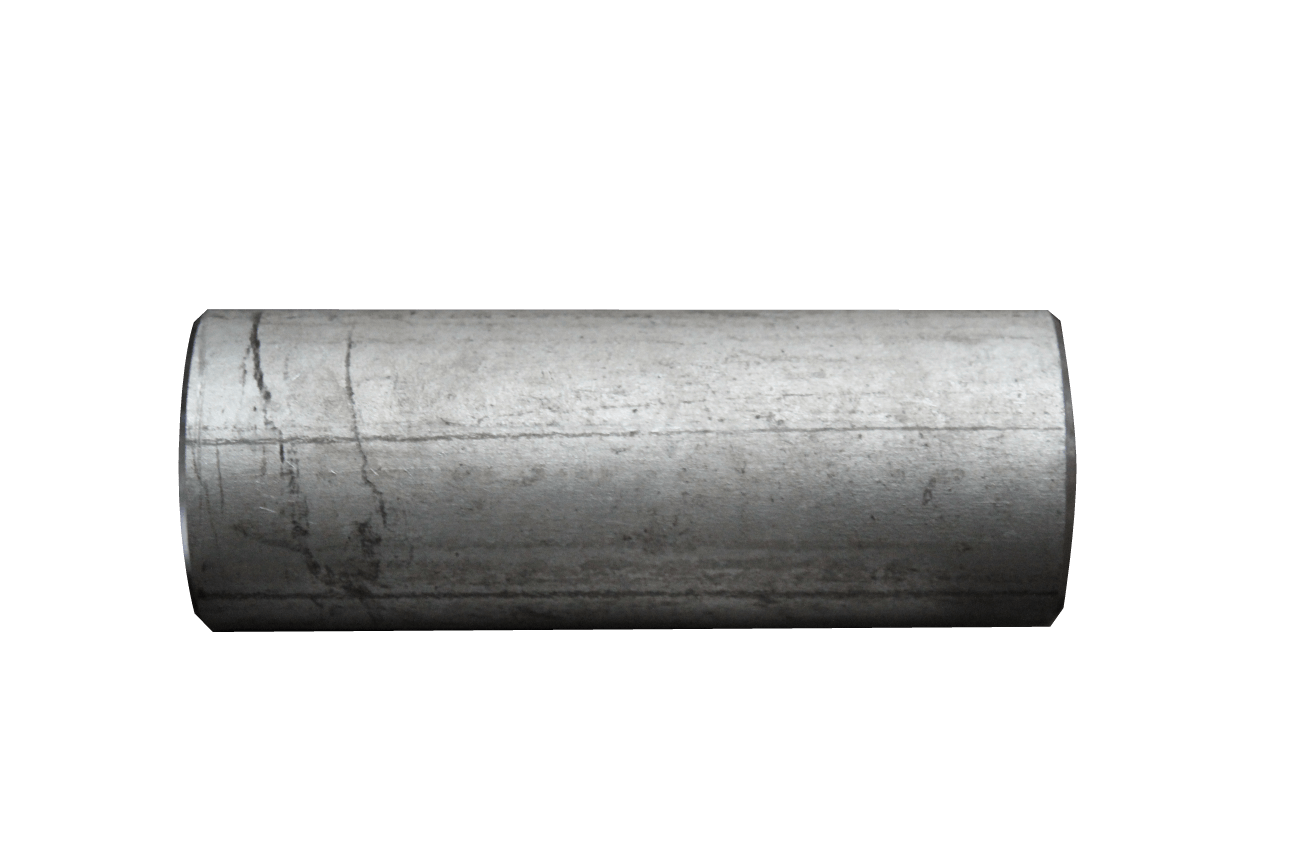

44 SP136-033 SP136-033 Bearing Spacer - 113mm

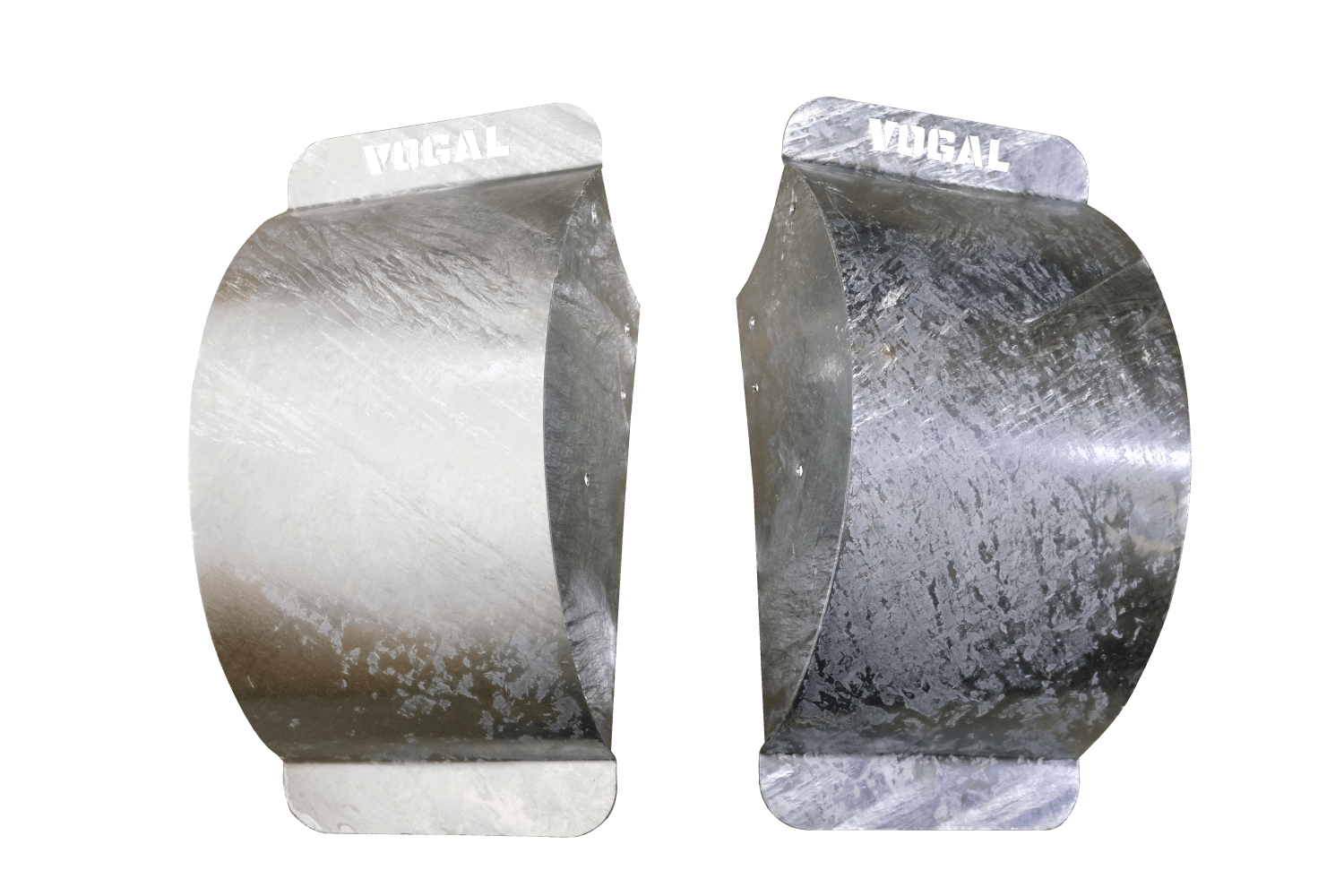

45 V126 V126 Mudguards Set of

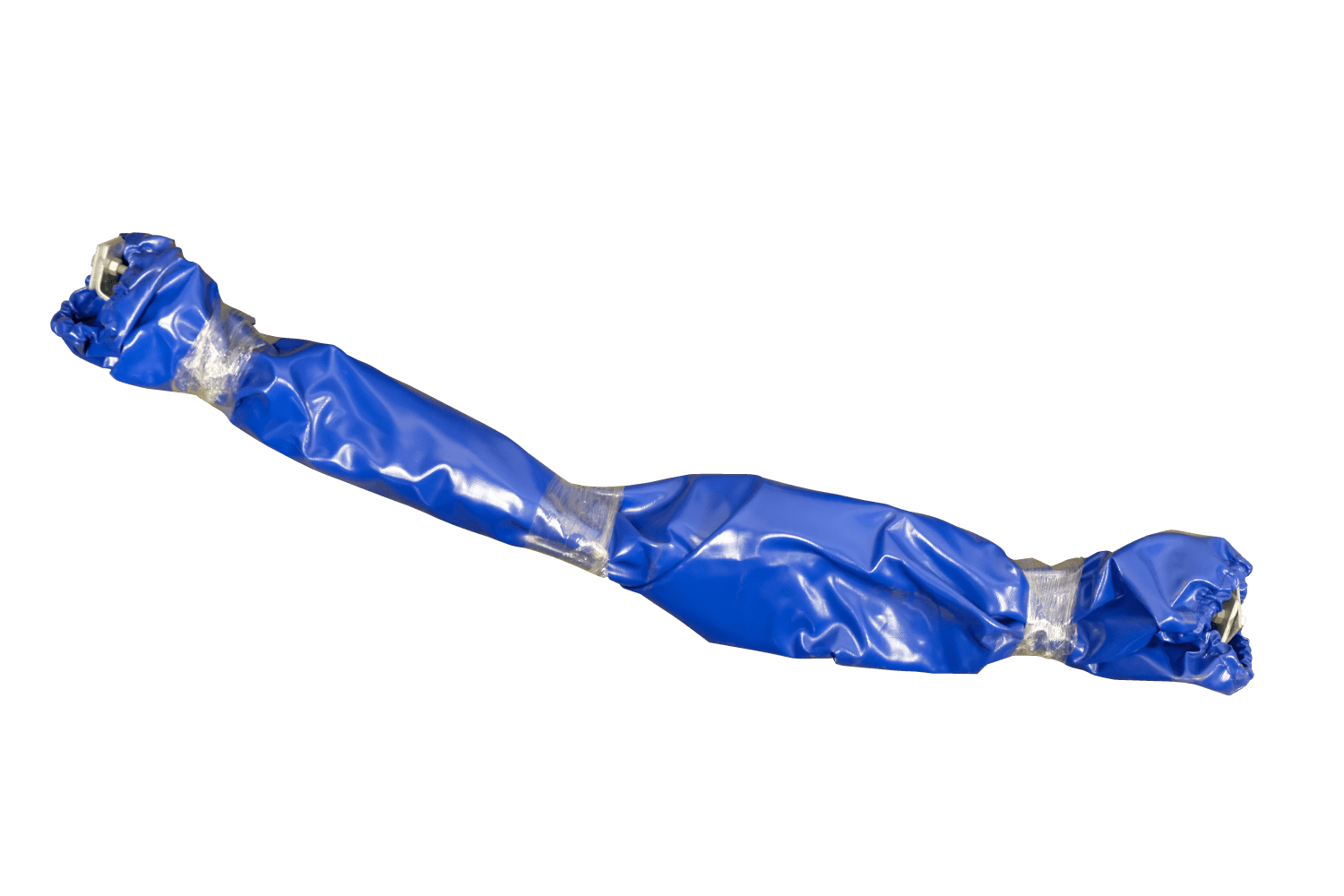

46 V109 V109 Cover and brace Includes bolts and washers
46.1   2791 PVC Cover
46.2   SP175-015 Cover Brace
