Also known as Vogal Mag 45, Mag 30

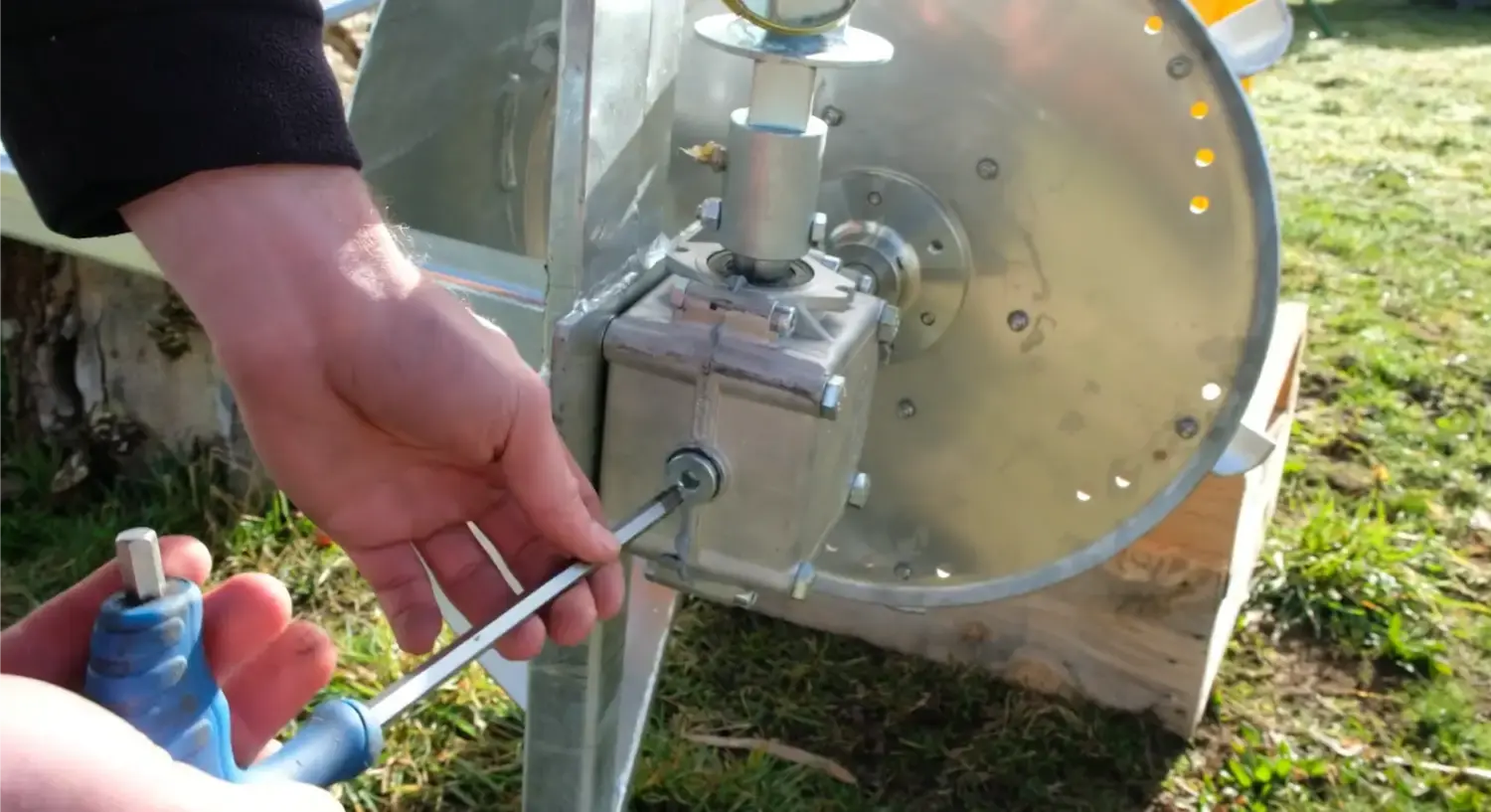

Oil:
500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.
Grease:
General Purpose grease, grease points every month, or if the spreader is not being used, once a year.
Tyres:
Inflate to 24 psi and check regularly. Reinflate as necessary.
For a larger image, click on the picture
No. | Photo | Code | Description | Notes |
1 | ![]() |
1093 | D Pin | |
2 | ![]() |
1094 | Shutter Lever Spring | Uses 65x10 bolt and NY nut. Grease contact surfaces (both ends) |
3 | ![]() |
1644 | Grip Handle 22mm 7/8 PVC Black | Heat in boiling water for easier install |
4 | ![]() |
1651 | Tri Knob Female 8mm | |
5 | ![]() |
1795 | Hopper and Lid Yellow | Hoppers and lids also available separately |
6 | ![]() |
1927 | Shutter Plate | |
7 | ![]() |
2186 | Wheel (bearing) | Attaches to stub axle on frame |
7.1 | ![]() |
1572 | Wheel / Gearbox Bearing | Standard 6205 bearing |
7.2 | ![]() |
1876 | Wheel Bearing Seal | |
8 | ![]() |
2187 | Wheel (keyed) | Attached to end of drive axle, will likely also need item SP100-034 |
9 | ![]() |
5042S/S | Circlip 45mm external S/S | |
10 | ![]() |
SP100-003 | Agitator Bush | Recommend also purchasing item 5042S/S |
11 | ![]() |
SP122-007 | Drive Axle | |
12 | ![]() |

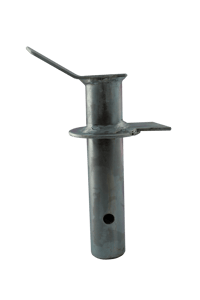

SP122-006 | Agitator | Consider also item SP100-003 |
13 | ![]() |
SP121-006 | Drive Slider Female | |
14 | ![]() |
SP122-012 | Shutter Lever | |
15 | ![]() |
SP100-016 | Drive Stub |
Bolt - M8x50 ZP & Nyloc Nut Grease Nipple - p/n 5054A |
16 | ![]() |
SP100-017 | Pointer | |
17 | ![]() |
SP100-034 | Drive Axle Key | |
18 | ![]() |
2801 | Hub Cap | |
19 | ![]() |
SP102-003 | Spinner Disc Complete Assembly | Bolts to gearbox with 3x M8x16 S/S bolt, washer & spring washer |
19.1 | SP102-005 | Spinner Fin | ||
20 | ![]() |
1227 | Coupling Handle 1 7/8 | |
21 | ![]() |
1846 | UCP206 30mm Bearing & Housing Set | |
24 | ![]() |
3009 | Decal Mag 45 | |
25 | ![]() |
1743 | Shutter Numbers 0-1 Decal Mag45 | |
26 | ![]() |
2715 | Serial Number Plate | |
27 | ![]() |
2120 | Gearbox Complete Assembly | Click here for Parts Breakdown |
27.1 | 1572 | Wheel / Gearbox Bearing | ||
27.2 | ![]() |
1868 | Gearbox Seal | |
28 | ![]() |
1679 | Felt Washer | Oil soak before install |
29 | ![]() |
1901 | S/S Shaft Guard | |
31 | ![]()
|
M SX045 | Mag45 User Manual |
