Vogal SX120 Spare Parts Breakdown

    All prices NZD RRP, +GST and freight

    Also known as Vogal 150

    Maintenance Specifications

    Oil:

    500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

    Grease:

    General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

    Tyres:

    Inflate to 24 psi and check regularly. Reinflate as necessary.

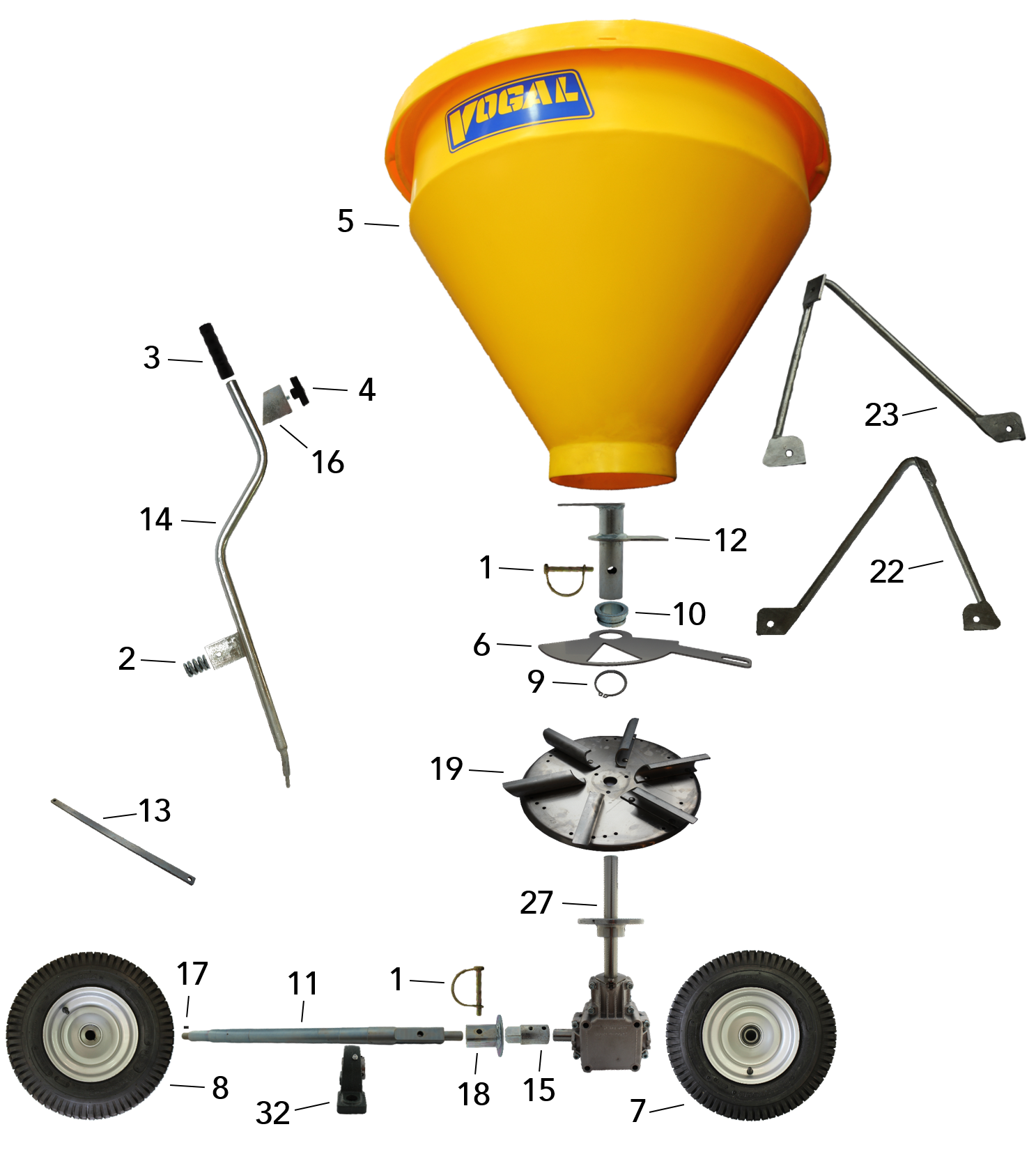

    Exploded Parts Diagram

    SX120 Parts Breakdown 2



    Table of Parts

    For a larger image, click on the picture

    No. Photo Code Description Notes
    1 1093 1093 D Pin Used for both agitator and drive flange (specify which it is to be used for at time of order)
    2 1094 1094 Shutter Lever Spring Grease contact surfaces (both ends)
    3 1644 1644 Grip Handle 22mm 7/8 PVC Black Heat in boiling water for easier install
    4 1651 1651 Tri Knob Female 8mm

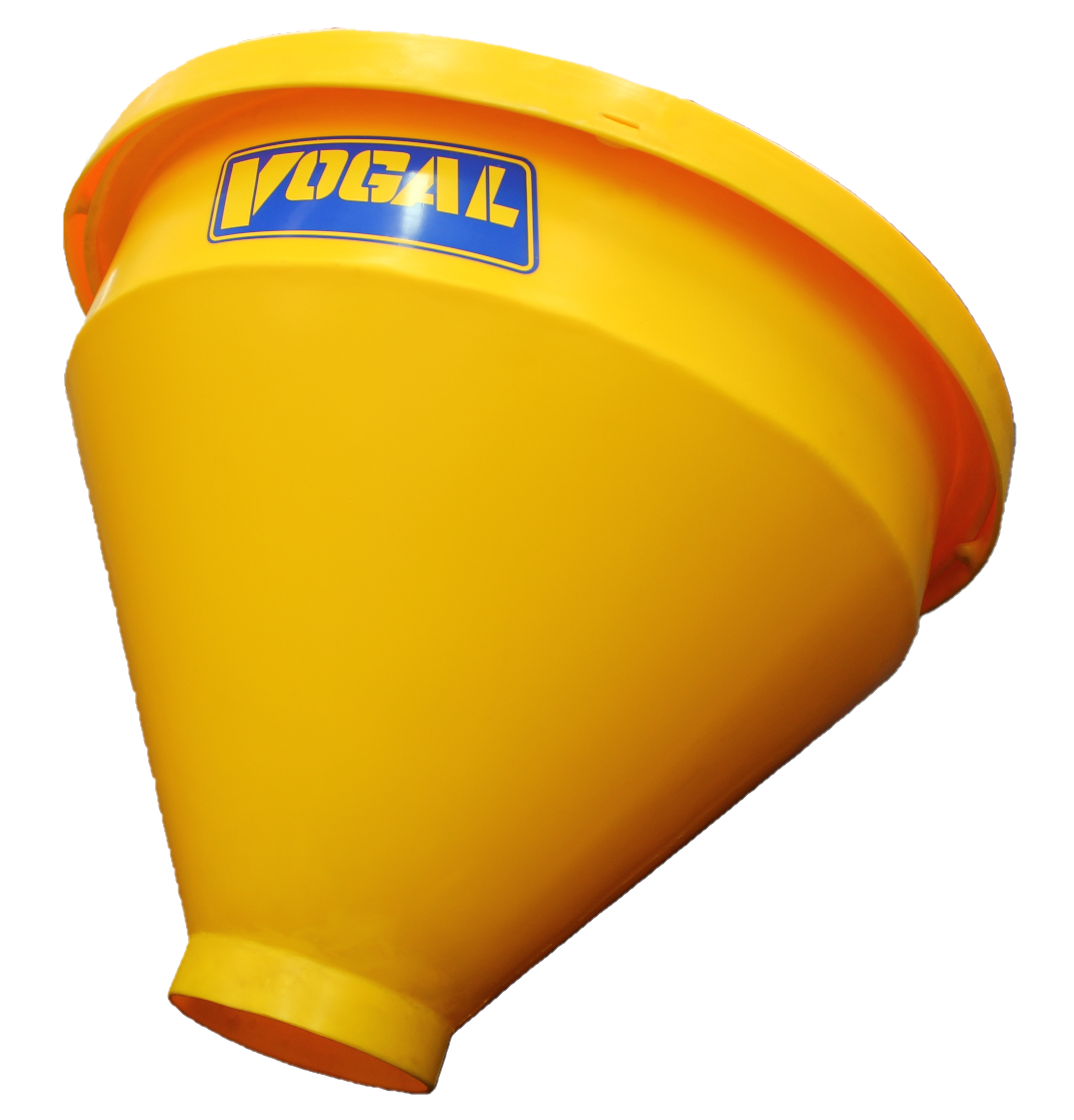

    5 1800 1800 Hopper and Lid Yellow Hoppers and lids also available separately
    6 1944 1944 Shutter Plate
    7 2186 2186 Wheel (bearing) Attaches to stub axle on frame
    7.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
    7.2 Untitled 1876 Wheel Bearing Seal
    8 2187-1 2187 Wheel (keyed) Attached to end of drive axle, will likely also need item SP100-034
    9 5042S Slash S 5042S/S Circlip 45mm external S/S
    10 SP100-003 SP100-003 Agitator Bush Recommend also purchasing item 5042S/S
    11 SP100-007 SP100-007 Drive Axle (New Model) Consider also item SP100-016
    12 SP100-008 SP100-008 Agitator Consider also item SP100-003
    13 SP100-011 SP100-011 Towbar Adjuster
    14 SP100-012 SP100-012 Shutter Lever
    15 SP100-016 SP100-016 Drive Stub

    Bolt - M8x50 ZP & Nyloc Nut

    Grease Nipple - p/n 5054A
    16 SP100-017 SP100-017 Pointer
    17 SP100-034 SP100-034 Drive Axle Key
    18 SP121-006 SP121-006 Drive Slider Female
    19 SP102-003 SP102-003 Spinner Disc Complete Assembly Bolts to gearbox with 3x M8x16 S/S bolt, washer & spring washer
    19.1   SP102-005 Spinner Fin

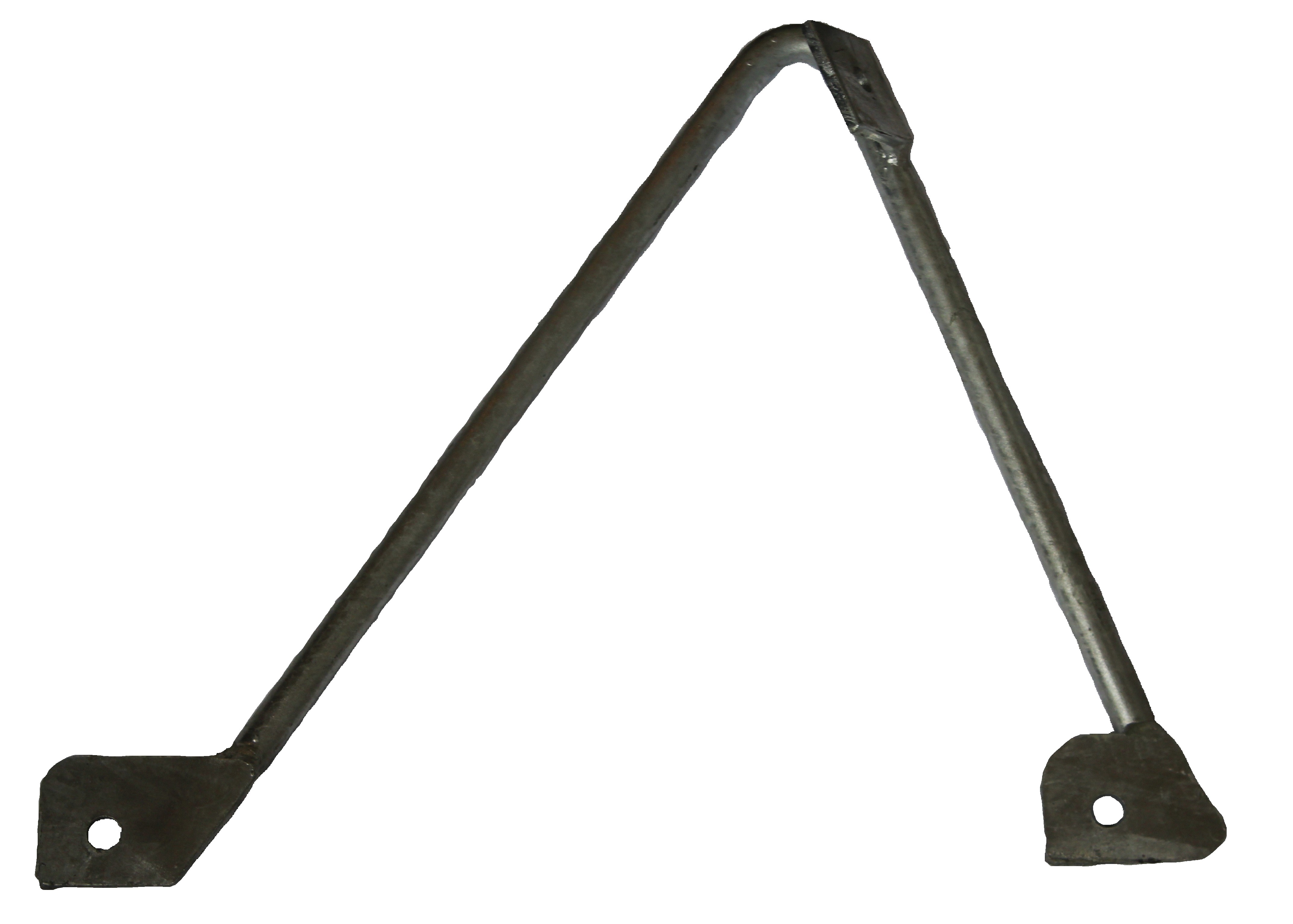

    22 SP100-037 SP100-037 Hopper Side Arm LH

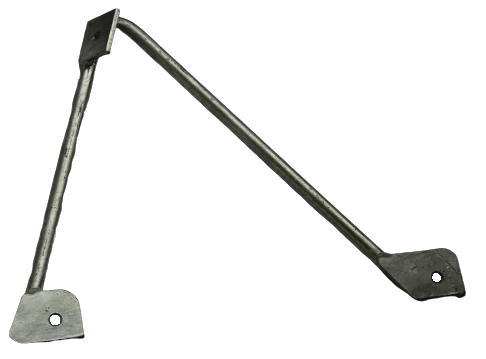

    23 SP100-037a SP100-037a Hopper Side Arm RH

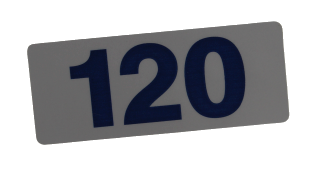

    24 3010 3010 Decal 120
    25 1744 1744 Decal 0-7 Shutter Numbers
    26 2715 2715 Serial Number Plate
    27 2120-1 2120 Gearbox Complete Assembly Click here for Parts Breakdown
    27.1   1572 Wheel / Gearbox Bearing Standard 6205 bearing
    27.2 1868 1868 Gearbox Seal
    28   1679 Felt Washer Oil soak before install
    29   1901 S/S Shaft Guard
    30 RATA30 RATA30 Vogal Warranty Sticker
    31 Spreadmax 120 User Manual Thumbnail



    		 M SX120 SX120 User Manual
    32 1846 1846 UCP206 30mm Bearing & Housing Set M12 x 40 Bolts
