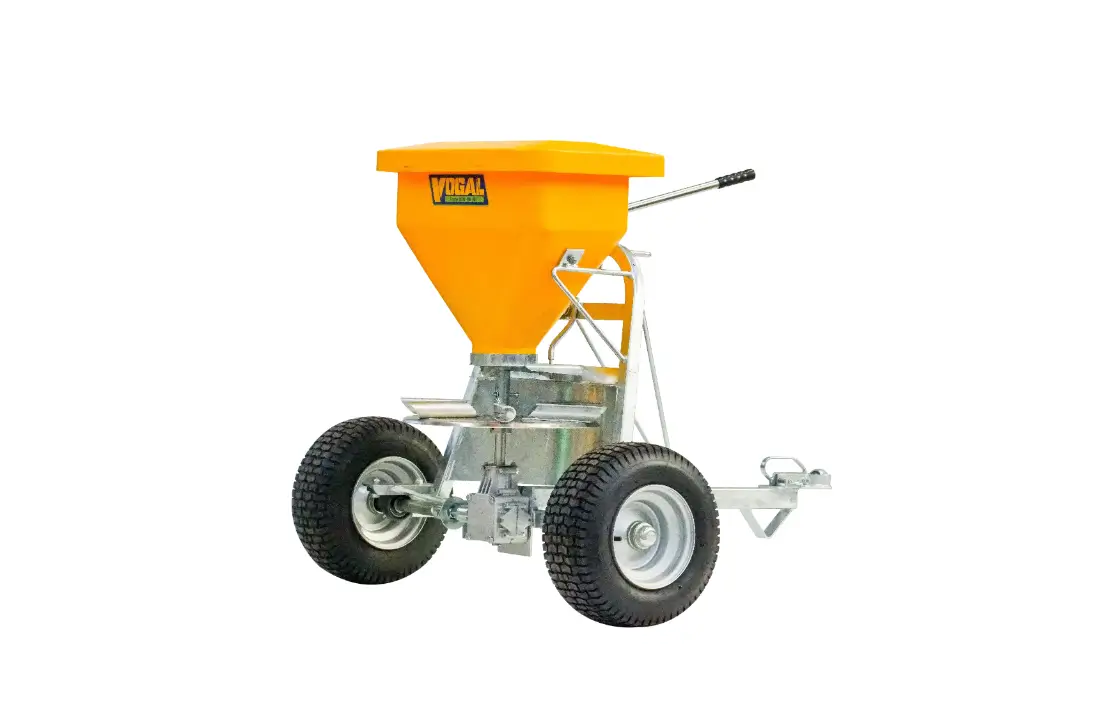

Mag Spreader - The Mag 45

With its compact size, the Mag 45 is designed primarily for the application of causmag, although the dual port triangular discharge apertures allow it to also successfully spread grass seed and other various types of fertiliser.

The low spinner height makes it perfect for spreading causmag and lime flour as the product is closer to the pasture hence a more concentrated application and less dust or lost product.

Product Image Gallery

Vogal Causmag spreader - Rata Equipment - Rata Industries

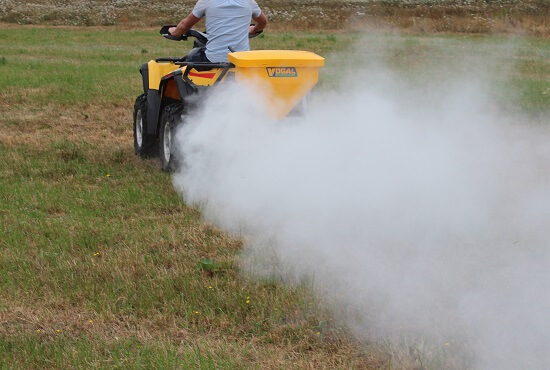

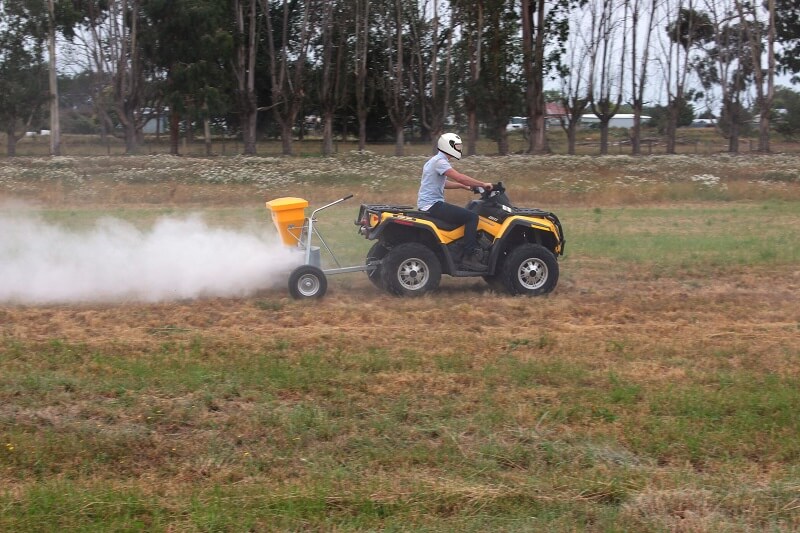

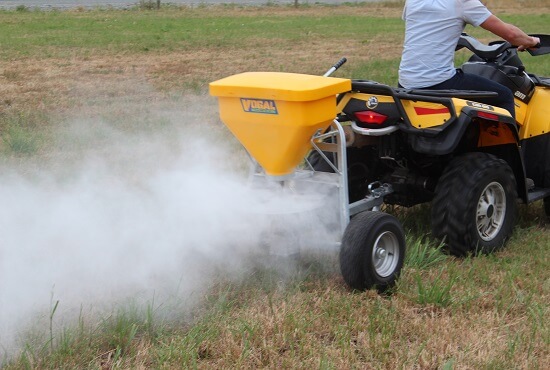

Vogal Mag 45 spreading Causmag magnesium behind motorbike - Vogal Spreaders

Product Video Gallery

View the Mag 45 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Overall Width	Loading Height
795.SX045	45L (25kg)	Causmag: 3m Urea: 10m	55kg	1,190mm	1,090mm

Features & Benefits

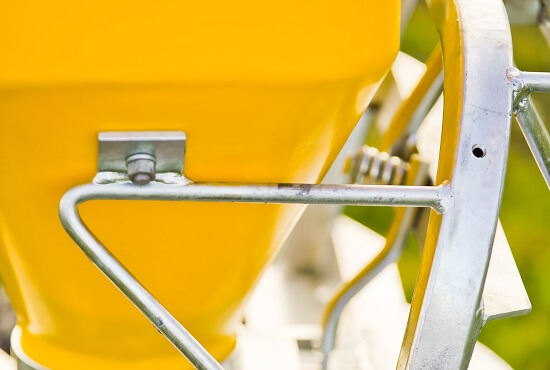

Heavy duty hopper of Vogal Mag 45 Causmag spreader

1 Heavy Duty Hopper

Vogal Mag 45 hoppers are made from thick heavy duty UV resistant plastic to cope with the harsh extremes in the New Zealand environment and are braced with solid galvanised steel side arms.

Fully enclosed spinner shield of Vogal Magnesium spreader

2 Enclosed Spinner Shield

Fully enclosed front spinner shield prevents magnesium & lime dust spreading forward onto the operator, this also helps to blow the Causmag directly onto the ground without billowing away.

Removable Agitator on Vogal magnesium spreader

3 Multiple Spinner Fins

Mag 45 spreader feature six fins on the spreading disc to ensure optimal spreading of both powdered products such as Causmag and lime flour along with standard prilled fertilisers.

Triangular Apertures on Vogal Mag 45

4 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast arry of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

Removable agitator on Vogal spreaders

5 Removable Agitator

Vogal Mag 45's feature this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator to enable easy cleaning of the spreaders hopper base.

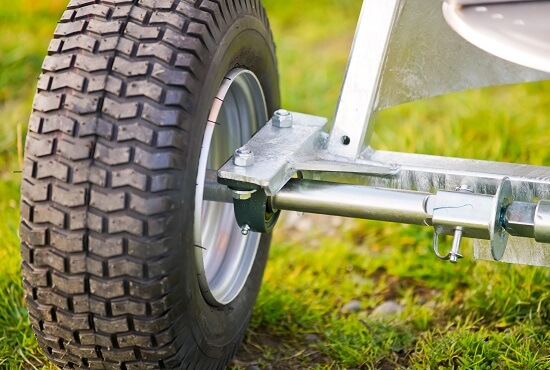

Heavy Duty build

6 Heavy Duty Build

Vogal Mag 45 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing. The drive shaft is supported at the wheel with a high quality greaseable bearing for long life and smooth operation.

Quality tow coupling on Vogal Mag45

7 Quality Tow Coupling

Vogal Mag 45's feature a heavy duty galvanised steel tow coupling, this ensures it has sufficient strength and durability to pull heavy loads in harsh conditions.

Pin lock drive system on Vogal Mag 45

8 Pin Lock Drive

Vogal Spreadmax 120 spreaders feature the simple and easy to use Pin Lock drive system, the operator simply moves the slider to the left or right to engage or disengage. The lynch pin holds the slider in place.

Gearbox protection on Mag 45

9 Gearbox Protection

Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox
