Spreadmax EX240

The Vogal EX240 fertiliser spreader is a premium, medium sized atv quad bike spreader.

Incorporating the easy-lock drive engagement system along with the shutter aperture control, simply select the spread rate you require and drive. The double bearing on the drive wheel also reduces load on the gearbox.

Also included in the design is a wide track width, stainless steel shutters, super strong drawbar, U.V. resistant plastic hopper & lid and adjustable spinner fins.Built simple, built tough. Click here to read a testimonial!

Product Image Gallery

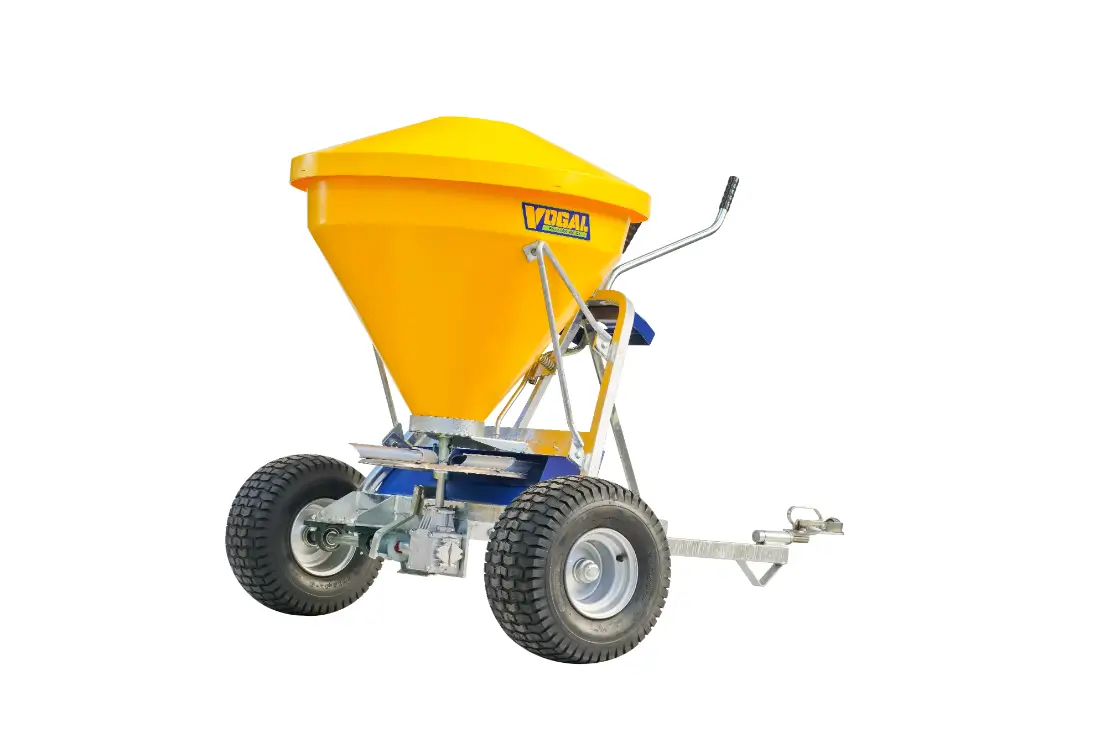

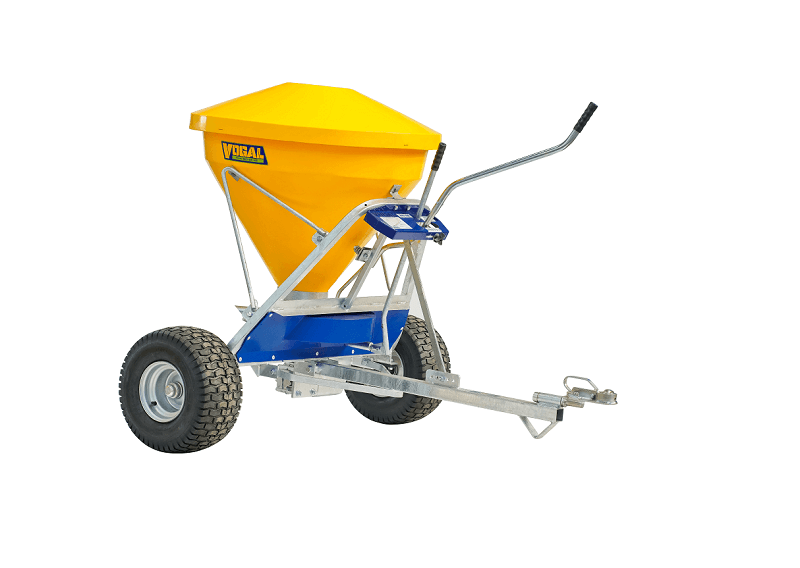

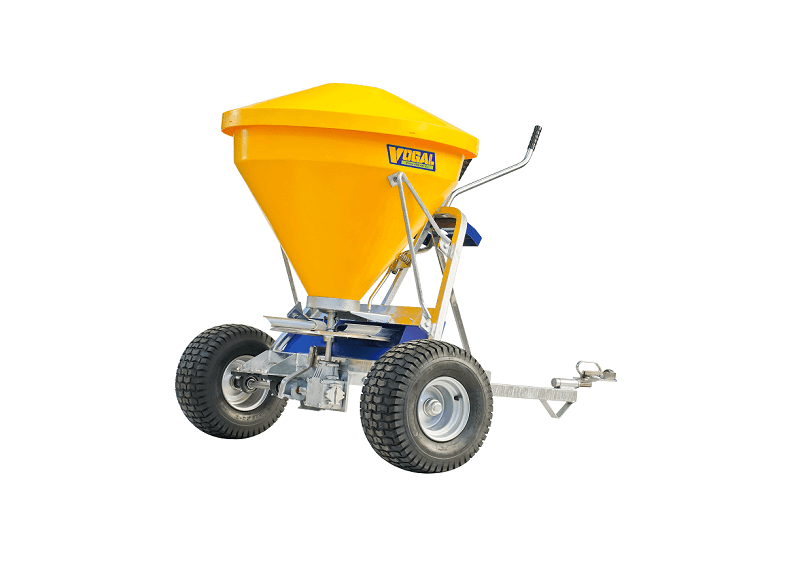

Vogal EX240 fertiliser spreader - Rata Equipment - Rata Industries

Product Video Gallery

View the EX240 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Overall Width	Loading Height
795.EX240	240L (160kg)	Causmag: 3m Urea: 12m	92kg	1,560mm	1,240mm

Features & Benefits

Easy Lock Drive System on Spreadmax EX240

1 Easy Lock Drive

Vogal EX240 spreaders feature the 'Easy Lock' drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider

Swivel Tow Coupling on Vogal EX series spreaders

2 Swivel Tow Coupling

EX240's feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.

Removable Agitator on Vogal fertiliser spreader

3 Multiple Spinner Fins

EX240 spreaders feature six fins on the spreading disc to ensure optimal spreading of both powdered products such as Causmag and lime flour along with standard prilled fertilisers.

Triangular Apertures on Vogal EX240

4 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast arry of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

Removable agitator on Vogal spreaders

5 Removable Agitator

Vogal EX240's feature this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator to enable easy cleaning of the spreaders hopper base.

Heavy Duty Build of EX240 fertiliser spreader

6 Heavy Duty Build

Vogal EX240 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.

Adjustable drawbar on EX series fertiliser spreader - Vogal spreaders - Rata Equipment

7 Adjustable Drawbar

As with other EX series spreaders, the EX240 features an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

Drive shaft on EX240

8 Drive Line Support

The drive line on EX240 fertiliser spreaders features extra support along the drive shaft/ drive line via two fully greasable and sealed bearings, this reduces load on the gearbox.

Front control box on EX240 spreader

9 Index & Control Box

All controls and adjustments for the EX240 spreader are located at the front in and easy to use Index and Control box. This includes a quick reference guide for spreading rates and settings along with the aperture and spinner control levers

Gearbox protection on Vogal fertiliser spreaders

10 Gearbox Protection

Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox

Options

mudguard

1 Mudguards

These optional galvanised steel mudguards simply bolt onto the spreader frame to help keep dirt and mud of the operator while in operation.

V106a

2 Side Chute

This side chute attachment allows the EX240 to band spread - particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
