Vogal EX240 Spare Parts Breakdown

    All prices NZD RRP, +GST and freight

    Also known as Vogal EX400

    Maintenance Specifications

    Oil:

    500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

    Grease:

    General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

    Tyres:

    Inflate to 24 psi and check regularly. Reinflate as necessary.

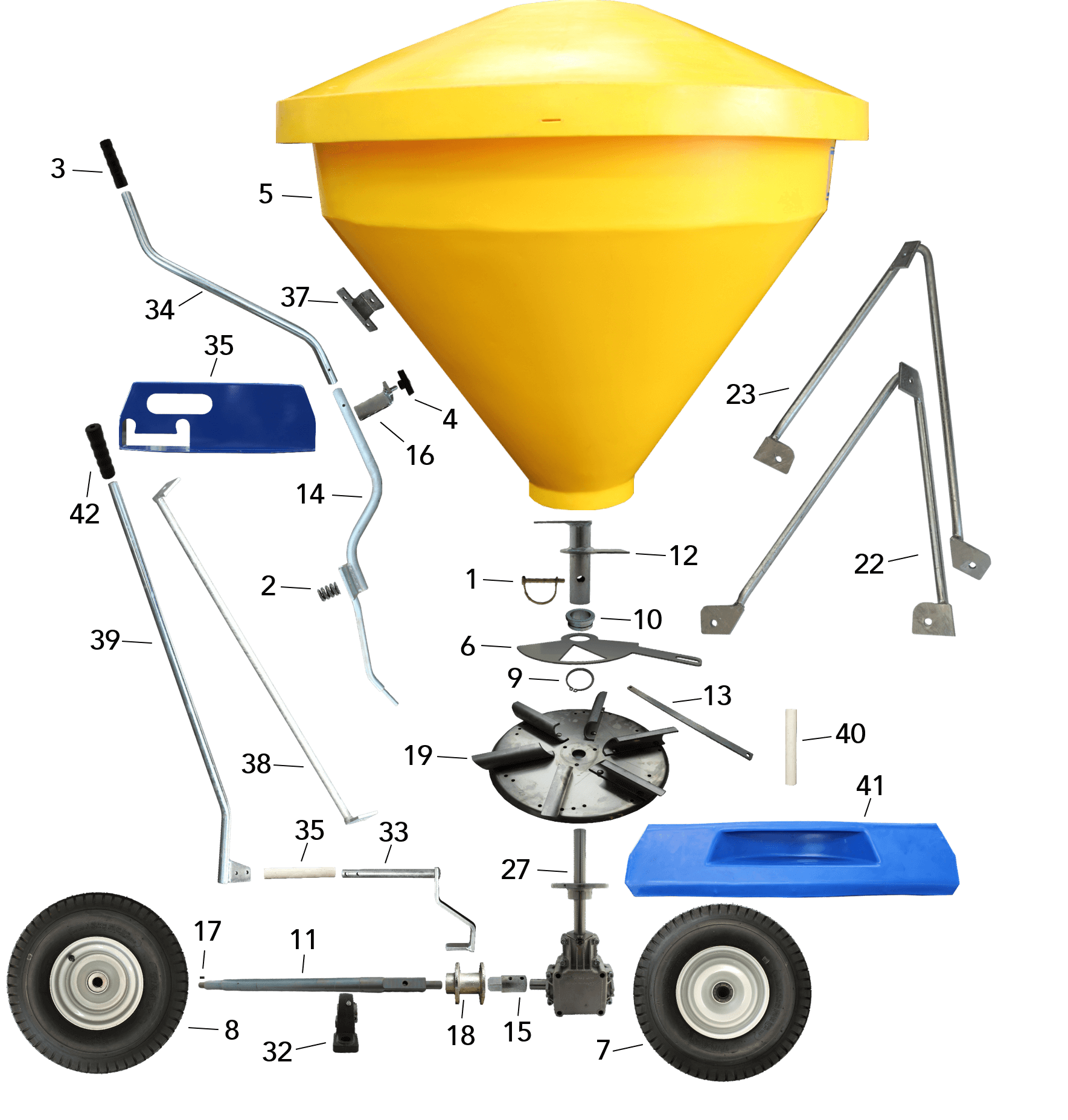

    Exploded Parts Diagram

    EX240 Exploded View



    Table of Parts

    For a larger image, click on the picture

    No. Photo Code Description Notes
    1 1093 1093 D Pin
    2 1094 1094 Shutter Lever Spring Grease contact surfaces (both ends)
    3 1644 1644 Grip Handle 22mm 7/8 PVC Black Heat in boiling water for easier install
    4 1651 1651 Tri Knob Female 8mm
    5 1802-1 1802 Hopper and Lid Yellow Hoppers and lids also available separately
    5.1   1803 Lid
    6 1944 1944 Shutter Plate
    7 2188 2188 Wheel (bearing) Attaches to stub axle on frame
    7.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
    7.2 Untitled 1876 Wheel Bearing Seal
    8 2189 2189 Wheel (keyed) Attaches to to drive axle with M16 Nut and HD washer. Will likely also need number 17.
    9 5042S Slash S 5042S/S Circlip 45mm external S/S
    10 SP100-003 SP100-003 Agitator Bush Recommend also purchasing item 5042S/S
    11 SP100-007 SP100-007 Drive Axle (New Model) Consider also item SP100-016
    12 SP100-008 SP100-008 Agitator Consider also item SP100-003
    13 SP100-011 SP100-011 Towbar Adjuster

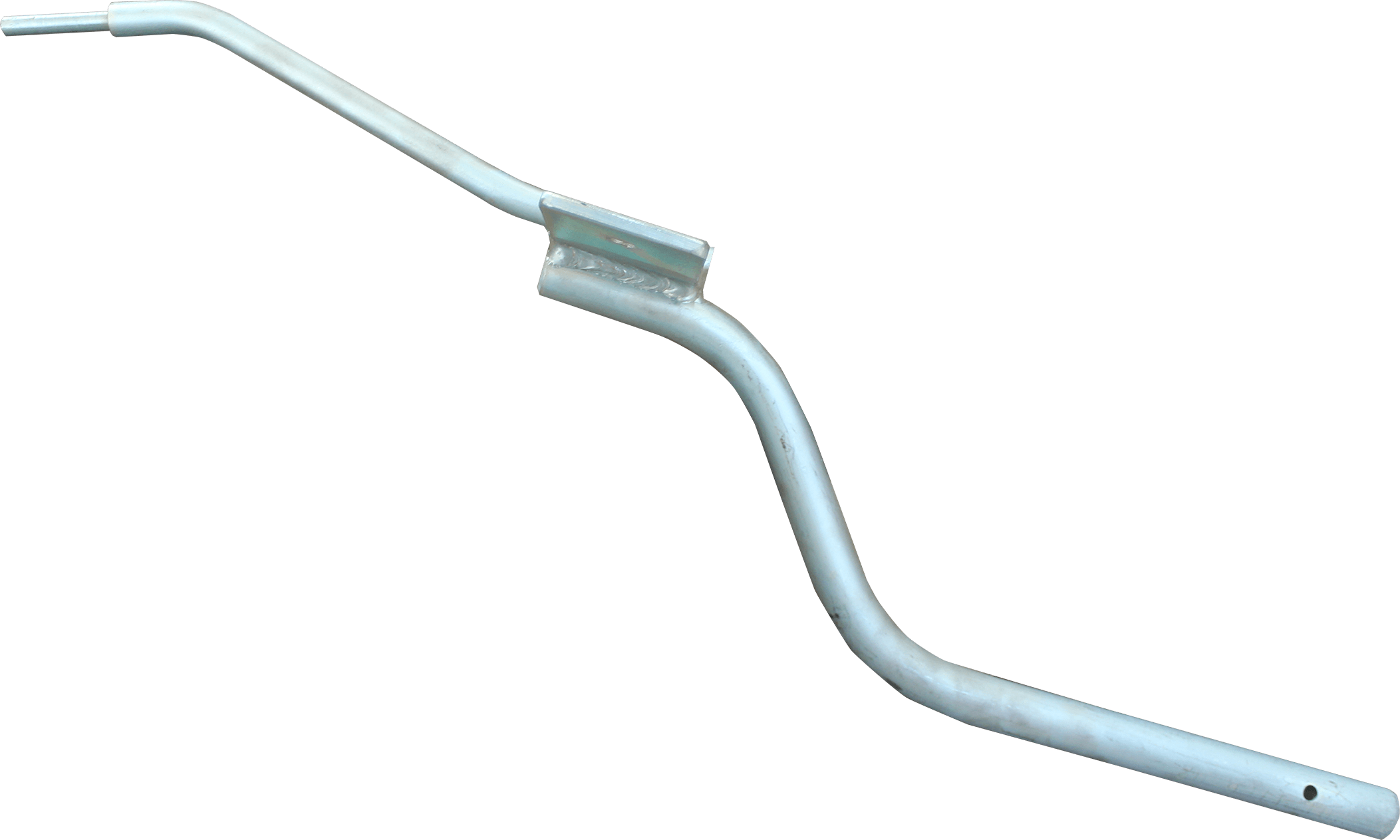

    14 SP100-112 SP100-112 Shutter Lever
    15 SP100-016 SP100-016 Drive Stub

    Bolt - M8x50 ZP & Nyloc Nut

    Grease Nipple - p/n 5054A
    16 SP100-035 33 SP100-035 Pointer
    17 SP100-034 SP100-034 Drive Axle Key
    18 SP100-015 33 SP100-015 Drive Slider Female
    19 SP102-003 SP102-003 Spinner Disc Complete Assembly
    19.1   SP102-005 Spinner Fin
    22 SP100-039 SP100-039 Hopper Side Arm LH
    23 SP100-039a SP100-039a Hopper Side Arm RH

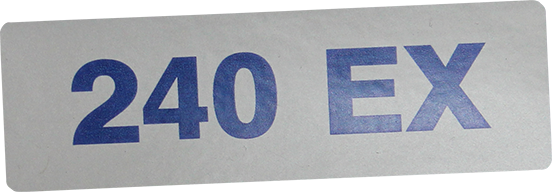

    24 3013 3013 Decal 240EX
    25 1645 1645 Grip Handle 25mm
    26 2715 2715 Serial Number Plate
    27 2120-1 2120 Gearbox Complete Assembly Click here for Parts Breakdown
    27.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
    27.2 1868 1868 Gearbox Seal
    28 1679 1679 Felt Washer Oil soak before install
    29 1901 1901 S/S Shaft Guard
    30 RATA30 RATA30 Vogal Warranty Sticker
    31 M SX120 M EX240 EX240 User Manual
    32 1846 1846 UCP206 30mm Bearing & Housing Set

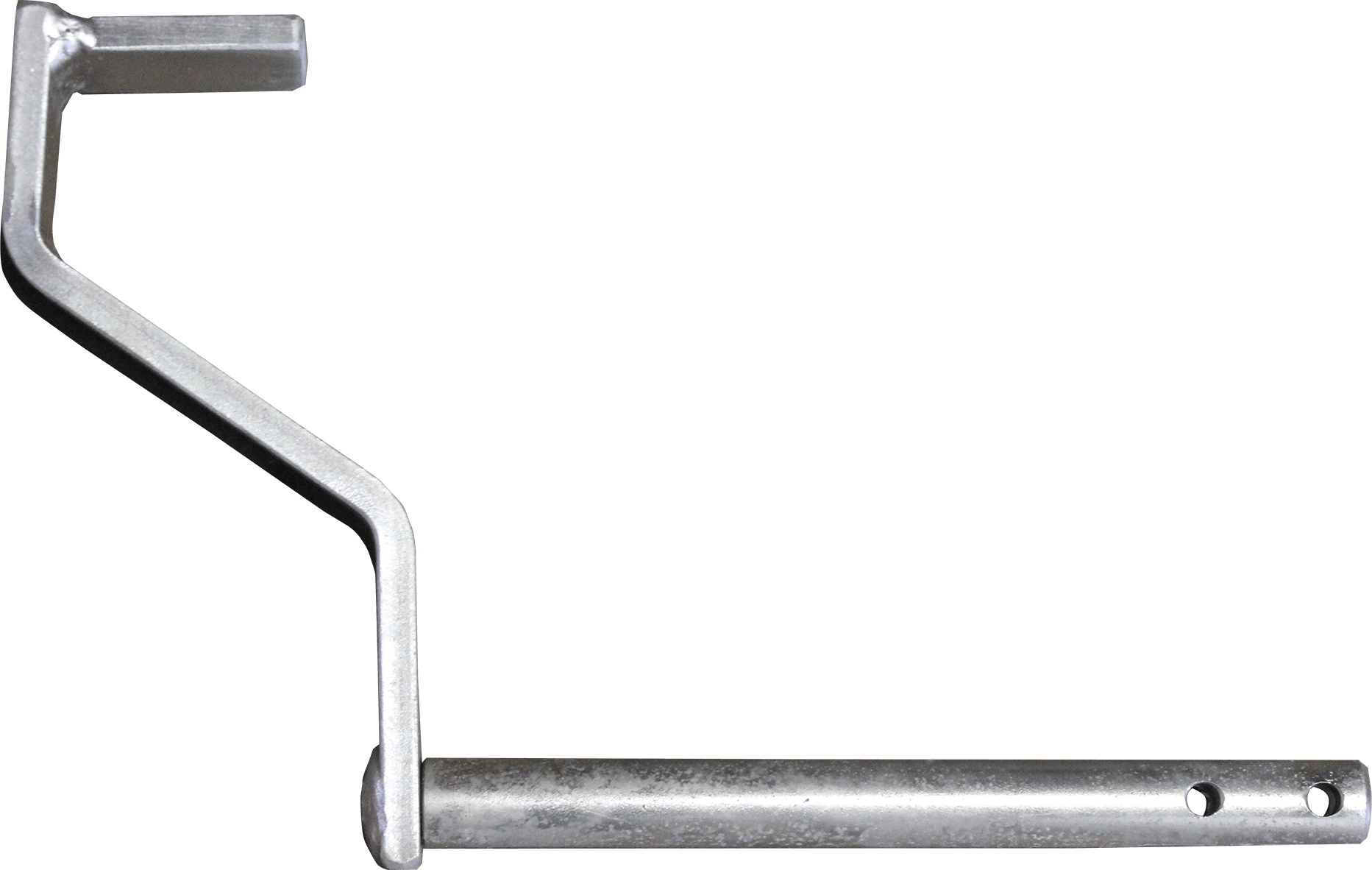

    33 SP100-014 SP100-014 Drive Operating Lever
    34 SP100-030 SP100-030 Shutter Lever Extension
    35 SP100-033 SP100-033 Drive Engage Liner Tube
    36 SP100-036 33 SP100-036 Index Box

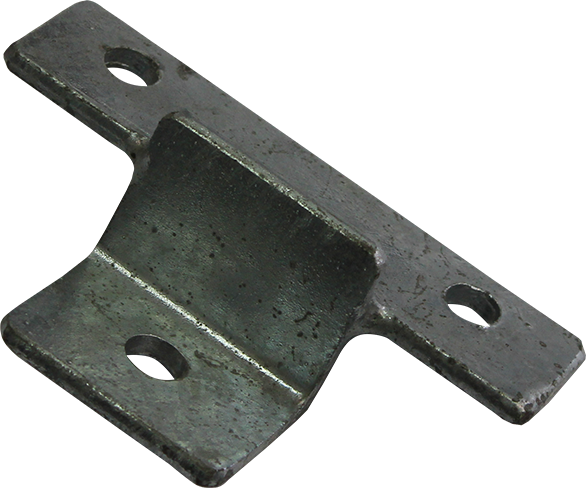

    37 SP100-040 SP100-040 Front Hopper Bracket
    38 SP100-043 SP100-043 Hopper Cross Stay

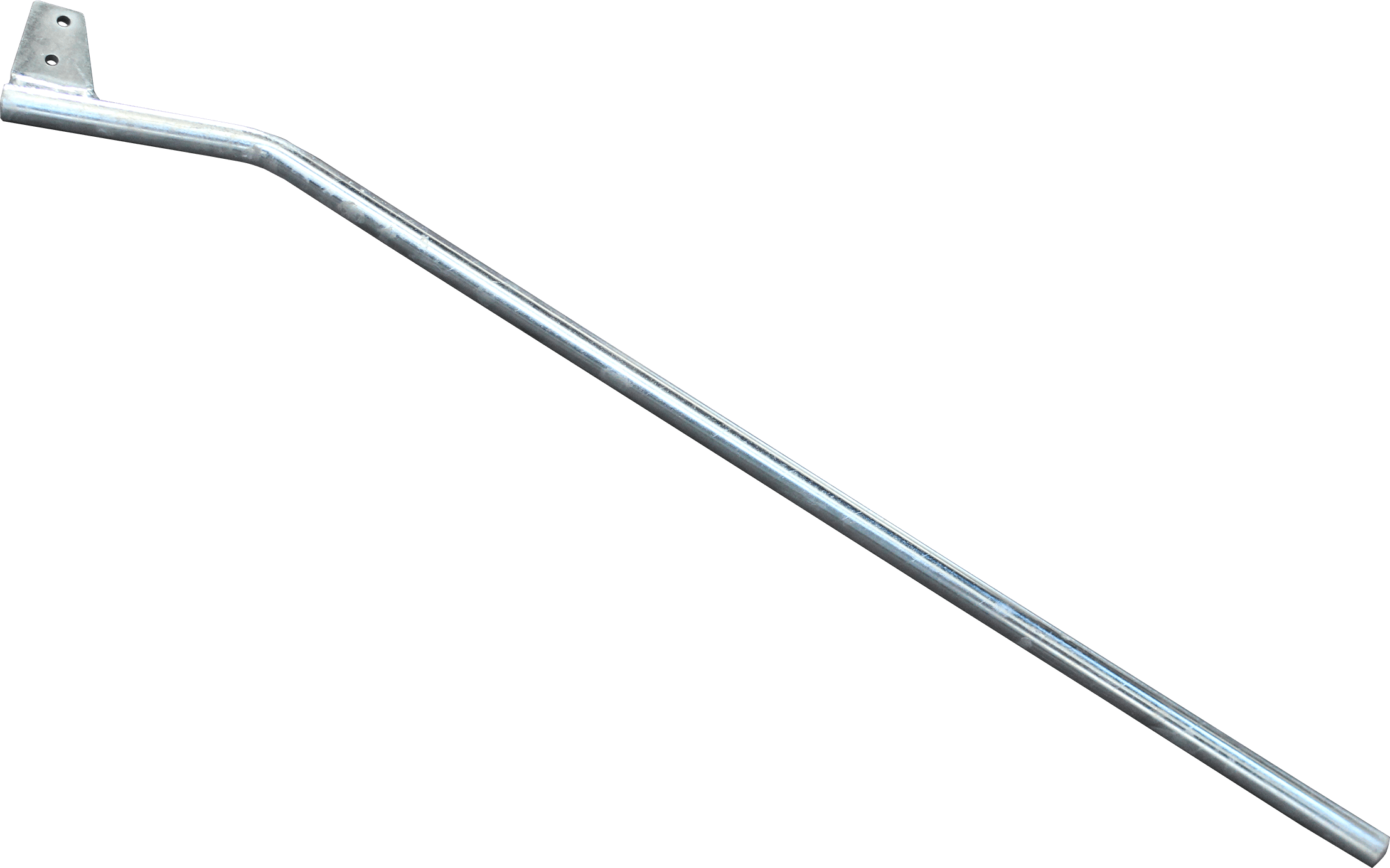

    39 SP100-113 SP100-113 Drive Handle
    40 SP136-029 SP136-029 Tow Bar Bush Liner

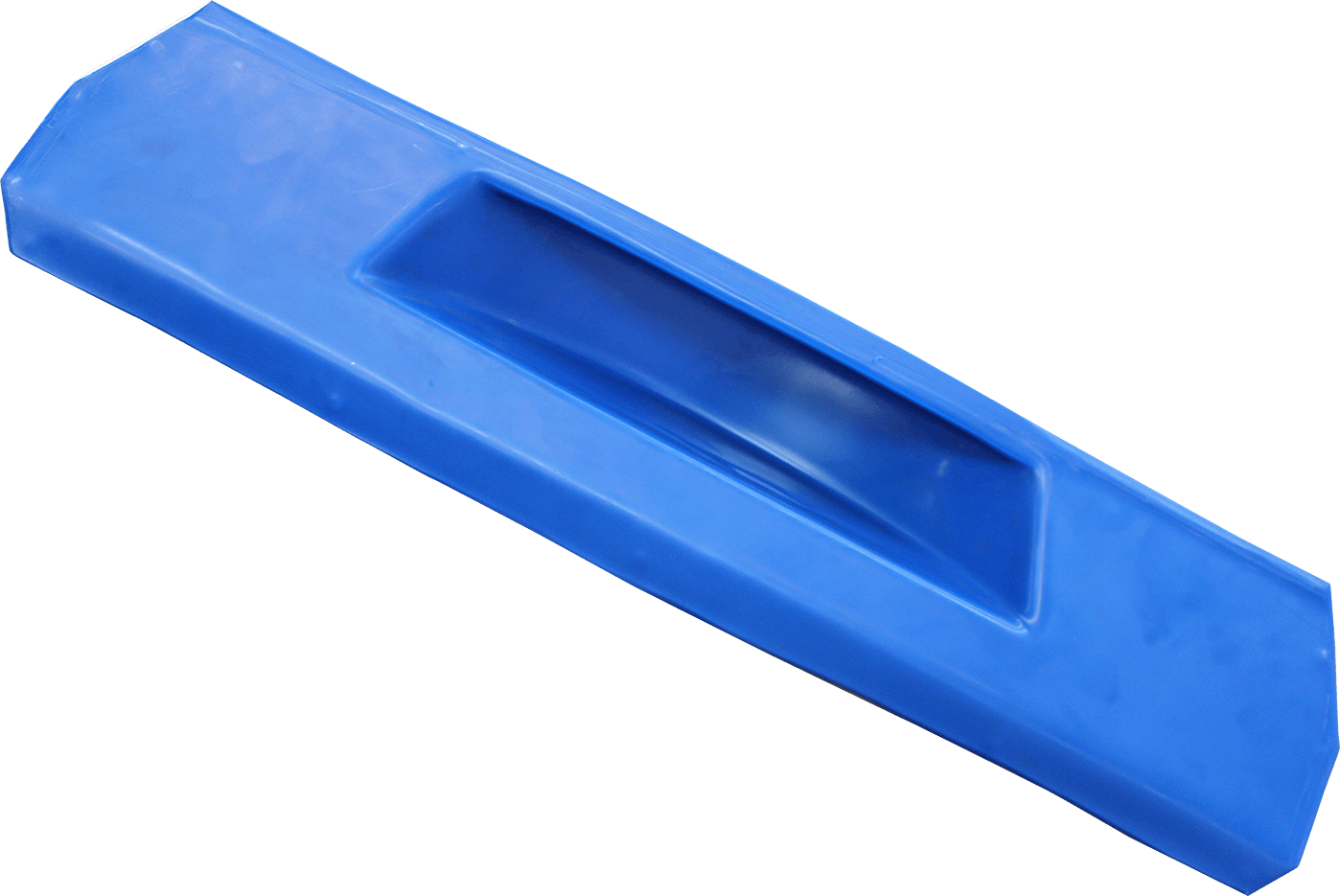

    41 1810 33 1810 Spinner Shield Blue
