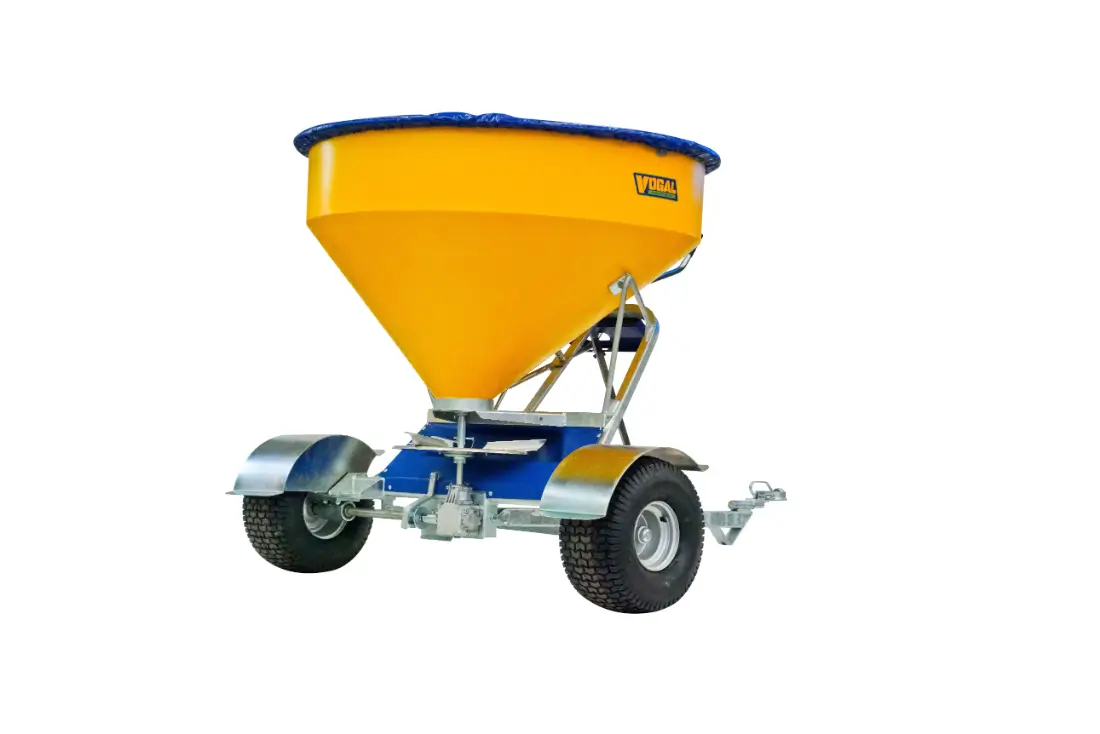

Spreadmax EX750

The huge 750 litre thick moulded polyethene hopper has been designed to be used in conjuction with 500 kg bulk bags of Urea.

Packed with features such as 3 fin marine grade aluminium spinner discs complete with stainless steel fasteners and shutter plates, plastic spinner shield to protect operator from debris and shield spinner from turbulence, easy lock drive engagement system and wide track width. The EX750 is a cost effective solution to those who do not require the stability and low ground preassure features of the 'TT750' for soft &/or undulating ground.

Holding 500 kg bags of Urea with ease.

Product Image Gallery

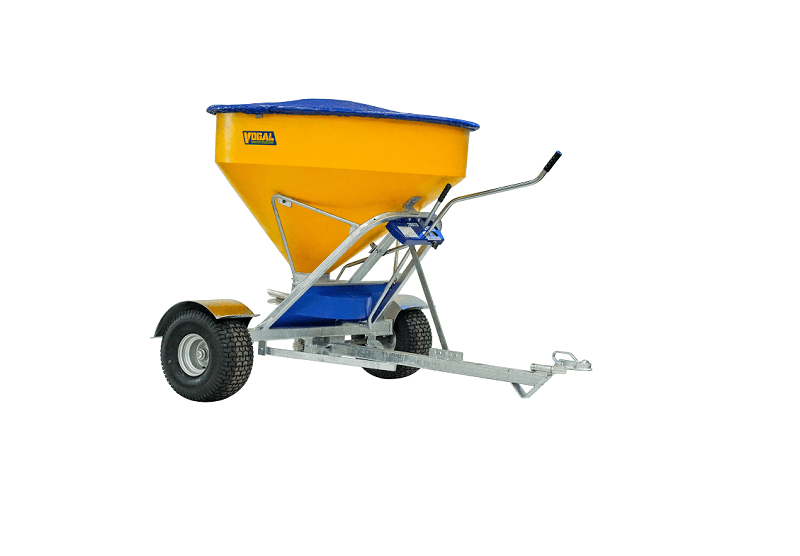

Vogal EX750 fertiliser spreader for atv's and utv's

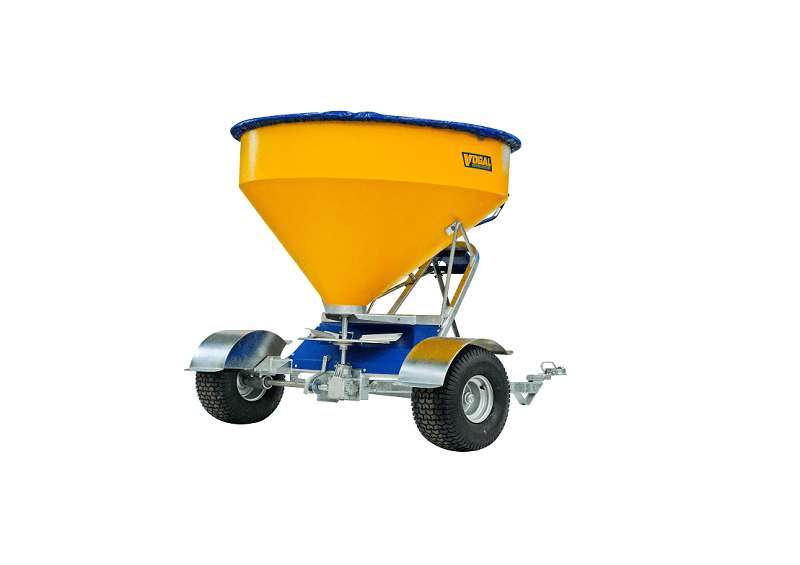

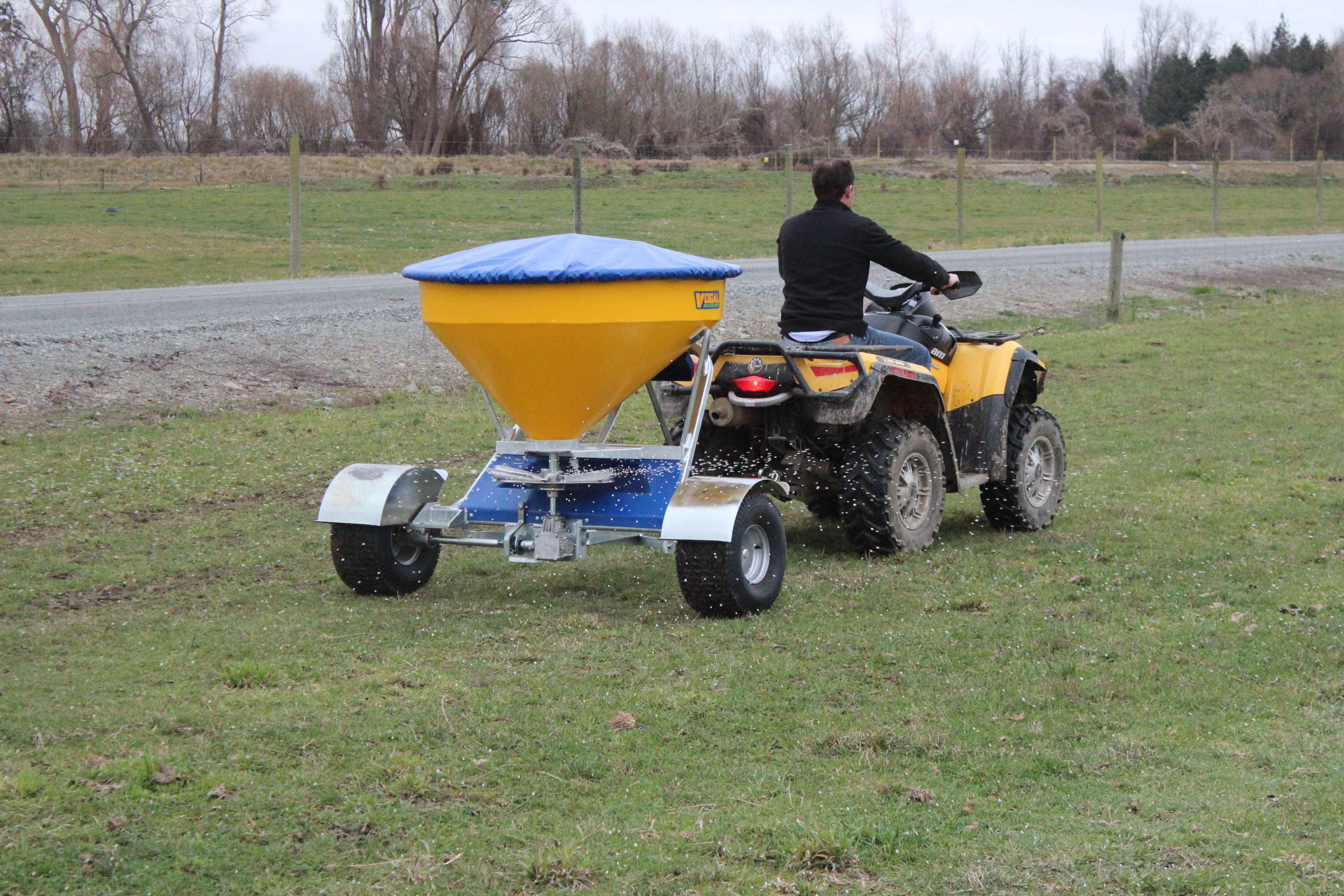

Vogal EX750 fertiliser spreader for large quad bikes

Product Video Gallery

View the EX750 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Overall Width	Loading Height
795.EX750	750L (520kg Urea)	Urea: 15m	152kg	1,800mm	1,500mm

Features & Benefits

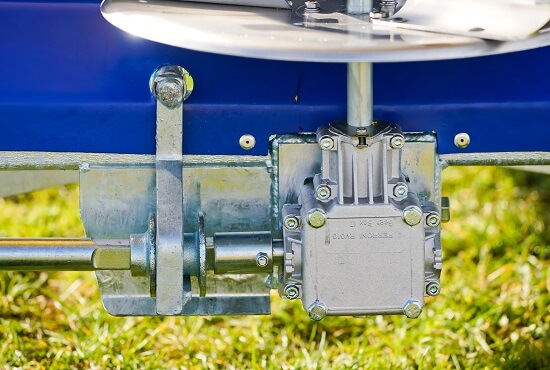

Easy Lock drive system on EX750

1 Easy Lock Drive

Vogal EX750 spreaders feature the 'Easy Lock' drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider

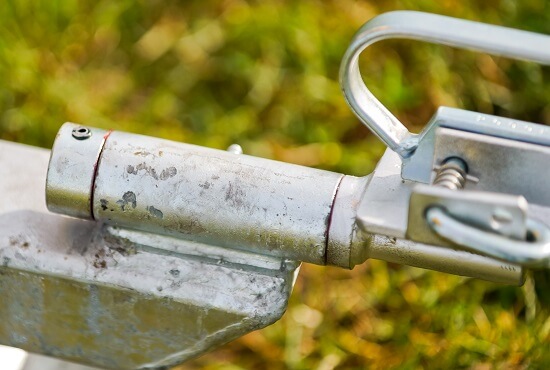

Swivel tow coupling on Vogal fertiliser spreader

2 Swivel Tow Coupling

EX750's feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.

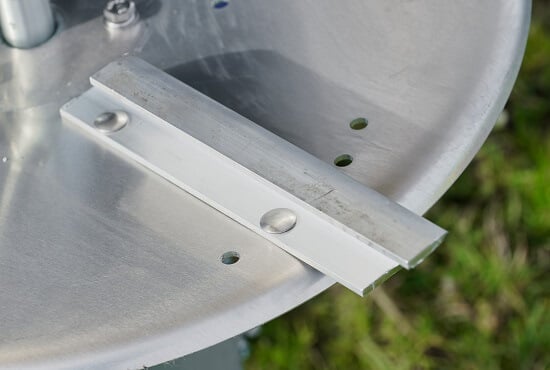

Adjustable Spinner fins on Vogal fertiliser spreader

3 Adjustable Spinner Fins

Vogal EX750 spreaders feature 3 spreading fins on the spinner disc, these fins are adjustable to enable fine adjustments to the spreading width and pattern.

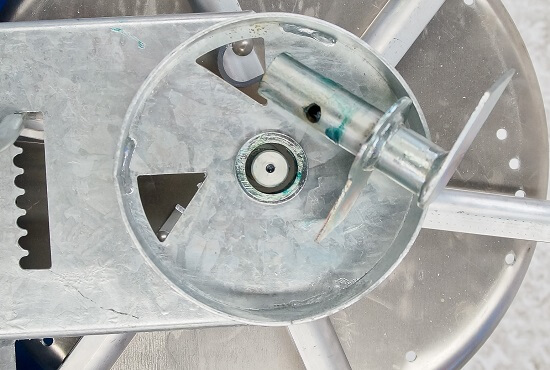

Vogal Spreader Aperture Detail

4 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

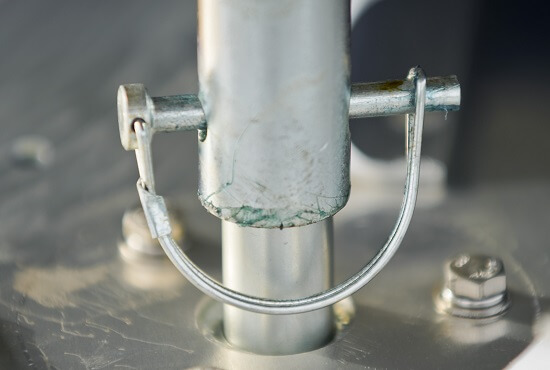

Removable agitator on Vogal spreaders

5 Removable Agitator

Vogal EX750 features this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.

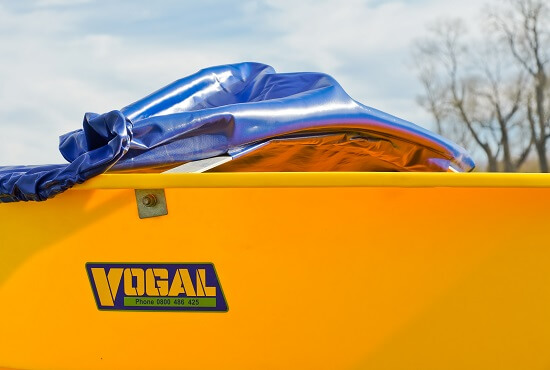

Plastic hopper and PVC hopper cover

6 PVC Hopper Cover

EX750's feature large heavy duty hoppers with a PVC cover, the PVC cover is easily removed and refitted for loading as well as having high UV resistance.

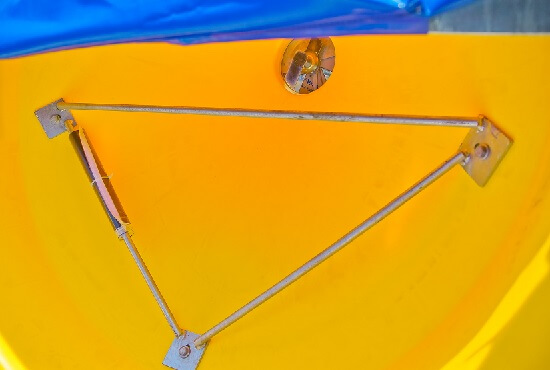

Heavy duty hopper of Vogal Spreader

7 Heavy Duty Hopper

Vogal Spreadmax EX750 hoppers are made from thick heavy duty UV resistant plastic to hope with the harsh extremes in the New Zealand environment and are internally braced with solid galvanised steel bars.

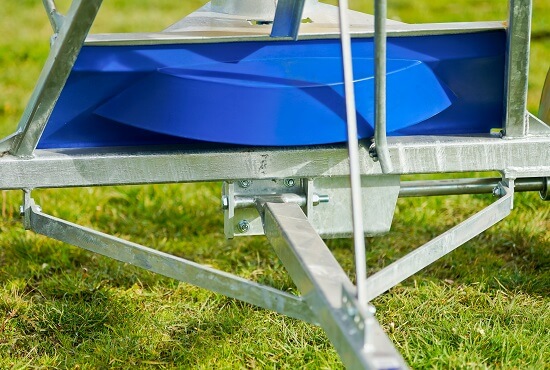

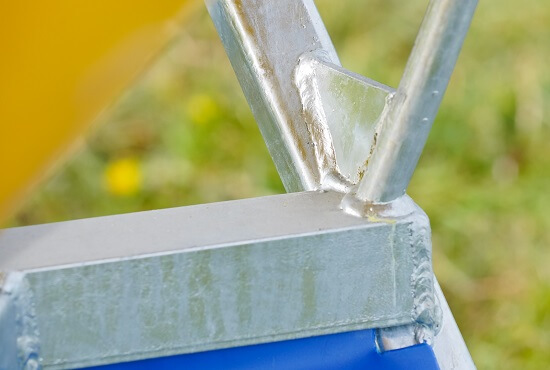

Bracing and gusseting on Vogal Spreaders

8 Heavy Duty Build

Vogal EX750 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.

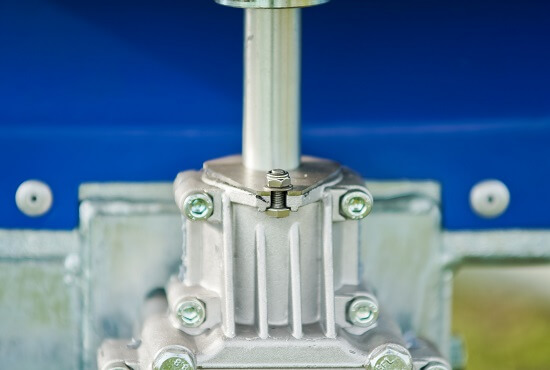

Oil soaked washer on Vogal atv and utv spreader

9 Gearbox Protection

Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox

Adjustable draw bar on Vogal spreader

10 Adjustable Drawbar

Vogal EX750 fertiliser spreaders feature an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

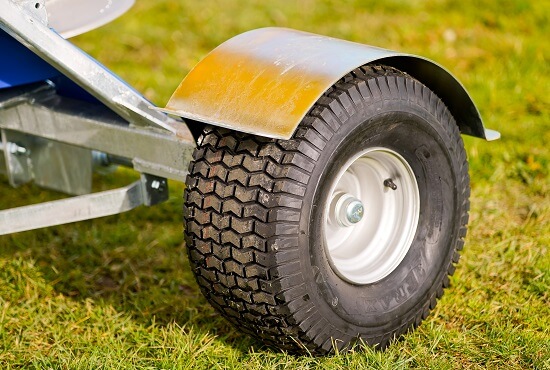

Galavansed Mudguards on Vogal fertiliser spreader

11 Galvanised Mudguards

Galvanised steel mudguards are included as standard on the Vogal EX750 fertiliser spreader, these mudguards are manufactured from plate steel for durability and galvanised for protection against corrosion.

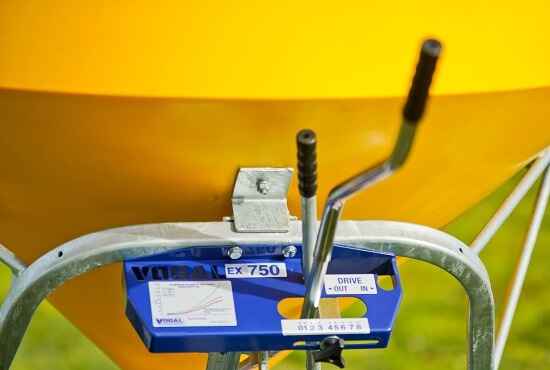

Index and control box on EX750

12 Index & Control Box

All controls and adjustments for the EX750 spreader are located at the front in and easy to use Index and Control box. This includes a quick reference guide for spreading rates and settings along with the aperture and spinner control levers

Options

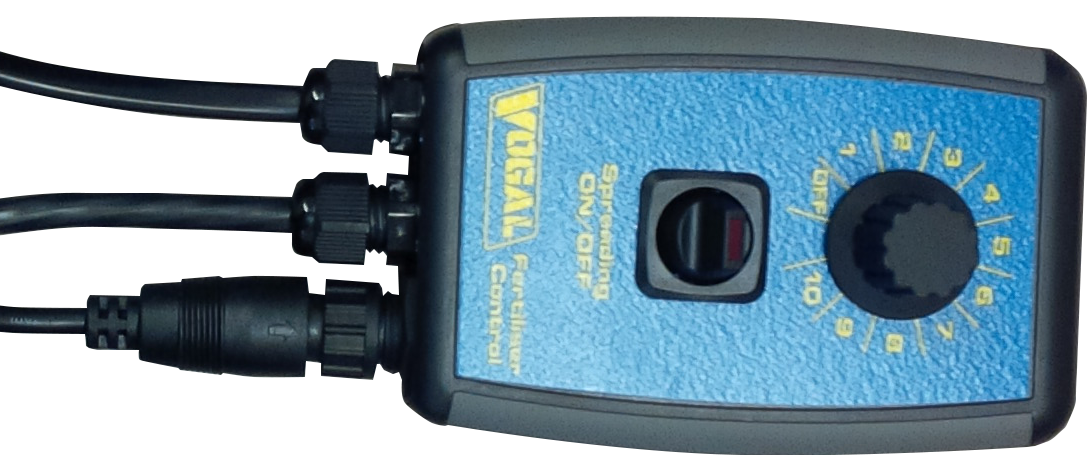

V117a CC

1 Easy Spread

The Easy Spread controller is a 12V electric actuator system enabling for quick spread rate selection and actuator control from the seat of your atv, utv or other vehicle. Simply 'dial and go'

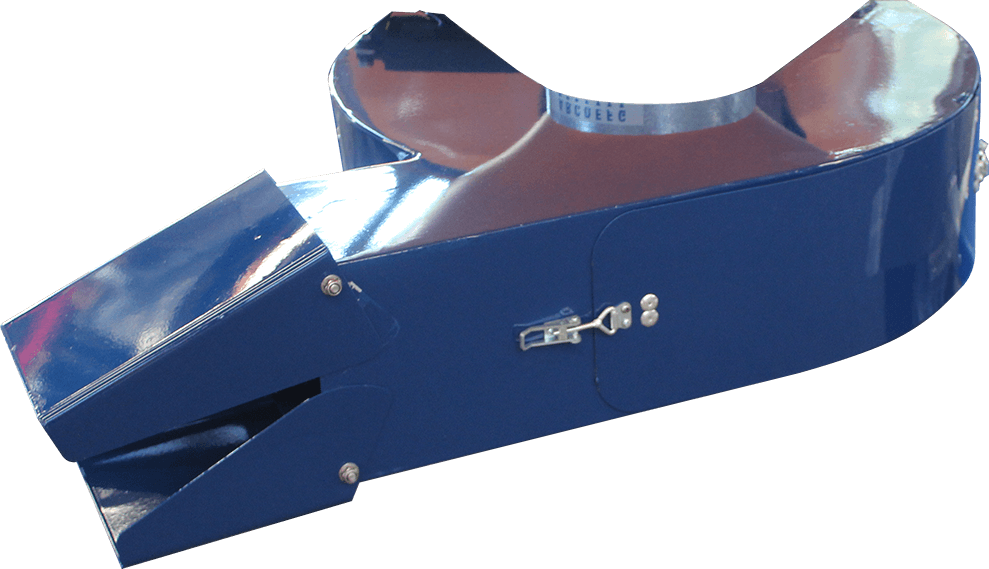

V106a

2 Side Chute

This side chute attachment allows the EX750 to band spread - particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
