Vogal EX750 Spare Parts Breakdown

All prices NZD RRP, +GST and freight

Also known as Vogal EX500

This page is very large (around 40Mb), it is best viewed on a WiFi or Ethernet connection (not mobile data).

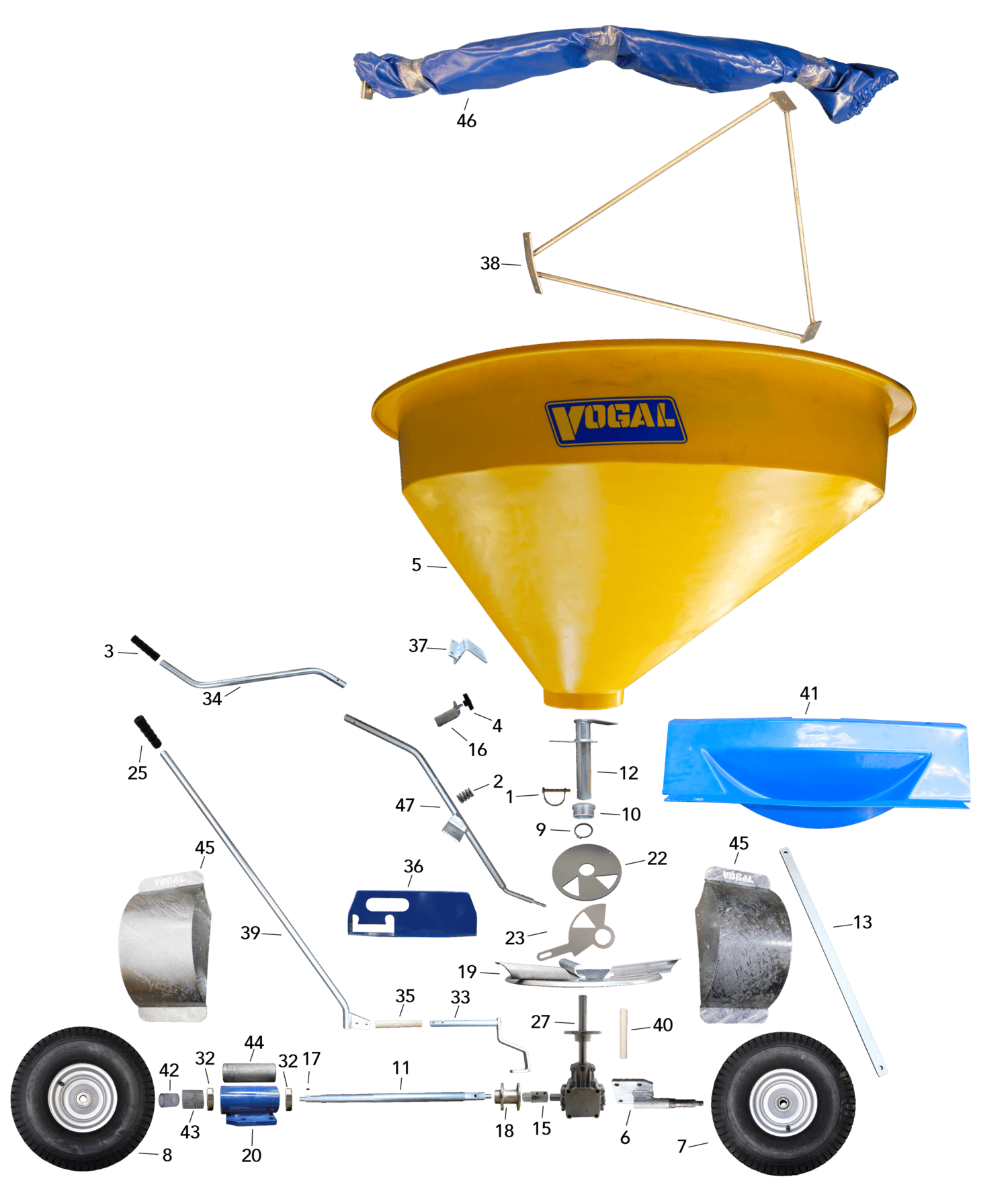

Exploded Parts Diagram

EX750 Exploded Diagram-1



Maintenance Specifications

Oil:

500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

Grease:

General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

Tyres:

Inflate to 22 psi and check regularly. Reinflate as necessary.

Table of Parts

For a larger image, click on the picture

No. Photo Code Description Price Notes
1 1093 1093 D Pin $3.00
2 1094 1094 Shutter Lever Spring $6.95 Grease contact surfaces (both ends)
3 1644 1644 Grip Handle 22mm 7/8 PVC Black $6.00 Heat in boiling water for easier install
4 1651 1651 Tri Knob Female 8mm $7.00
5 3378 3378 Hopper Yellow 750L $1079.00
6 SP175-016 SP175-016 Bolt on Stub Axle $90.00
7 2190 2190 Wheel (bearing) $201.00 Attaches to stub axle
7.1 1572 Side 1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
7.2 Untitled 1876 Wheel Bearing Seal $13.92
8 2191 2191 Wheel (keyed) $201.00 Attached to end of drive axle, will likely also need item SP100-034
9 5042S Slash S 5042S/S Circlip 45mm external S/S $4.50
10 SP136-028 SP136-028 Agitator Bush $29.40 Recommend also purchasing item 5042S/S
11 SP136-007 SP136-007 Drive Axle $219.00 Consider also item SP100-034
12 SP136-008 SP136-008 Agitator $47.67 Consider also item SP100-003
13 SP175-014 SP175-014 Towbar Adjuster $49.00
15 SP100-016 SP100-016 Drive Stub $62.01

Bolt - M8x50 ZP & Nyloc Nut

Grease Nipple - p/n 5051

15.1 5051 5051 Grease Nipple 1/8 Straight $2.31



16 SP100-035  33 SP100-035 Pointer $22.20
17 SP100-034 SP100-034 Drive Axle Key $6.00
18 SP100-015  33 SP100-015 Drive Slider Female $58.57 SX450 and SX500 use p/n
SP121-006

19 SP136-006 Front SP136-006 Spinner Disc Complete Assembly $163.02
19.1   SP136-005 Spinner Fin $14.00
20 SP136-009 SP136-009 Bearing Housing $141.00
22 1931 1931 Shutter Adapter Plate $14.70
23 2892 2892 Shutter Plate $29.00
24   3014 Decal $3.69
25 1645 1645 Grip Handle 25mm $6.00
26 2715 2715 Serial Number Plate Enquire
27 2120-1 2120 Gearbox Complete Assembly $403.47
27.1 1572 Side 1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
27.2 1868 1868 Gearbox Seal $7.50
28 1679 1679 Felt Washer $4.20 Oil soak before install
29 1901 1901 S/S Shaft Guard $2.00
30 RATA30 RATA30 Vogal Warranty Sticker Enquire
31 M SX120 M EX750 EX750 User Manual Enquire
32 1573

1573

Bearing Sealed 6206-2RS $7.05 For fabricated axle
33 SP136-015 SP136-015 Drive Operating Lever $77.00
34 SP100-030 SP100-030 Shutter Lever Extension $32.00
35 SP100-033 SP100-033 Drive Engage Liner Tube $6.00
36 SP100-036 33 SP100-036 Index Box $97.00
37 SP193-052 SP193-052 Front Hopper Bracket $44.24
38 SP193-024 SP193-024 Hopper Tri Brace $108.05
39 SP136-113 SP136-113 Drive Handle MKll $39.00
40 SP136-029 SP136-029 Tow Bar Bush Liner $5.00
41 1807 1807 Spinner Shield Blue $110.00
42 SP136-031 SP136-031 Drive Axle Spacer Liner $2.50
43 SP136-032 SP136-032 Drive Axle Spacer $7.20
44 SP136-033 SP136-033 Bearing Spacer - 113mm $11.55
45 V126 V126 Mudguards $320.00 Set of
46 V113 V113 Cover and brace $265.00 Includes bolts and washers
46.1   3385 PVC Cover $217.00
46.2   SP193-015 Cover Brace $52.60
47 SP175-012 SP175-012 Shutter Lever $78.45
