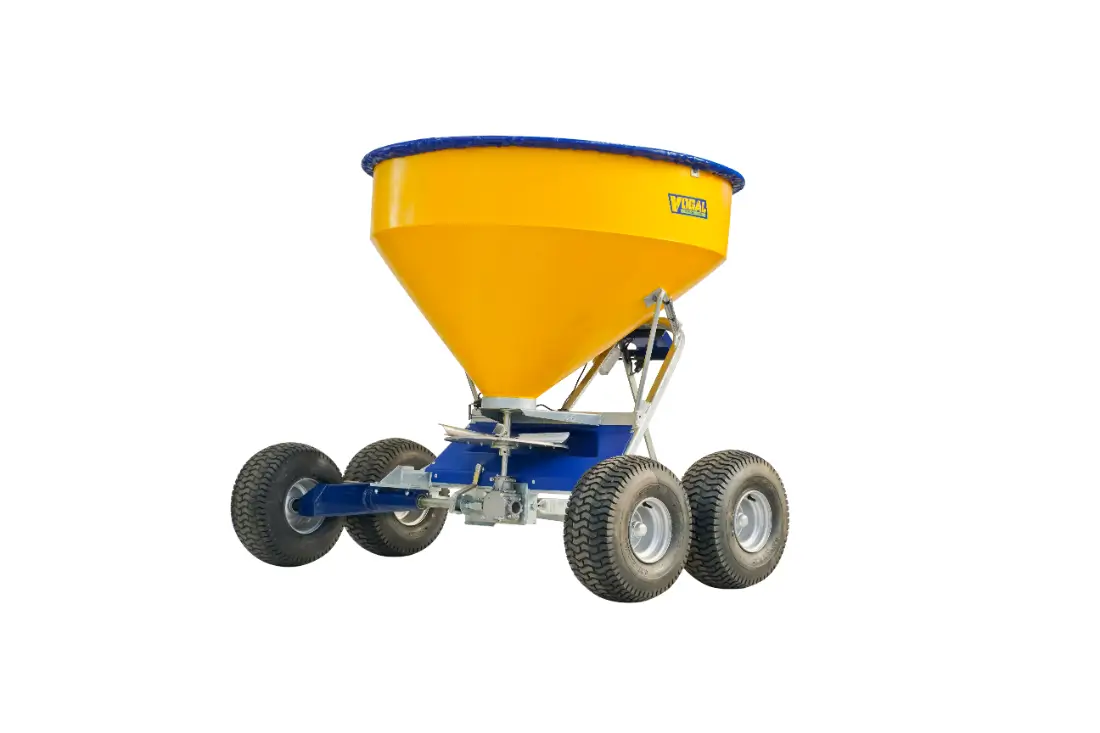

Spreadmax TT750

Particularly well suited to undulating, pugged or soft ground conditions, the TT750's four wheels and oscillating suspension absorbs bumps and eliminates the jarring effect that single axle machines give when towed over rough terrain.

The Ultimate ATV Fertiliser Spreader

Product Image Gallery

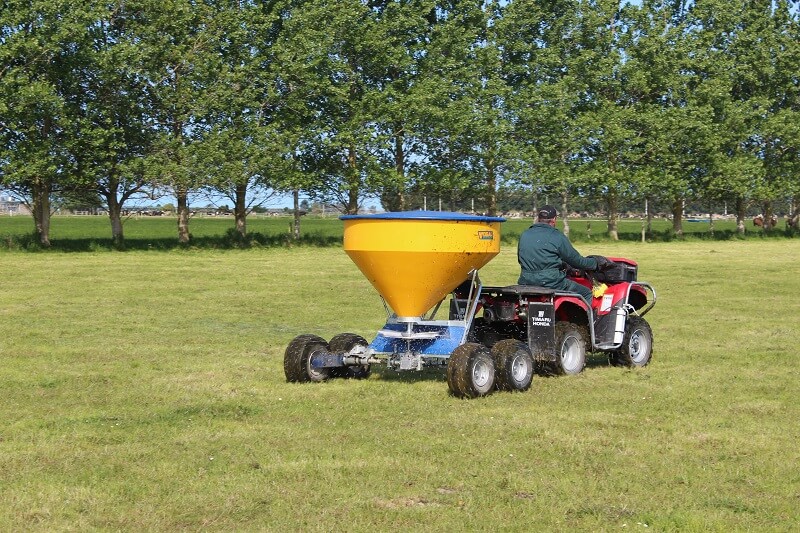

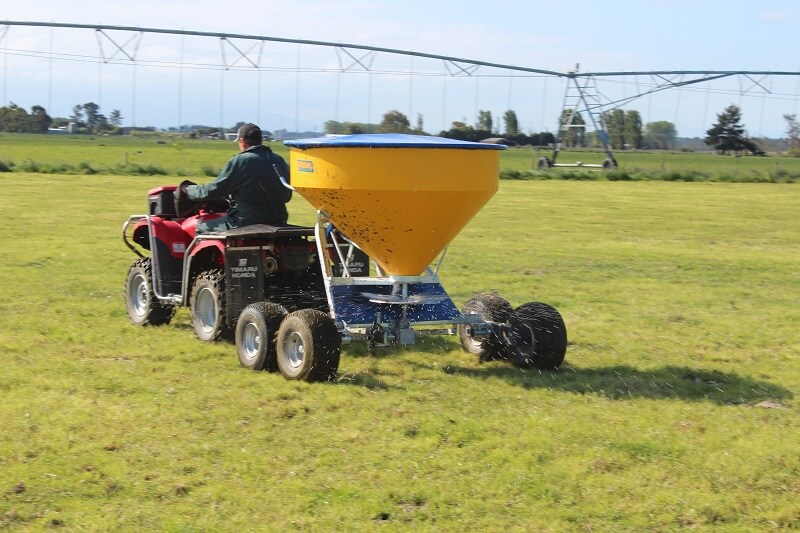

Vogal TT750 tandem axle fertiliser spreader in action on a paddock

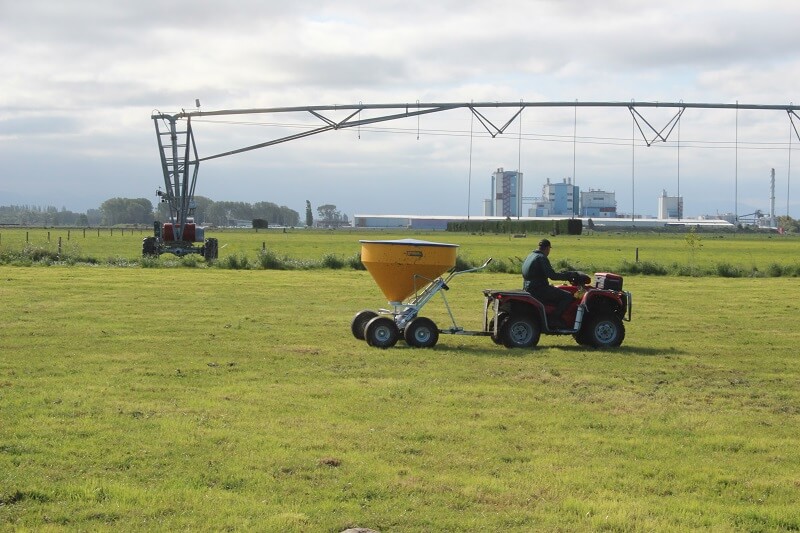

Vogal half tonne spreader in front of irragator

Product Video Gallery

View the TT750 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Overall Width	Loading Height
795.SXTT750	750L (520kg bags)	Urea: 15m	260kg	1,990mm	1,500mm

Features & Benefits

Easy Lock drive system on TT750

1 Easy Lock Drive

Vogal TT750 spreaders feature the 'Easy Lock' drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider

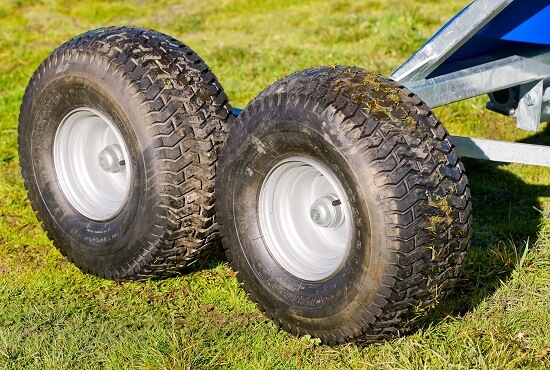

Tandem Axle on Vogal TT750 spreader for greater stability

2 Tandem Axle Suspension

Twin fully oscillating axle suspension absorbs bumps & eliminates jarring effects on undulating & bumpy ground. Ground pressure is also half that of a single axle model, this is helpful in pugged & soft ground.

Adjustable Spinner fins on Vogal fertiliser spreader

3 Adjustable Spinner Fins

Vogal TT750 spreaders feature 3 spreading fins on the spinner disc, these fins are adjustable to enable fine adjustments to the spreading width and pattern.

Swivel tow coupling on Vogal fertiliser spreader

4 Swivel Tow Coupling

TT750's feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.

Removable agitator on Vogal spreaders

5 Removable Agitator

Vogal TT750 features this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.

Plastic hopper and PVC hopper cover

6 PVC Hopper Cover

TT750's feature large heavy duty hoppers with a PVC cover, the PVC cover is easily removed and refitted for loading as well as having high UV resistance.

Heavy duty hopper of Vogal Spreader

7 Heavy Duty Hopper

Vogal Spreadmax TT750 hoppers are made from thick heavy duty UV resistant plastic to hope with the harsh extremes in the New Zealand environment and are internally braced with solid galvanised steel bars.

Bracing and gusseting on Vogal Spreaders

8 Heavy Duty Build

Vogal TT750 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.

Oil soaked washer on Vogal atv and utv spreader

9 Gearbox Protection

Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox

Adjustable draw bar on Vogal spreader

10 Adjustable Drawbar

Vogal TT750 fertiliser spreaders feature an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

Vogal Spreader Aperture Detail

11 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

Index and control box on TT750

12 Index & Control Box

All controls and adjustments for the TT750 spreader are located at the front Index and Control box, including a quick reference guide for spreading rates and settings along with the aperture and spinner control levers. (EX750 Index shown)

Options

V117a CC

1 Easy Spread

The Easy Spread controller is a 12V electric actuator system enabling for quick spread rate selection and actuator control from the seat of your atv, utv or other vehicle. Simply 'dial and go'

V106a

2 Side Chute

This side chute attachment allows the TT750 to band spread - particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.

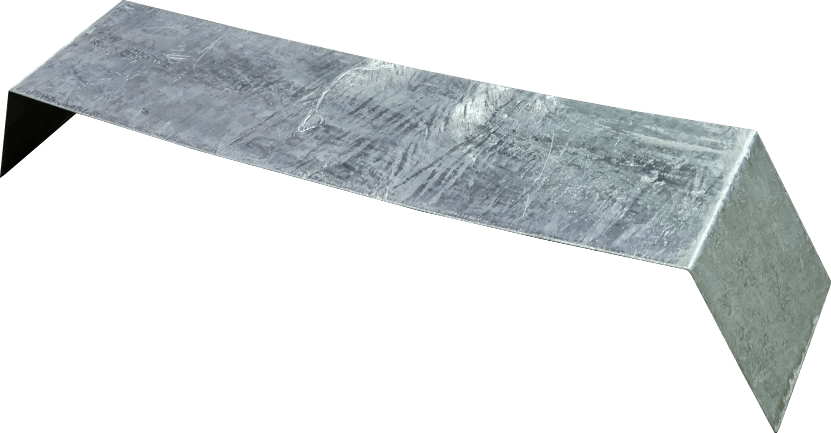

V111
