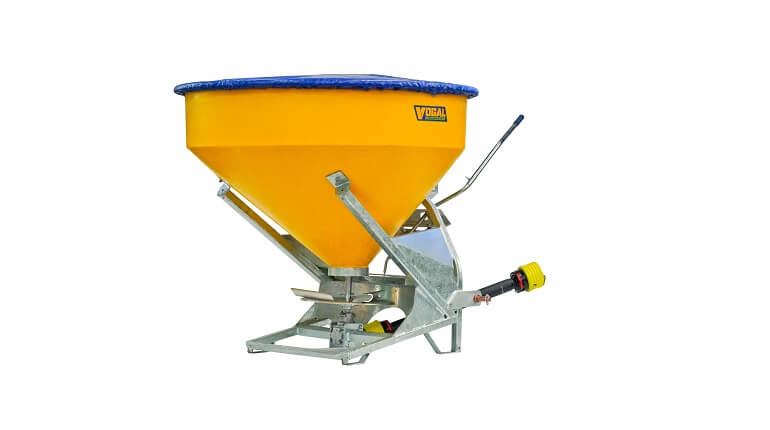

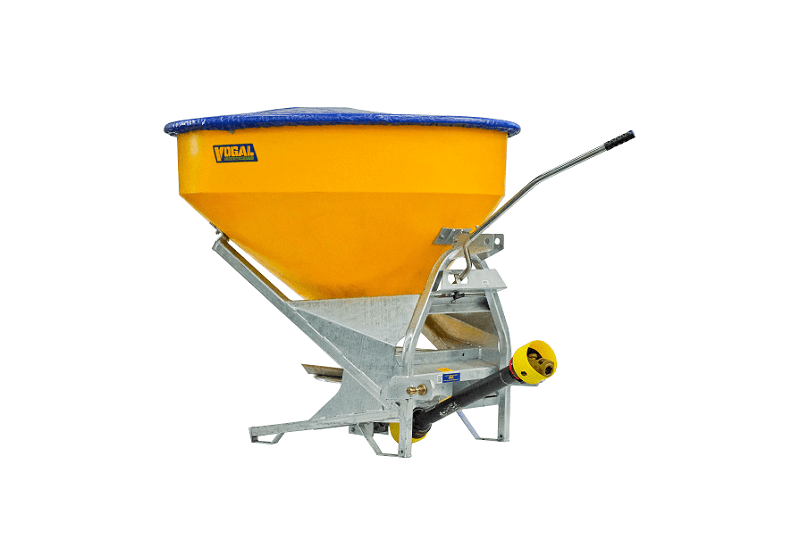

Vogal TPL750 bulk fertiliser spreader for tractor 3 point linkages

Spreadmax TPL750

The TPL750 boasts several features and is in a class of its own, designed primarily for the application of Urea, it can also be used for spreading seed, granulated fertilisers and pelletized lime.

The huge 750 litre super thick plastic hopper can hold a 500kg bag of Urea with ease, that along with its heavy duty gearbox and stainless steel shutter plate, optional hydraulic shutter all housed in by the robust hot dip galvanised frame will give you a spreader that will last the test of time.

Product Image Gallery

Vogal TPL750 fertiliser spreader - PTO drive - Rata Equipment - Rata Industries

Vogal 3 point linkage fertiliser spreader

Product Video Gallery

View the TPL750 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Loading Height
795.SXTPL750	750L (520kg bags)	Urea: 18m	180kg	1,375mm

Features & Benefits

Heavy duty build of Vogal TPL750 fertiliser spreader

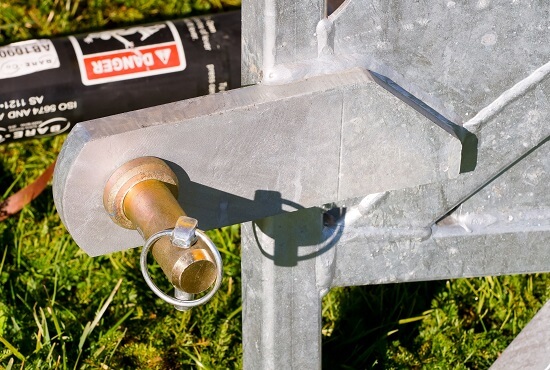

1 Heavy Duty Linkages

Linkage arms are made of heavy steel plate that is more than adequate for the fertilisers hopper capacity, in keeping with the overall Vogal theme of overbuilding rather than under building.

Adjustable Spinner fins on Vogal fertiliser spreader

2 Adjustable Spinner Fins

Vogal TPL750 spreaders feature 3 spreading fins on the spinner disc, these fins are adjustable to enable fine adjustments to the spreading width and pattern.

Removable agitator on Vogal spreaders

3 Removable Agitator

Vogal TPL750 features this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.

Plastic hopper and PVC hopper cover

4 PVC Hopper Cover

TPL750's feature large heavy duty hoppers with a PVC cover, the PVC cover is easily removed and refitted for loading as well as having high UV resistance.

Heavy duty hopper of Vogal Spreader

5 Heavy Duty Hopper

Vogal Spreadmax TPL750 hoppers are made from thick heavy duty UV resistant plastic to cope with the harsh extremes in the New Zealand environment and are internally braced with solid galvanised steel bars.

Vogal Spreader Aperture Detail

6 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

Options

HAC Kit

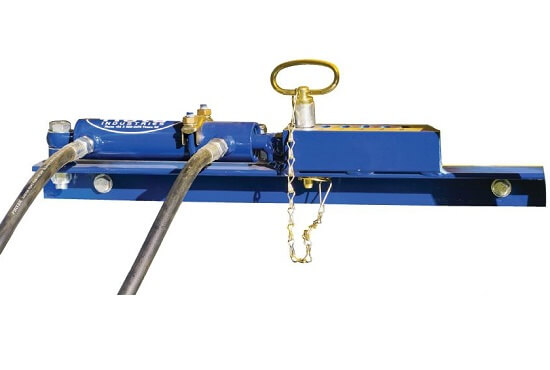

1 HACK (Hydraulic Actuator Control Kit)

This optional hydraulic actuator control kit makes aperture adjustment from the cab quick and easy.

V123

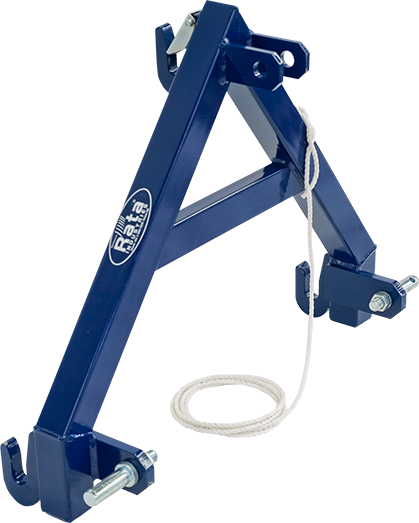

2 3PL Quick Hitch

The Vogal 3 point linkage quick hitch makes hitching and de-hitching 3PL attachments effortless and easy.

V106a

3 Side Chute

This side chute attachment allows the TPL750 to band spread - particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
