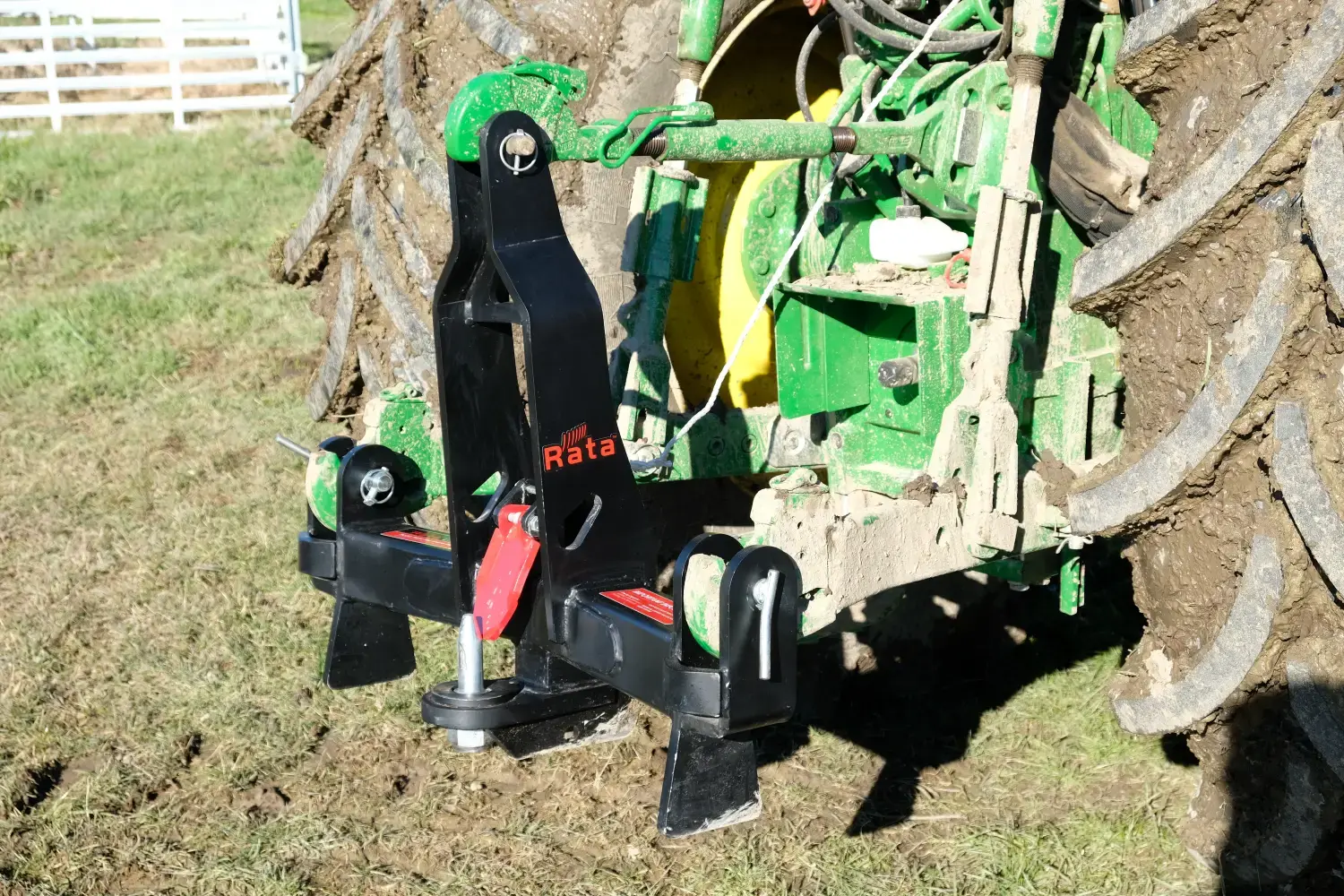

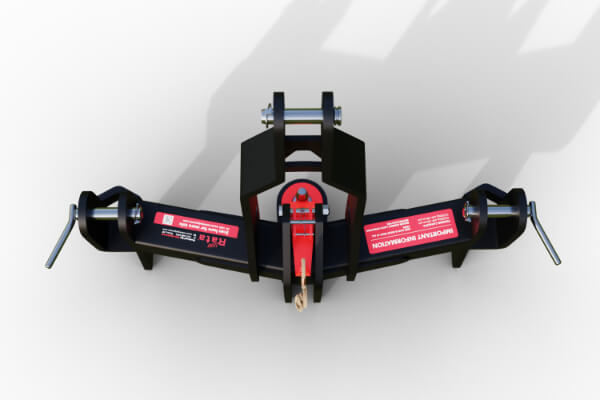

Tow Hitch

Incredibly robust frame, incorporating the following features to make it as user-friendly as possible.

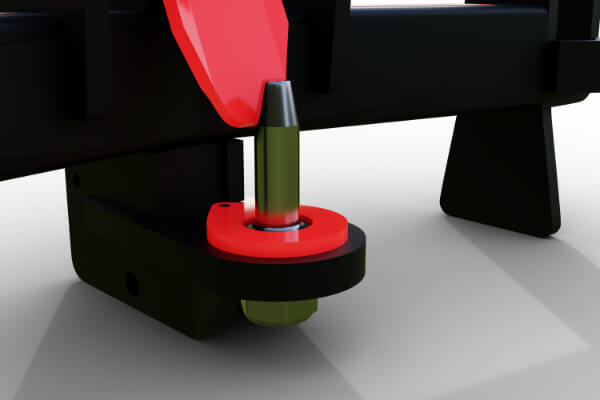

Changeable high tensile tow hook with a towing capacity of up to 15 tonne, as well as a towing tongue wear plate. Robotically welded, therefore ensuring construction and finish is consistently very high quality. Clever design incorporating a see-through centre piece, resulting in great vision of pin while reversing. Total weight of Tow Hitch is only an amazing 60kg.

A Tow Ball attachment is also available for pulling conventional trailers.

Download the flyer

Product Gallery

Specifications

Model (Code)	Weight (kg)	Capacity (kg) 32mm hook	Capacity (kg) 38mm hook
3PLDH2	60	10,000	15,000
3PLDH3	70	NA - 38mm only	15,000
3PLDH/TB	Tow ball attachment for Tow Hitches

Includes Lower Link Pins and Towing Hook.

Does not include 3PL balls or top link pin

Models

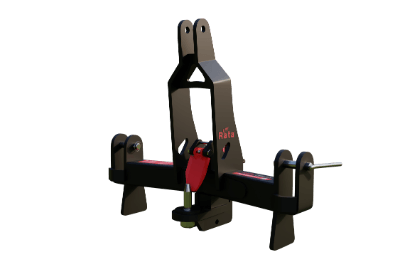

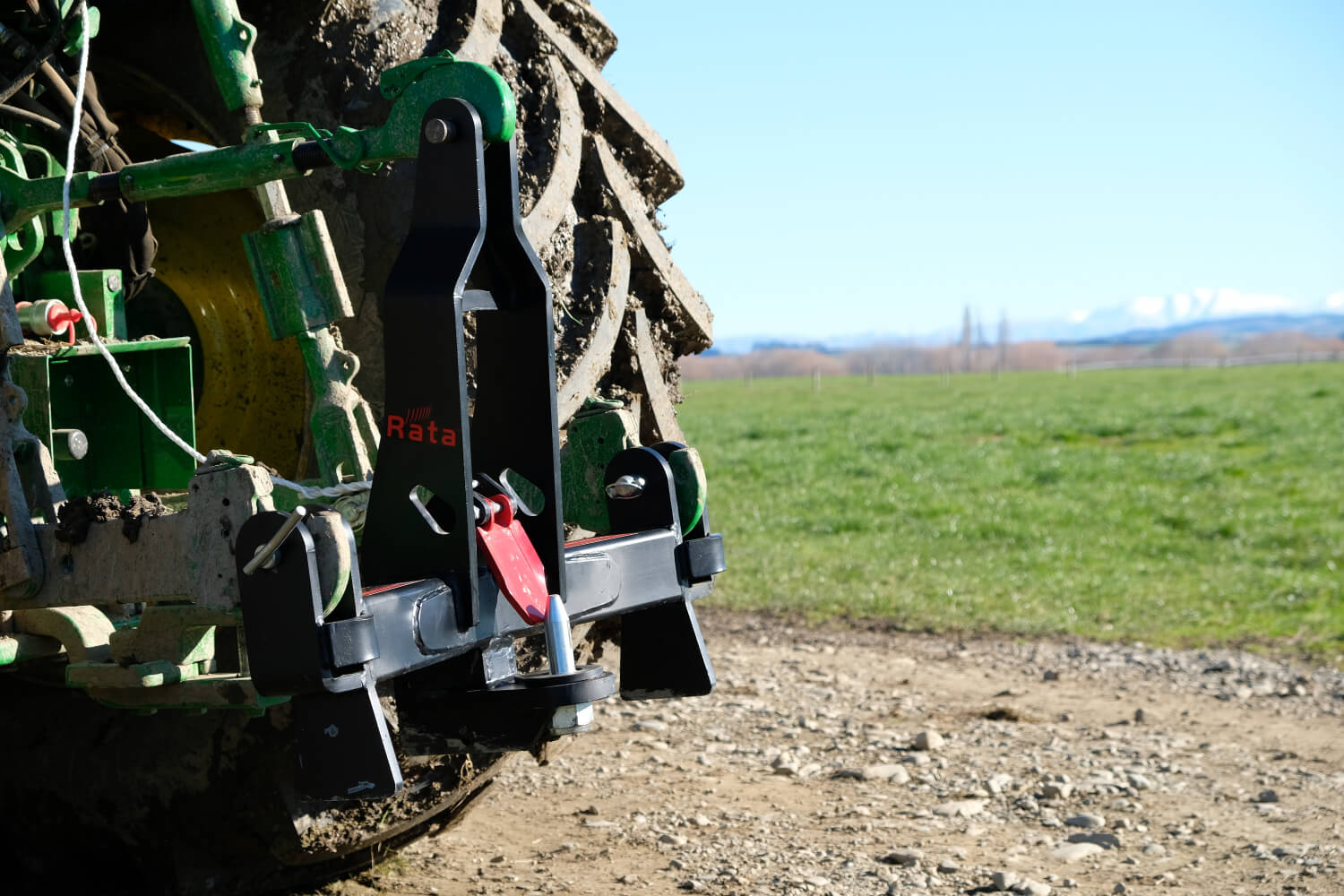

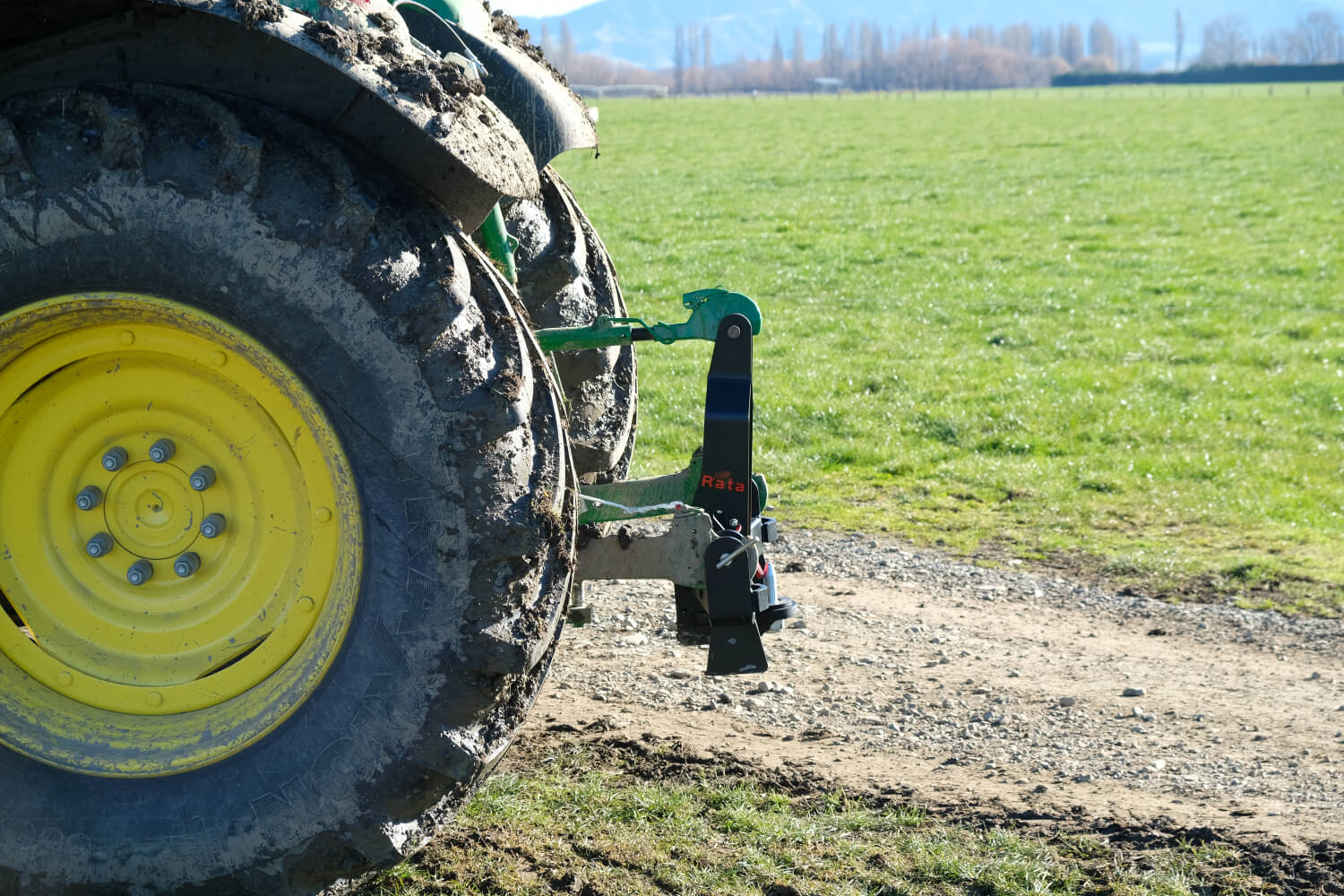

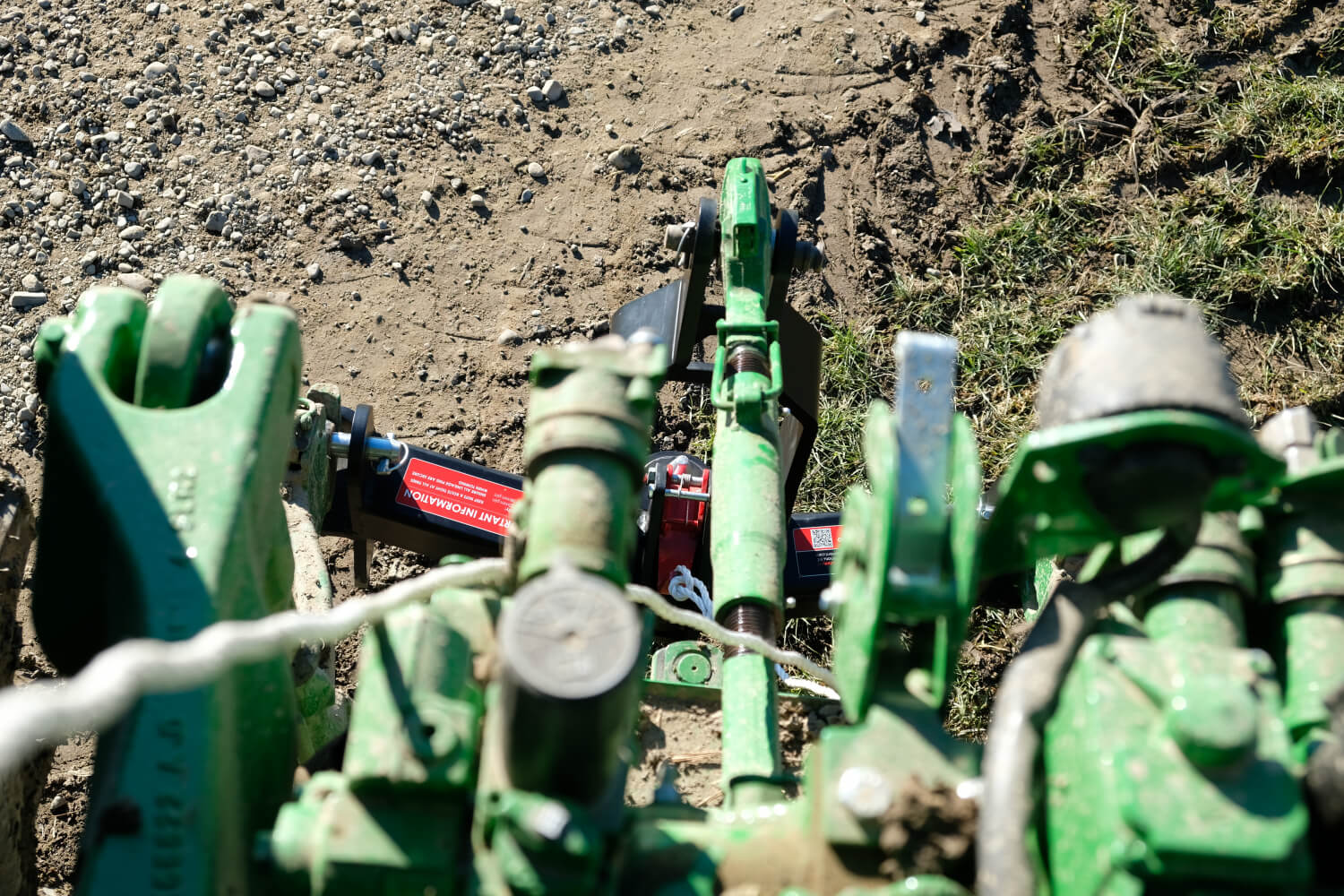

3PLDH2 550x370

1 3PLDH2

Category 2 linkage Tow Hitch

3PLDH3 550x370

2 3PLDH3

Category 3 linkage Tow Hitch

Options

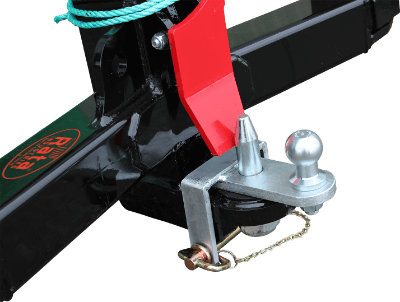

3PLDH-TB

1 Tow Ball Attachment

Seen here is a fully zinc'd Tow Ball Attachment that is secured over the top of the hook and underneath the drawbar.

Features & Benefits

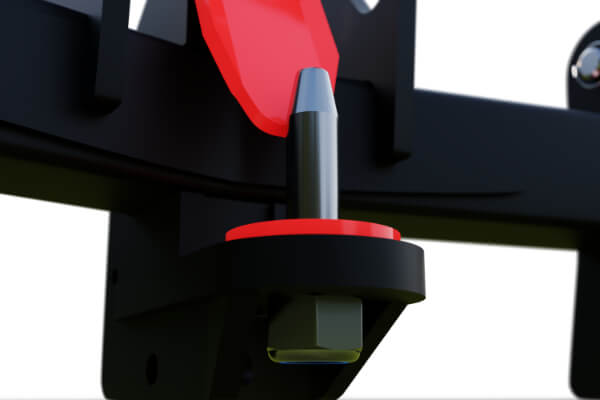

Tow hook on Rata towing hitch

1 High Tensile Bolt On Tow Hook

Towing hooks/pins are machined out of high tensile steel to bolt into the Tow Hitch frame, this ensures maximum hook strength and support whilst giving the flexibility to remove and replace with a larger or smaller size hook in future.

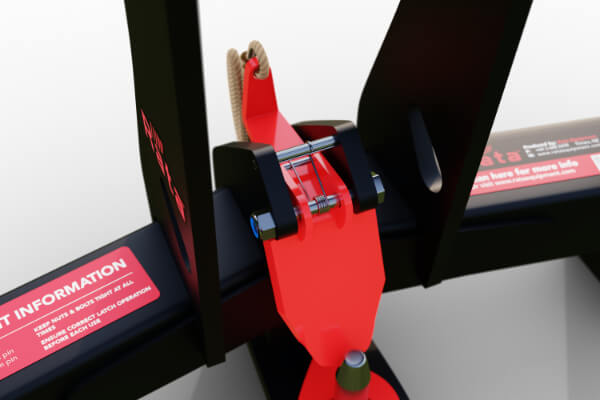

Safety Flap on Rata drawbar quick hitch

2 Safety Flap

Rata Drawbar Hitches feature a spring loaded safety flap that auto sets when the towing eye is in position, simply reverse into position and lift the hook up, when the eye clears the flap it automatically locks the tow eye in.

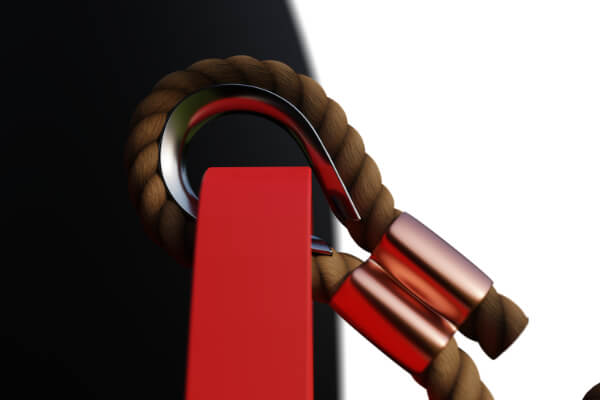

Safety chain eye

3 Safety Chain Eye

Rata Tow Hitches feature a safety chain mount to secure the trailer, wagon or whichever implement you are towing in case of any accidents, this helps to increase the overall safety of your towing tasks.

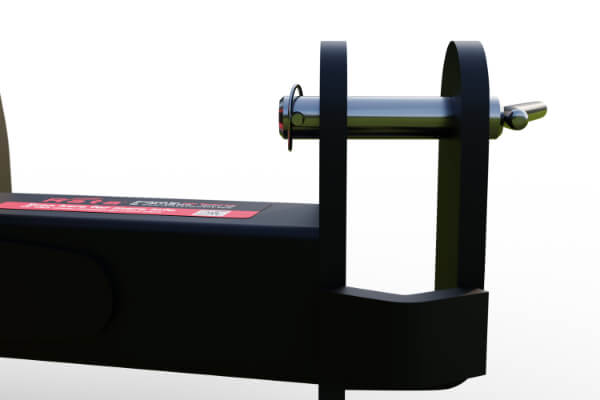

Double clevis linkage

4 Double Clevis Linkage

The double clevis linkage mounts on a Rata Tow Hitch are made from thick steel plate, this ensures maximum strength to cope with high weight loading's.

Wear plate on Rata Tow Hitch

5 Wear Plate

A steel wear plate protects the towing tongue from premature wear and can be easily replaced when worn to extend the life of your tow hitch.

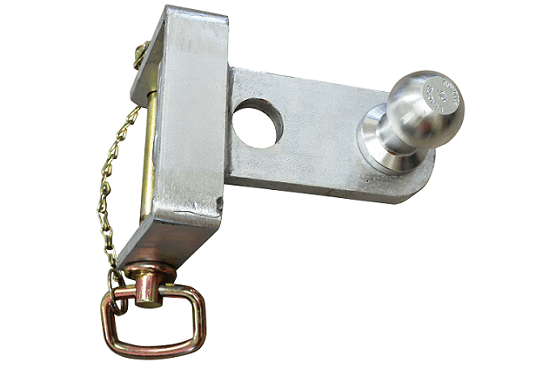

Tow ball attachment for Rata Tow hitches

6 Optional Tow Ball Attachment

This tow ball attachment enables your Rata Tow Hitch to tow conventional trailers around the farm and on the road, simply slip it over the towing pin, insert the locking pin and you are ready to work!

Testimonials

I got hold of Rata when I needed a Silage Grab, Forks & Tow Hitch. From past experience I had been impressed with the durability & simplicity of the gear. The Silage Grab has performed very well & the Tow Hitch makes the job so much easier, this one is well up there!
Very high rated - so I can virtually pick up any load.

They've definitely helped me out!

Dan Jackson, Jackson Dairys
