Bale Forks

Rata has many types of Bale Forks, all suitable for handling any size bale, round or square. There are four lengths of tines to choose from, 1.2m, 1.1m, 0.98m & 0.80m.

Get a Quote

Tines are forged spring steel, held in with a conus 2 welded taper bush. These high strength bale forks can be made to fit almost any Tractors front end loader or Telehandler

    Bale Fork Models

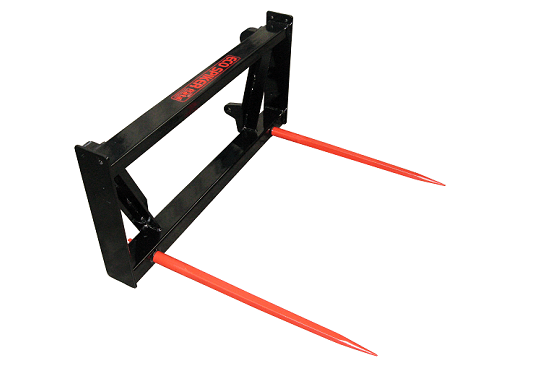

    ECO SPIKER

    1 Ecospiker

    Ecospiker bale forks have been designed to provide an affordable bale handling option for tractors under 80hp in less demanding environments

    Download the flyer

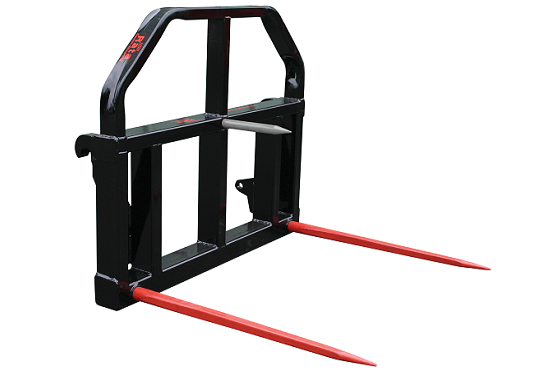

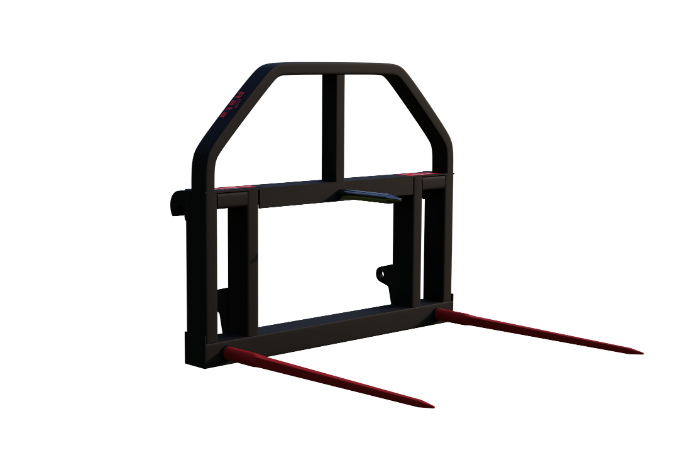

    Standard Rata Bale Fork for Tractors & Telehandlers

    2 Standard Bale Fork

    This model of Bale Fork is the 'standard' or 'conventional' model, designed for use on just about any dairy or livestock farmers tractor. A Telehandler spec model is available

    Download the flyer

    High Back Bale Fork for Tractors & Telehandlers

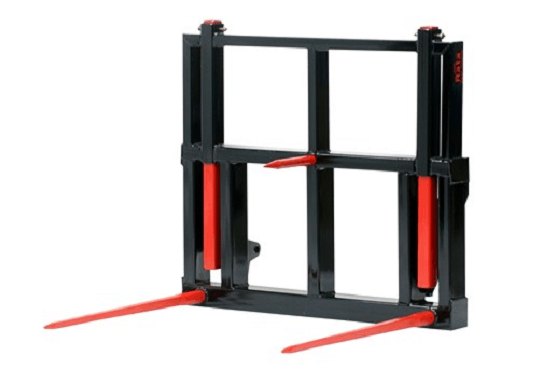

    3 High Back Bale Fork

    This model of Bale Fork has been developed to safely handle 2 bales at a time by simply extending the high back adjusters. A Telehandler spec model is also available. High back extends to 1740mm.

    Download the flyer

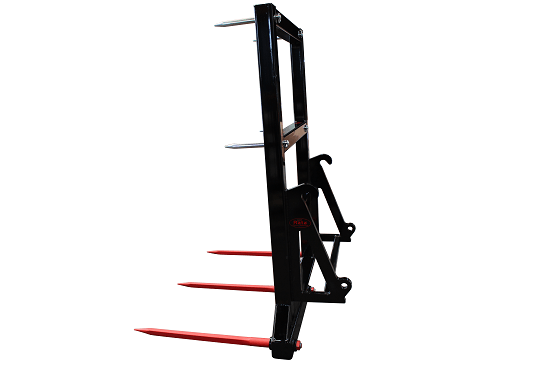

    Telehandler Bale Forks

    4 Heavy Duty Bale Fork

    This Bale Fork features a 2m high heavy steel frame for handling multiple bales at a time, the x3 conus 3 bale tine across the bottom support any load. Available for Tractors & Telehandlers

    Download the flyer

    Tine Length Measurement

    Tine length is from the overall length of the tine, from the nut right out to the point. This means that a 0.98m long tine has around 850mm of usable length to spear into a bale. The other 130mm of the tine is inside or behind the backframe. Measurements are approximate.

    Eco Spiker Specifications

    Model (Code) Description Max hp
    ES980 Ecospiker with 0.98m tines 80
    ES110 Ecospiker with 1.1m tines 80
    ESHB Optional bolt on high back for Ecospiker Bale Forks

    Standard Bale Fork Specifications

    Model (Code) Description
    BF800 Standard Bale Fork with 0.8m tines
    BF980 Standard Bale Fork with 0.98m tines
    BF110 Standard Bale Fork with 1.1m tines
    BF120 Standard Bale Fork with 1.2m tines

    High Back Bale Fork Specifications

    Model (Code) Description
    BFHB800 High Back Bale Fork with 0.8m tines
    BFHB980 High Back Bale Fork with 0.98m tines
    BFHB110 High Back Bale Fork with 1.1m tines
    BFHB120 High Back Bale Fork with 1.2m tines

    Telehandler Bale Fork Specifications

    Model (Code) Description
    BFT800 Telehandler Bale Fork with 0.8m tines
    BFT980 Telehandler Bale Fork with 0.98m tines
    BFT110 Telehandler Bale Fork with 1.1m tines
    BFT120 Telehandler Bale Fork with 1.2m tines
    BFT110HD Heavy Duty Telehandler Bale Fork with 1.1m tines (2m high frame & x3 conus 3 tines in the base)

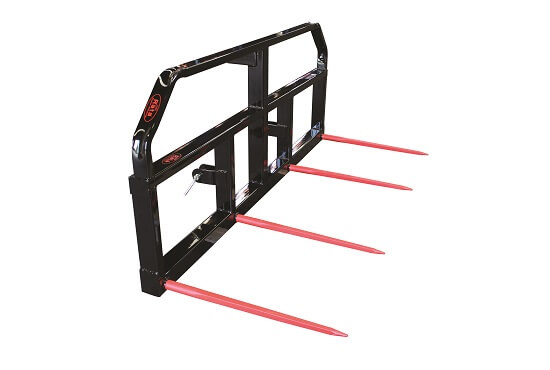

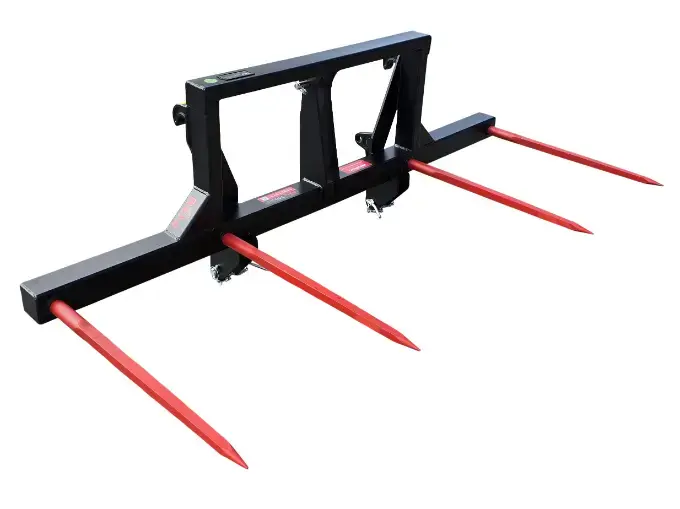

    Double Bale Fork Specifications

    Model (Code) Description
    BF980-2.3M 2.3m Wide Double Bale Fork with x4 0.98m tines
    BF110-2.3M 2.3m Wide Double Bale Fork with x4 1.10m tines
    BF120-2.3M 2.3m Wide Double Bale Fork with x4 1.20m tines

    Testimonials

    Rata Silage Grab testimonial from Dan Jackson - Dairy farmer

    I got hold of Rata when I needed a Silage Grab, Forks & Tow Hitch. From past experience I had been impressed with the durability & simplicity of the gear. The Silage Grab has performed very well & the Tow Hitch makes the job so much easier, this one is well up there!
    Very high rated - so I can virtually pick up any load.

    They've definitely helped me out!

    Dan Jackson, Jackson Dairys
