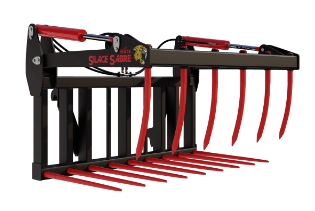

Rata Silage Grab

Silage Grabs

Get A Quote


Download the flyer

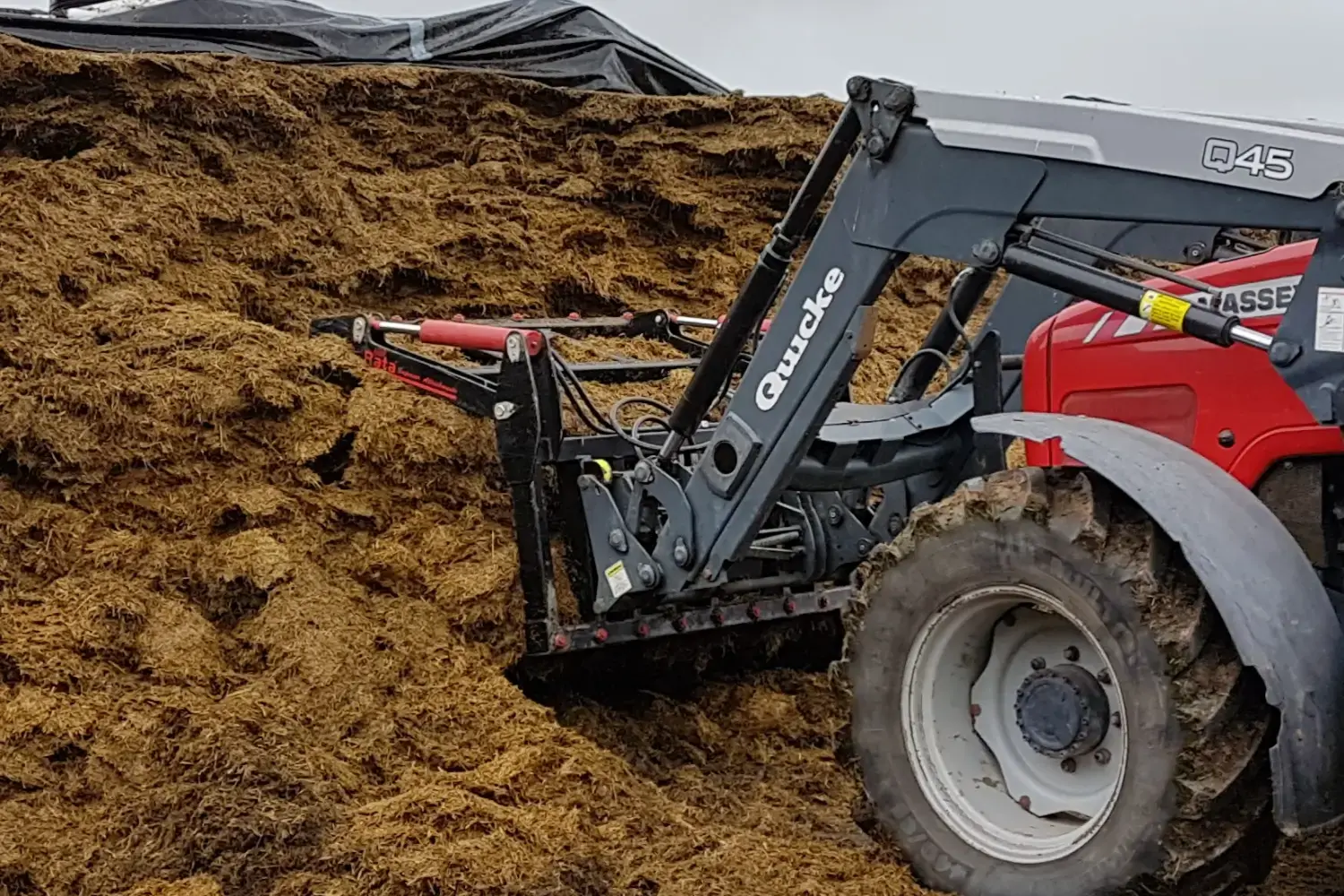

Rata Silage Grabs are ideal for high volume silage handling, the Rata Silage Grab has been the popular choice on NZ farms for many years due to its high quality build & ability to secure large amounts of silage & leave the stack or pit face clean.

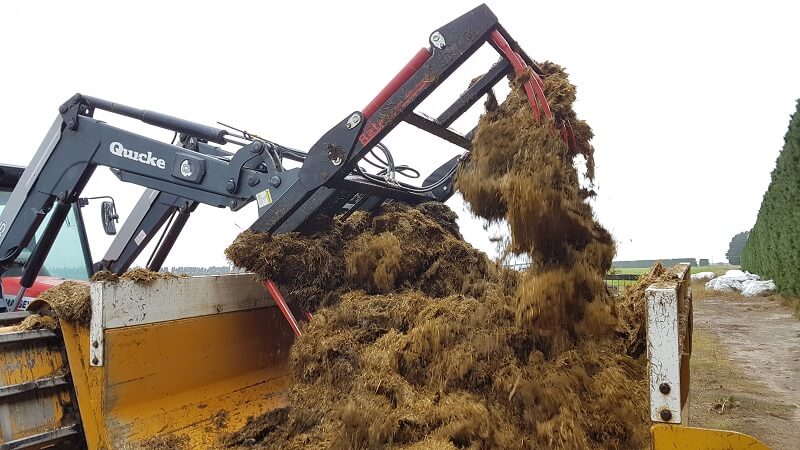

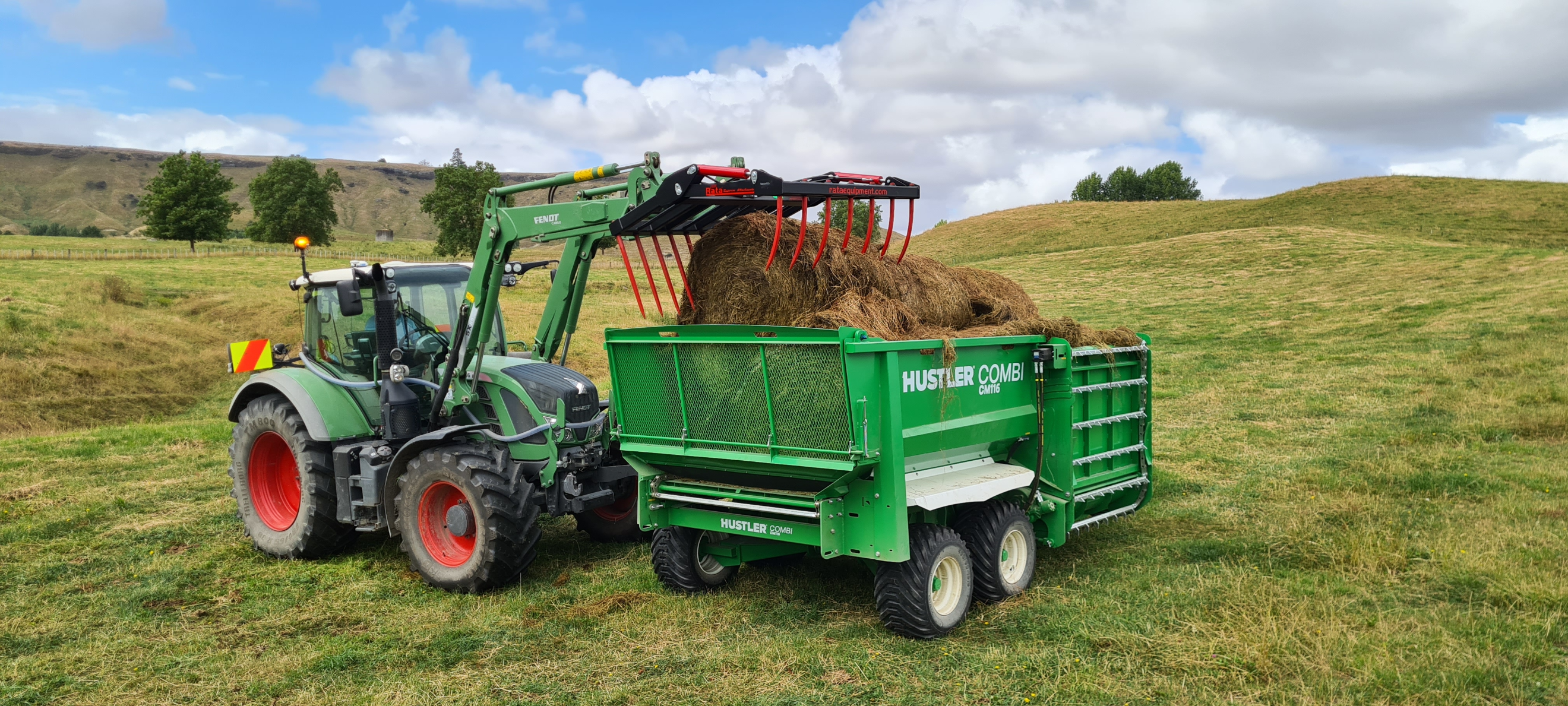

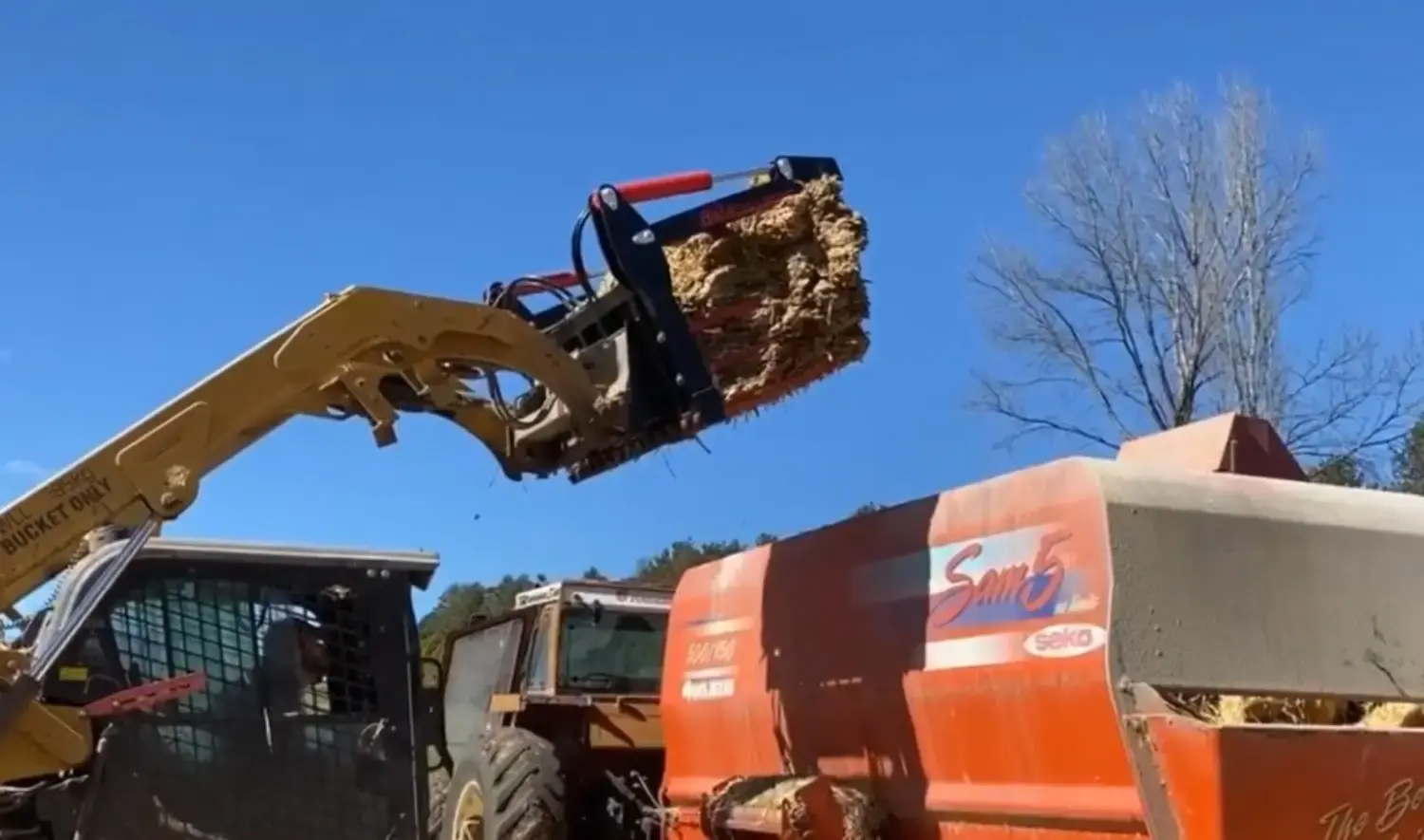

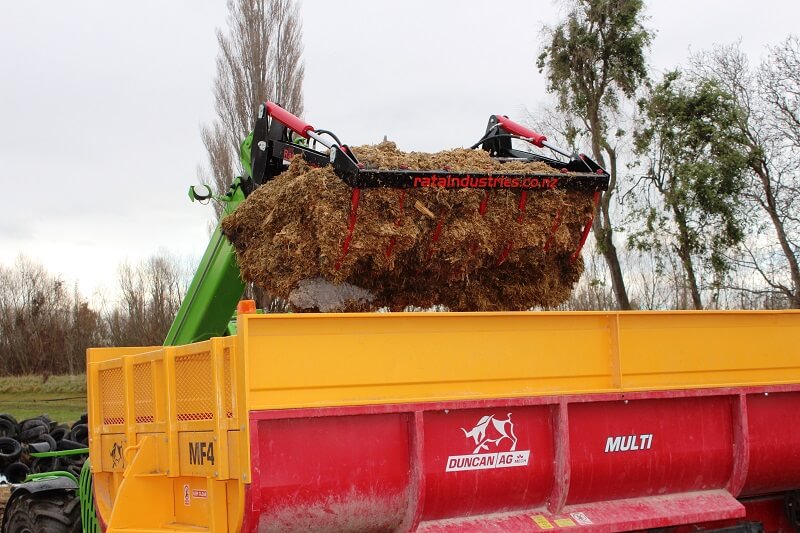

"Rata Silage Grabs are ideal for loading feedout wagons & mixers & are the preffered brand across New Zealand farms"

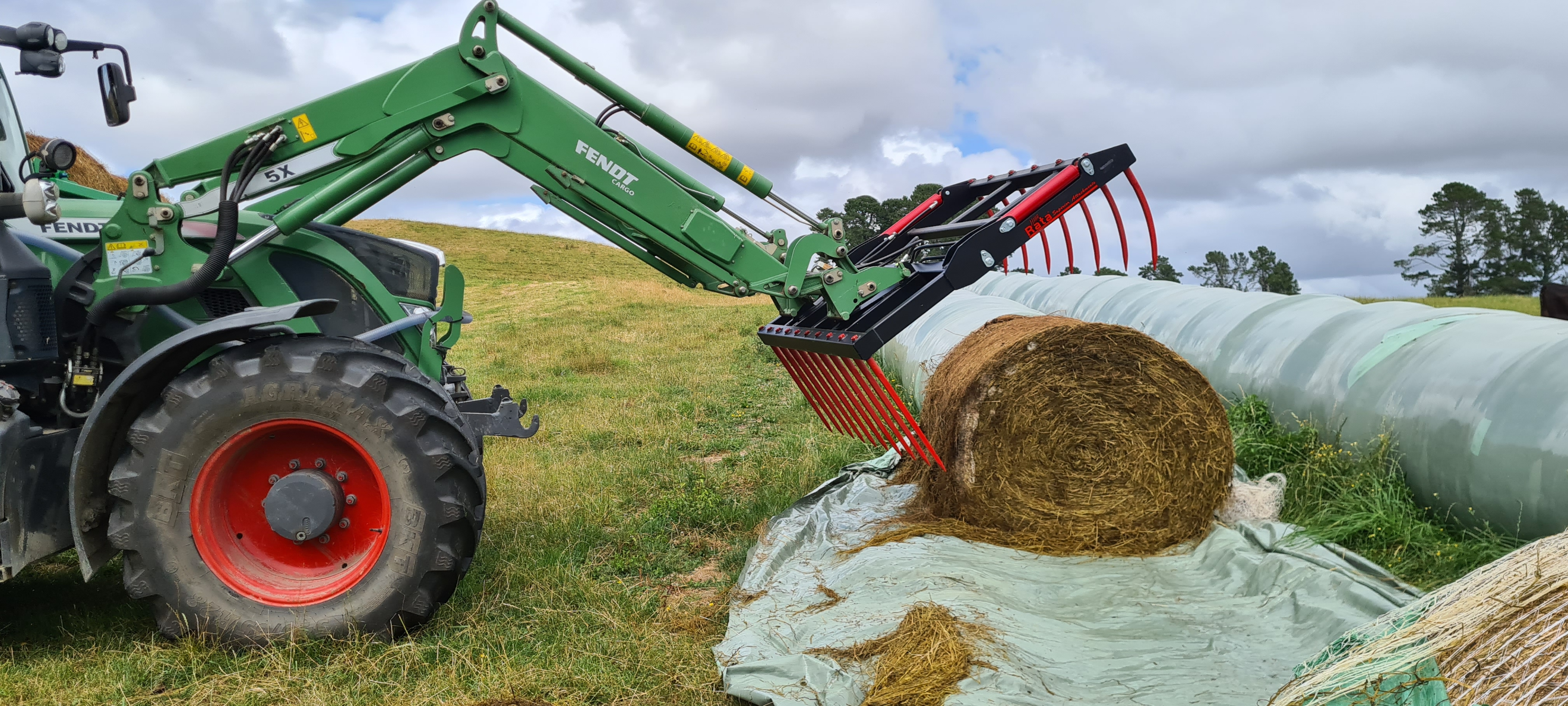

  • Rata Silage Grabs open to 1510mm making it possible to handle large hay bales or silage
  • The open back frame with vertical bars gives excellent vision of the silage or forage thats being handled whilst retaining the product.
  • Rata Silage Grab tines are forged spring steel with a welded conus 1 taper sleeve bush for support.
  • Rata Grabs are produced to fit almost every tractor loader, telehandler or skid steer
  • A range of sizes from 1.2m to 3m are available for all requirments

    Specifications

    Model (Code) Width (m) Capacity (m³) Number of Base Tines
    ASG120 1.20 0.76 7
    ASG150 1.50 0.95 9
    ASG180 1.80 1.13 10
    ASG200 2.00 1.25 11
    ASG220 2.20 1.40 12
    ASG240 2.40 1.50 13
    ASG300 3.00 1.90 16
    SGST Side Tine Set (x2 conus 1 tines)

    Features & Benefits

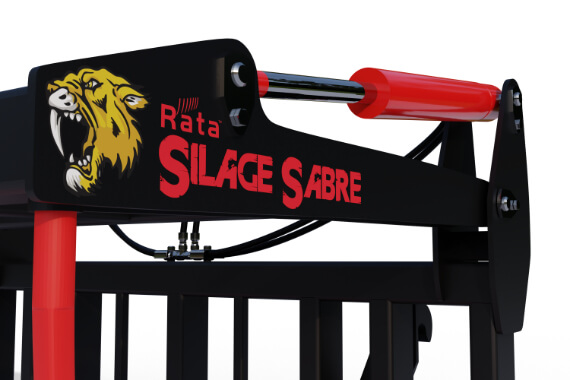

    Powerful Hydraulic Rams on Rata Silage Grab

    1 Powerful Hydraulic Rams

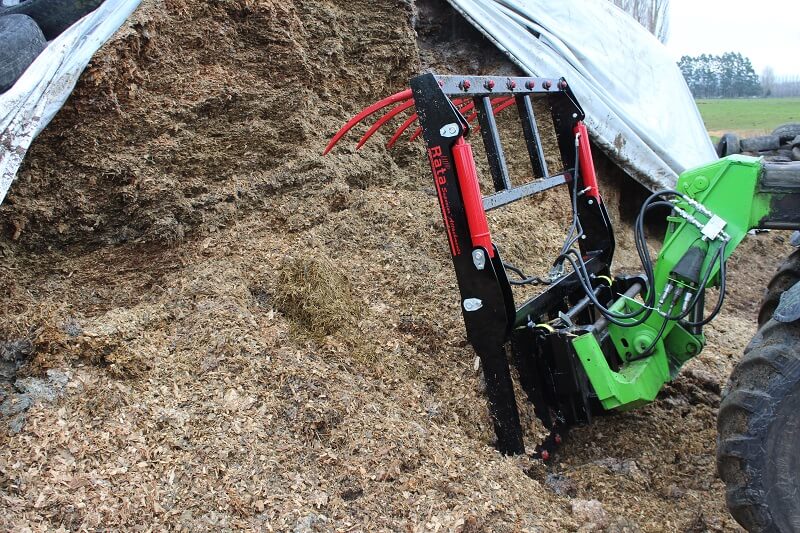

    All Rata Silage Grabs feature powerful hydraulic rams that bite through any silage stack and securely clamp the feed, all Silage Grabs have x2 rams apart from the ASG120 which has a single centre mounted ram.

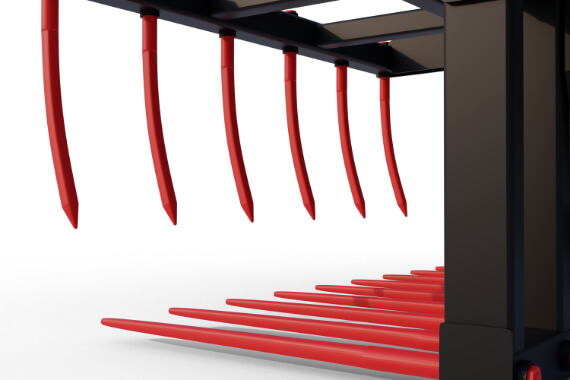

    German SHW TInes in Rata Silage Grab base

    2 High Quality Tines
    Tines in Rata Silage Grabs are high quality and manufactured from silicium spring steel by a renown German manufacturer, these tines are also supported with tapered conus bushes that provide extra support when under load.

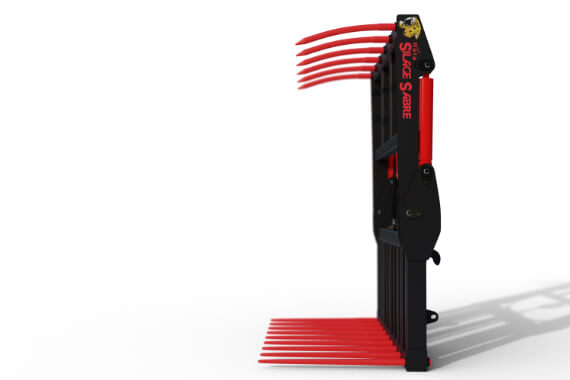

    Wide open width of Rata Silage Grab

    3 Wide Opening Width
    With a wide opening width of 1510mm this grab can easily handle large quantity's of silage or large bales. The dimension is taken from the tip of the base tine directly to the tip of the top tine.

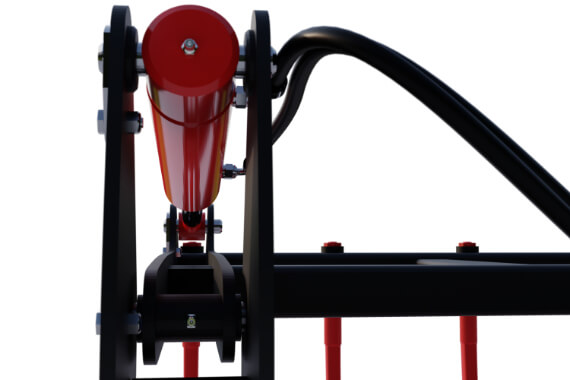

    Excellent Geometry for ease of use

    4 Excellent Pin Geometry
    The pin geometry of Rata Silage Grabs has been designed to provde maximum preassure possible at every point in the open and close arc, this makes it easier to use with high clamping pressure available at all times.
    Show More

    Testimonials

    Jackson Dairies Testimonial

    I got hold of Rata when I needed a Silage Grab, Forks & Tow Hitch. From past experience I had been impressed with the durability & simplicity of the gear. The Silage Grab has performed very well & the Tow Hitch makes the job so much easier, this one is well up there!
    Very high rated - so I can virtually pick up any load.

    They've definitely helped me out!

    Dan Jackson, Jackson Dairies
    Jono Doing - Tile

    Due to the size of the operation we really need gear we can rely on to get the job done.

    We have a range of Rata Equipment from Pallet Forks & Bale Forks, and also about 13 or 14 Grabs across the range of our dairy farms.



    .

    Jono Doig, Dairy Support Manager
