Vogal SX240 Spare Parts Breakdown

All prices NZD RRP, +GST and freight

Also known as Vogal 300

Maintenance Specifications

Oil:

500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

Grease:

General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

Tyres:

Inflate to 24 psi and check regularly. Reinflate as necessary.

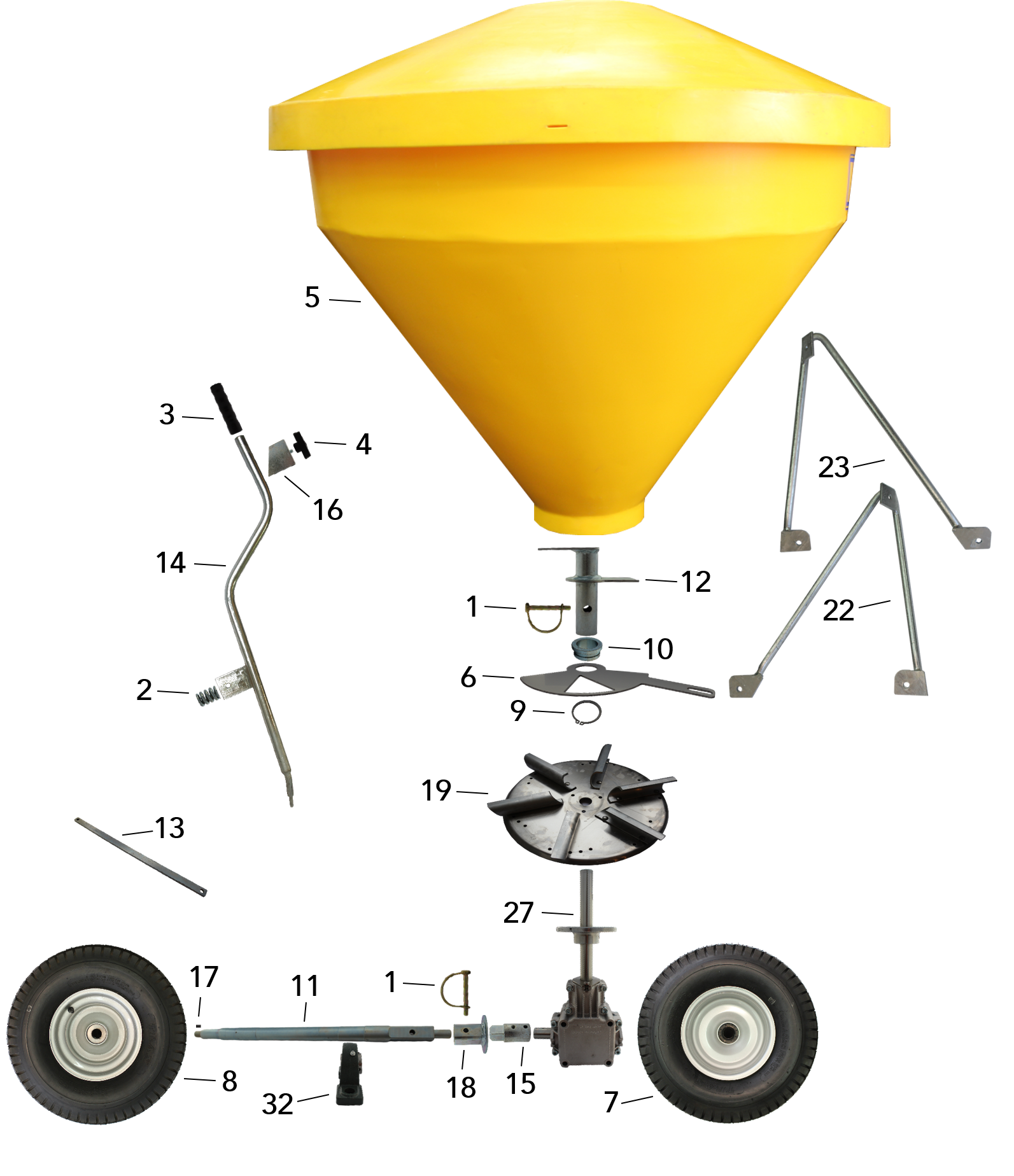

Exploded Parts Diagram




Table of Parts

For a larger image, click on the picture

No. Photo Code Description
1 1093 1093 D Pin
2 1094 1094 Shutter Lever Spring
3 1644 1644 Grip Handle 22mm 7/8 PVC Black
4 1651 1651 Tri Knob Female 8mm
5 1802 1802 Hopper and Lid Yellow
5.1   1803 Lid
6 1944 1944 Shutter Plate
7 2188 2188 Wheel (bearing)
7.1 1572 Side 1572 Wheel / Gearbox Bearing Standard 6205 bearing
7.2 Untitled 1876 Wheel Bearing Seal
8 2189 2189 Wheel (keyed)
9 5042S Slash S 5042S/S Circlip 45mm external S/S
10 SP100-003 SP100-003 Agitator Bush
11 SP100-007 SP100-007 Drive Axle (New Model)
12 SP100-008 SP100-008 Agitator
13 SP100-011 SP100-011 Towbar Adjuster
14 SP100-012 SP100-012 Shutter Lever
15 SP100-016 SP100-016 Drive Stub

Bolt - M8x50 ZP & Nyloc Nut

Grease Nipple - p/n 5054A

16 SP100-017 SP100-017 Pointer
17 SP100-034 SP100-034 Drive Axle Key
18 SP121-006 SP121-006 Drive Slider Female
19 SP102-003 SP102-003 Spinner Disc Complete Assembly
19.1   SP102-005 Spinner Fin
22 SP100-039 SP100-039 Hopper Side Arm LH
23 SP100-039a SP100-039a Hopper Side Arm RH
24 3012 3012 Decal 240
25 1744 1744 Decal 0-7 Shutter Numbers
26 2715 2715 Serial Number Plate
27 2120-1 2120 Gearbox Complete Assembly
27.1   1572 Wheel / Gearbox Bearing Standard 6205 bearing
27.2 1868 1868 Gearbox Seal
28   1679 Felt Washer
29   1901 S/S Shaft Guard
30 RATA30 RATA30 Vogal Warranty Sticker
31 M SX120 M SX240 SX240 User Manual
32 1846 1846 UCP206 30mm Bearing & Housing Set
