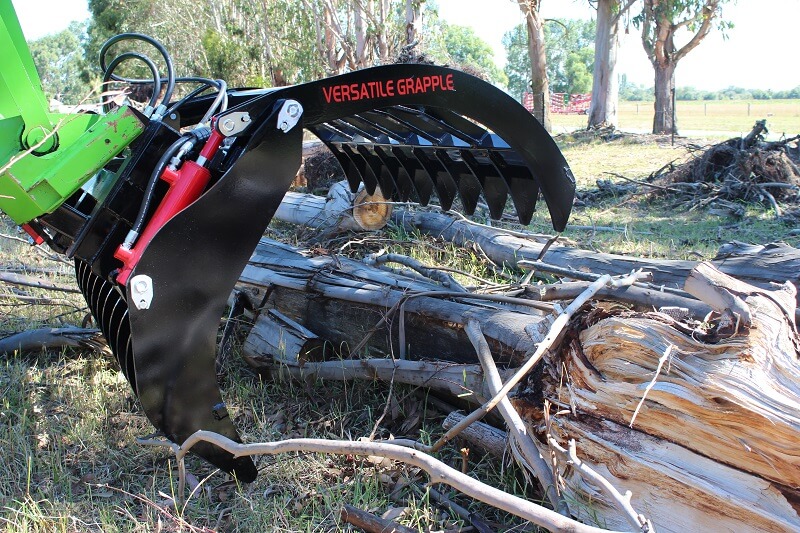

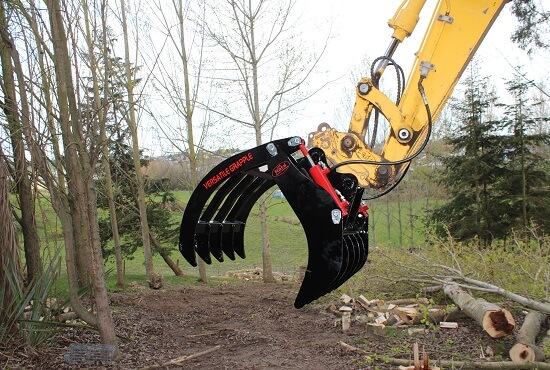

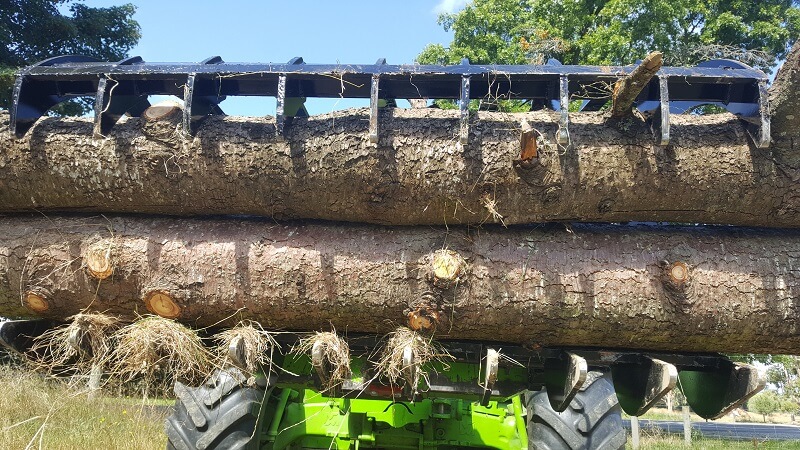

Rata Versatile Grapple handling logs

Versatile Grapple



Download the flyer

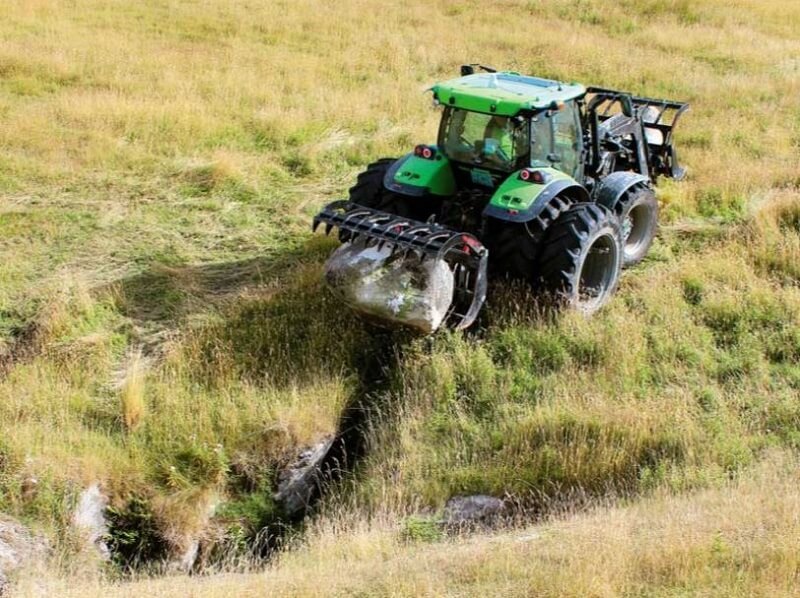

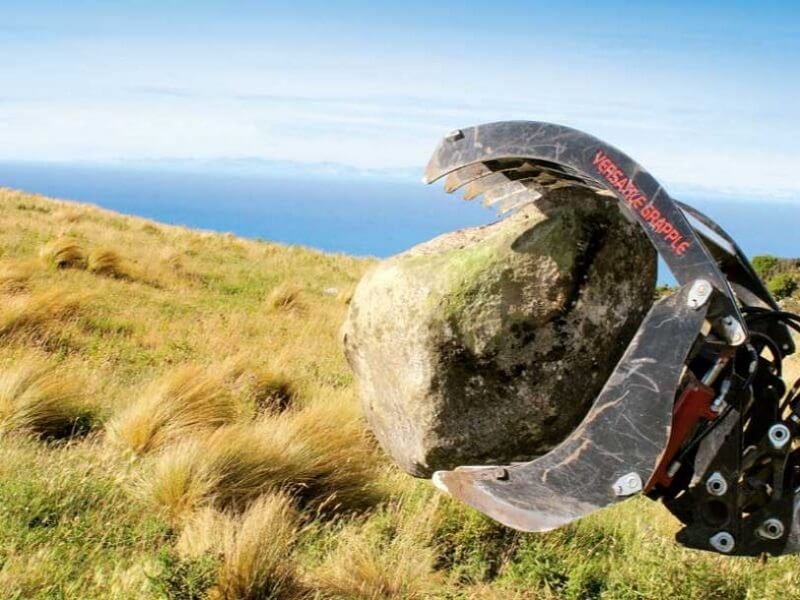

This attachment can be fitted to almost any loader or material handler. It must be the most useful tool you can think of because of due to the number of applications & tasks it can be used for, these include: rocks, logs, tree removal, hay bales, root rake, prunings, rubbish and much more.

The exceptional clamping force and 16mm super high strength tines make this grapple a true multi tasker. Interlocking tines ensure excellent grip & clamping force.

    Interactive 3D model



    Model is extremely high quality - will take 30 seconds to two minutes to load

    Specifications

    Model (Code) Description Weight (kg) Recommended HP
    VG160 1.6m Versatile Grapple 380 75+
    VG180 1.8m Versatile Grapple 400 105+
    VG200 2.0m Versatile Grapple 460 120+
    VG220 2.2m Versatile Grapple 500 120+
    VG240 2.4m Versatile Grapple 540 130+

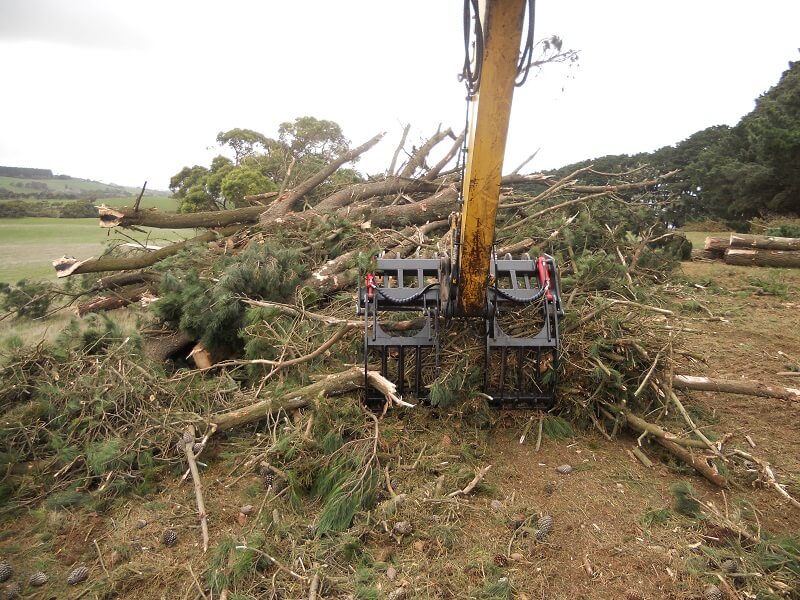

    Grapples for Diggers are available between 0.9m to 1.8m

    Recommended HP is a guide only, loader lift capacity & tractor weighting will determine best size

    Features & Benefits

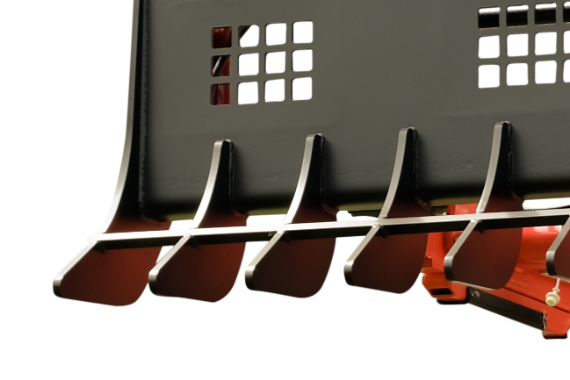

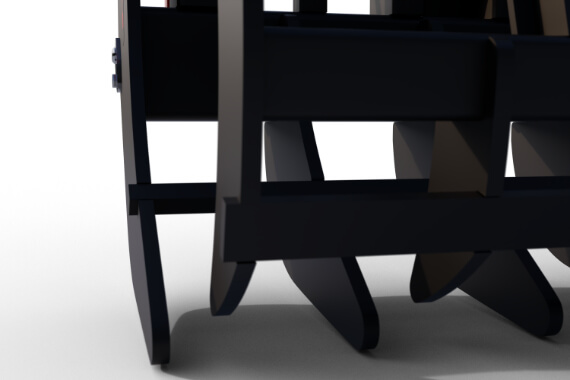

    High Tensile Braced Tines

    1 High Tensile & Braced Tines
    Versatile Grapple tines are made from 16mm AR450 grade high tensile steel for maximum strength and durability, the tines are also braced to ensure maximum rigidity and prevent any possible splaying. Tines are 20mm thick on Excavator models.

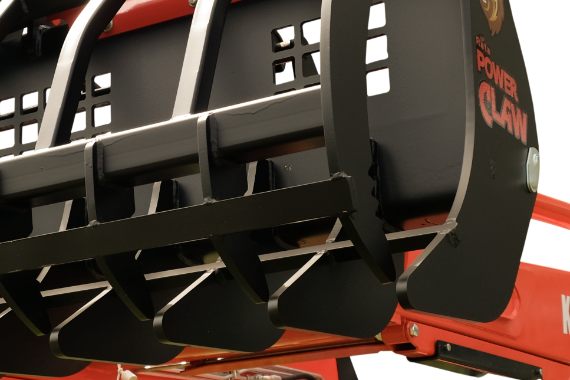

    Interlocking Tines

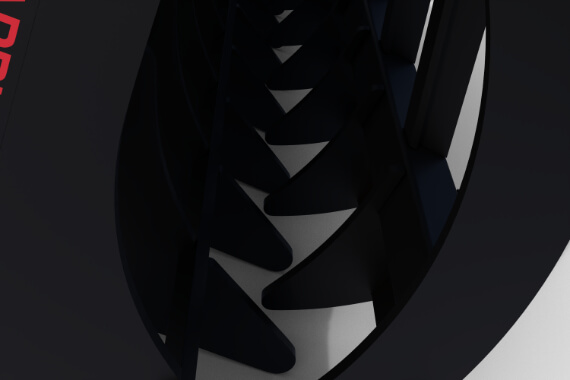

    2 Interlocking Tines
    Interlocking tines of the Versatile Grapple ensure excellent grip on any product or item that's being handled, this makes handling the likes of hedge trimmings and branches much easier as the product is fully secured.

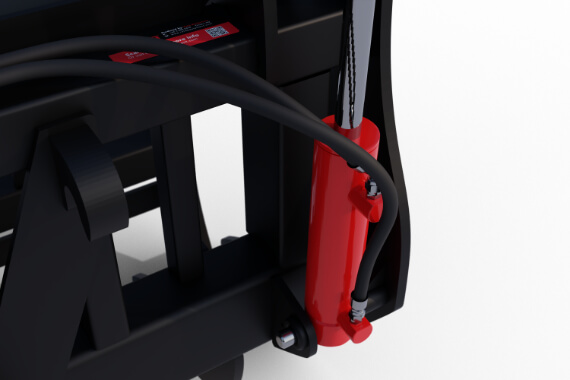

    Hydraulic Protection

    3 Hydraulic Protection
    Rata Versatile Grapples feature powerful hydraulic rams and high quality hosing, the rams are located to the rear of the grapple away from the working area and the hoses are located out of harms way to ensure full protection.

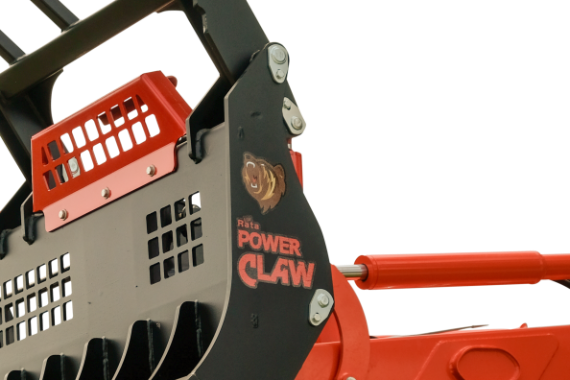

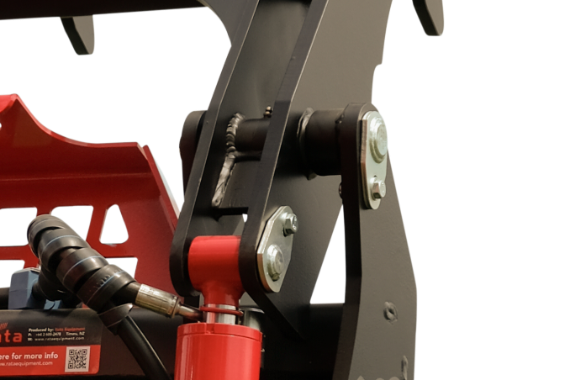

    Heavy Pins & Bushes

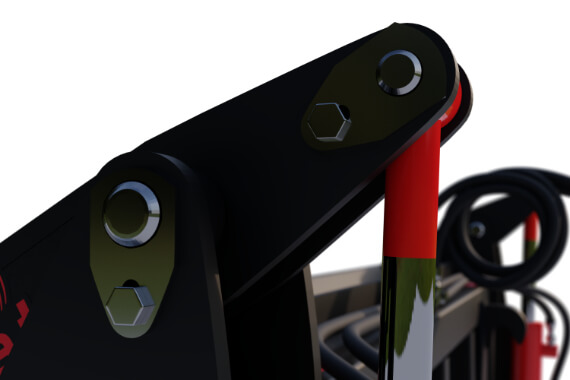

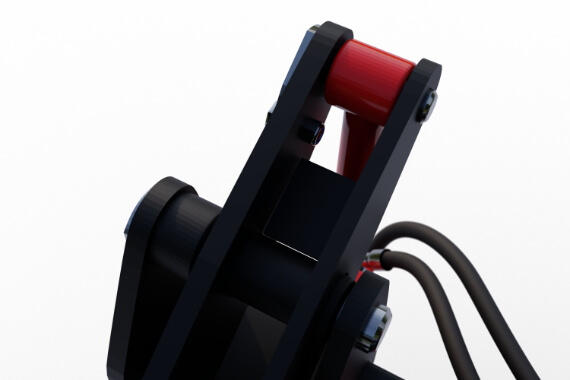

    4 Heavy Pins & Bushes
    The Rata Versatile Grapples features heavy duty pins & bushes throughout the build. All pins are high tensile and greasable with the main pivots being 35mm diameter and supported by extra bushes.

    Testimonials

    Rata VG Jason Turner Testimonial

     G'day, I'm Jason Turner and we use Rata Gear. We've got one of these grapples here [Rata Versatile Grapple] and we've had it for 11 years and its still going. Love it to bits. Highly recommend Rata gear.

    Jason Turner, Farmer
