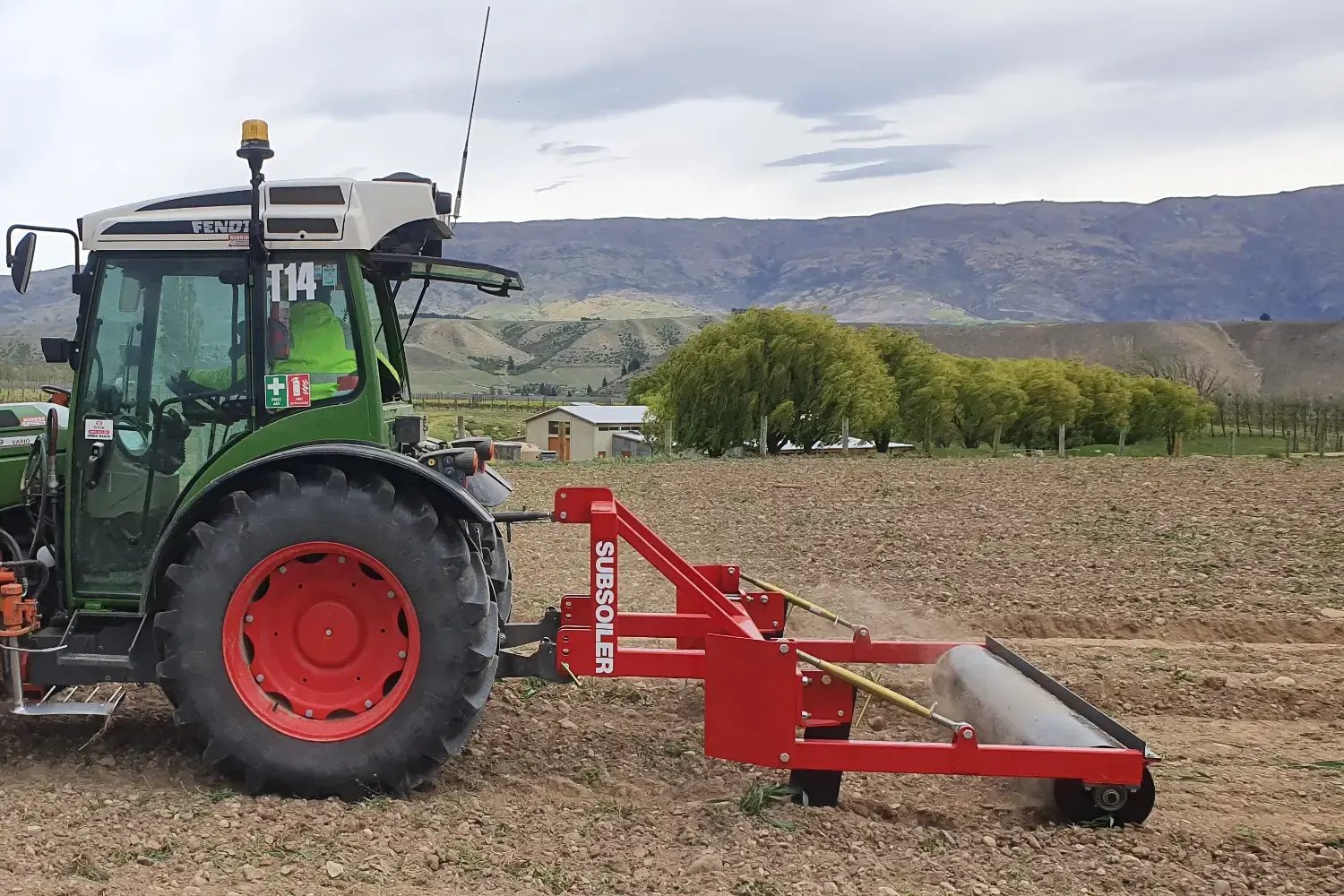

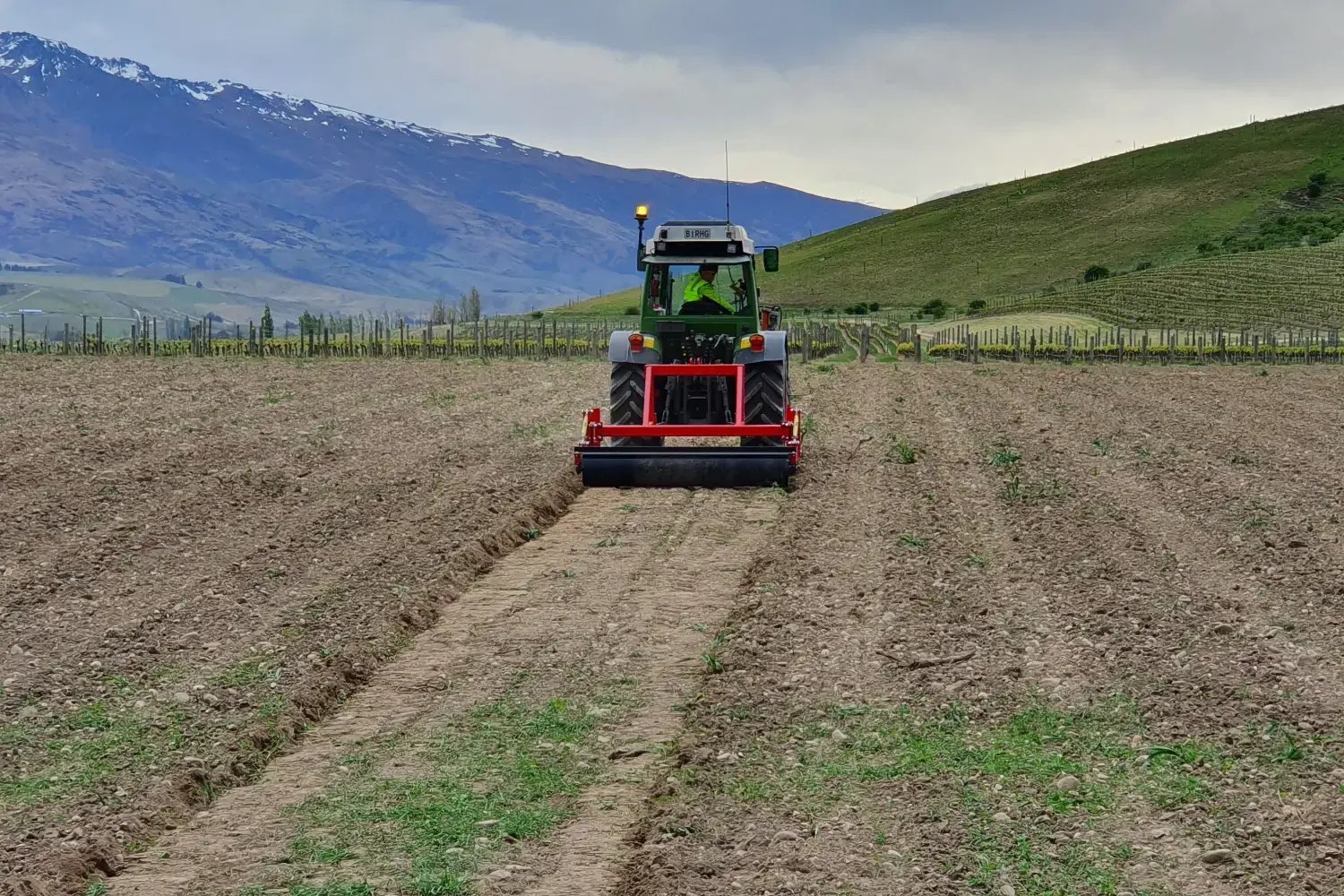

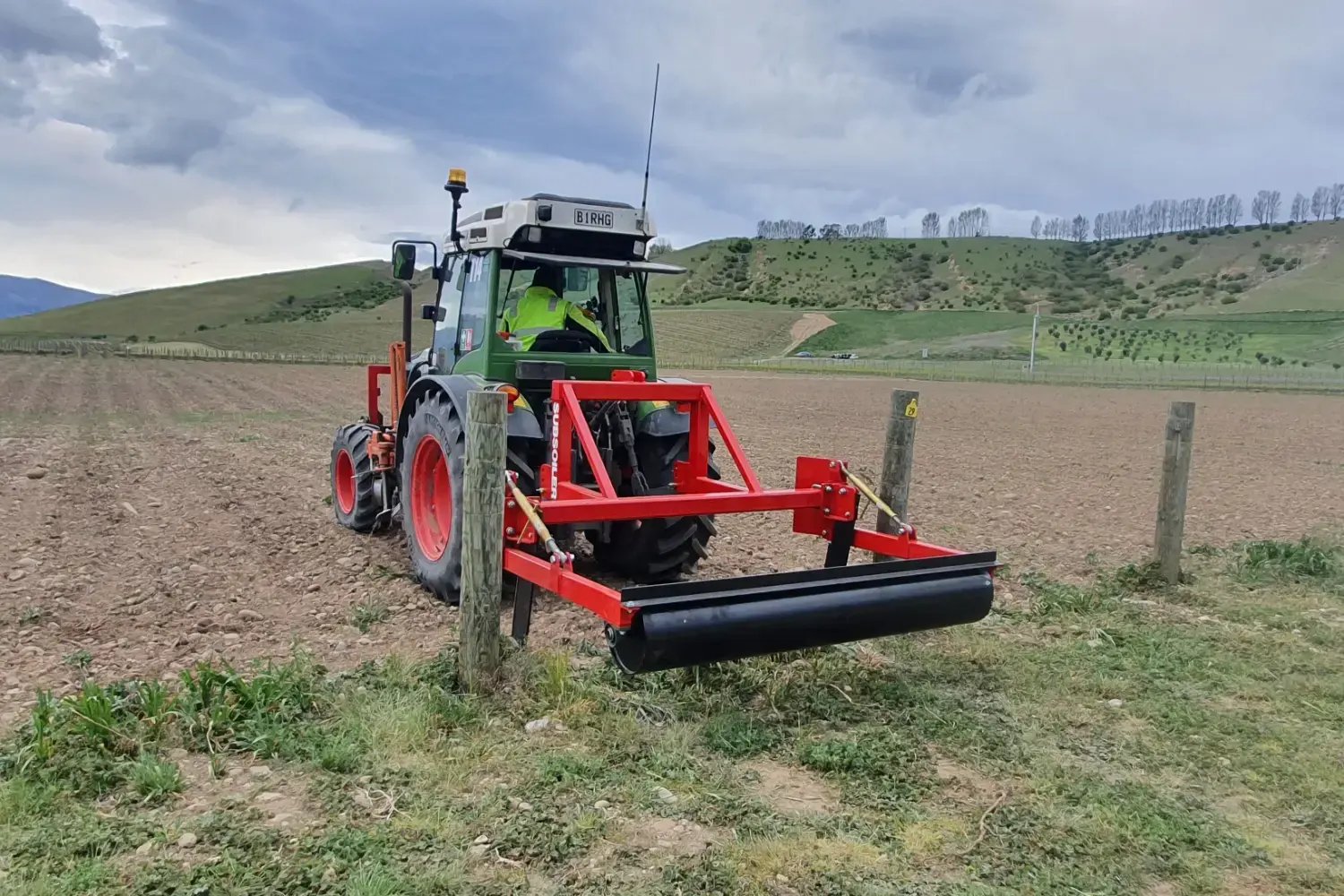

Rata Toolbar Subsoiler 2 Leg 3.2 1500 pix (1)

    Toolbar Horticultural Subsoil Aerator

    Rata Toolbar subsoilers are designed specifically for use in the ground where compaction has occurred in the application of orchards and vineyards. They can also be used for pre-planting to loosen the ground, giving plant roots a great start.

    The 5 Main Signs of Soil Compaction, find out HERE

    3 Causes of Soil Compaction Explained, find out HERE

    QUOTE REQUEST

      Why buy a Toolbar Subsoiler?

      7334e36a-redtick_1000000000000000000028Boost Crop Yields 7334e36a-redtick_1000000000000000000028 Improve soil Structure 7334e36a-redtick_1000000000000000000028Reduce Soil Erosion 7334e36a-redtick_1000000000000000000028Enhance Water Retention and Drainage7334e36a-redtick_1000000000000000000028Versatility

      Investing in a Rata Toolbar Subsoil Aerator means committing to healthier soils, better crop performance, and more sustainable land management practices, ultimately benefiting your farm’s productivity and the environment. The Toolbar Subsoiler can be supplied with two or three legs. Rata Toolbar Subsoil Aerators come in different configurations, making them adaptable to various types of soils and farming practices. Whether you're working with pastureland, crop fields, or orchards, these aerators provide versatile solutions for soil management.

      The 5 Main Signs of Soil Compaction, find out HERE
      3 Causes of Soil Compaction Explained, find out HERE


      QUOTE REQUEST

      Specifications

      Model (Code) Number of Legs Working Width (m) Max Working Depth (mm) Recommended min HP
      KSSF2 2 1.8 400 65
      KSSF3 3 1.8 400 75

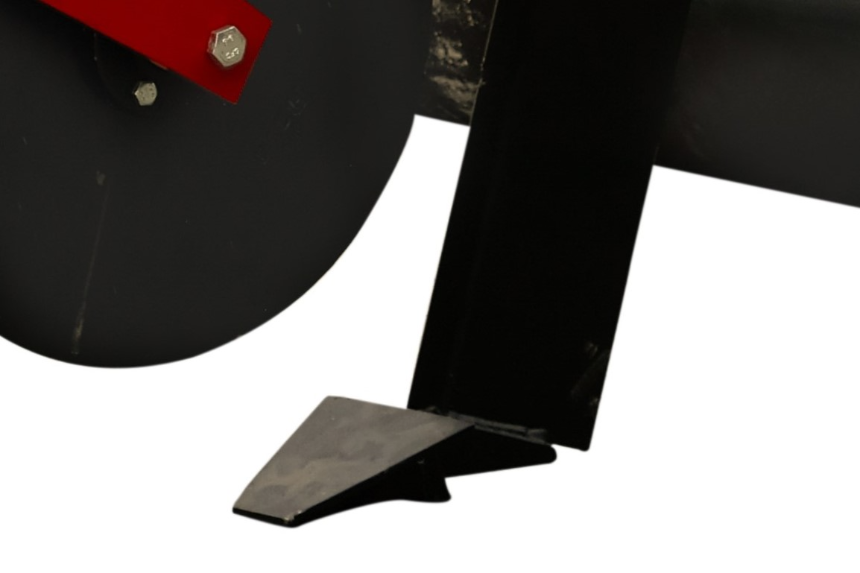

      Note: 150mm wide points available in lieu of standard 60mm wide point

      Features & Benefits

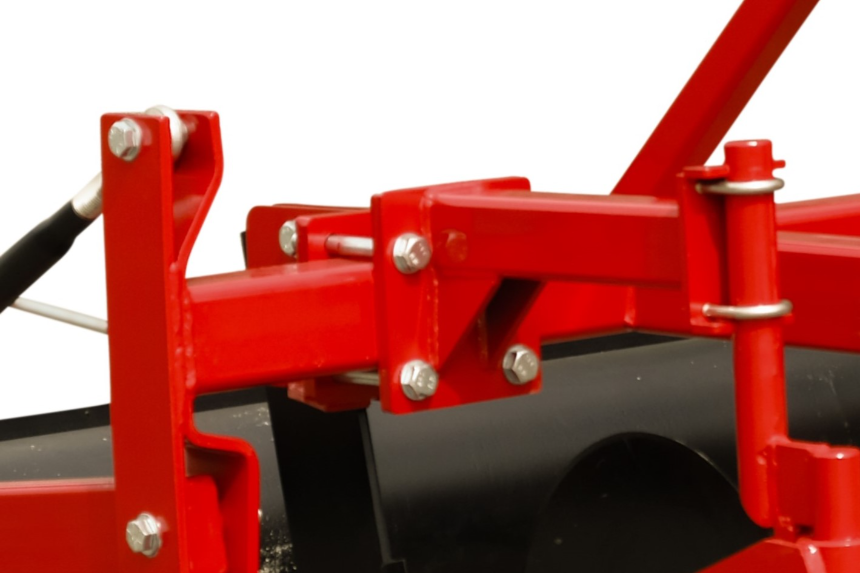

      Rata Toolbar Subsoiler leg 860 pix 3.2 R

      1 Adjustable Leg Width
      The legs can be adjusted along the toolbar to suit row applications and wheel spacing, and extra legs can be added using the bolt-on system.

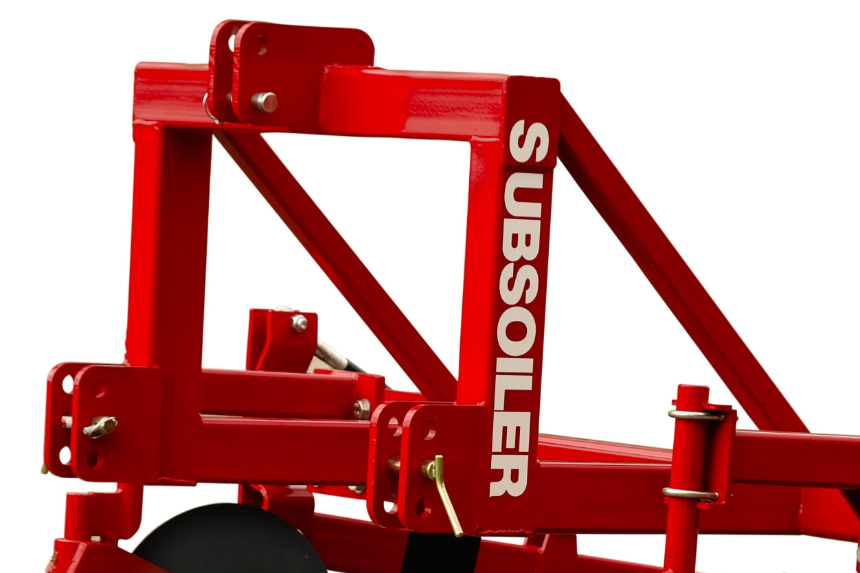

      Rata Toolbar Subsoiler Frame 860 pix 3.2 R

      2 Robust Frame
      The main linkage frame is made from 100 x 100 x 6 RHS, giving the toolbar subsoiler a robust mainframe. The toolbar is 100 x 100 x 9 RHS.
      SHOW MORE

      What Our Customers Have To Say

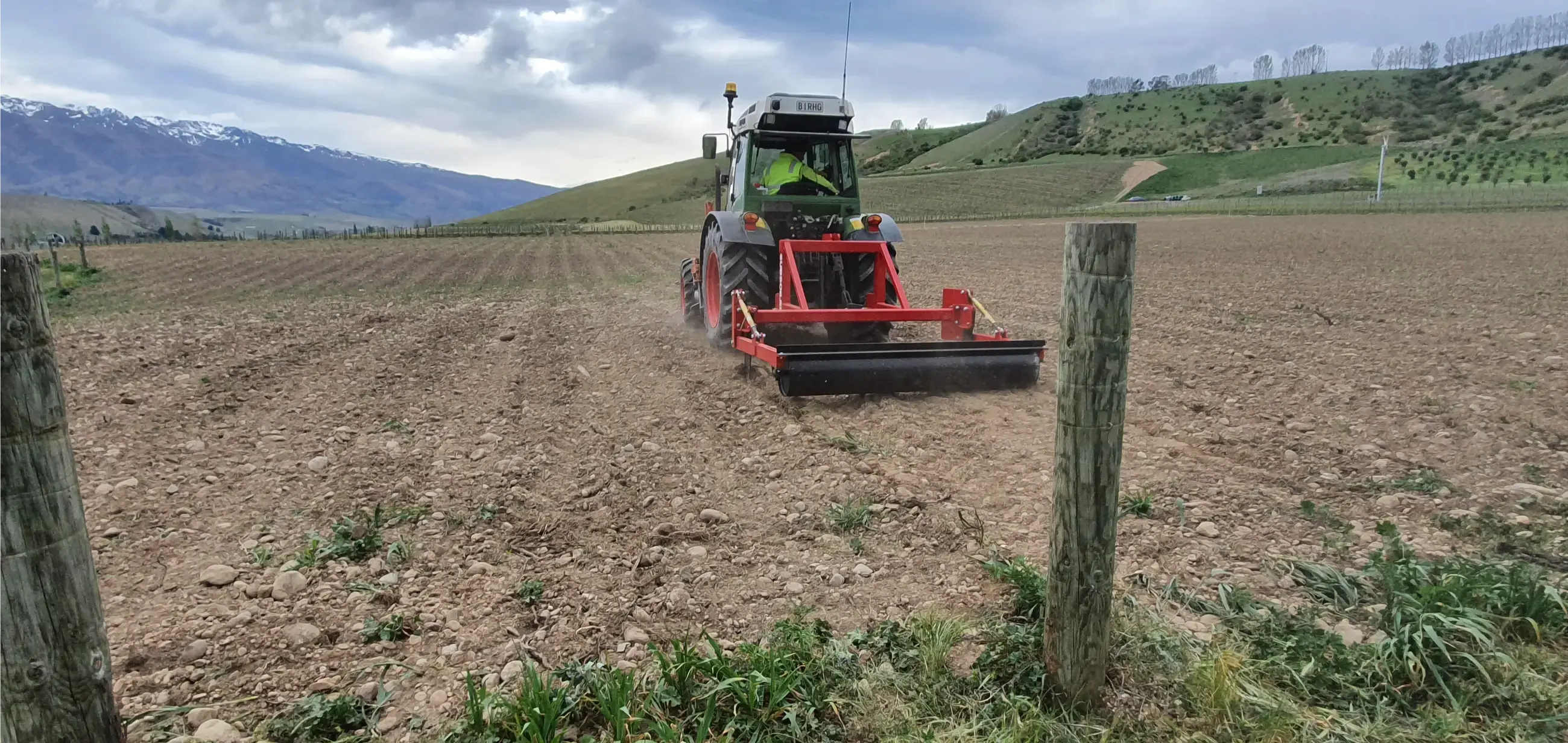

      Rata Toolbar Subsoiler 2600 pix (1)

      I bought the Rata a bit over a year ago & have had great results out of it. Crops seem to get established earlier & also hang on for longer when its dry. We've also found when we have heavy rains & would normally get a bit of scouring... where we've used the subsoiler there's been no run off at all.

      It's a great bit of kit!

      Tony West, Marlborough

      Toolbar Subsoiler

      Straight - White Background@4x

      Original design resulting from years of testing, feedback, and improvement.

      ‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

      QUOTE REQUEST



      Dealer Locator

      The Toolbar Subsoiler is sold throughout our nationwide network of dealers, find your nearest one today.
