Auto Reset Panerazer

304 Auto Reset Panerazers are the ultimate subsoiling machine, especially when the soils to be aerated are heavy & full of obstructions.

Being auto reset makes your subsoiling job seamless as the legs simply lift over any obstruction & immediately reset automatically so you can continue aerating your soils without stopping. Leaf spring reset has a great advantage over rams, not only do they require less maintenance, but the legs are at the highest point of resistance while in the ground & resistance reduces as they lift. This ensures the legs to not tip falsely & ensures they do clear obstructions when hit.

Product Gallery

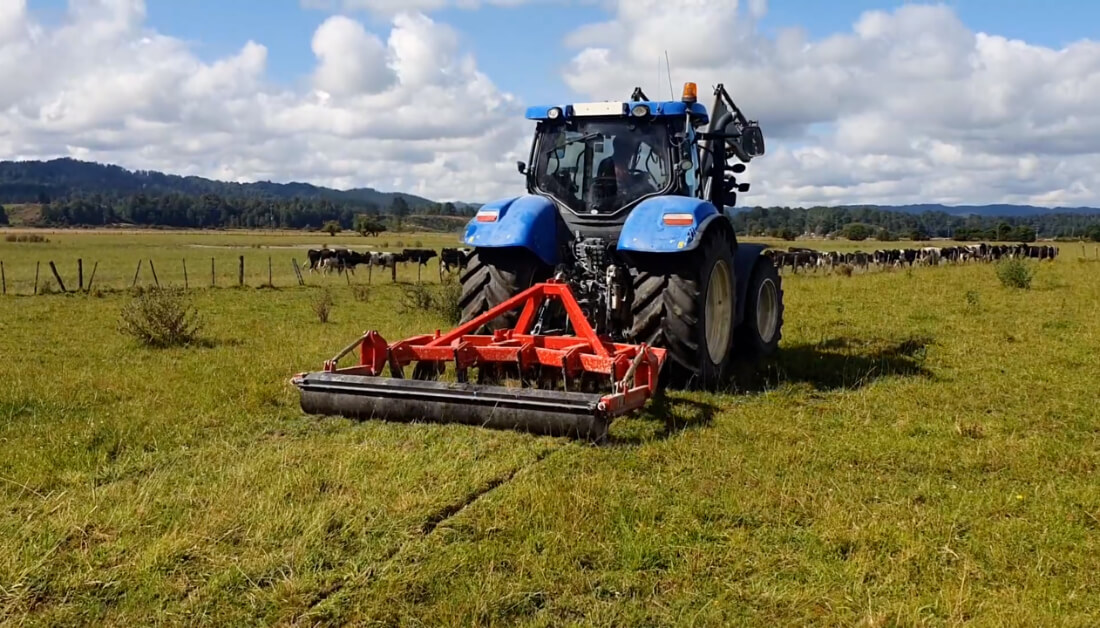

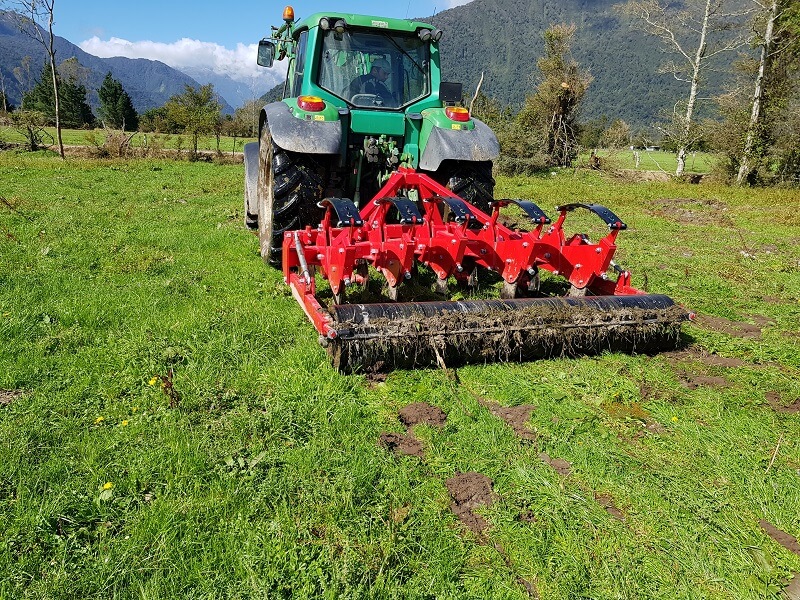

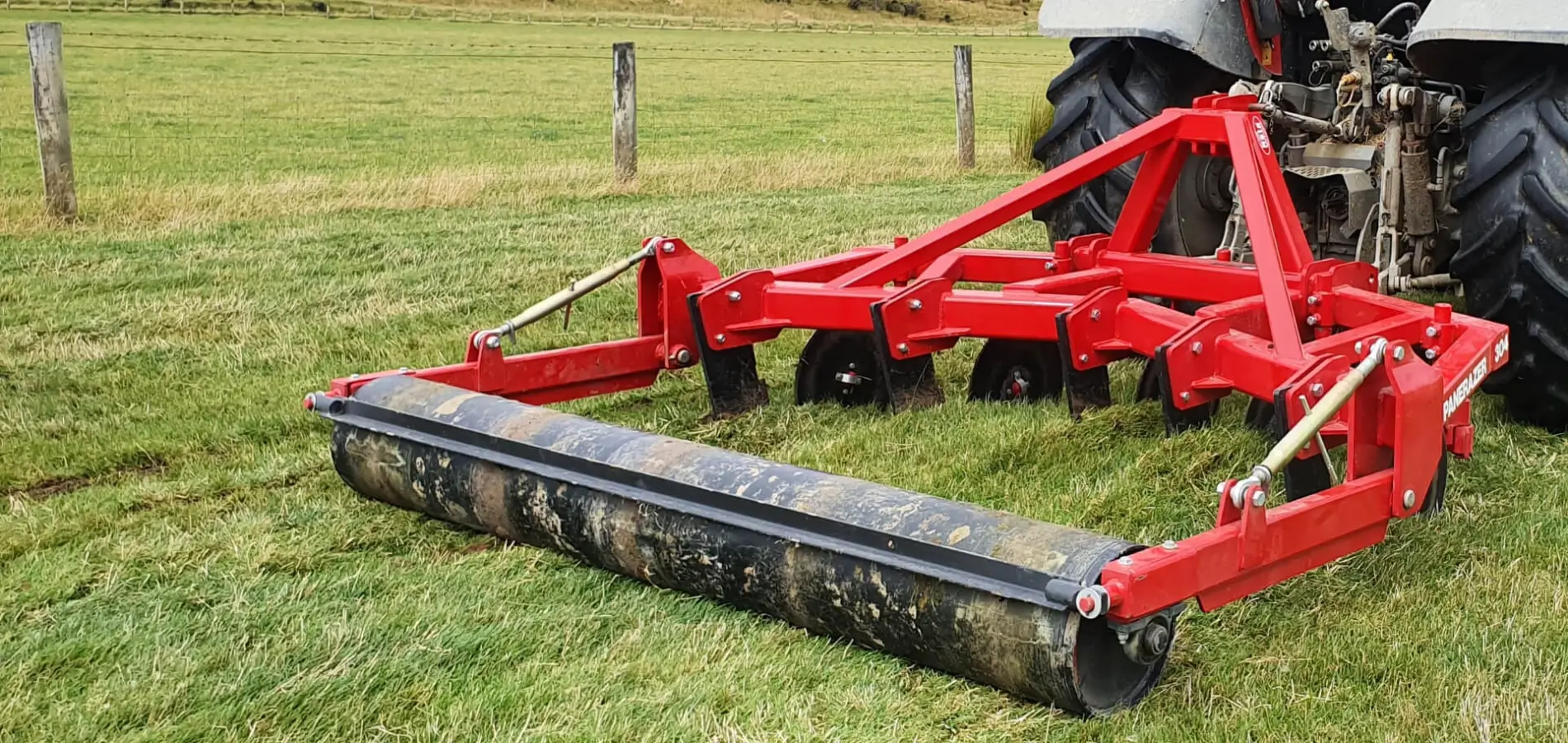

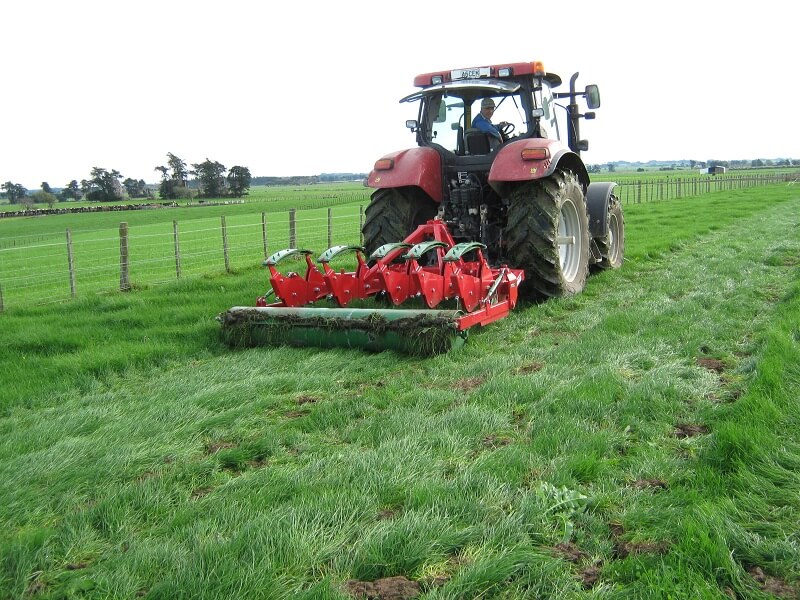

Rata Panerazer Subsoiler aerating in lush pasture

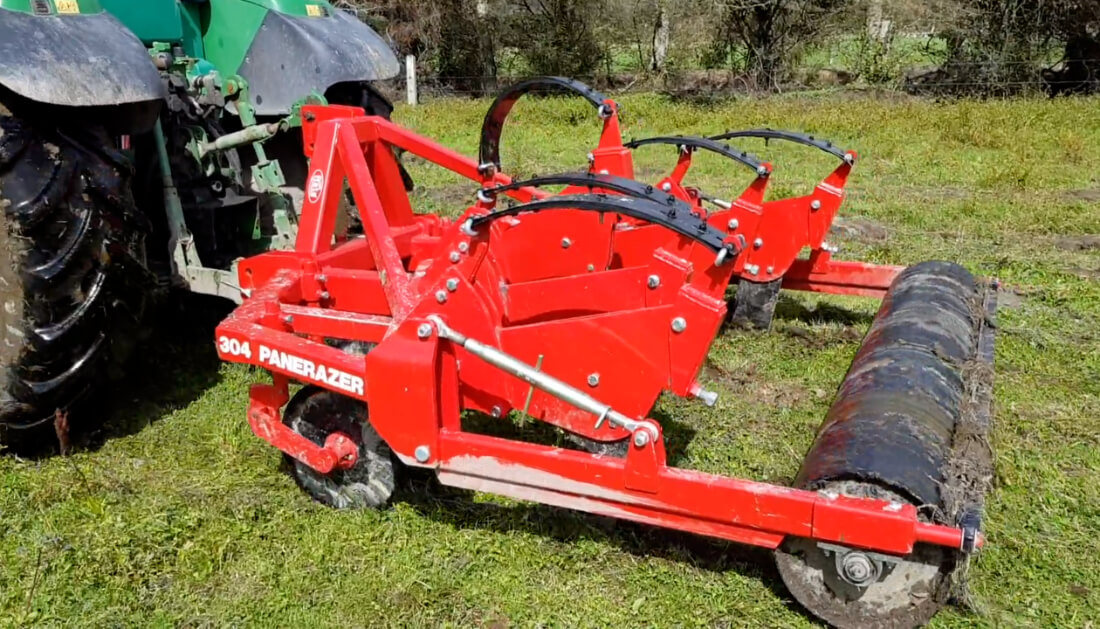

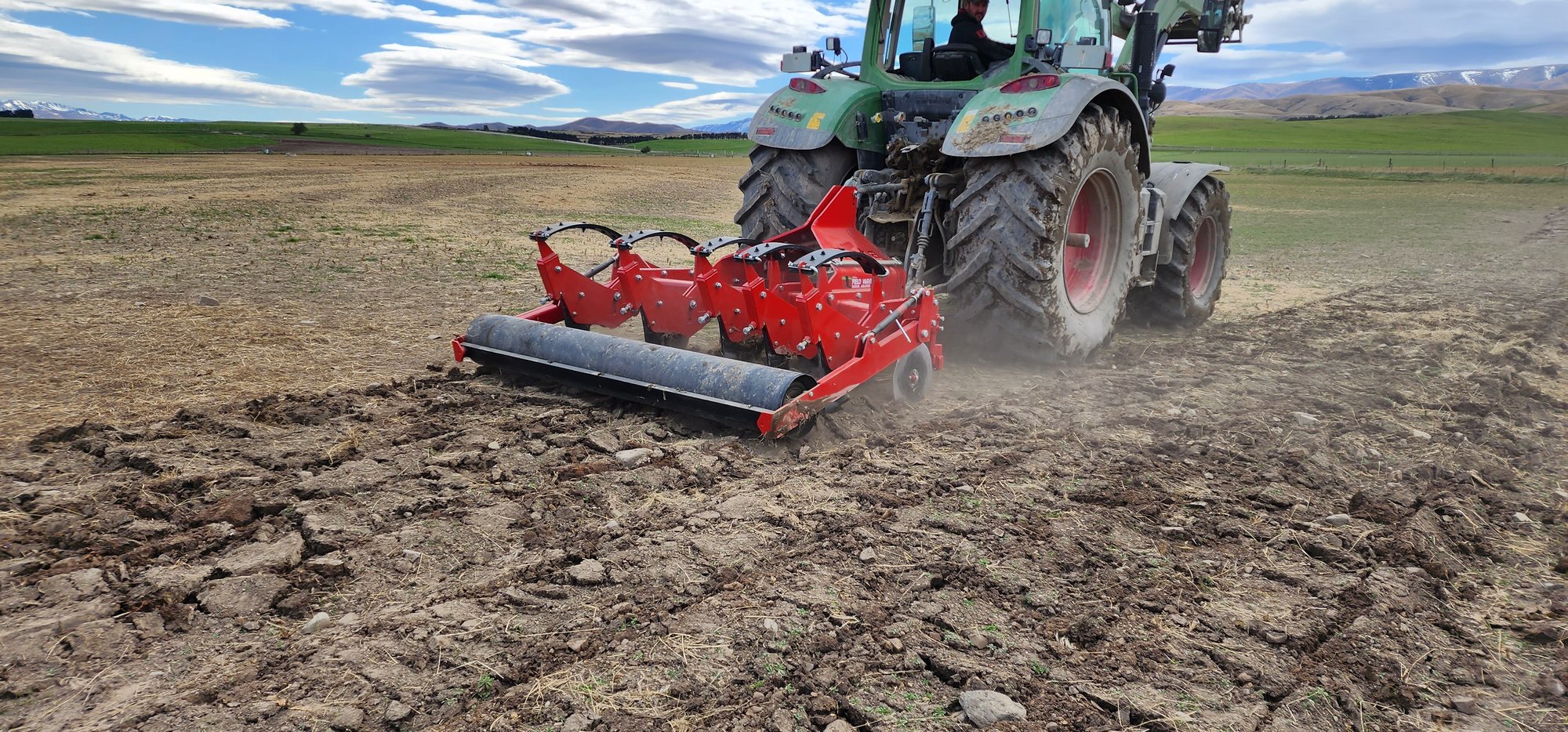

Rata Auto Reset Panerazer soil aerator behind John Deere Tractor

Product Video Gallery

Murray Coates

South Island Customer Sam Todd a dairy farmer from the Rai Valley. He had a compaction issue on his property, after some research he purchased a 7 Leg Shear Bolt Panerazer. Check out the difference!

View the Auto Reset Panerazer Product Flyer

Specifications

Model (Code)	Number of Legs	Working Width (m)	Max Working Depth (mm)	Recommended HP
304P5ARR	5	2.50	450	120
304P7ARR	7	3.50	450	150
304P9ARR	9	4.50	450	190
Note: Winged foot in lieu of pasture point available

SUBSOIL AERATOR DEMONSTRATIONS

An obligation free demo, on your farm, using a Rata Subsoil Aerator.

Features & Benefits

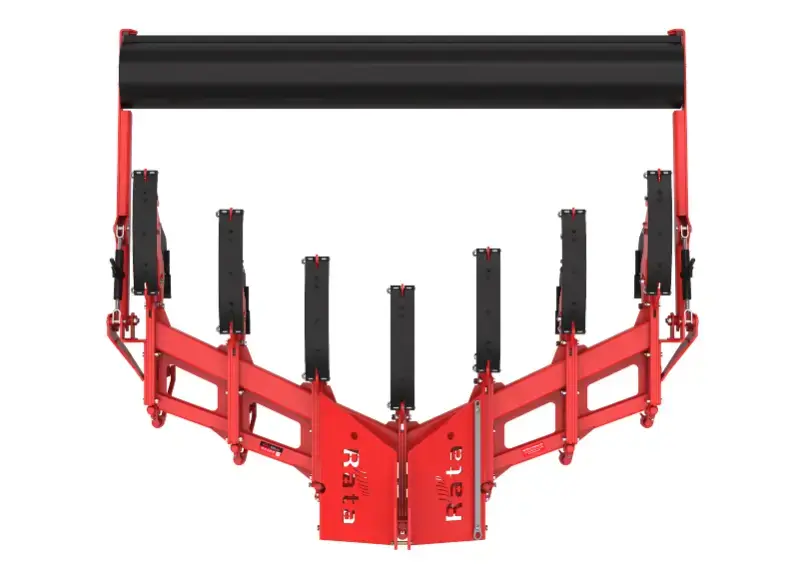

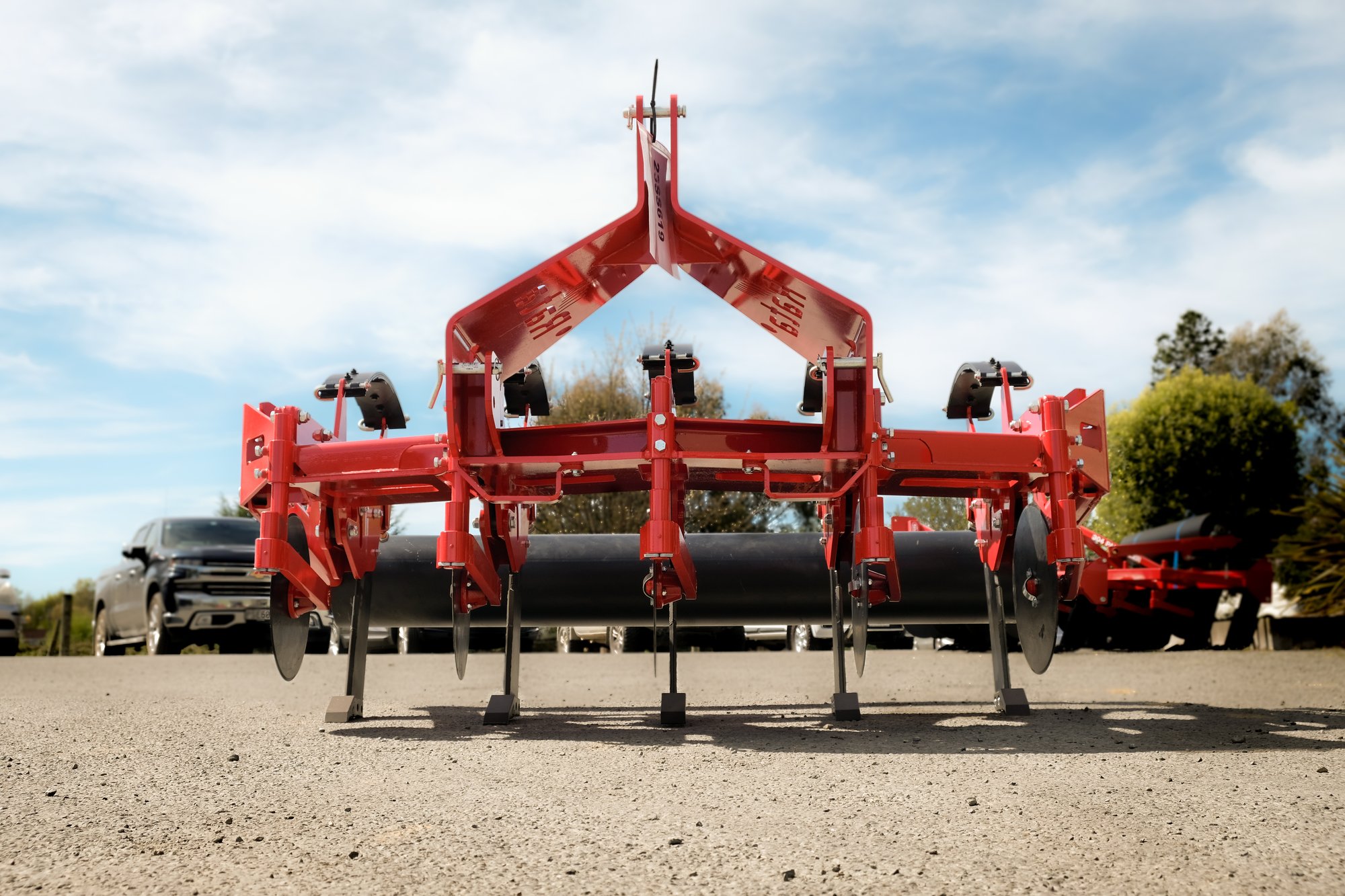

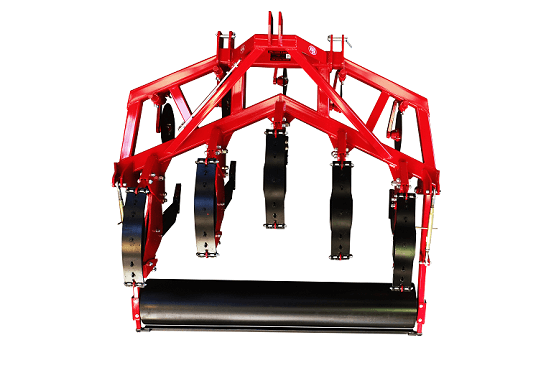

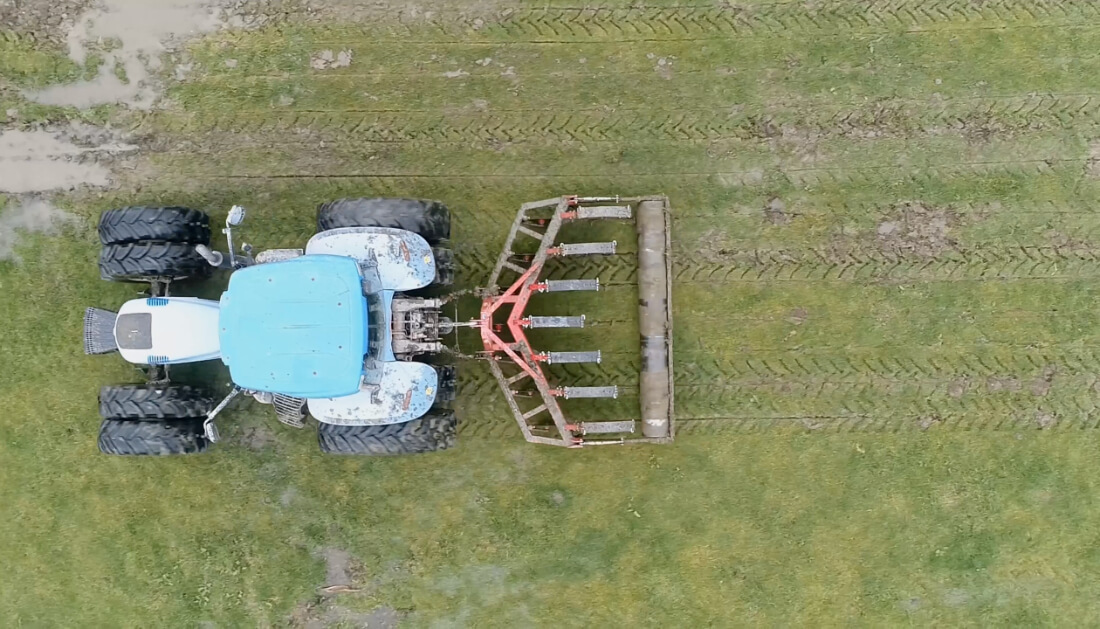

Rata Auto Reset Panerazer soil aerator from above showing V formation of legs

1 V Formation

Rata Panerazer legs are in a 'V' formation, this reduces drag between the legs making it easier to pull and uses less fuel. V formation also means the legs leave the ground independently at the headlands which eliminates 'heaving'

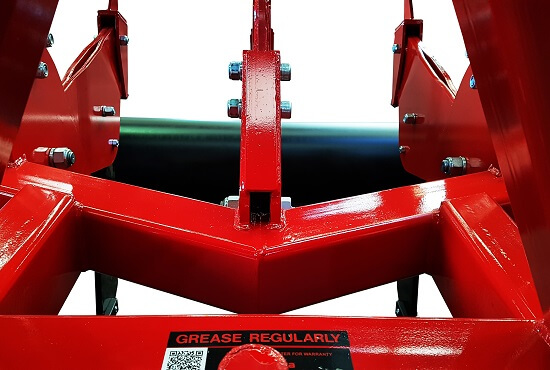

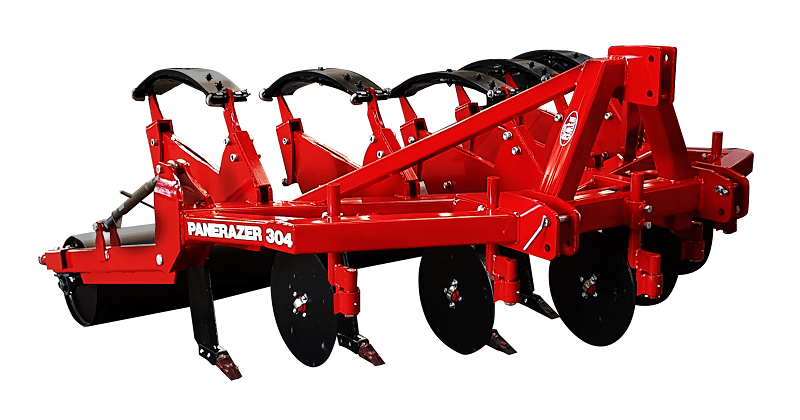

Heavy duty build of Rata Auto Reset Panerazer Subsoil Aerator

2 Heavy Duty Build

Rata Auto Reset Panerazers feature a heavy duty build, featuring a heavy duty RHS main frame construction with reinforcing to cope with hard conditions. The wear protected legs are also securely bolted into the reset mounts.

Depth Adjustment on the Rata subsoil aerators

3 Depth Adjustment

Working depth on the 304 Auto Reset model Panerazer is easily controlled via the rear roller setting and tractor 3 point linkage. The rear roller is secured to the main aerator frame with heavy machine pins

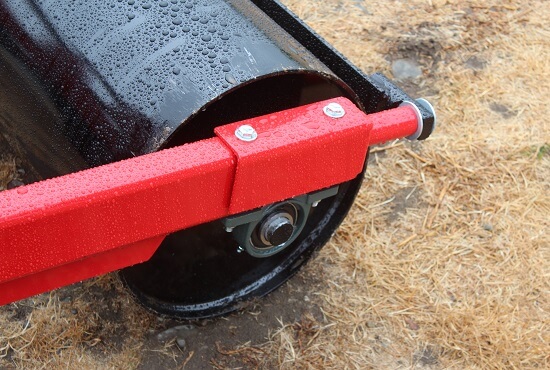

Rear Roller Bearing

4 Roller Bearings

The rear roller on the 304 Panerazer is securely mounted into a sealed bearing to ensure smooth operation with minimal wear. The roller is also kept clean by a scraper mounted just behind.

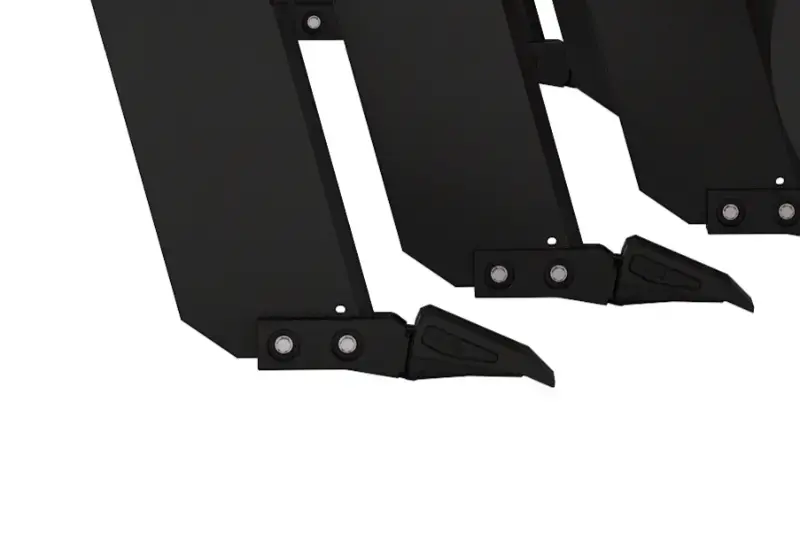

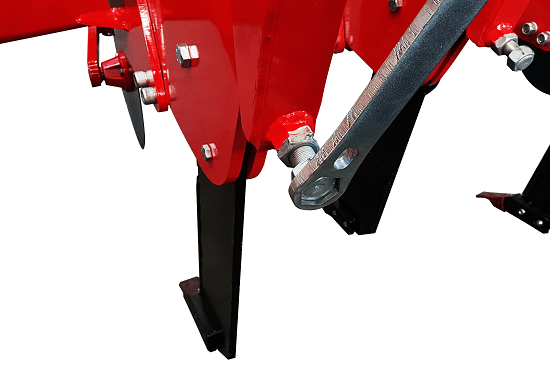

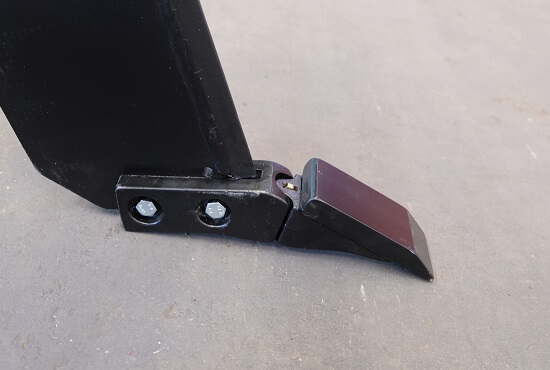

Heavy duty foot

5 Modular Foot

An innovative modular leg, foot & point assembly provides maximum flexibility of parts. Cast point features extra wear protection in the form of beveled hard wearing plate.

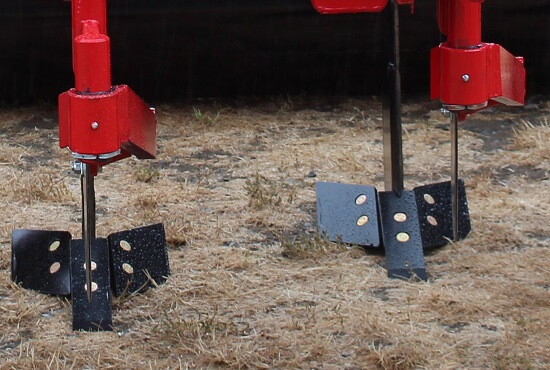

Optional winged points for Rata subsoil aerators

6 Optional Winged Feet

Winged feet are an option on the Rata Panerazer range, these provide extra ground lift when subsoiling to create great subsoil disturbance.

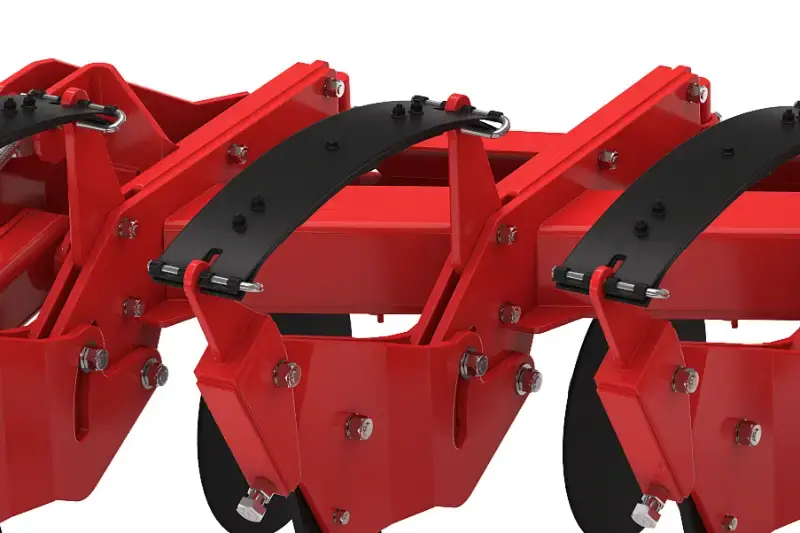

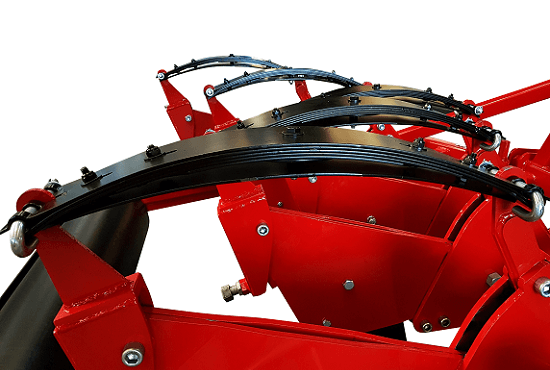

Heavy duty leaf springs for Panerazer Auto Reset

7 Leaf Spring Reset

The auto reset system on this model of Panerazer is powered by heavy duty leaf springs mounted on each leg. Leaf springs reset immediately after tripping & clearing the obstacle unlike other reset systems such as hydraulic.

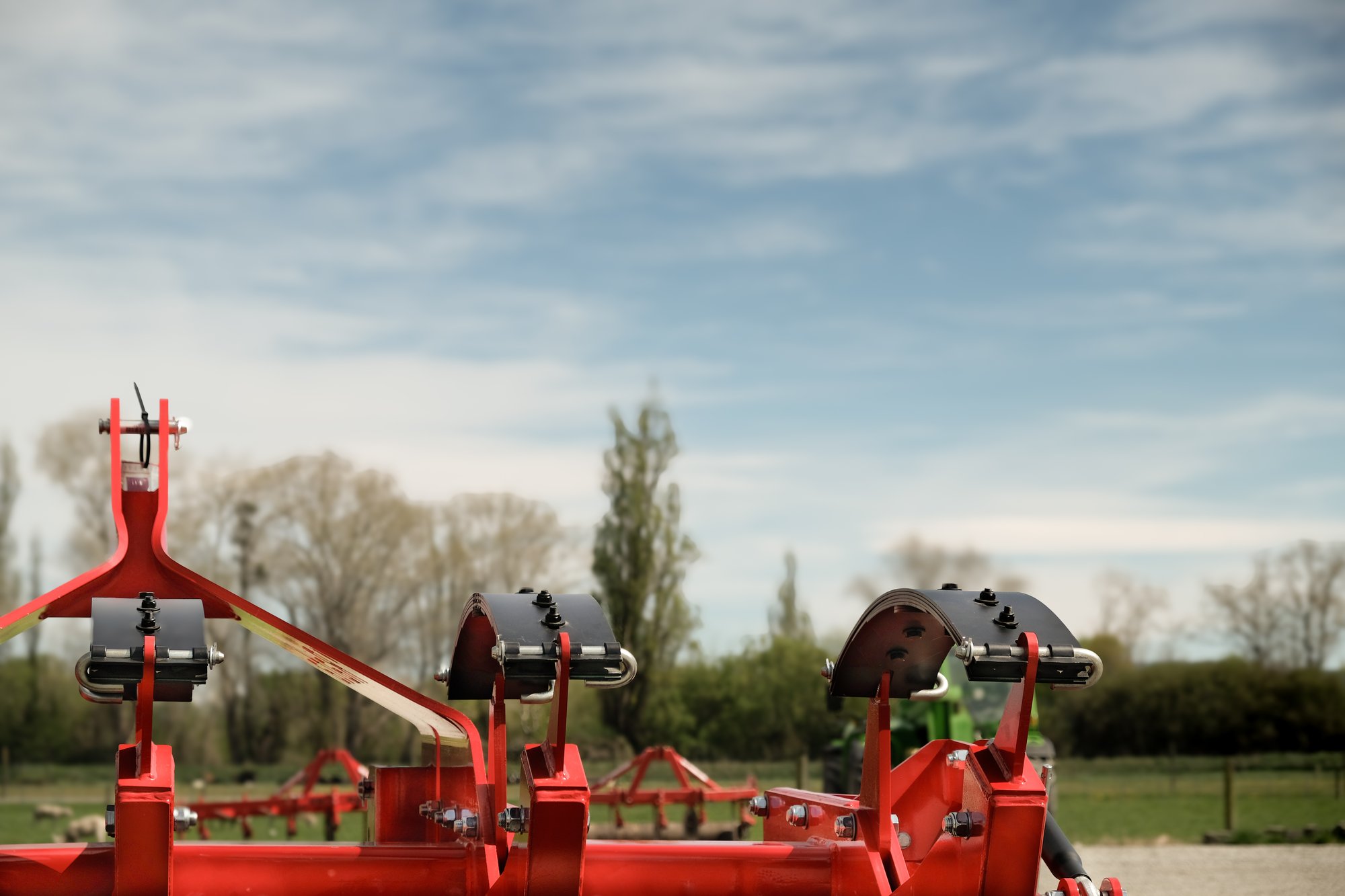

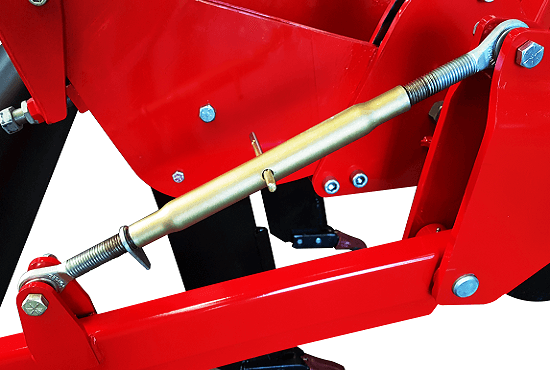

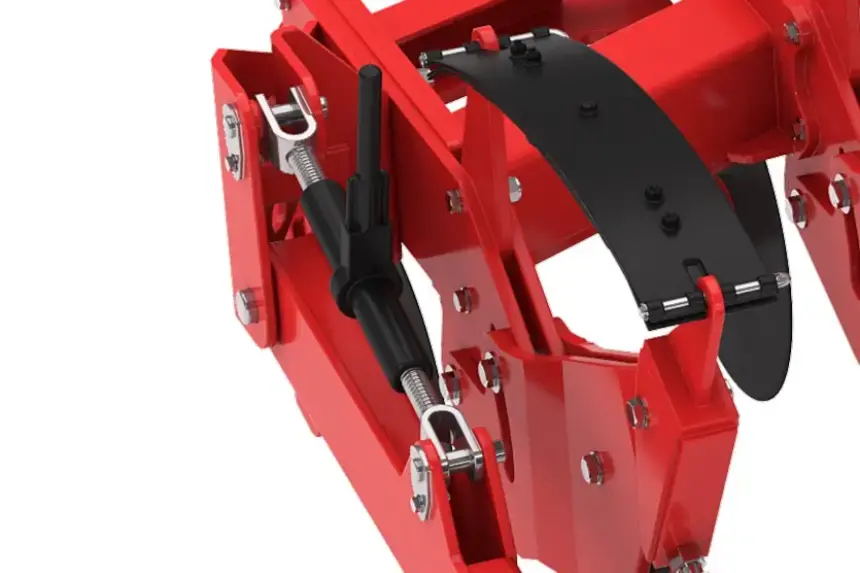

Adjustable tension of reset springs

8 Tension Adjustment

Auto reset leaf spring tension is easily adjusted via the 'tension bolt' mounted on the leg, this enable the operator to adjust the tension to the ideal level required for the ground they're operating in, the tension adjustment spanner is included.

Testimonials

I bought a Rata Panerazer a bit over a year ago & have had great results out of it. Crops seem to get established earlier & also hang on for longer when its dry. We've also found when we have heavy rains & would normally get a bit of scouring... where we've used the Panerazer there's been no run off at all.

I's a great bit of kit!

Tony West, Marlborough Farmer

Dealer Locator

The Auto Reset Panerazer is sold throughout our nationwide network of dealers, find your nearest one today.
