Wrapped Bale Clamp Spare Parts Breakdown

    Maintenance Specifications

    Keep nuts & bolts tight at all time. Grease Regularly.



    Exploded Parts Diagram/s

    WBC001, WBC003

    Bale Clamps (1)

    No. Photo Code Description Notes
    1   WBC-BFRC Back Frame

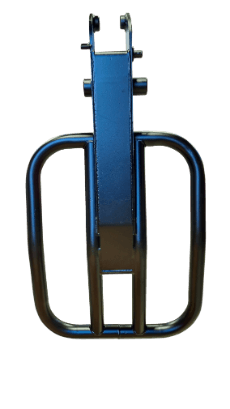

    2   WBC-ARAC-1
    Arms
    		 Also available
    separately
    3 27834
    Bale Clamp Ram

    4   P35-295
    Pivot Pins

    5 WBC-EQBC-2 Equalizer Bar

    6 P25-155 Ram Pins
    7     Hose Kit Please enquire 0800 802 478
