Tractor Bale Slice Spare Parts Breakdown

    Maintenance Specifications

    Keep nuts & bolts tight at all time. Grease Regularly.





    Exploded Parts Diagram/s

    BS180

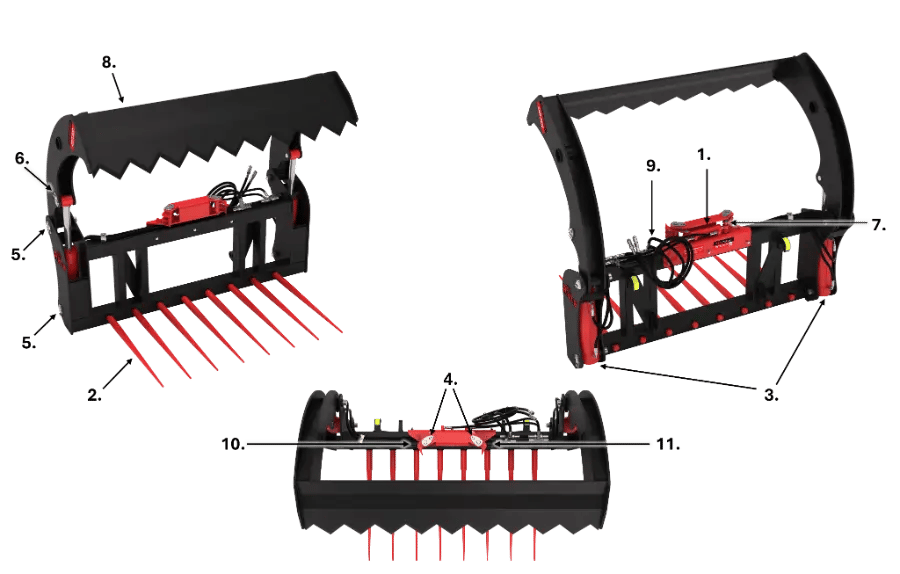

    Bale Slice Parts Breakdown (1)

    No. Photo Code Description Notes
    1   23370 Claw Operating Ram
    2 77017
    980mm Long Forged Steel Tines Conus 2

    3   17978
    Bale Slice Ram

    4   P25-125
    Machine Pins 125mm x 25mm Dia.
    		 x2 required. Used to hold the left and right claw.
    5 P35-190
    Machine Pins 190mm x 35mm Dia.
    		 x4 required. Used for main pivot pin and base of ram.
    6   P35-115BS
    Machine Pins 115mm x 35mm Dia.
    		 x2 required. Used for top/spare head of ram.
    7   P19-75
    Machine Pins 75mm x 19mm Dia.
    		 x2 required. Used for base and top of claw operating ram.
    8   BS180T
    Complete Top Grab/Blade

    9     Bale Slice Hose Kit Please enquire
    10   BSRC-SMKII Right Claw From Tractor
    11   BSLC-SMKII Left Claw From Tractor
