Vogal EX120 Spare Parts Breakdown

All prices RRP, +GST and freight

Also known as Vogal EX200

Maintenance Specifications

Oil:

500ml (or until the gearbox is half full) of 80w-90 gear oil, drain and refill once a year.

Grease:

General Purpose grease, grease points every month, or if the spreader is not being used, once a year.

Tyres:

Inflate to 24 psi and check regularly. Reinflate as necessary.

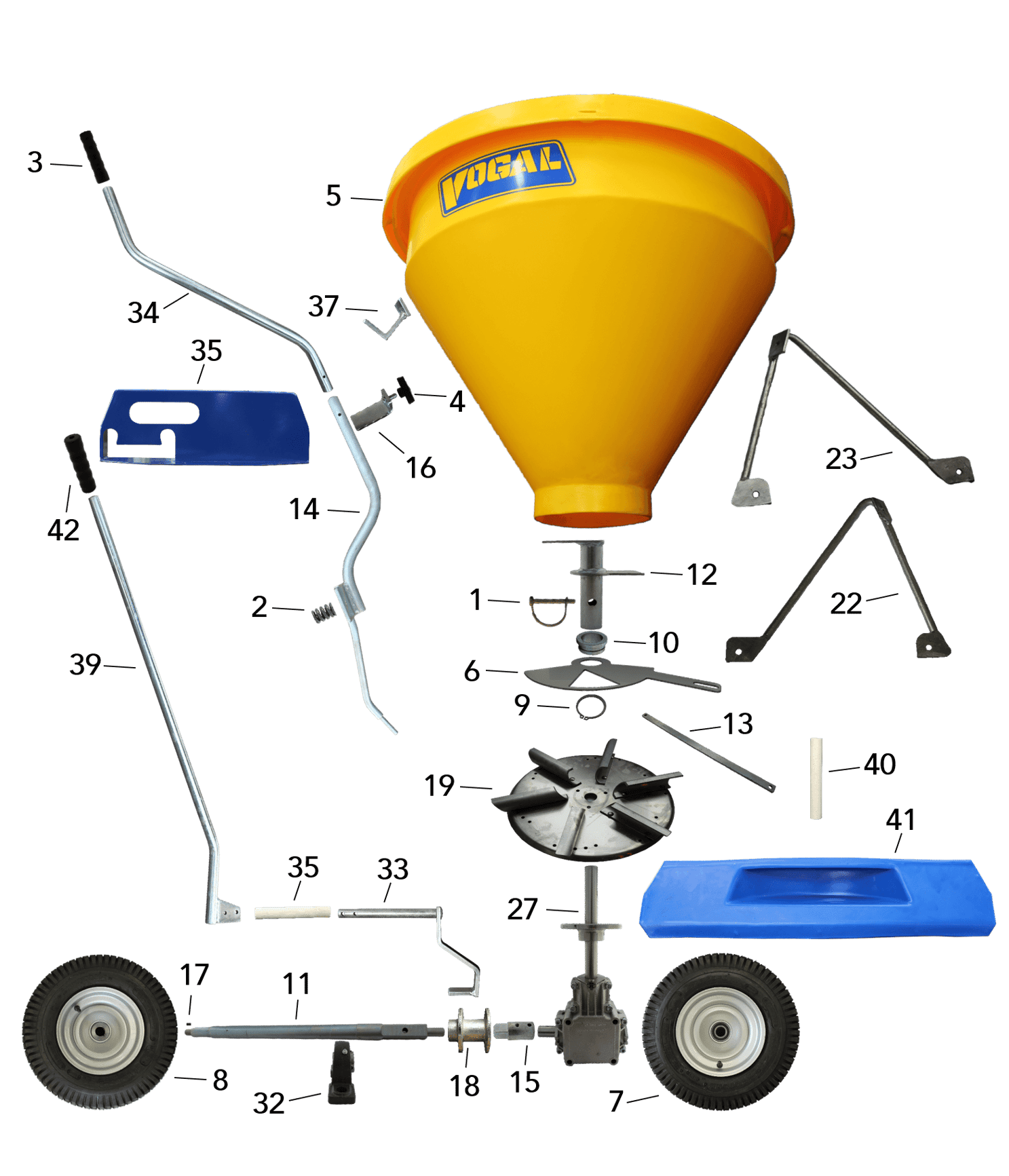

Exploded Parts Diagram

EX120 Exploded View



Table of Parts

No. Photo Code Description Price Notes
1 1093 1093 D Pin $3.00
2 1094 1094 Shutter Lever Spring $6.95

Grease contact surfaces (both ends)

M10x65 bolt and Nyloc Nut with 24x3 Washer

3 1644 1644 Grip Handle 22mm 7/8 PVC Black $6.00 Heat in boiling water for easier install
4 1651 1651 Tri Knob Female 8mm $7.00
5 1800 1800 Hopper and Lid Yellow $286.00 Hoppers and lids also available separately
6 1944 1944 Shutter Plate $26.85
7 2186 2186 Wheel (bearing) $131.00 Attaches to stub axle on frame

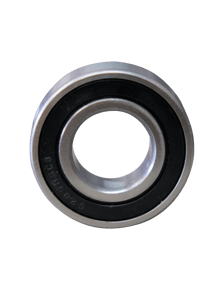

7.1   1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
7.2 Untitled 1876 Wheel Bearing Seal $13.92

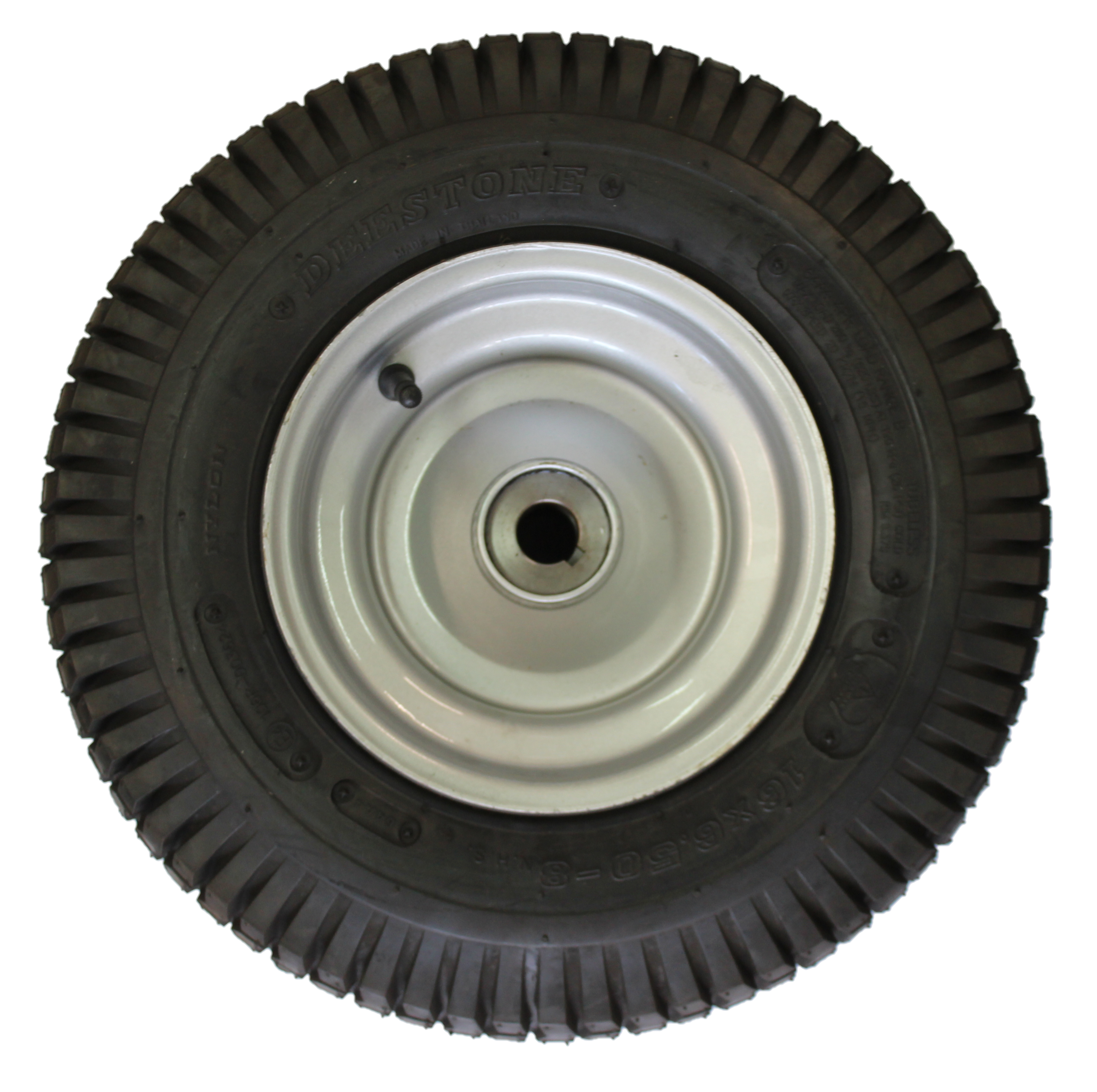

8 2187-1 2187 Wheel (keyed) $137.00 Attached to end of drive axle, will likely also need item SP100-034
9 5042S Slash S 5042S/S Circlip 45mm external S/S $4.50
10 SP100-003 SP100-003 Agitator Bush $27.00 Recommend also purchasing item 5042S/S
11 SP100-007 SP100-007 Drive Axle (New Model) $157.00 Consider also item SP100-016
12 SP100-008 SP100-008 Agitator $35.16 Consider also item SP100-003
13 SP100-011 SP100-011 Towbar Adjuster $35.00
14 SP100-112 SP100-112 Shutter Lever $80.25
15 SP100-016 SP100-016 Drive Stub $62.01
16 SP100-035  33 SP100-035 Pointer $22.20
17 SP100-034 SP100-034 Drive Axle Key $6.00
18 SP100-015  33 SP100-015 Drive Slider Female $58.57
19 SP102-003 SP102-003 Spinner Disc Complete Assembly $158.00
19.1   SP102-005 Spinner Fin $13.00
22 SP100-037 SP100-037 Hopper Side Arm LH $60.00
23 SP100-037a SP100-037a Hopper Side Arm RH $60.00

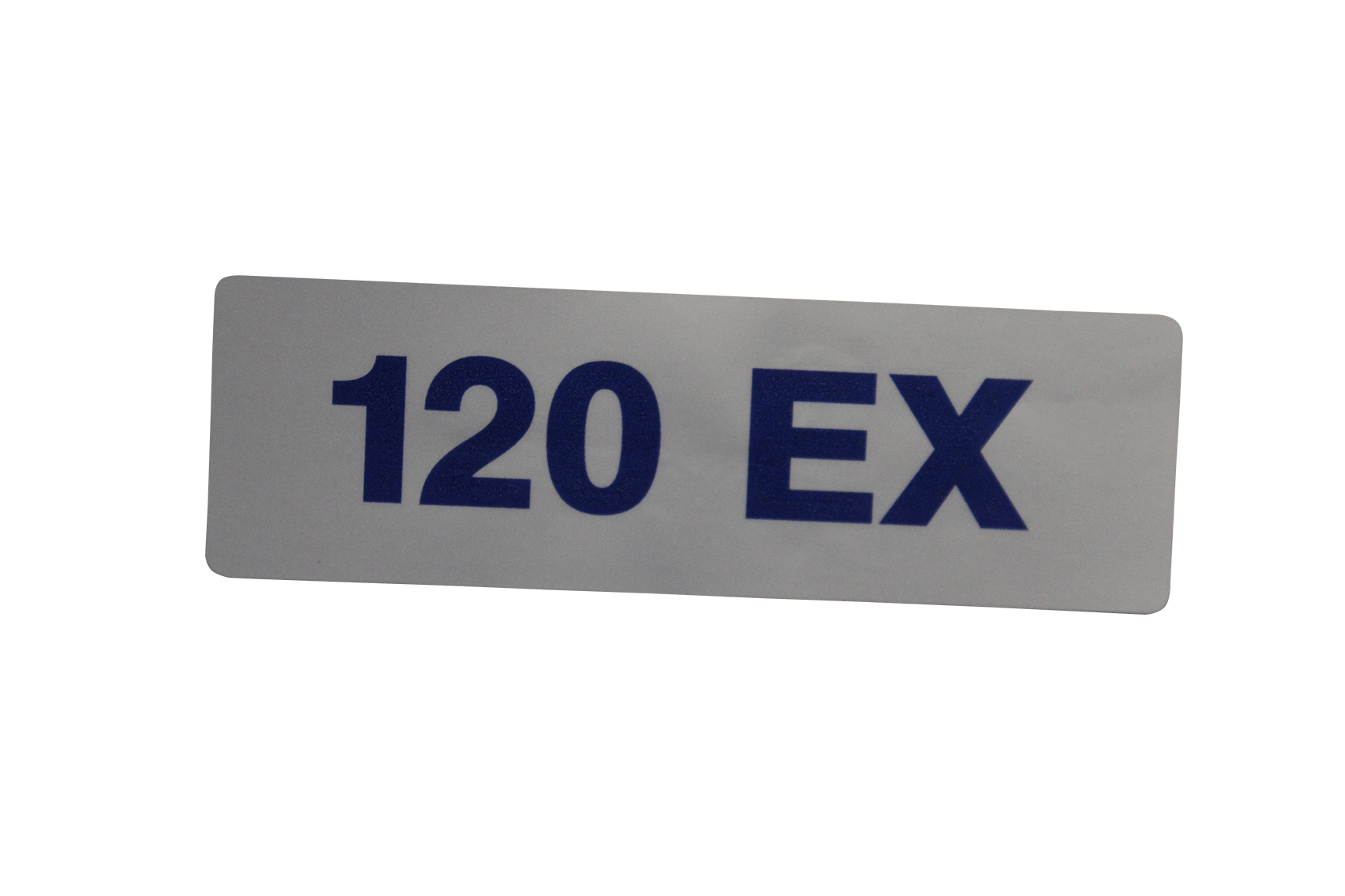

24 3011  33 3011 Decal 120EX $3.69

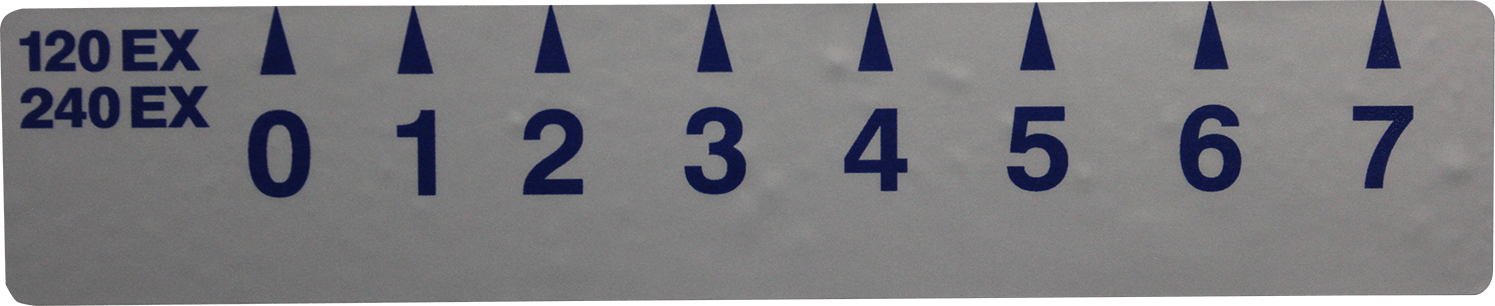

25 1746  33 1746 Decal Shutter Numbers $4.00
26 2715 2715 Serial Number Plate Enquire
27 2120-1 2120 Gearbox Complete Assembly $403.47
27.1   1572 Wheel / Gearbox Bearing $5.49 Standard 6205 bearing
27.2 Untitled-1 1868 Gearbox Seal $7.50
28 1679 1679 Felt Washer $4.20 Oil soak before install

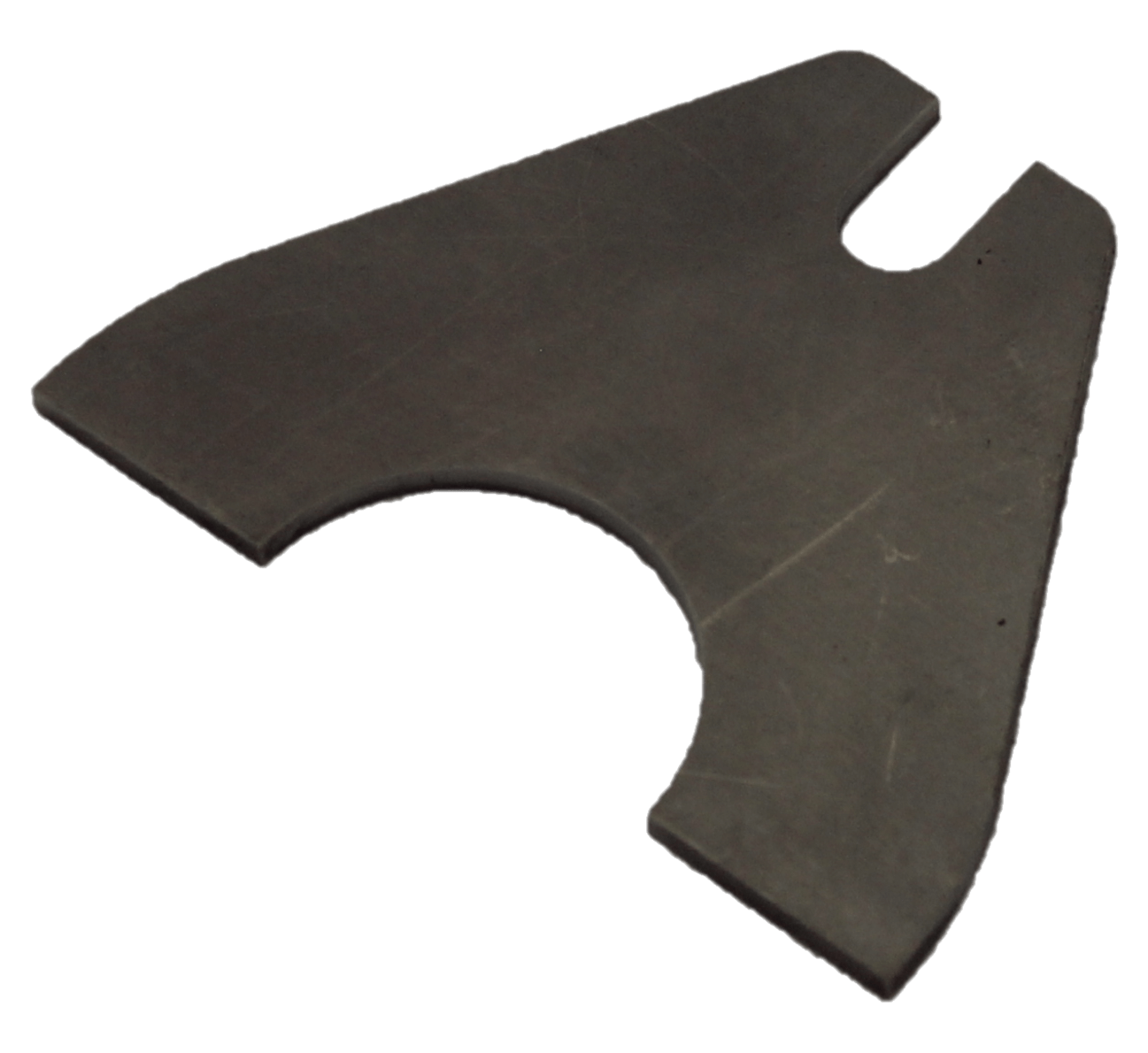

29 1901 1901 S/S Shaft Guard $2.00
30 RATA30 RATA30 Vogal Warranty Sticker Enquire
31 M SX120 M EX120 EX120 User Manual Enquire
32 1846 1846 UCP206 30mm Bearing & Housing Set $25.50
33 SP100-014 SP100-014 Drive Operating Lever $76.00
34 SP100-030 SP100-030 Shutter Lever Extension $32.00
35 SP100-033 SP100-033 Drive Engage Liner Tube $6.00
36 SP100-036 33 SP100-036 Index Box $97.00

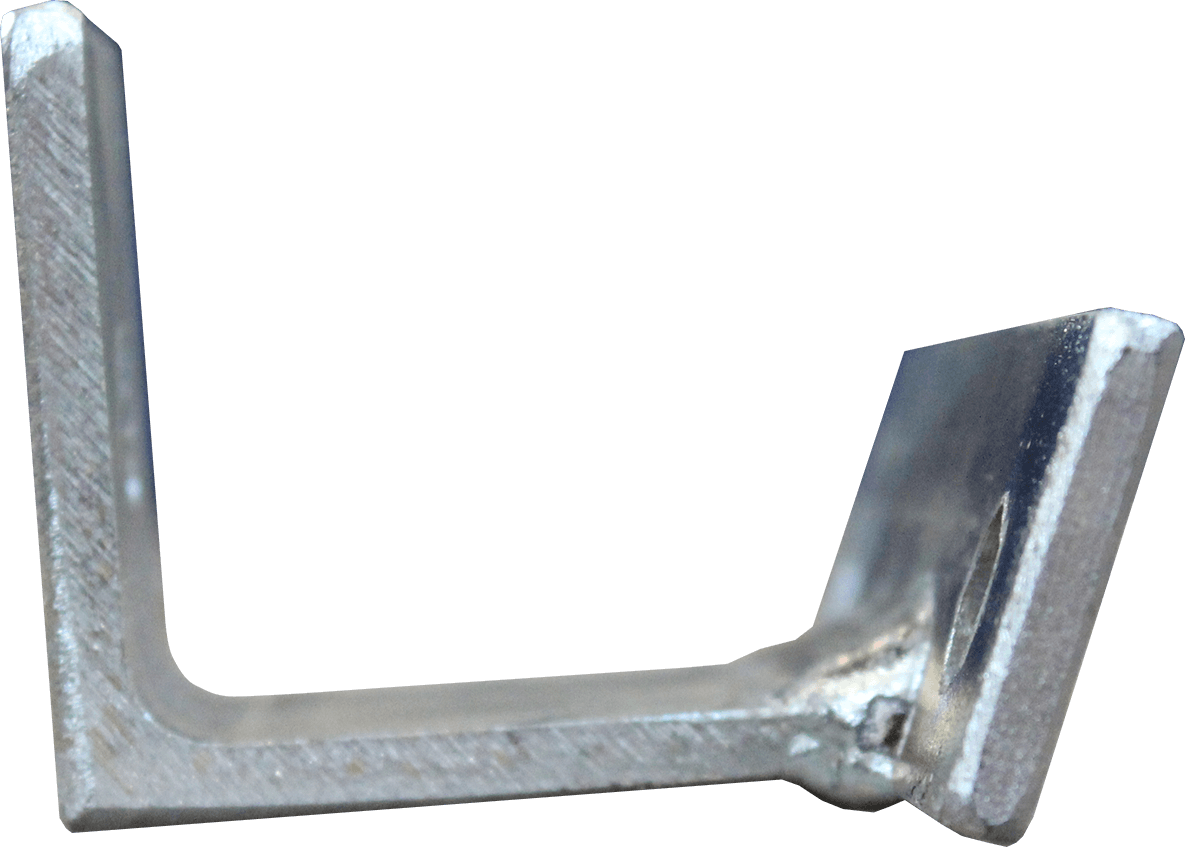

37 SP100-038 SP100-038 Front Hopper Bracket $34.00

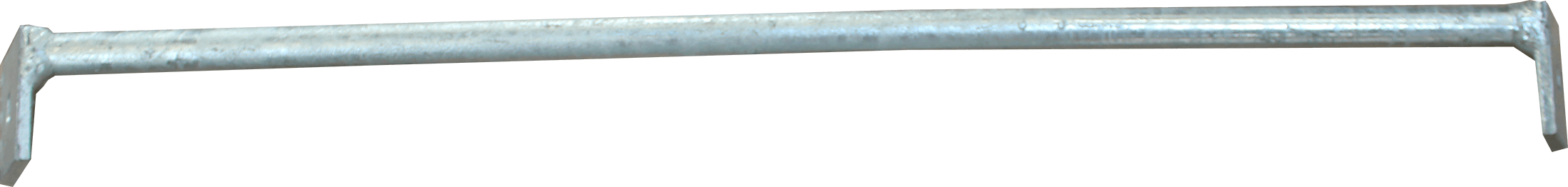

38 SP100-041 SP100-041 Hopper Cross Stay $60.25
39 SP100-113 SP100-113 Drive Handle $36.00
40 SP136-029 SP136-029 Tow Bar Bush Liner $5.00
41 1810  33 1810 Spinner Shield Blue $84.00
42 1645 1645 Grip Handle 25mm $6.00
