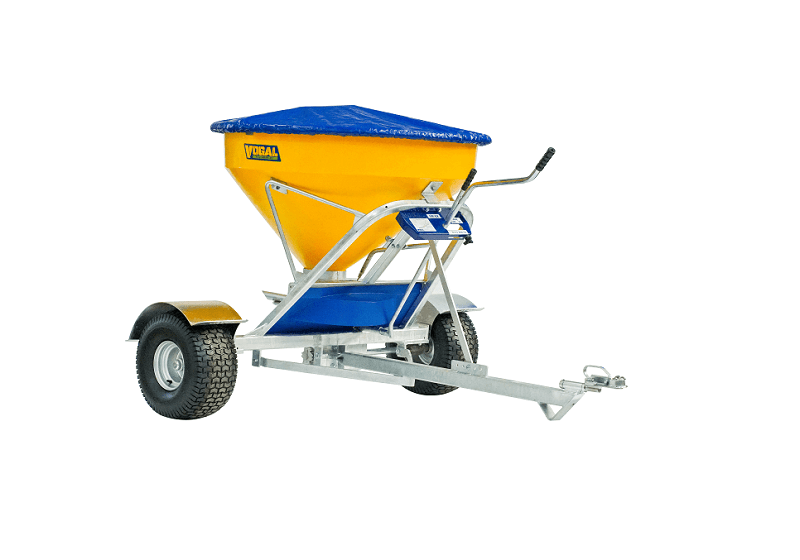

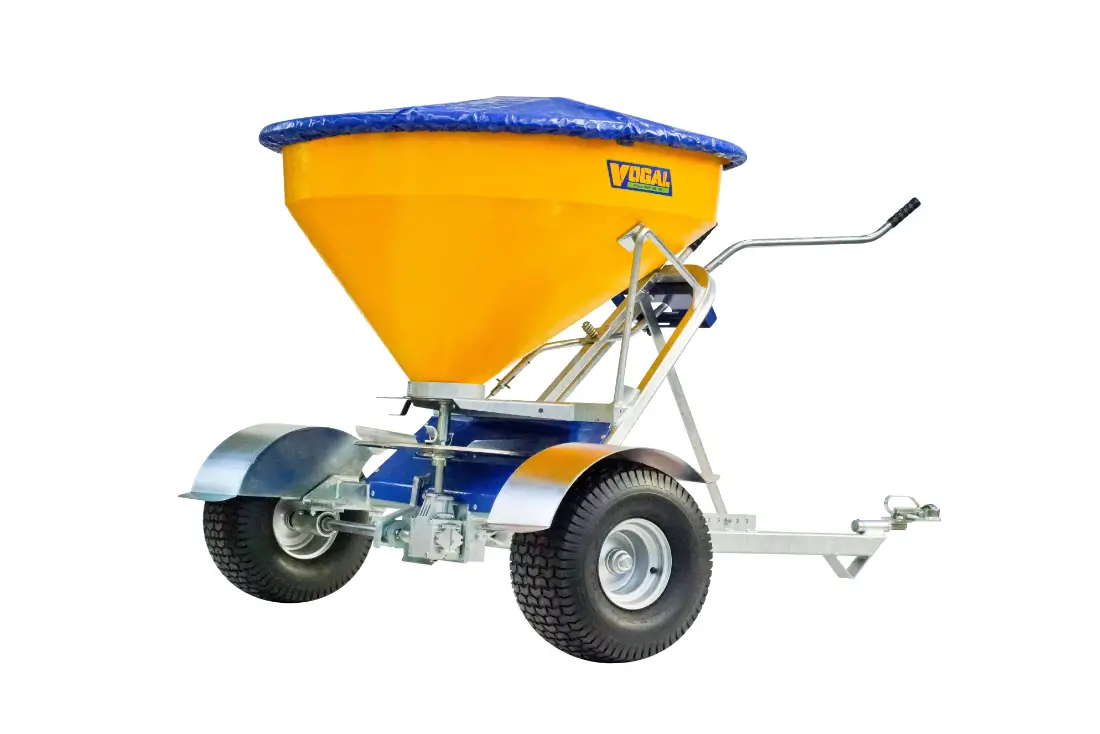

Spreadmax EX500

The EX500 is the ultimate in ATV and quad bike tow-behind fertiliser spreaders. It features a double shutter plate to regulate the spread pattern to the left or right by altering the fertiliser drop position - this is a feature normally reserved for larger bulk spreaders.

The flagship of all ATV fertiliser spreaders

Product Image Gallery

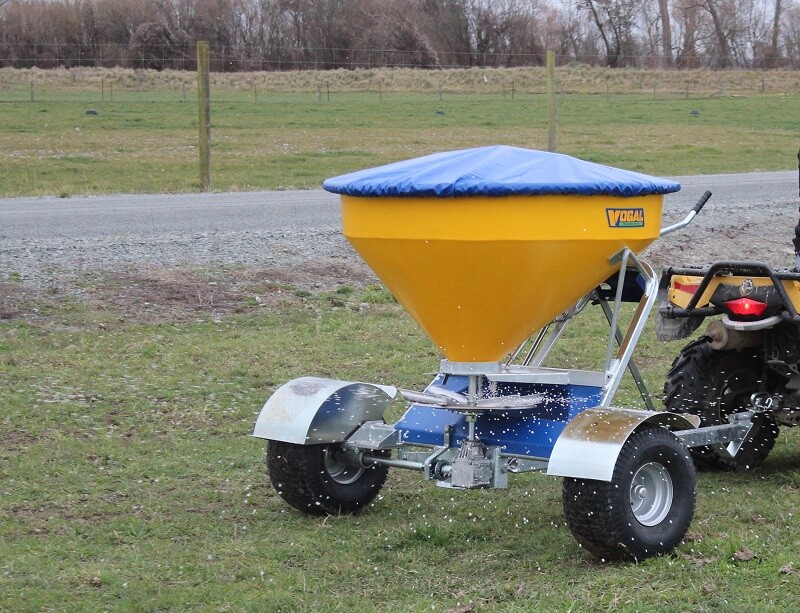

Vogal EX500 fertiliser spreading behind a quad bike in a paddock

Product Video Gallery

View the EX500 Product Flyer

Specifications

Model (Code)	Capacity	Max Spread Width	Dry Weight	Overall Width	Loading Height
795.EX500	500L (360kg Urea)	Causmag: 3m Urea: 15m	134kg	1,800mm	1,350mm

Features & Benefits

Easy Lock drive system on EX500

1 Easy Lock Drive

Vogal EX500 spreaders feature the 'Easy Lock' drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider

Double shutter on Vogal EX500 atv quad bike spreader for fertiliser

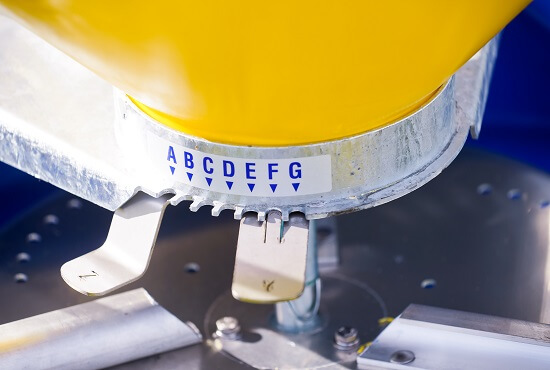

2 Double Shutter

Dual shutter plates mean the fertilisers drop position can be adjusted to skew the spread more to the left or right hand side, this gives the operator the ability to compensate and aid accurate delivery of a large range of fertilisers in any conditions.

Adjustable Spinner fins on Vogal fertiliser spreader

3 Adjustable Spinner Fins

Vogal EX500 spreaders feature 3 spreading fins on the spinner disc, these fins are adjustable to enable fine adjustments to the spreading width and pattern.

RATA Spreader Aperture Detail - 4K Screen Res 003 - 9754

4 Dual Triangular Apertures

Dual triangular apertures enable the even spreading of a vast arry of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

Removable agitator on Vogal spreaders

5 Removable Agitator

Vogal EX500 features this removable agitator that's secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.

Swivel tow coupling on Vogal fertiliser spreader

6 Swivel Tow Coupling

EX500's feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.

Heavy duty hopper of Vogal Spreader

7 Heavy Duty Hopper

Vogal Spreadmax EX500 hoppers are made from thick heavy duty UV resistant plastic to hope with the harsh extremes in the New Zealand environment and are internally braced with solid galvanised steel bars.

Bracing and gusseting on Vogal Spreaders

8 Heavy Duty Build

Vogal EX500 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.

Oil soaked washer on Vogal atv and utv spreader

9 Gearbox Protection

Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox

Adjustable draw bar on Vogal spreader

10 Adjustable Drawbar

Vogal EX500 fertiliser spreaders feature an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

Galavansed Mudguards on Vogal fertiliser spreader

11 Galvanised Mudguards

Galvanised steel mudguards are included as standard on the Vogal EX500 fertiliser spreader, these mudguards are manufactured from plate steel for durability and galvanised for protection against corrosion.

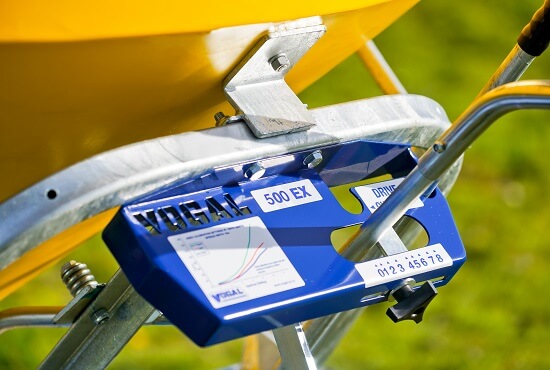

RATA Spreader 500EX - 4K Screen Res 006 - 5346

12 Index & Control Box

All controls and adjustments for the EX500 spreader are located at the front in and easy to use Index and Control box. This includes a quick reference guide for spreading rates and settings along with the aperture and spinner control levers

Options

V117a CC

1 Easy Spread

The Easy Spread controller is an optional extra 12V electric actuator system enabling for quick spread rate selection and actuator control from the seat of your atv, utv or other vehicle. Simply 'dial and go'

V106a

2 Side Chute

This optional side chute attachment allows the EX500 to band spread - particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
