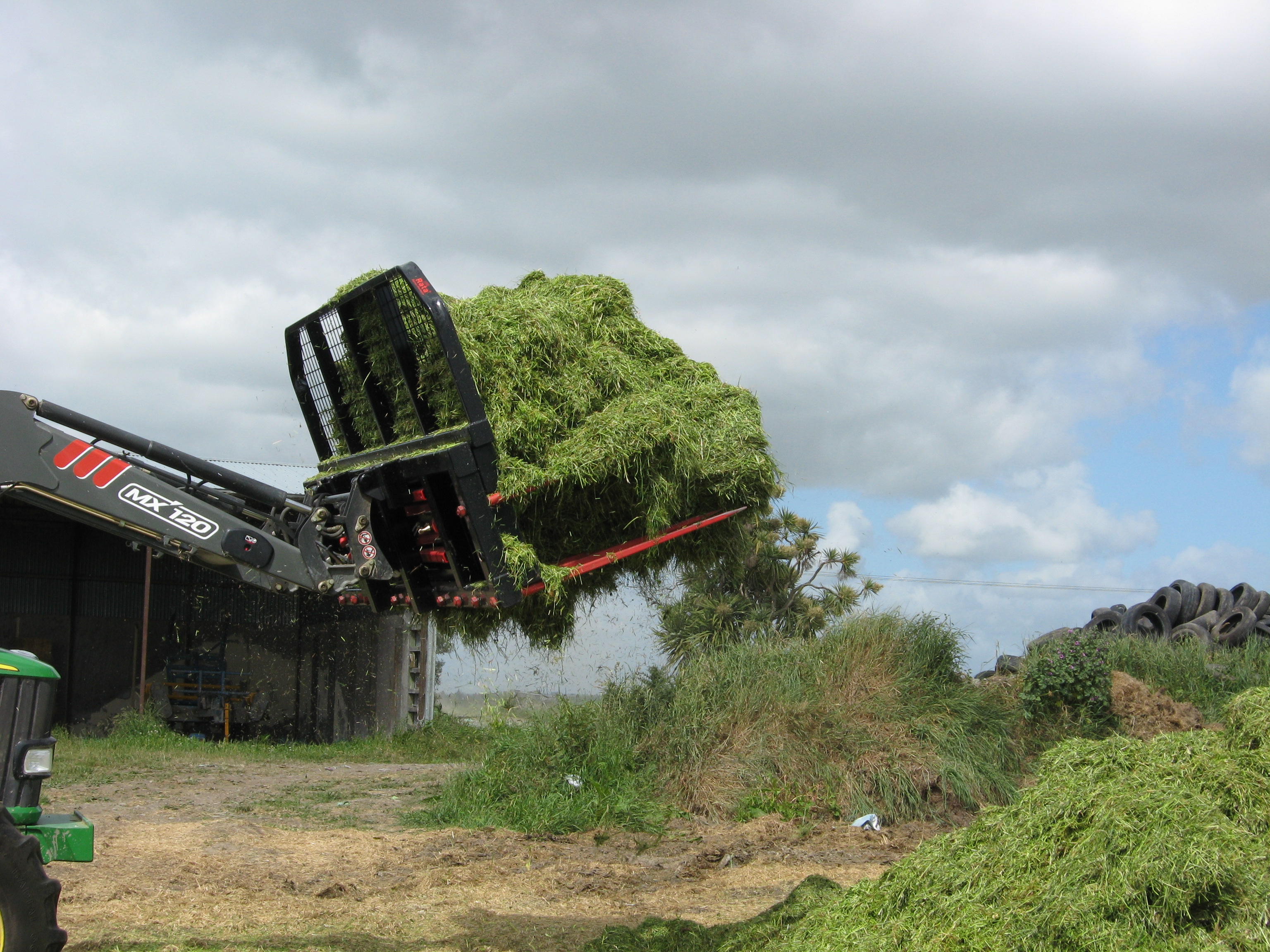

IMG_0449

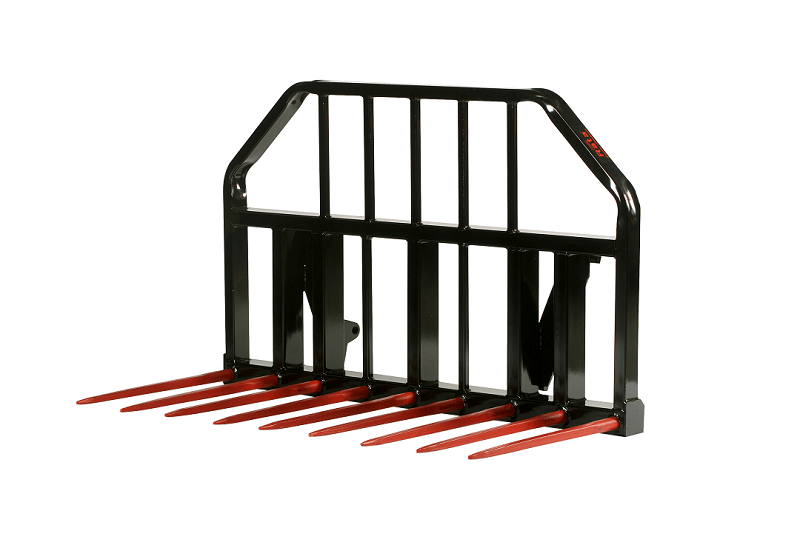

    Silage Forks

    Our silage forks are manufactured from high strength steel, with a Hi - build enamel paint finish. Tines are forged spring steel with a welded conus 1 taper sleeve bush. The open back frame with vertical bars gives excellent vision of the material that's being handled.

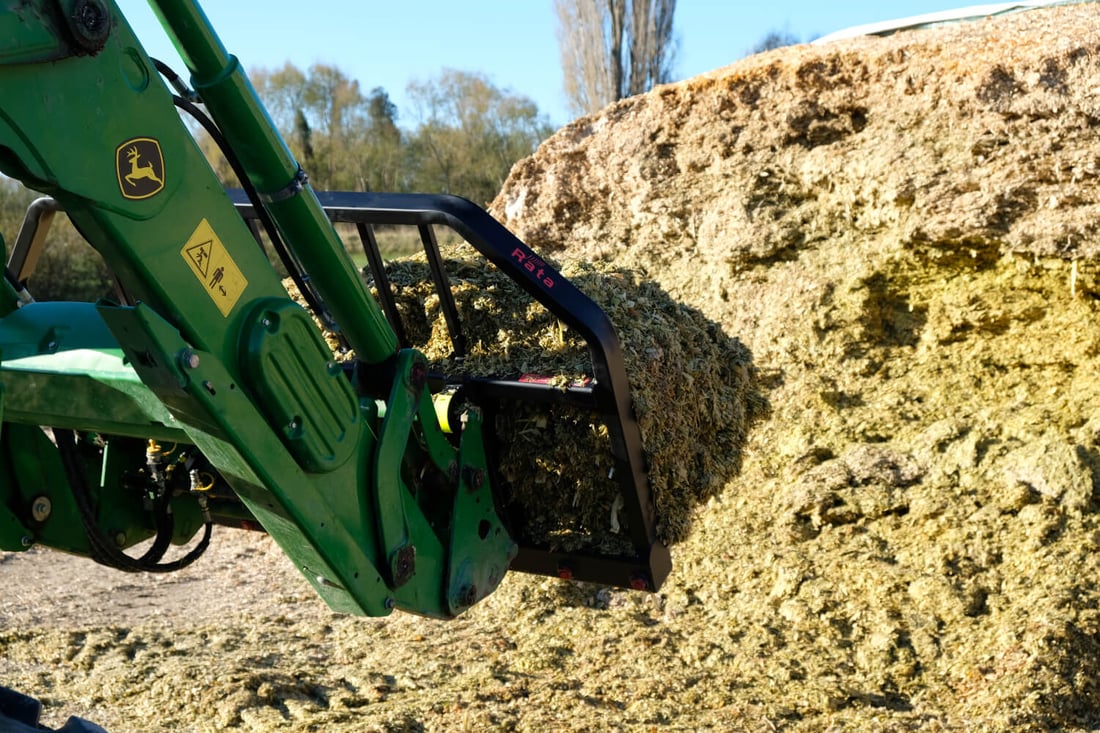

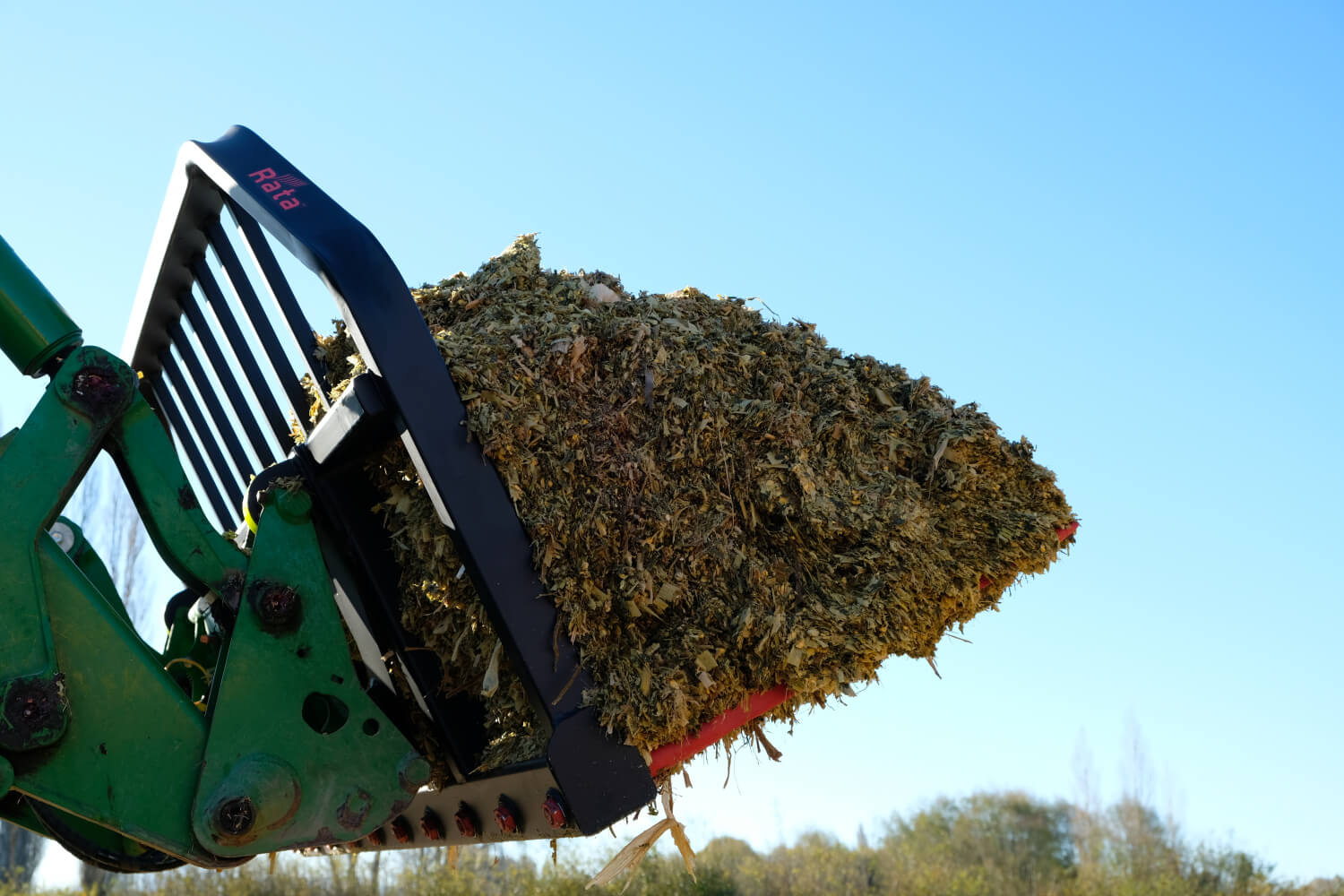

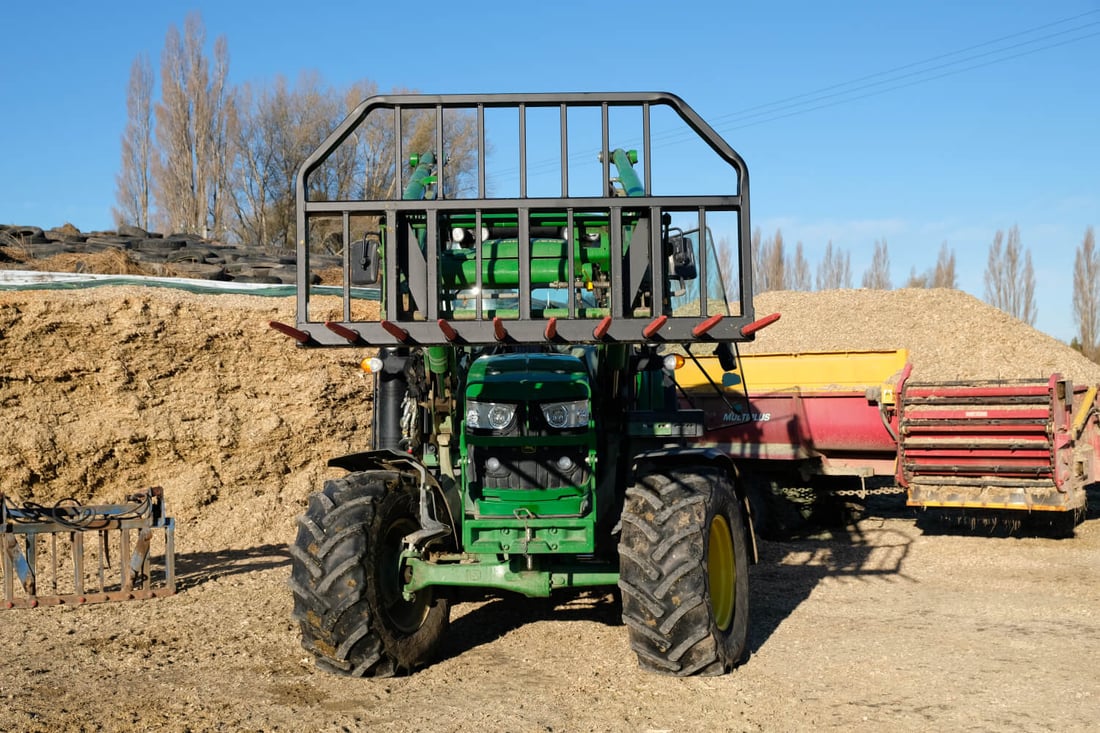

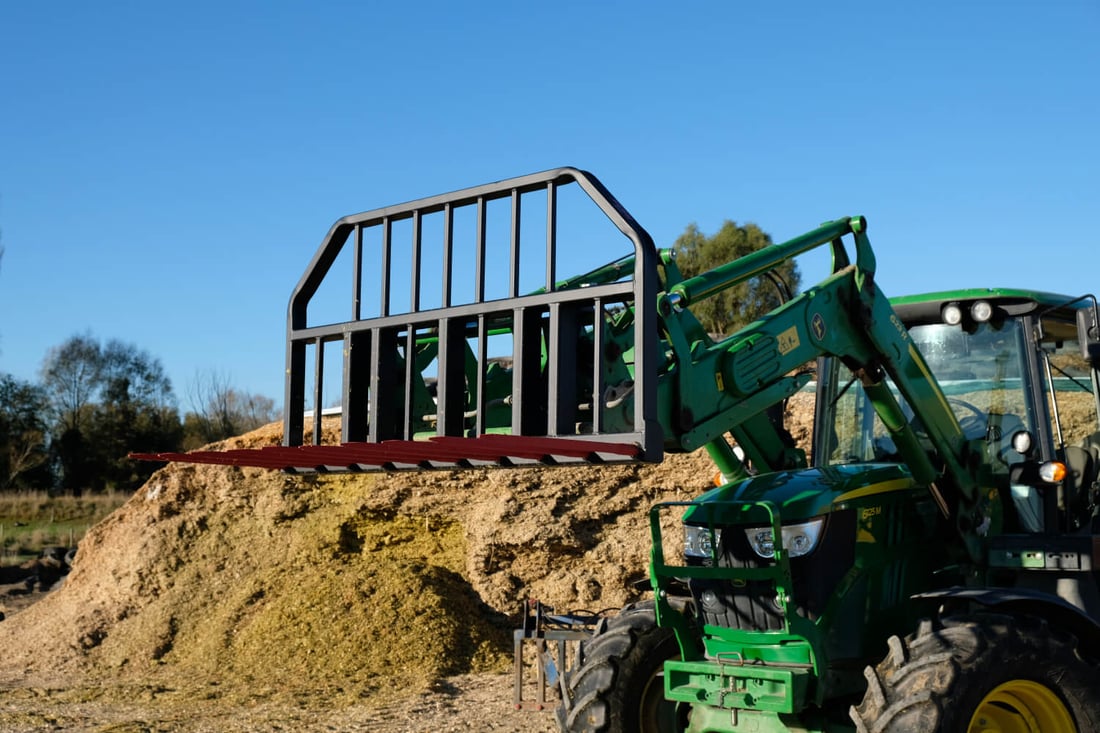

    Rata manufactures these silage forks to fit almost any front end loader or material handler. Silage forks are ideal for handling pit silage and light tree prunings. Larger sizes, up to 3.0m wide are also avaliable for telehandlers and large loaders.

    QUOTE REQUEST

      What Are The Silage Forks?

      7334e36a-redtick_1000000000000000000028High tensile steel7334e36a-redtick_1000000000000000000028Tines are forged spring steel with a welded conus 1 taper sleeve bush7334e36a-redtick_1000000000000000000028Excellent vision

      Rata Silage Forks are designed with an open back frame with vertical bars gives excellent vision of the material that is being handled.

      Rata manufactures these silage forks to fit almost any front end loader or material handler.


      Genuine stamp

      Original design resulting from years of testing, feedback, and improvement.

      ‘Having been perfected in more than 20yrs of manufacturing, the principal mistakes that you don’t think about when purchasing have already been eliminated’.

      QUOTE REQUEST

      Specifications

      Model (Code) Width (m) Tine Details
      SF120 1.20 x7 conus 1 810mm
      SF150 1.50 x9 conus 1 810mm
      SF180 1.80 x10 conus 1 810mm
      SF200 2.00 x11 conus 1 810mm
      SF220 2.20 x12 conus 1 810mm
      SF240 2.40 x13 conus 1 810mm
      SF300 3.00 x16 conus 1 810mm
      SFST Side Tines x2 conus 1 600mm

      Features & Benefits

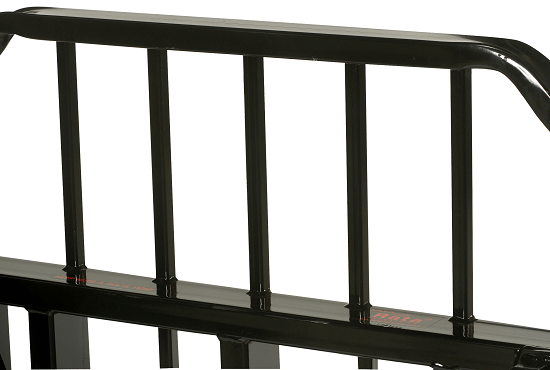

      Vertical bars give excellent vision of the Rata Silage Fork

      1 Excellent Vision & Retention
      Vertical rear bars of the back frame provide excellent vision for the operator whilst retaining the product on the fork, this is particularly handy when using it to make a silage stack or pick up hedge trimmings.

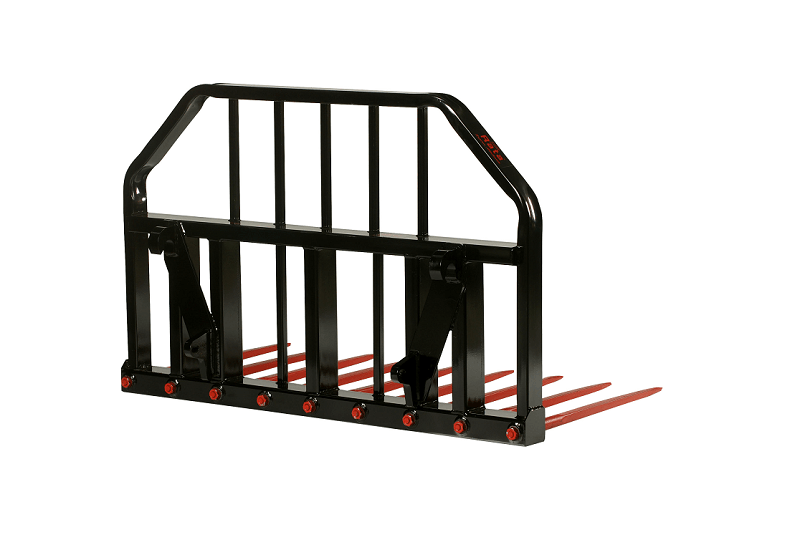

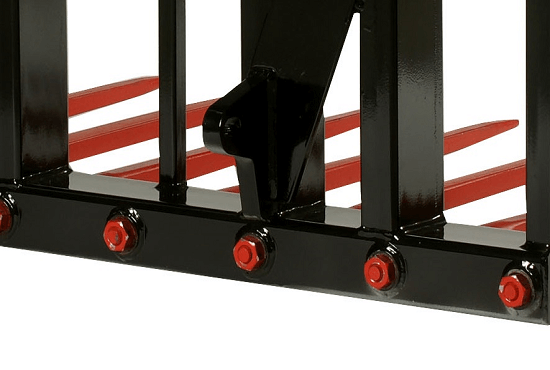

      Rata Silage Fork tine base

      2 Excellent Tine Support
      Tines on Rata Silage Forks are high quality German produced silicium spring steel, these tines are also supported in the fork base by a tapered conus bush, this prevents slogging in the base and provides maximum tine support.
