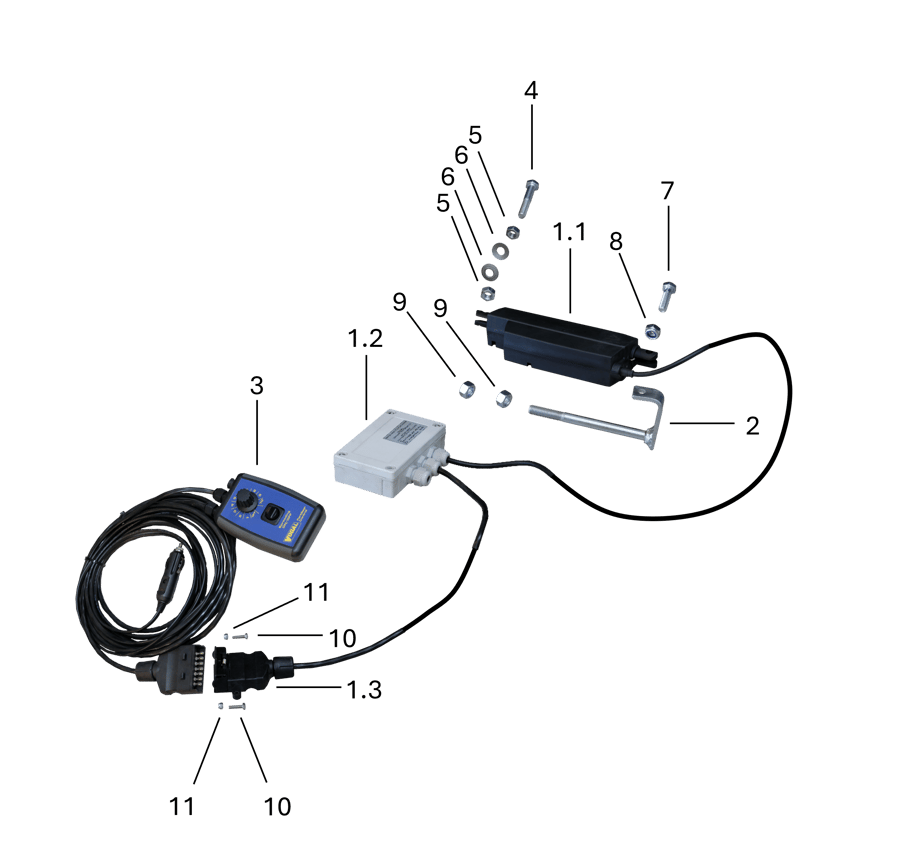

Vogal Easyspread 12 Volt Electric Shutter Controller Assembly

Number

Part Number

Description

Notes

1

V114E

Spreadmax Electronic Shutter Control Assembly

Includes Part Numbers V117, 202032 & V117F

1.1

V117

12 Volt Electric Shutter Actuator

Available Separately

1.2

202032

Servo Controller with housing (programed with Rata Industries specifications)

Available Separately

1.3

V117F

Wiring for Electronic Shutter Control Assembly

Available Separately

2

V117B

Electric Shutter Actuator Mount

3

V117C

Hand Controller

4

4377

M10x60 Bolt Zinc

1x req.

5

4352

M10 Nut S/S

2x req.

6

4411

M10 Washer Friction Lock ZP

2x req.

7

4365

M10x35 Bolt Zinc

1x req.

8

4353

M10 Nut Nyloc Zinc

1x req.

9

4452

M12 Nut Zinc

2x req.

10

4104

M4x16 Bolt S/S

2x req.

11

4100

M4 Nyloc Nut

2x req.
