Maintenance Specifications

Keep nuts & bolts tight at all time. Grease Regularly.

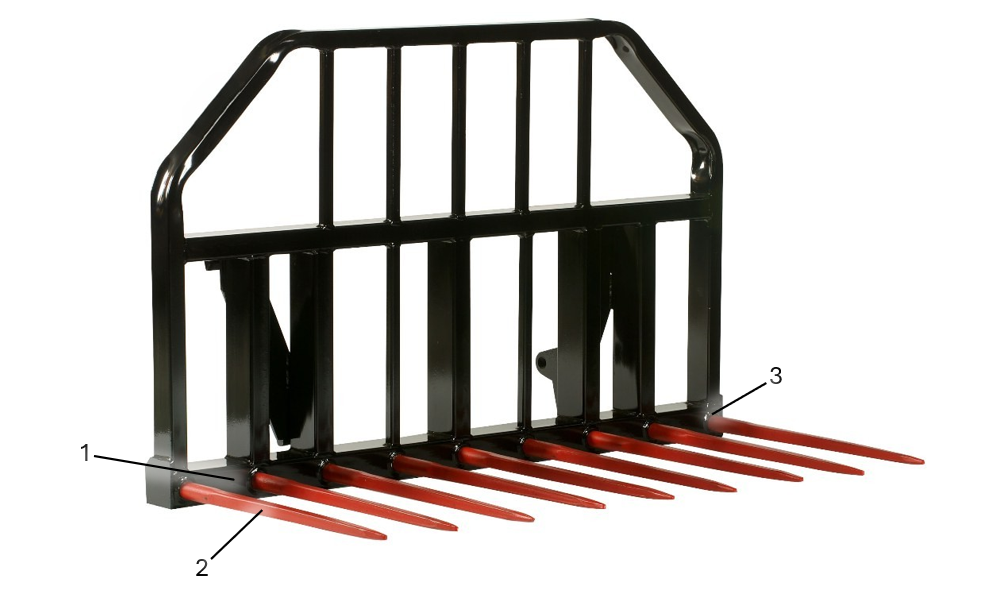

Exploded Parts Diagram/s

No.	Code	Description	Notes
1		3.0m Silage Fork Base Kit	Please enquire
1.1		2.4m Silage Fork Base Kit	Please enquire
1.2	S200BK	2.0m Silage Grab/Fork Base Kit	To suit 2m Silage Fork
1.3	S180BK	1.8m Silage Grab/Fork Base Kit	To suit 1.8m Silage Fork
1.4	S150BK	1.5m Silage Grab/Fork Base Kit	To suit 1.5m Silage Fork
1.5	S120BK	1.2m Silage Grab/Fork Base Kit	To suit 1.2m Silage Fork
2	77001	Tine 820mm forged steel Conus 1	SF300 (16x req.) SF240 (13x req.) SF200 (11x req.) SF180 (10x req.) SF150 (9x req.) SF120 (7x req.)
3	14902	Cone - 115mm long Conus 1 Silage Cone	SF300 (16x req.) SF240 (13x req.) SF200 (11x req.) SF180 (10x req.) SF150 (9x req.) SF120 (7x req.)

Please fill out the form and enter the part number/s you need. We'll get back to you shortly to arrange payment and dispatch.
