Yard Scraper Spare Parts Breakdown

    Maintenance Specifications

    Keep nuts & bolts tight at all time. Grease Regularly.

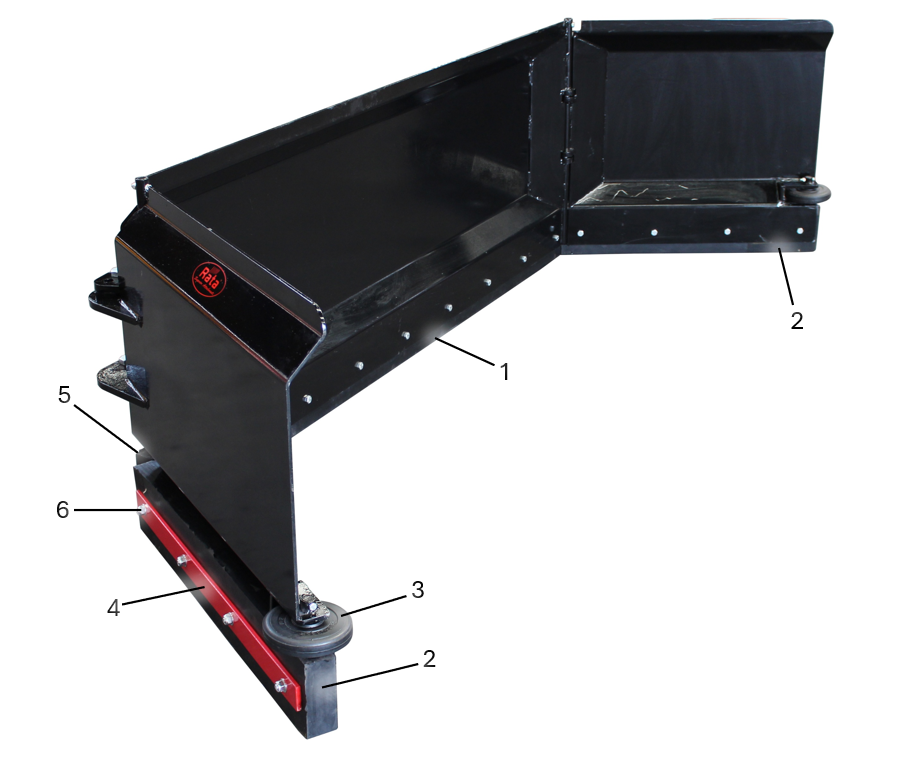

    Exploded Parts Diagram/s

    YS324

    No. Code Description Notes
    1 YS2050 Yard Scraper Rubber Blade 150 x 20 x 2050mm drilled 2x required for center section
    2 YS880 Yard Scraper Rubber Blade 150 x 20 x 880mm drilled 4x required for wing sections
    3 LWLSR150 150mm rubber Yard Scraper side wheel 2x required.
    4 YS007 Yard Scraper wing section rubber support 2x required.
    5 YS006 Yard Scraper centre section rubber support
    6 4479 (Bolt) & 4453 (Nut)

    M12x70 Bolt Zinc &
    M12 Nut Nyloc Zinc

    		 17x Bolts & Nuts required.
