Maintenance Specifications

Tine Nuts:

Keep tight at all times & check regularly. Warranty void if tines are not kept tight at all times.

Exploded Parts Diagram/s

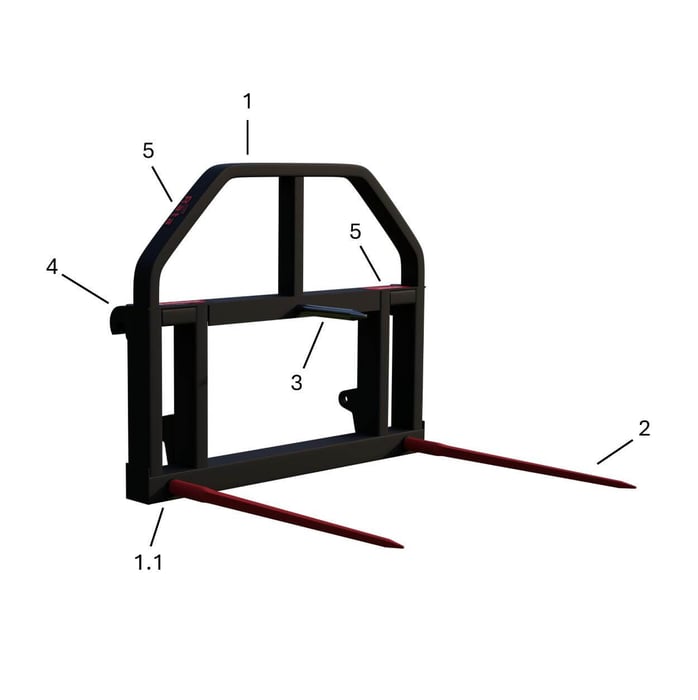

Bale Fork Breakdown (1)

No.	Photo	Code	Description	Notes
1		BF -FREU	Bale Fork Frame Only No Tines With Euro Hitch	c/w x2 Conus 2 cones welded in
1.1		1841	Cone - Bale 115mm Long Conus 2	x2 required
1.2		BF110BK	1.1m wide Bale Fork Base Kit - Tines not included	To suit BF110
1.3		BF120BK	1.2m wide Bale Fork Base Kit - Tines not included	To suit BF120
2		77017	Tine 980mm long forged steel conus 2	Overall length
2.1		77035	Tine 1100mm long forged steel conus 2	Overall length
2.2		77018	Tine 1240mm long forged steel conus 2	Overall length
2.3		77016	Tine 800mm long forged steel conus 2	Overall length
3		Cnt Tine	Bale fork Centre Tine 400mm long, 32mm dia	Attaches with Lynch Pin (1092) & Felt Washer (1679)
3.1		1092	Lynch Pin 11mm B6	For Cnt Tine
3.2		1679	Felt Washer 52x25x2	For Cnt Tine
4		RATA24	Flouro Yellow sticker 100mm x 35mm	For Euro Hooks
5		RATA50	Bale Fork and Silage Fork Decal Kit
